HX3001S-1080H34D1A-38-B
2MP HD Camera module · IP Camera Module
- Производитель:
- Haixin Weishi
- SoC:
- GK7205V200
- Сенсор:
- IMX307
- В каталоге с:
- 2025
Haixin Weishi
2MP HD Camera module
The 2MP low lux HD 38 camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support standard ONVIF protocol, RTSP, support uploading alarm images to FTP server, sending alarm images to E-Mail, and remote monitoring with mobile phones.
Особенности
- High sensitivity, high S/N CMOS image sensor
- Using GK7201V200
- The highest pixel can reach 200W, and the highest resolution can reach 1080P (1920x1080)
- H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support mobile
- phone monitoring
- Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, DHCP, DNS, NTP, UPNP, RTSP
- and so on.
- Support ONVIF protocol
- Support sending alarm images via email
- Support uploading alarm pictures and alarm videos to FTP server
- Support timed capture of images to FTP server
- Support both static IP and dynamic IP (DHCP)
- Support P2P Plug and Play
- Support Humanoid detection
- Support IE, Google, and Firefox browsers
- Support up to 6 users browsing simultaneously (3 users per stream)
- Provide motion detection alarm function (area, sensitivity can be set)
- Support Micro SD card, max 128GB Micro SD card
- Support APP downloading and replaying SD card recordings
| Main processor | GK7205V200 |
|---|---|
| Image sensor | 1/2.9”CMOS sensor |
| IR-cut | support |
| Video compression | Support H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
| Audio compression | G.726/G.711 |
| Maximum image size | 1080P(1920x1080) |
| Main stream | 1080P（1920x1080） |
| Sub stream | 640x352 |
| Frame rate | 1080P 25fps(50HZ), 30fps(60HZ) |
| Motion detection | 4 independent detection areas can be set (sensitivity 1-100 can be set) |
| Human detection | support |
| ONVIF | Support ONVIF 2.4 protocol |
| Wi-Fi | WiFi 802.11b/g/n Wireless network interface |
| Size | 38x38x9mm (length, width and height） |
| Temperature and humidity | 0℃～+50℃ 10%～95%RH |
| Power supply | DC12V 1A |
| Power consumption | 1.2W |
| PCB marking | 7205V2_307DAF_1.0 |
| Sensor (from the PCB marking) | IMX307 |

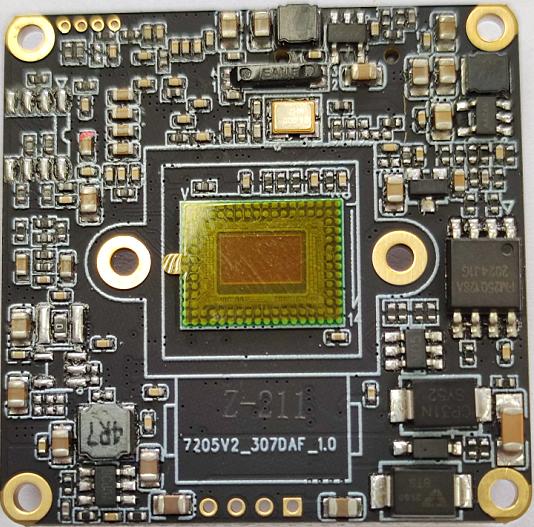

Фото
