H2M
3MP Dual-band Network High-Definition Camera Module · IP Camera Module
- Производитель:
- Ruision
- SoC:
- HI3516CV608
- В каталоге с:
- 2026
Ruision
3MP Dual-band Network High-Definition Camera Module
3MP smart full color / smart dual light；Human/Vehicle detection, smart application；32*32 module，ultimate heat dissipation
Особенности
- 1/3 inch HD CMOS
- Support H.264, H.265, H.265+ compression format
- Support dual bitstream output simultaneously
- ISP built-in 1T comp-utility NPU, device built-in AI algorithm large mode
- Support human&vehicle shape detection，linkage strobe and audible alarm；
- Alarm sound supports customized and text to speech
- Support alarm_out, enable linkage red&blue light for alarm
- Support audio_in/out, two-way-talk, audio & video synchronization
- WEB 2.0 page, support Edge, Chrome, Safari, Firefox browsers, etc.
- Support D-WDR, 3D-NR
- IP address self-adaptive
- Support ONVIF protocol, enable to work with the 3rd party NVR
- Support image mask occlusion, protect privacy area
- Support OSD overlay function and multiple OSD line；
- Support network timing function
- Support to connect external POE module
| Day & Night | Smart dual light, full color mode, IR |
|---|---|
| Image Adjustment | AWB, DWDR, BLC, Brightness, Contrast Ratio, Chroma adjustable, etc |
| Privacy Mask | Support |
| Mirror | Support |
| OSD | Support OSD setting and drag OSD |
| Electronic Fence | Support human/vehicle shape detection, devices will trigger alarm once enter alert area, multiple alarm rules |
| Voice Alarm | Support voice broadcast and voice content customized |
| IO Alarm | Support；enable linkage red&blue lights alarm |
| NVR Linkage | Support NVR big screen, local voice, AI recording, notification push, etc. |
| Code | H.264，H.265, H.265+ |
| Resolution | Main：3MP(2304*1296)/2MP(1920*1080); Sub：448P(800*448)/D1(704*576)/360P(640*360)/ CIF(352*288) |
| Ethernet | RJ-45 10M/100Mself-adaptive |
| Protocol | ONVIF，P2P，CGI，HTTP，TCP/IP，IPv4，RTSP，UDP，NTP，DHCP，DNS，IP Filter; ONVIF/Private/CGI |
| Client | NVR / Computer：EasyVMS |
| Code | G.711U、G711A |
| Audio_in | Support（Recommend-36DB MIC） |
| Audio_out | Support，built-in Amplifier（Recommend-8Ω2W） |
| Dimension | PCB Size: 32*32，Hole Position 32*32 |
| Working Temp | -30℃～+60℃ |
| Power | DC 12V |
| Size | PCB Size: 32*32，Hole Position 32*32 |
| PCB marking | H2M-A0 |
| Chip (from the photo) | Hi3516CV608 |

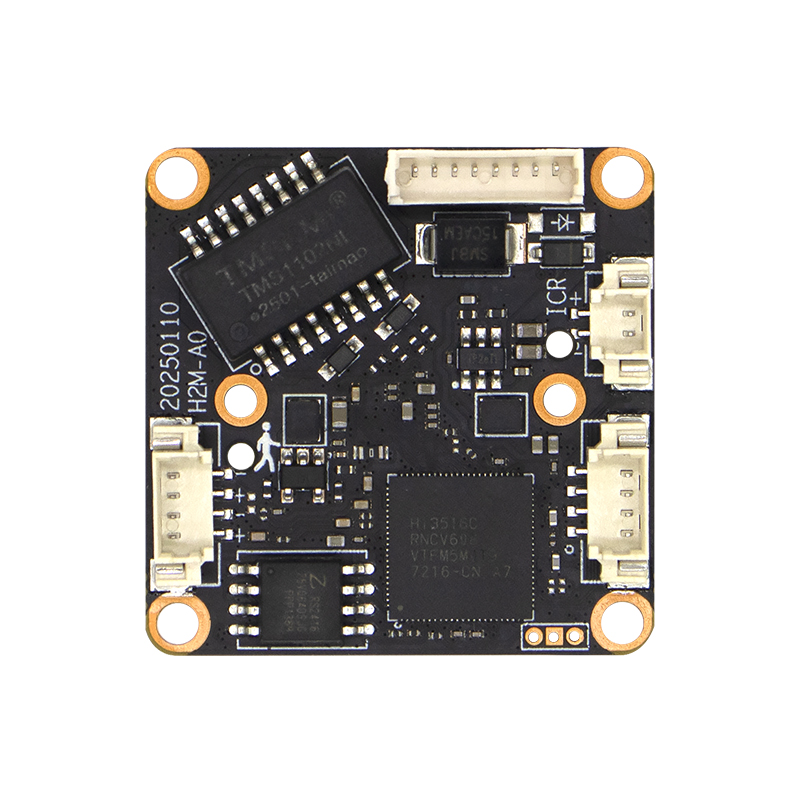

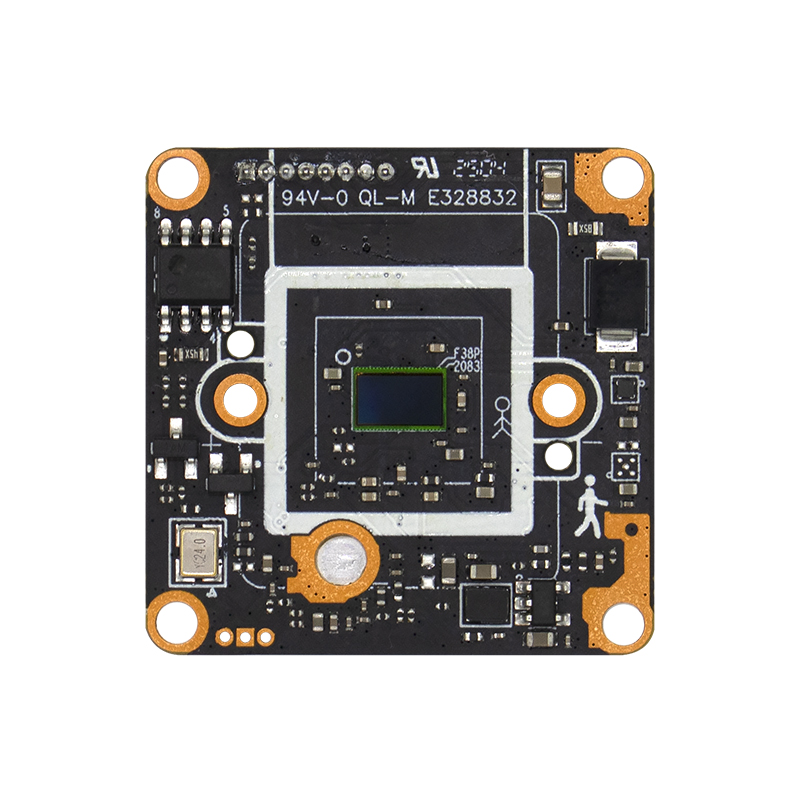

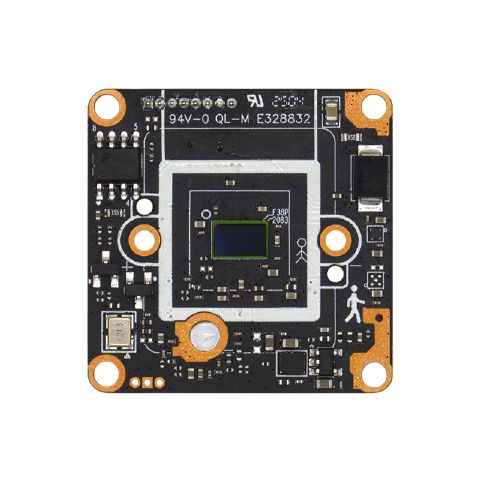

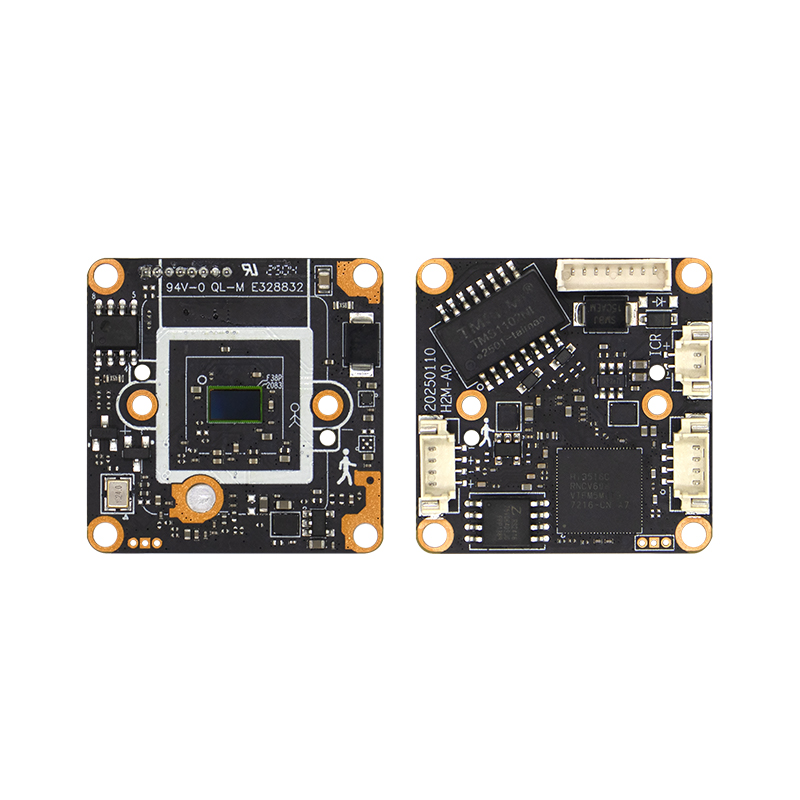

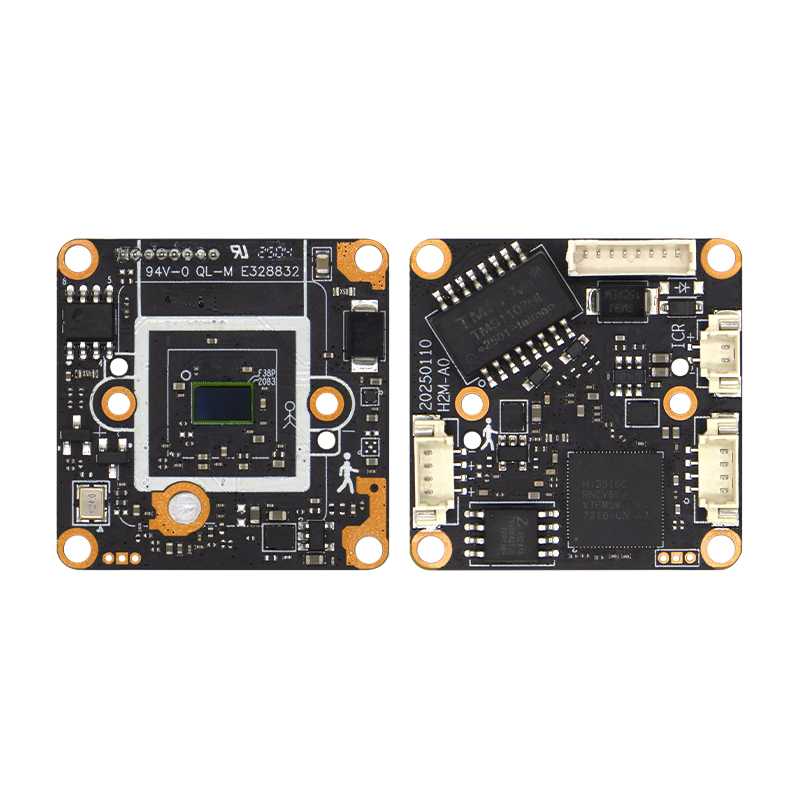

Фото
Файлы

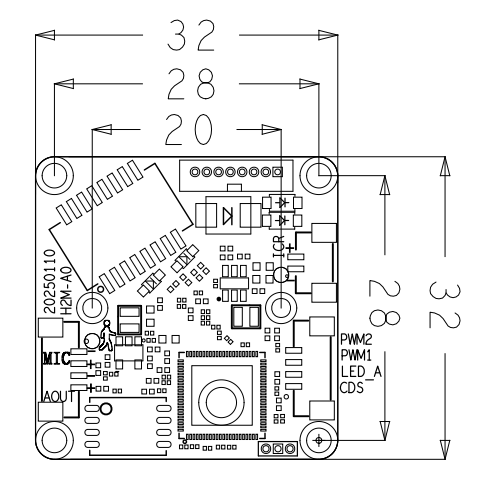

- H2M-sheet.png (документ, 66 KB)
- H2M-Smart-IP-Camera-Module-Specification.pdf (документ, 738 KB)
