H4SP
4MP Black Light Network High-Definition Camera Module · IP Camera Module
- Производитель:
- Ruision
- SoC:
- HI3516CV610-DDR2-64M
- В каталоге с:
- 2026
Ruision
4MP Black Light Network High-Definition Camera Module
5MP HD resolution, intelligent black light full color；1/1.8 large size sensor, large target surface high photosensitivity；Built-in AI ISP image algorithm, clearer at night；Human detection, vehicle detection；Intelligent light collection, clear face recognition；Support POE, automatically identify 1236/4578 power supply 1236/4578
Особенности
- 1/1.8 large size high photosensitive sensor, providing full-color imaging in low-light conditions at night; recommended lenses: YT10196, YT10151
- Integrated AI ISP image algorithm significantly enhances night-time imaging performance.；
- 5MP high-definition resolution, supporting simultaneous output of dual streams; intelligent light adjustment ensures clear facial recognition at night.
- with built-in 1T computing power NPU and AI algorithm large model
- POE is optional, compatible with 1236/4578 POE power supply.
- Built-in power amplifier for direct speaker connection；
- Supports reset；
- Built-in WEB 2.0 interface, compatible with non-IE kernel browsers such as Edge, Chrome, Safari, and Firefox；
- Built-in human and vehicle detection functions; expandable to application scenarios such as E-fence, cross-border detection, off-duty detection, and passenger flow statistics；
- Support linkage with sound and light alarms; alarm sounds can be custom-recorded or text-to-speech generated.
- Support alarm output and can link with red-blue warning lights, etc.
- Compliant with ONVIF protocol for access to third-party NVRs.
- Supports privacy masking to protect sensitive areas
- Supports OSD (On-Screen Display) character overlay and network time synchronization.
- Supports audio input/output and two-way intercom with audio-video synchronization.
| D/N Mode | Full-color imaging in low-light conditions with intelligent light adjustment to prevent facial overexposure; AI ISP image algorithm for clearer night vision.Recommended lenses for low-light full-color: YT10196, YT10151.Recommended lenses for dual-light: YT10207 + IR0316. |
|---|---|
| Image Adjustment | Support automatic WB, D-WDR, backlight compensation, and adjustable parameters such as brightness, contrast, and chroma |
| Privacy Masking | Supports masking of privacy zones |
| Mirroring | Supports mirror configuration. |
| OSD | Supports OSD settings and drag-and-drop adjustment. |
| E-Fence | Detects humans/vehicles entering a warning area and triggers an alarm. |
| Crossing Detection | Detects humans/vehicles and supports directional detection (A→B, B→A, A↔B). |
| Off-Duty Detection | Alarms when personnel leave a designated area for a specified time and stops when they return. |
| Passenger Flow Statistics | Counts incoming and outgoing personnel, with real-time OSD overlay; daily data query available. |
| Voice Alarm | Supports linked voice broadcasting with customized recorded content. |
| IO Alarm | Supports linkage with red-blue warning lights |
| NVR Linkage | Supports functions such as large-screen display, local voice, AI recording, and push notifications. |
| Compression | H.264，H.265，H.265+ |
| Resolution | Main stream：5MP(2880*1620)@30FPS/4MP(2560*1440)/3MP(2304*1296)/2MP(1920*1080); Sub-stream：448P(800*448)/360P(640*360)/ CIF(352*288) |
| Ethernet | RJ-45 10M/100M auto-adaptive |
| Protocols | ONVIF，P2P，CGI，HTTP，TCP/IP，IPv4，RTSP，UDP，NTP，DHCP，DNS，GB28181 |
| Access Protocols | ONVIF protocol / private protocol / CGI |
| Client | NVR centralized management; PC client: EasyVMS |
| Audio | G.711U、G.711A |
| Audio Input | Supported (recommended -36DB MIC) |
| Audio Output | Supported, with built-in power amplifier (recommended 8Ω 2W speaker) |

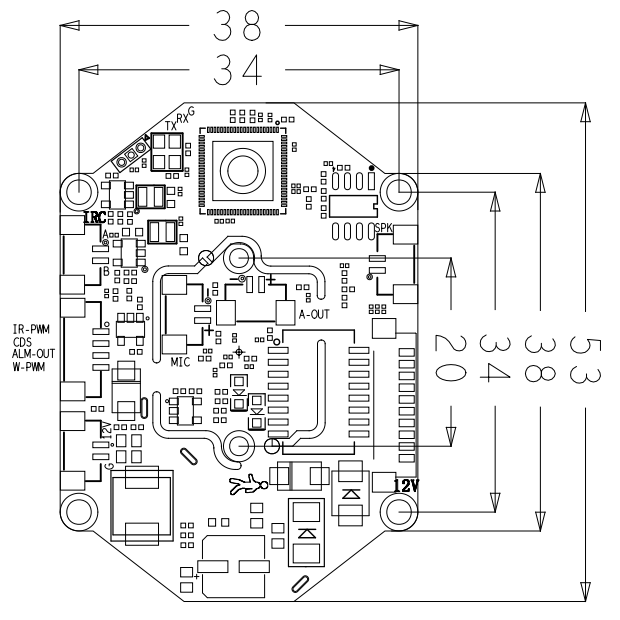

| Dimensions | 38*53mm size，38*38 mm hole spacing |
| Operating Environment | -30℃～+60℃ |
| Power Supply | DC 12V/POE |
| Size | 38*53 尺寸，38*38 孔位 |
| PCB marking | H4SP A0 |
| Chip (from the photo) | Hi3516CV610-10B |

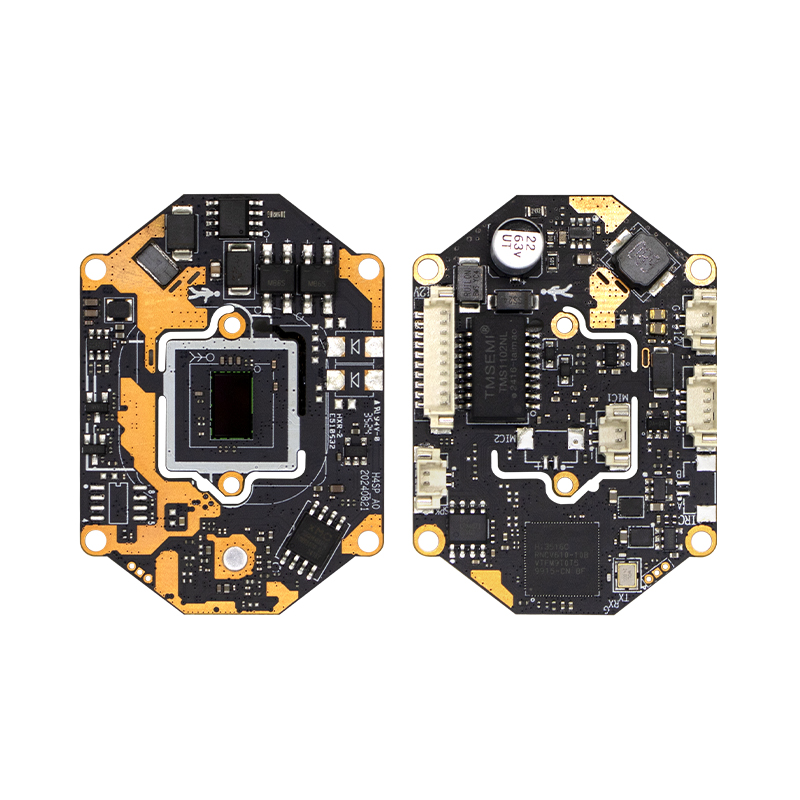

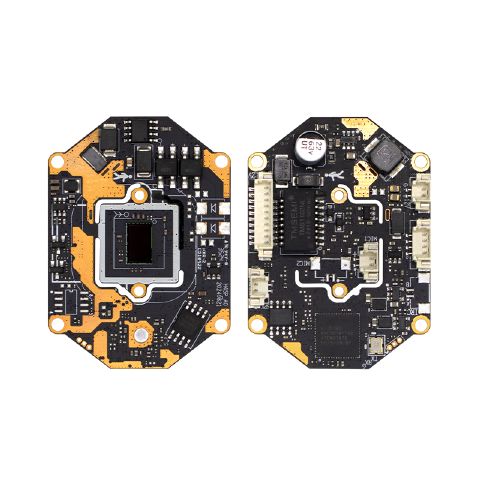

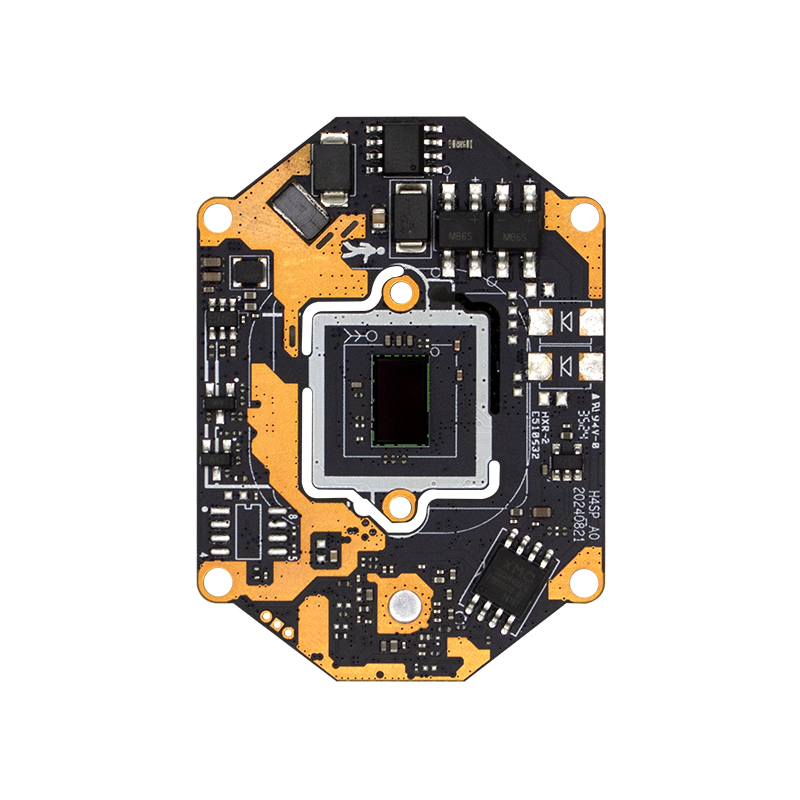

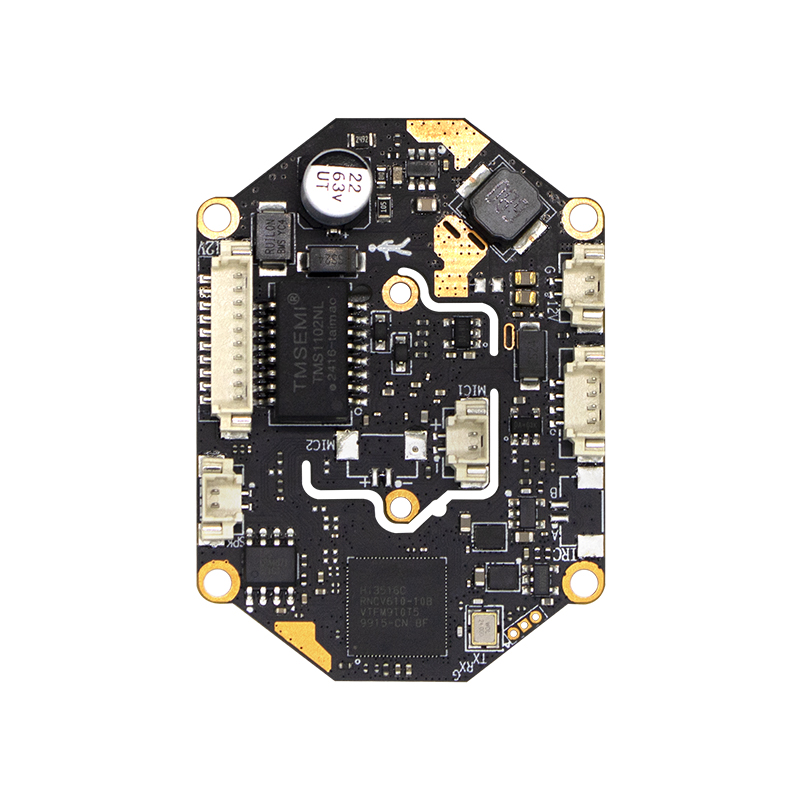

Фото
Файлы
- H4SP-sheet.png (документ, 84 KB)
- H4SP-Intelligent-Black-Light-IPC-Data-Sheet.pdf (документ, 1.1 MB)
