BMMDKL5RC-X5
Network Camera
- 厂商:
- Longse
- 收录年份:
- 2026
Longse
500万室外红外变焦枪型网络摄像机
特性
- 500万像素高清成像
- 1/2.8" SONY Starvis 背照式CMOS传感器
- 支持H.264/H.264+/H.265/H.265+压缩
- 最低照度：0.003 Lux，红外距离：40m
- 支持120dB
- 外壳：主体为金属，遮阳罩为塑料，IP67
| 系列 | Value |
|---|---|
| 图像传感器 | 1/2.8" SONY Starvis Back-illuminated CMOS sensor |
| 分辨率 | 5MP |
| 有效像素 | 2616(H)*1964(V) |
| 压缩 | H.264/H.264+/H.265/H.265+ |
| 音频压缩 | G711A/U,AAC,MP2L2 |
| 制式 | PAL/NTSC |
| 电子快门时间 | Auto: 1/3-1/100000Sec |
| 最低照度 | Color: 0.003 Lux@(F1.6, AGC ON), 0 Lux with white light, B/W: 0 Lux with IR |
| 信噪比 | 60dB |
| 扫描方式 | Progressive |
| 视频输出 | Network |
| 复位按键 | Optional |
| 焦距及视场角 | F1.6~F3.3,horizontal FOV 98~28°, vertical FOV 71~21°, diagonal FOV 133~35° |
| 镜头类型 | 2.7~13.5mm |
| 聚焦控制 | Auto Control |
| 光圈 | F1.6~F3.3 |
| 像素 | AF-5MP |
| 补光灯 | IR: 3PCS, Warm light: 3PCS |
| 补光距离 | IR: 40m, Warm light: 30m |
| 补光灯状态 | Auto Control |
| 补光灯开启 | Smart, Manual & Timed mode |
| 以太网 | RJ-45 (10/100Base-T) |
| 无线 | N/A |
| 协议 | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/G/M) |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| 视频延时 | 300ms (Within the Lan) |
| 主码流1 | 2592*1944@30fps |
| 主码流2 | 2560*1440@30fps |
| 主码流3 | 1920*1080@30fps; 1280*720@30fps |
| 子码流1 | 1280*720@30fps |
| 子码流2 | 720*480@30fps |
| 子码流3 | N/A |
| 三码流 | N/A |
| IE浏览器 | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| 智能手机 | iPhone, Android |
| 智能分析 | Intrusion Detection/Line Crossing Detection/Enter Area Detection/Leave Area Detection/Line Crossing Count(based on human, vehicle and non-motor vehicle detection), Loitering Detection/People Gathering Detection(based on human detection), Motion Detection(supports the detection based on human, vehicle and non-motor vehicle movement), Illegal Parking(based on vehicle shape), Heat Map |
| 日夜转换 | Color/ B&W (IR-CUT ) |
| 图像配置 | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering, HLC, Scene Change Detection |
| 全彩 | Support |
| 走廊模式 | Support |
| 透雾模式 | N/A |
| ROI | Support |
| BLC | Support |
| 宽动态 | 120dB |
| 移动侦测 | Support(support enable the detection based on human and Vehicle movement) |
| 隐私遮挡 | 3 Rectangular Zone |
| 录像模式 | NVR/CMS/Web |
| 语言 | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| 音频 | Default: Built in Mic; Option: Audio I/O |
| 报警 | Default: Without; Option: Alarm I/O |
| SD卡槽 | Default: External SD card slot (Max 512GB) |
| RS485 | N/A |
| 外壳 | Metal, IP67 |
| 防剪支架 | NO |
| 红外滤光片（IR Cut） | YES |
| 工作温度 | -30℃ ~ +60℃ RH95% Max |
| 存储温度 | -30℃ ~ +60℃ RH95% Max |
| 供电方式 | DC12V±10%,900mA |
| 尺寸 | 89x81.1x245.1mm |
| 重量（净重/毛重） | Approx. 1009.5 g / Approx. 1202.8 g |

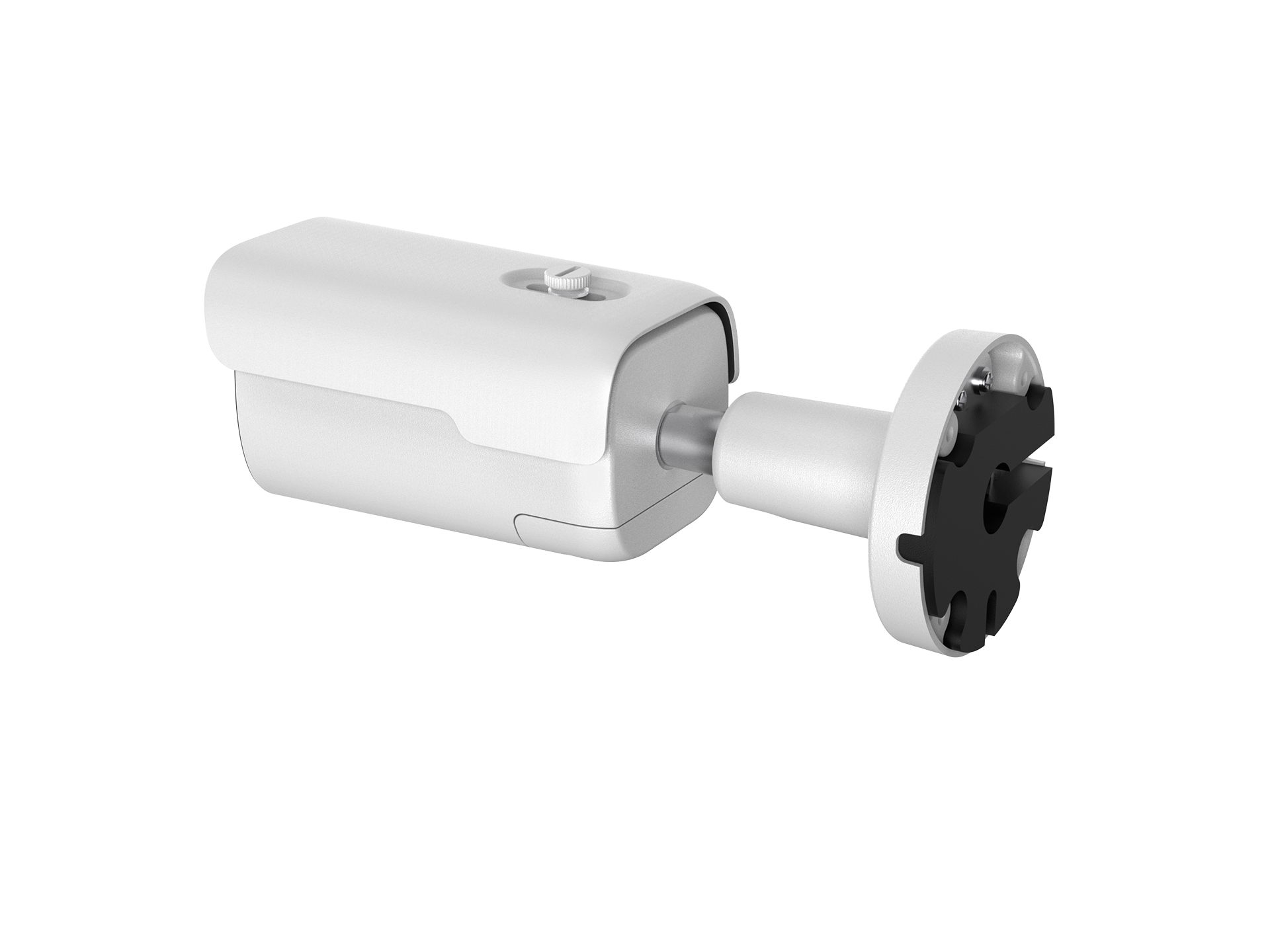

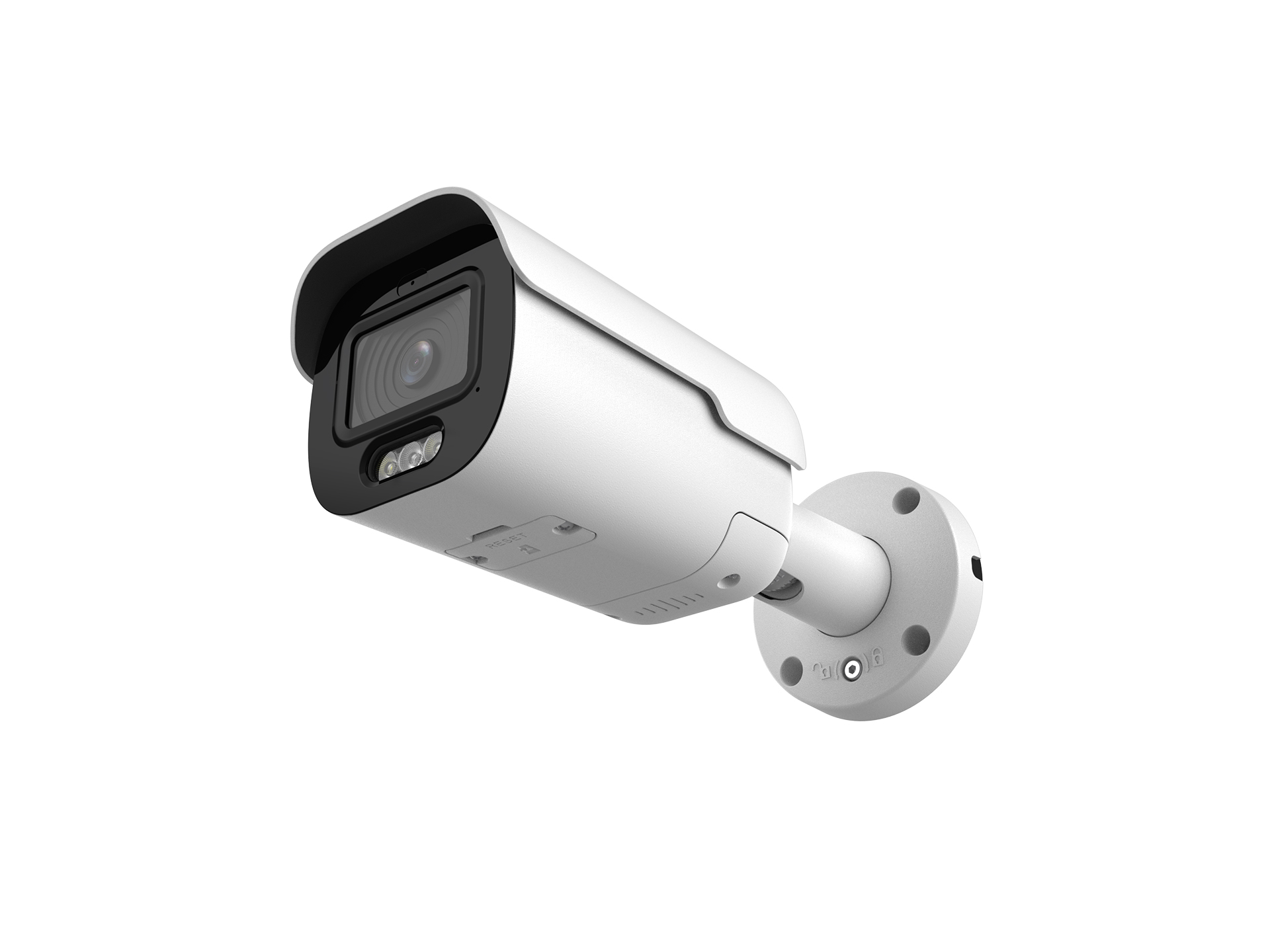

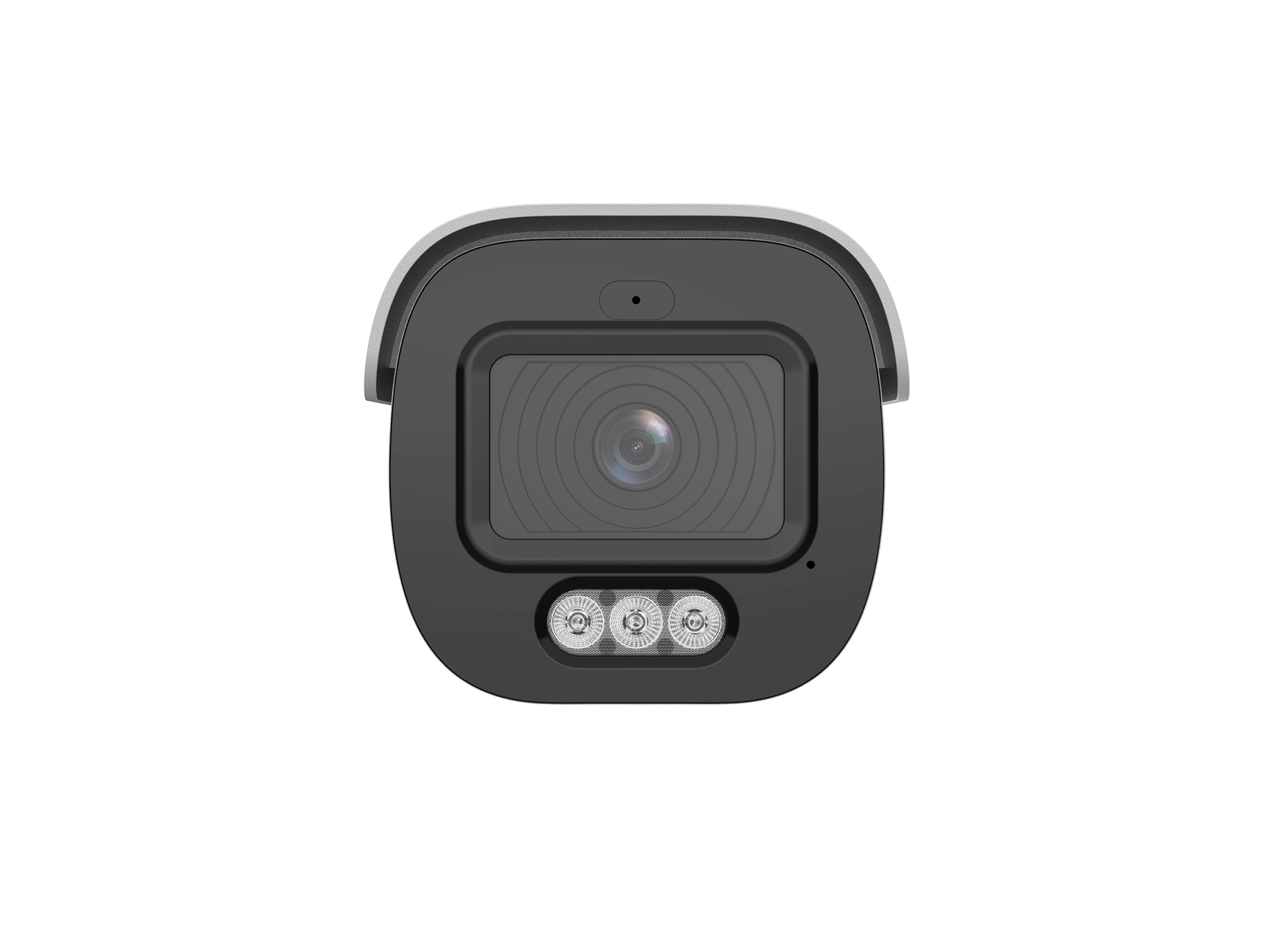

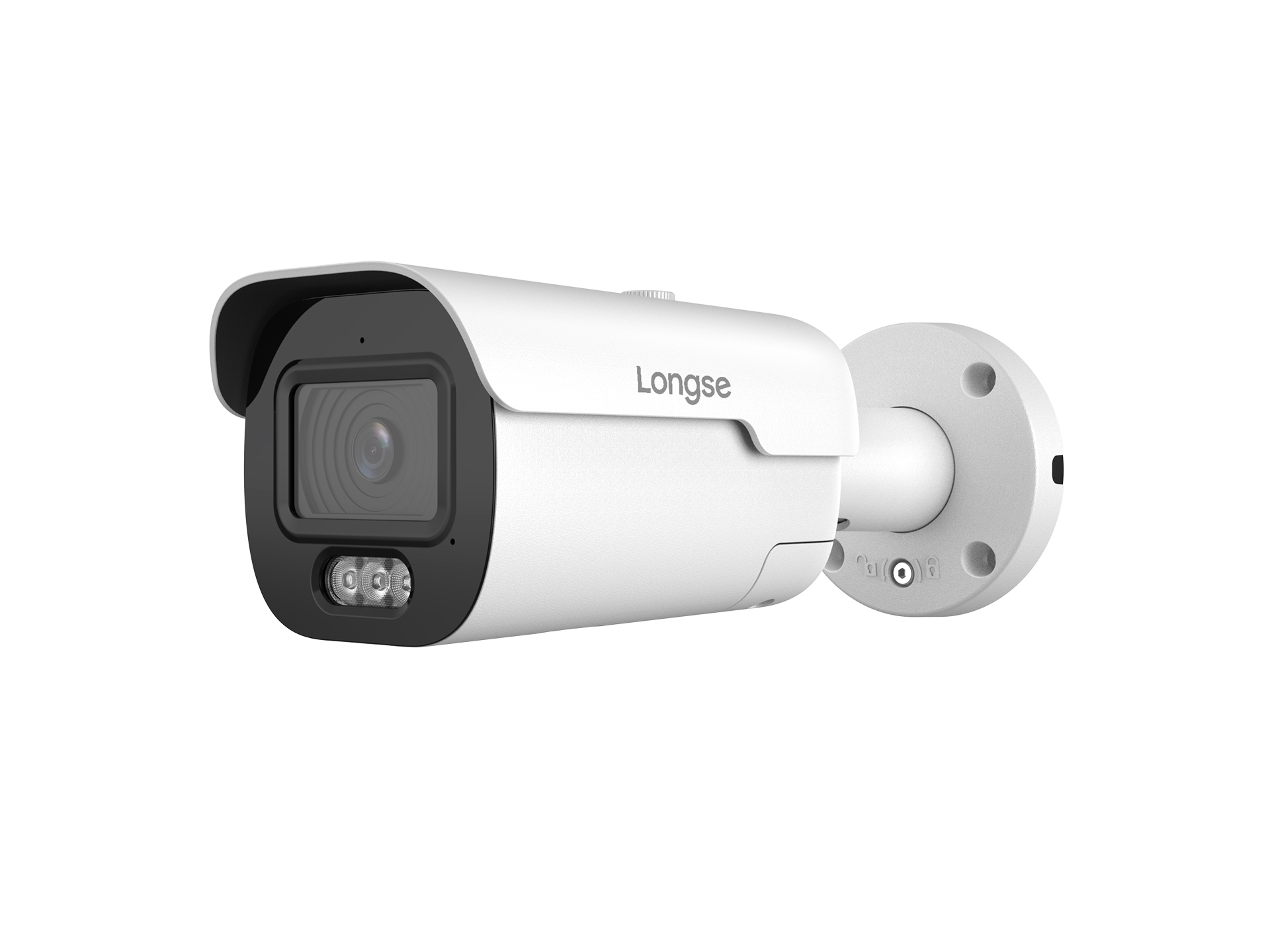

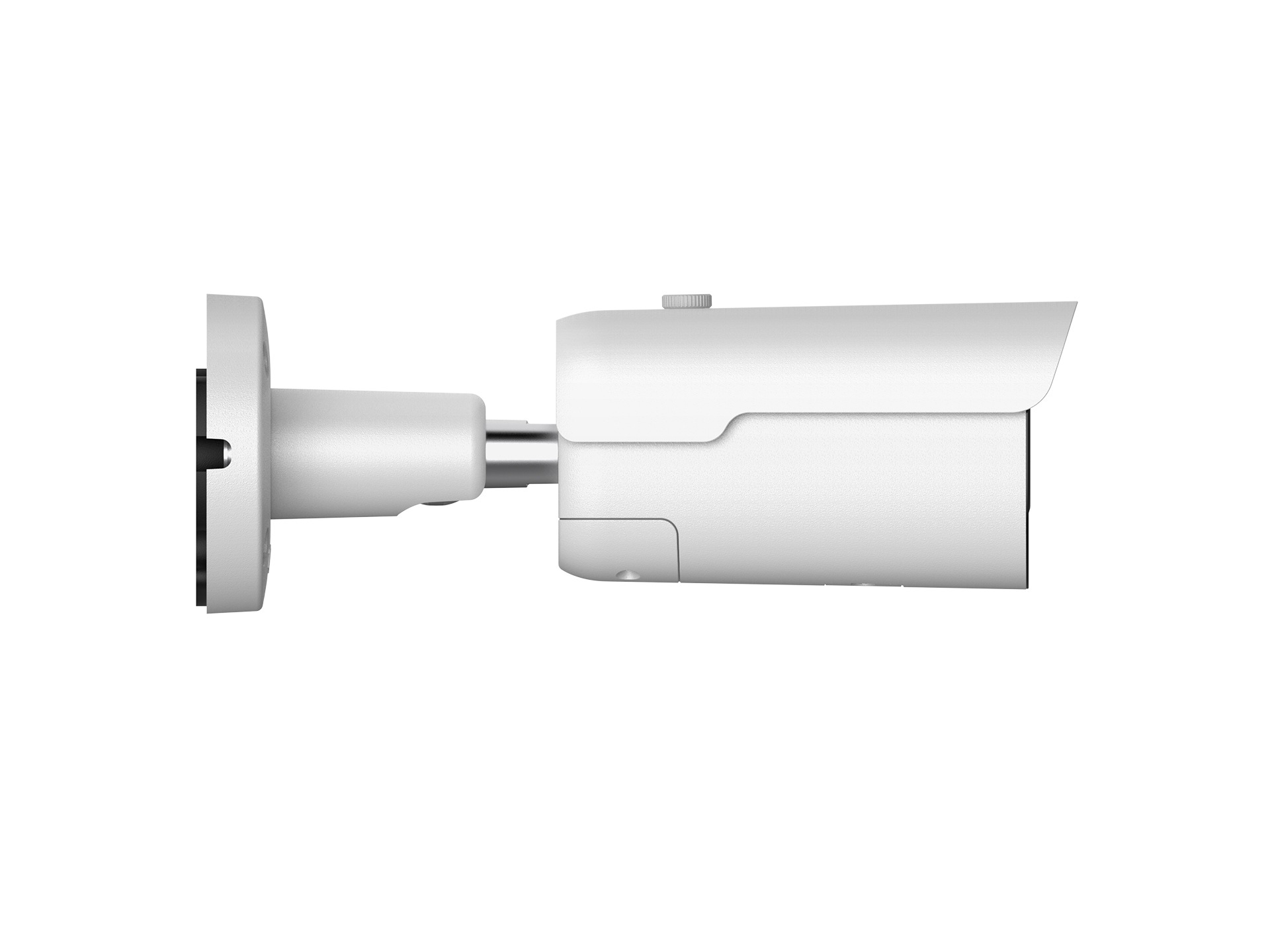

照片
文件
- BMMDKL5RC-X5-datasheet.pdf (文档, 3.5 MB)
