BMMENP12AC
Network Camera
- 厂商:
- Longse
- 收录年份:
- 2026
Longse
1200万AI ISP定焦枪型网络摄像机
特性
- 1/2.3" SONY传感器，Novatek SOC，120dB HDR，非AI ISP
- 主码流：12MP@30fps/8MP@30fps/6MP@30fps
- /4MP@30fps/1080P@30fps/720P@30fps
- 内置POE，内置麦克风，外置SD卡槽，报警输入/输出
| 系列 | AI ISP |
|---|---|
| 图像传感器 | 1/2.3" SONY Starvis Back-illuminated CMOS sensor |
| 分辨率 | 12MP |
| 有效像素 | 4072(H)*3064(V) |
| 压缩 | H.264/H.264+/H.265/H.265+/MJPEG |
| 音频压缩 | G711A/U,AAC,MP2L2 |
| 制式 | PAL/NTSC |
| 电子快门时间 | Auto: 1/3-1/100000Sec |
| 最低照度 | Color: 0.005 Lux@(F1.0, AGC ON), 0 Lux with white light, B/W: 0 Lux with IR |
| 信噪比 | 60dB |
| 扫描方式 | Progressive |
| 视频输出 | Network |
| 复位按键 | Optional |
| 焦距及视场角 | 4 mm, horizontal FOV 87°, vertical FOV 65°, diagonal FOV 112°; 6 mm, horizontal FOV 73°, vertical FOV 54°, diagonal FOV 95° |
| 镜头类型 | Fixed focal lens, 4 and 6 mm optional |
| 聚焦控制 | Fixed |
| 光圈 | F1.0 |
| 像素 | 12MP |
| 补光灯 | IR: 4PCS, Warm light: 4PCS |
| 补光距离 | IR: 60m, Warm light: 50m |
| 补光灯状态 | Auto Control |
| 补光灯开启 | Smart, Manual & Timed mode |
| 以太网 | RJ-45 (10/100Base-T) |
| 无线 | N/A |
| 协议 | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/G/M) |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| 视频延时 | 300ms (Within the Lan) |
| 主码流1 | 4000*3000@30fps, 3840*2160@30fps |
| 主码流2 | 3200*1800@30fps, 2560*1440@30fps |
| 主码流3 | 1920*1080@30fps,1280*720@30fps |
| 子码流1 | 1920*1080@30fps |
| 子码流2 | 1280*720@30fps |
| 子码流3 | 720*480@30fps |
| 三码流 | 1280*720@30fps, 720*480@30fps |
| IE浏览器 | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| 智能手机 | iPhone, Android |
| 智能分析 | Intrusion Detection/Line Crossing Detection/Enter Area Detection/Leave Area Detection/Line Crossing Count(based on human and vehicle detection), Loitering Detection/People Gathering Detection(based on human detection), Motion Detection(supports the detection based on human and vehicle movement), Face Detection, Illegal Parking(based on vehicle shape and license plates), License Plate Detection, Abandoned Object Detection, Removed Object Detection, Heat Map |
| 日夜转换 | Color/ B&W (IR-CUT ) |
| 图像配置 | Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, Anti Flicker, Video Tampering, HLC, Distortion, Scene Change Detection |
| 全彩 | Support |
| 走廊模式 | Support |
| 透雾模式 | Support |
| ROI | Support |
| BLC | Support |
| 宽动态 | 120dB |
| 移动侦测 | Support(support enable the detection based on human and Vehicle movement) |
| 隐私遮挡 | 3 Rectangular Zone |
| 录像模式 | NVR/CMS/Web |
| 语言 | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| 音频 | Default: Built in Mic; Option: Audio I/O; Support Sound Detection |
| 报警 | Default: Alarm I/O |
| SD卡槽 | Default: External SD card slot (Max 512GB) |
| RS485 | N/A |
| 外壳 | Main Body: Metal, Rain Cover:Plastic, IP67 |
| 防剪支架 | NO |
| 红外滤光片（IR Cut） | YES |
| 工作温度 | -30℃ ~ +60℃ RH95% Max |
| 存储温度 | -30℃ ~ +60℃ RH95% Max |
| 供电方式 | DC12V±10%, 1080mA |
| 尺寸 | 90.8 x 91.5 x 262.51 mm |
| 重量（净重/毛重） | Approx. 1200 g / Approx. 1400 g |

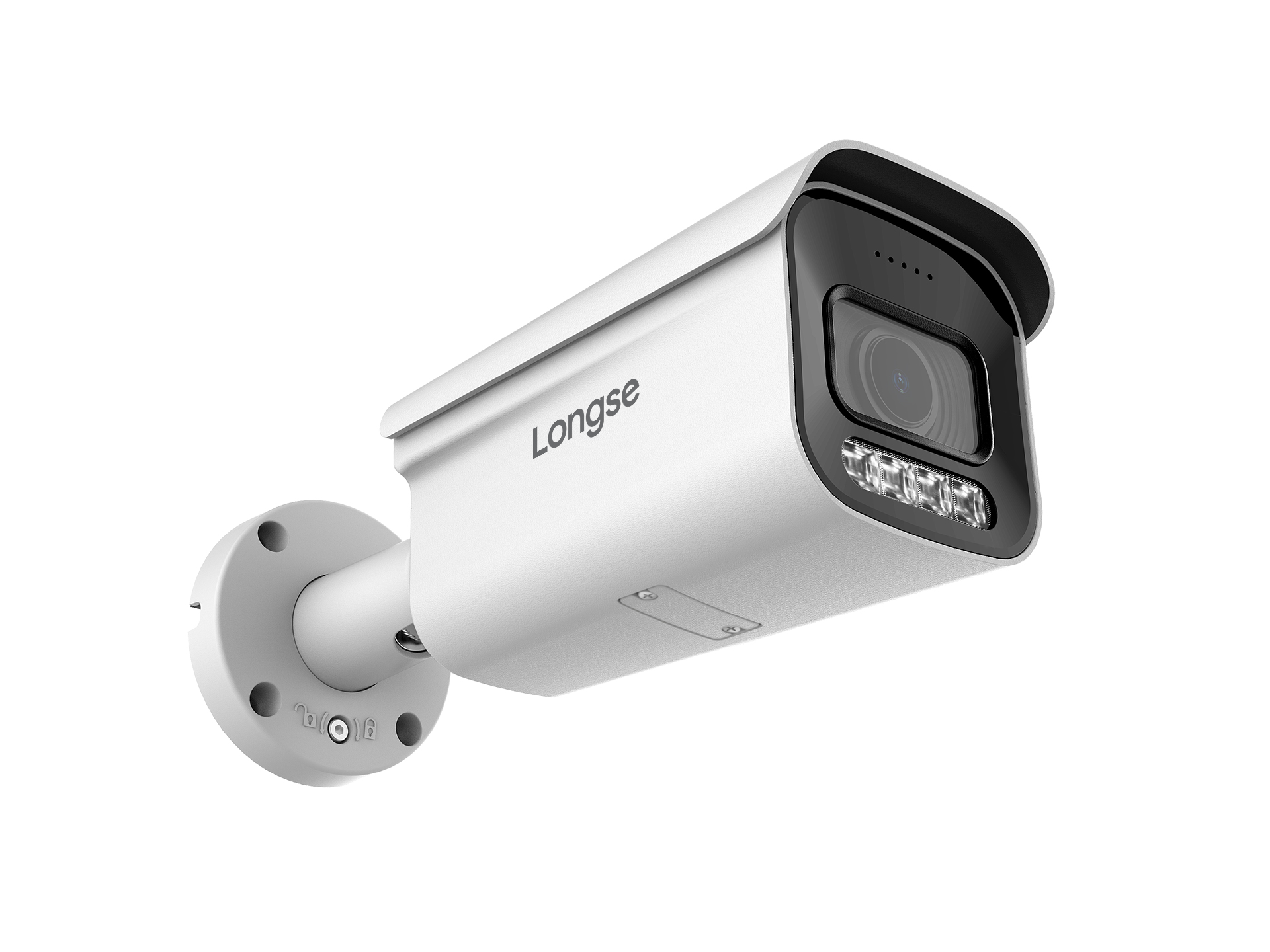

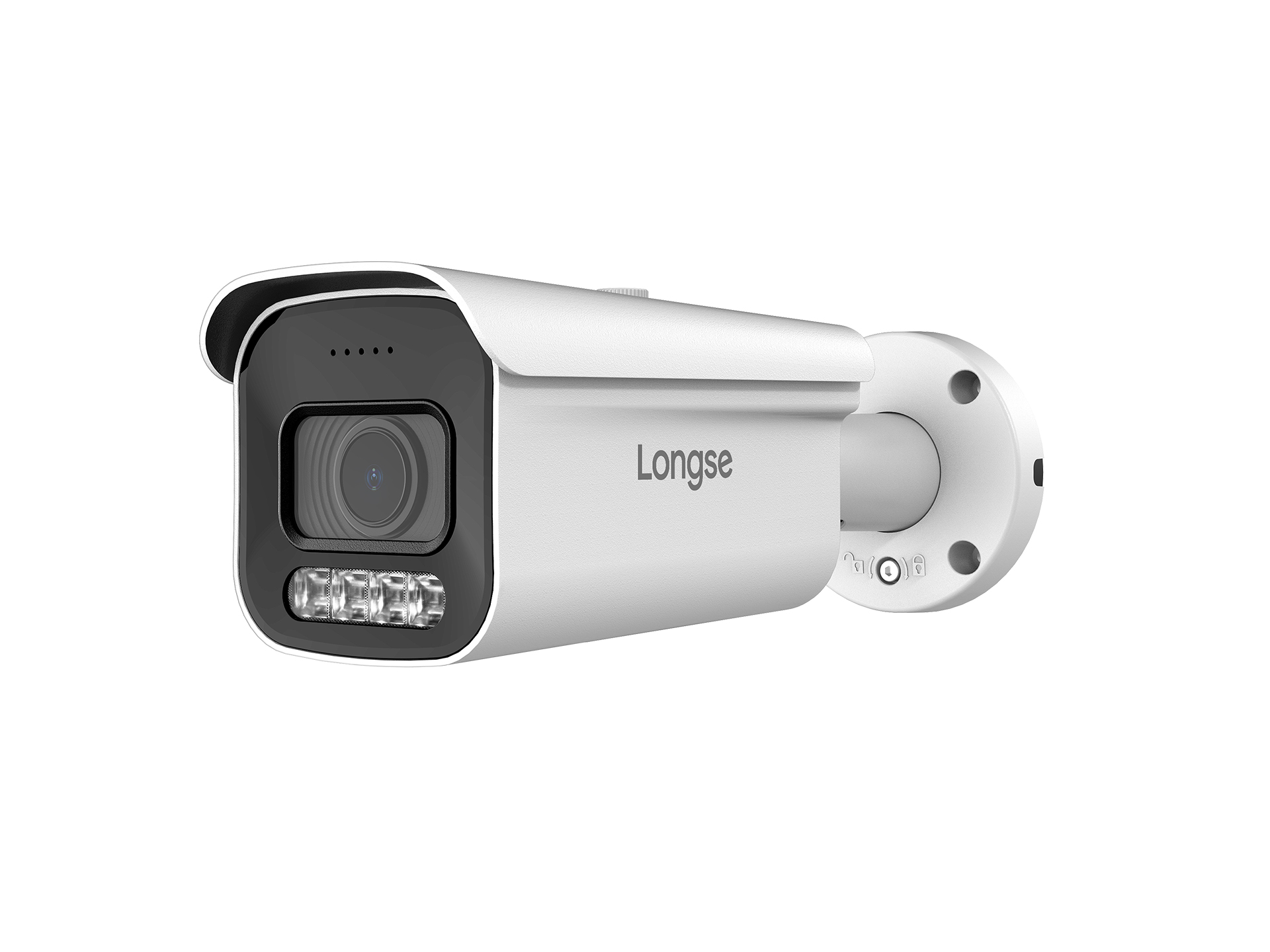

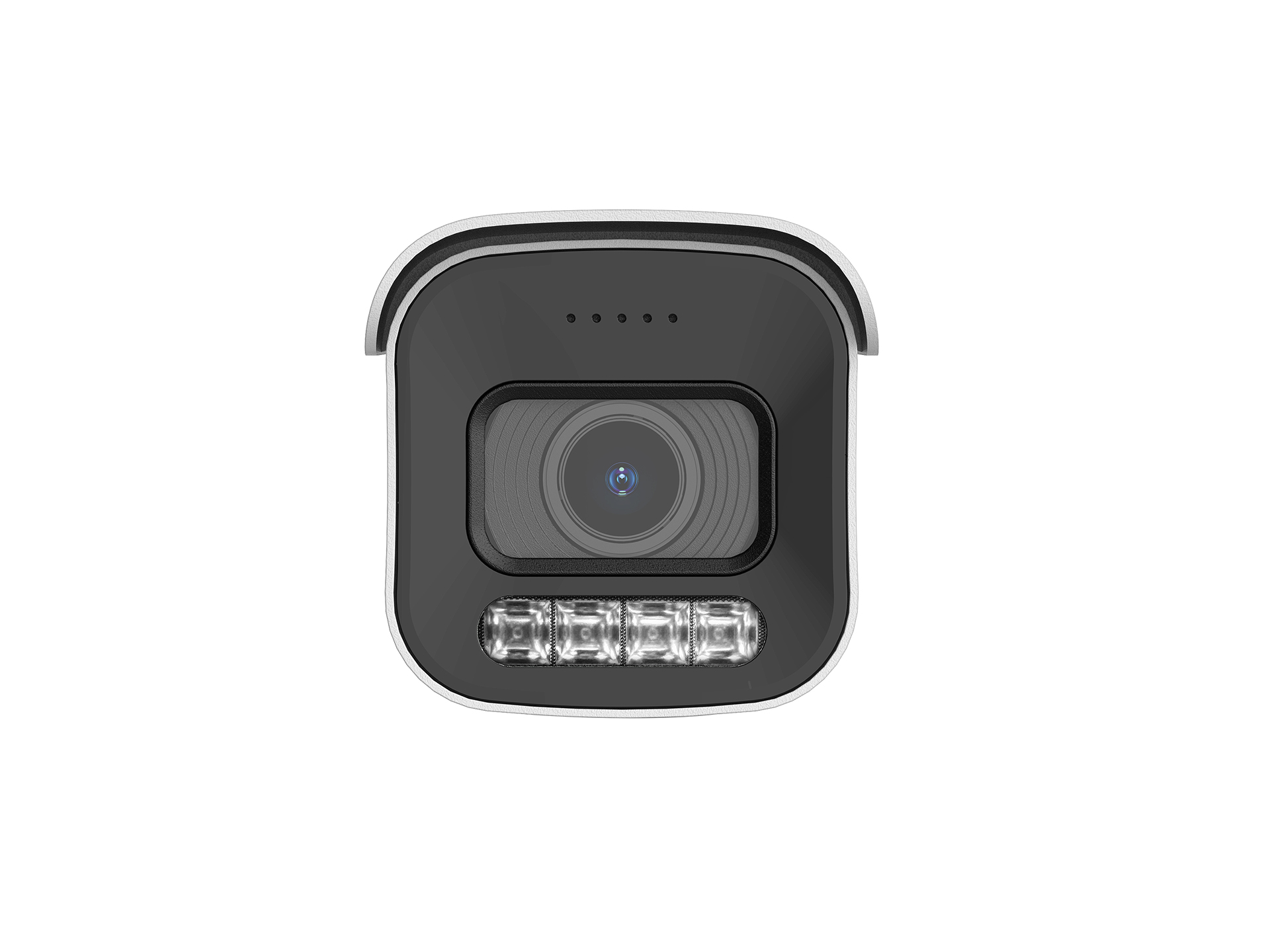

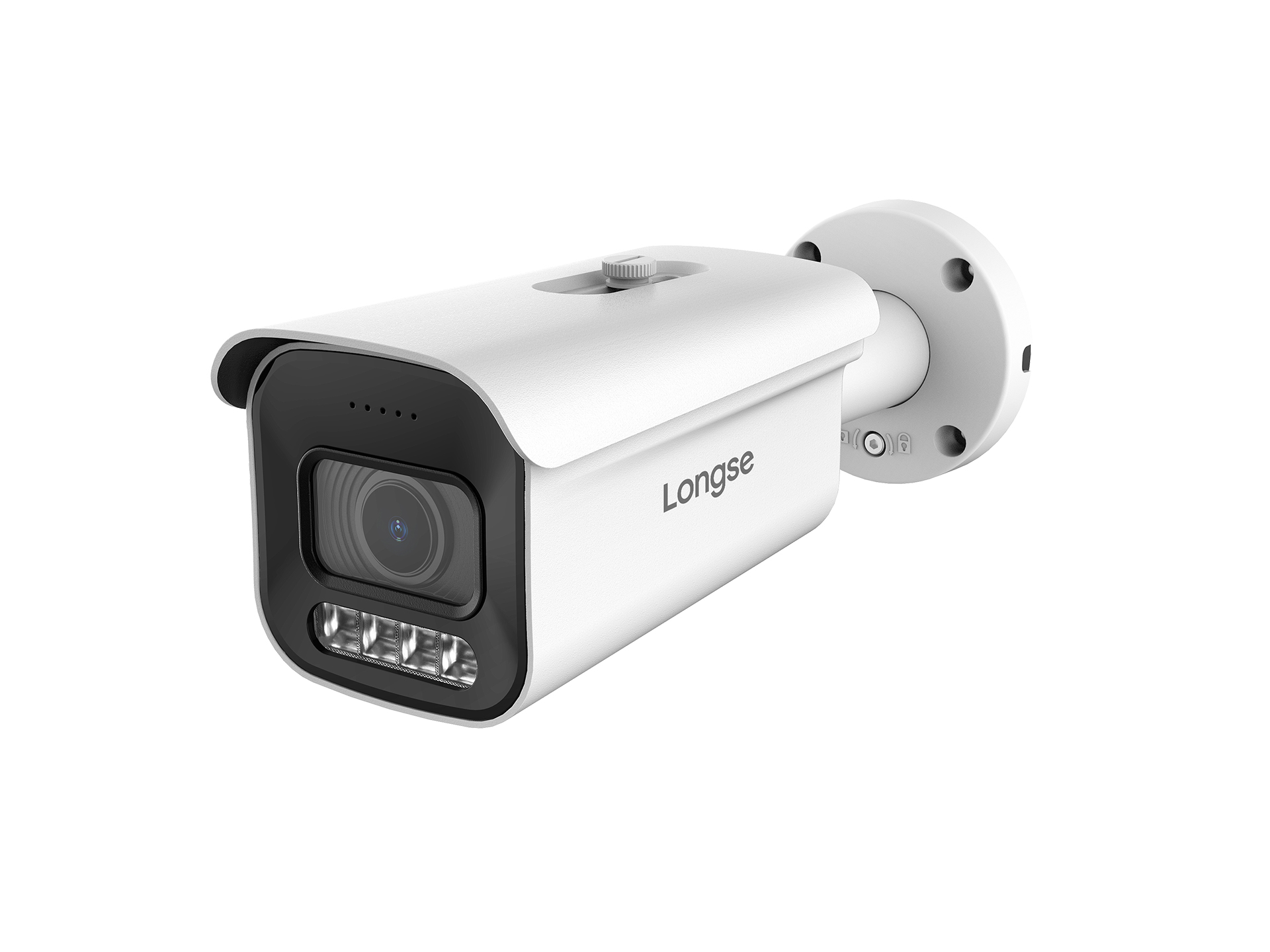

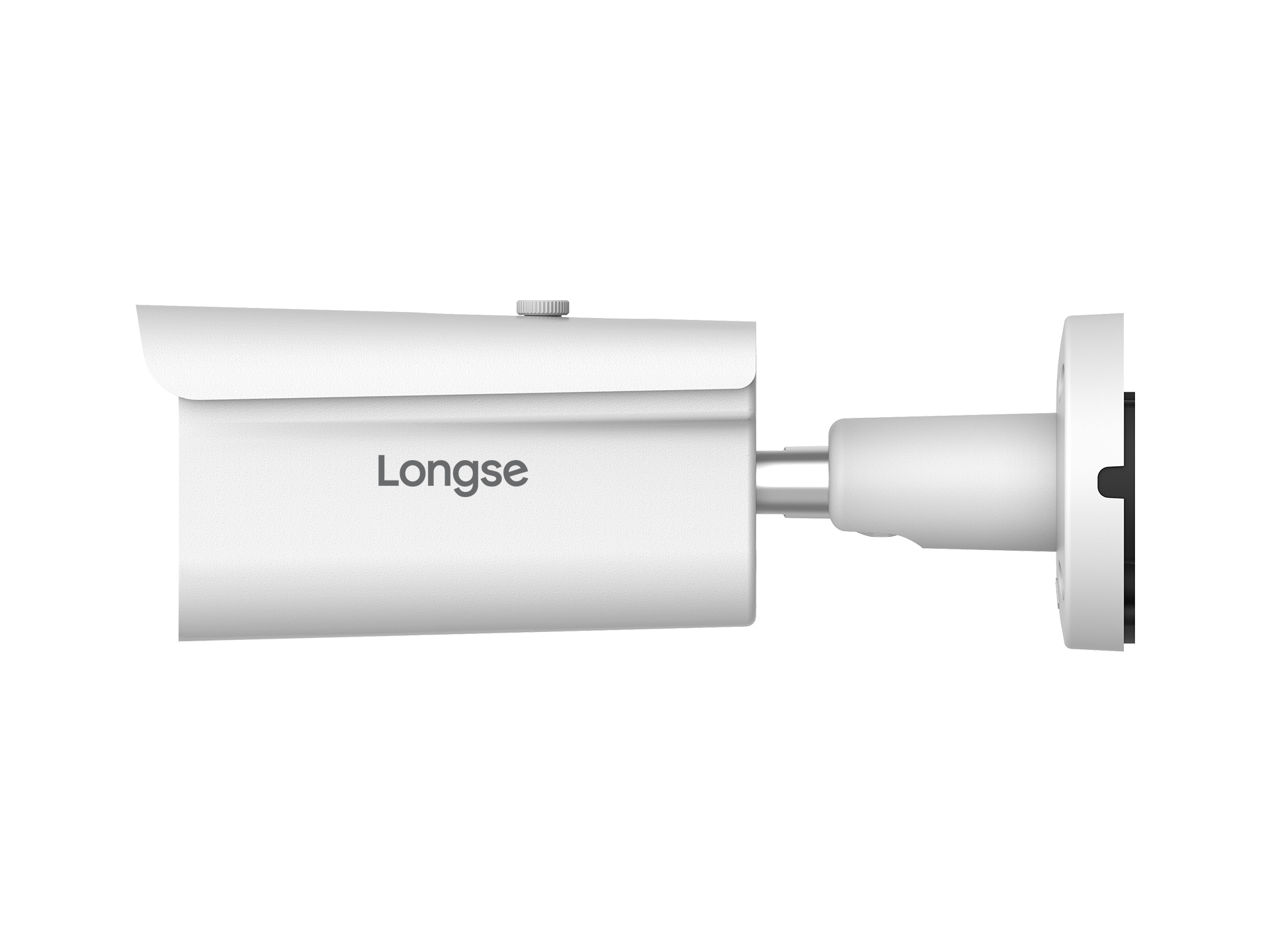

照片
文件
- BMMENP12AC-datasheet.pdf (文档, 5.0 MB)
