BPSCFC4RC
Network Camera
- 厂商:
- Longse
- 收录年份:
- 2024
Longse
400万室外Eco系列定焦枪型网络摄像机
特性
- 400万像素高清成像
- 1/3"逐行扫描CMOS传感器
- 支持H.264/H.265/JPEG/AVI/MJPEG压缩
- 最低照度：0.04 Lux，红外距离：25m
- 支持DWDR
- 外壳：塑料，IP66
| 系列 | Eco |
|---|---|
| 图像传感器 | 1/3" Progressive Scan CMOS Sensor |
| 分辨率 | 4MP |
| 有效像素 | 1928(H)*1088(V) |
| 压缩 | H.264/H.265/MJPEG |
| 音频压缩 | G711A/U,AAC |
| 制式 | PAL/NTSC |
| 电子快门时间 | Auto: 1/3-1/100000Sec |
| 最低照度 | Color: 0.01 Lux@(F2.0, AGC ON), 0 Lux with white light, B/W: 0 Lux with IR |
| 信噪比 | 60dB |
| 扫描方式 | Progressive |
| 视频输出 | Network |
| 复位按键 | Optional |
| 焦距及视场角 | 2.8 mm, horizontal FOV 95°, vertical FOV 53°, diagonal FOV 114°; 4 mm, horizontal FOV 73°, vertical FOV 40°, diagonal FOV 88° |
| 镜头类型 | Fixed focal lens, 2.8 and 4mm optional |
| 聚焦控制 | Fixed |
| 光圈 | F2.0 |
| 像素 | 3MP |
| 补光灯 | IR 2PCS; Warm light 2PCS |
| 补光距离 | IR 40m; Warm light 30m |
| 补光灯状态 | Auto Control |
| 补光灯开启 | Smart, Manual & Timed mode |
| 以太网 | RJ-45 (10/100Base-T) |
| 无线 | N/A |
| 协议 | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, NTP, SMTP, UDP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/M) |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| 视频延时 | 300ms (Within the Lan) |
| 主码流1 | 2560*1440@25fps |
| 主码流2 | 1920*1080@30fps |
| 主码流3 | 1280*720@30fps |
| 子码流1 | 720*480@25/30fps |
| 子码流2 | 640*360@25/30fps |
| 子码流3 | 352*288@25/30fps |
| 三码流 | N/A |
| IE浏览器 | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| 智能手机 | iPhone, Android |
| 智能分析 | Intrusion Detetion(based on human detection), Motion Detection(supports the detection based on human movement) |
| 日夜转换 | Color/ B&W (IR-CUT ) |
| 图像配置 | Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, Anti Flicker, HLC, Distortion |
| 全彩 | Support |
| 走廊模式 | N/A |
| 透雾模式 | N/A |
| ROI | N/A |
| BLC | Support |
| 宽动态 | DWDR |
| 移动侦测 | Support(support enable the detection based on human movement only) |
| 隐私遮挡 | 3 Rectangular Zone |
| 录像模式 | NVR/CMS/Web |
| 语言 | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| 音频 | Default: Built in Mic; Option: Audio In |
| 报警 | N/A |
| SD卡槽 | N/A |
| RS485 | N/A |
| 外壳 | Plastic , IP66 |
| 防剪支架 | NO |
| 红外滤光片（IR Cut） | YES |
| 工作温度 | -20℃ ~ +50℃ RH95% Max |
| 存储温度 | -20℃ ~ +60℃ RH95% Max |
| 供电方式 | DC12V±10%, 700mA |
| 尺寸 | 174(W) x 67.9(H) x 69.8(D)mm |
| 重量（净重/毛重） | Approx. 187.8 g / Approx. 255.6 g |

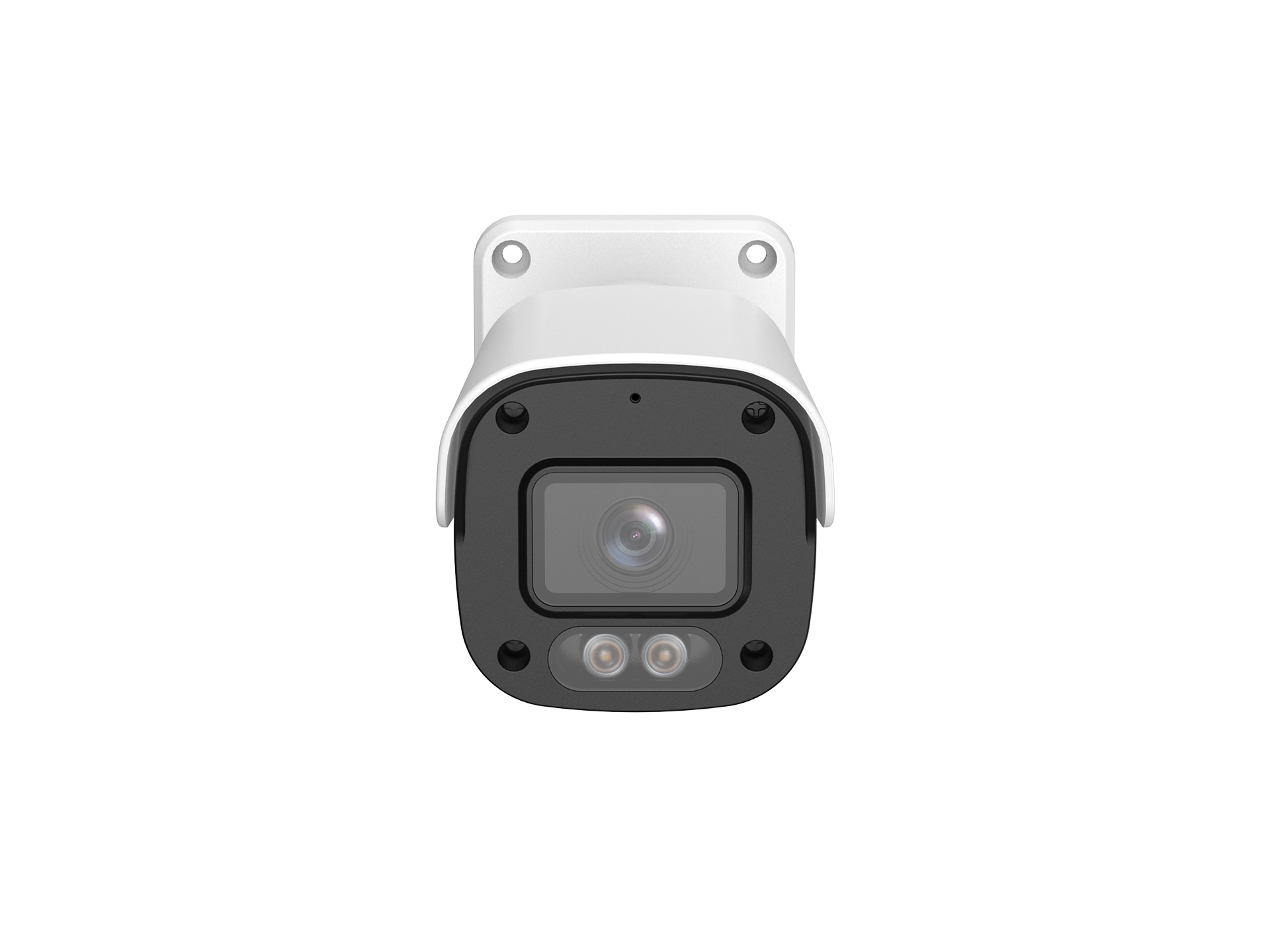

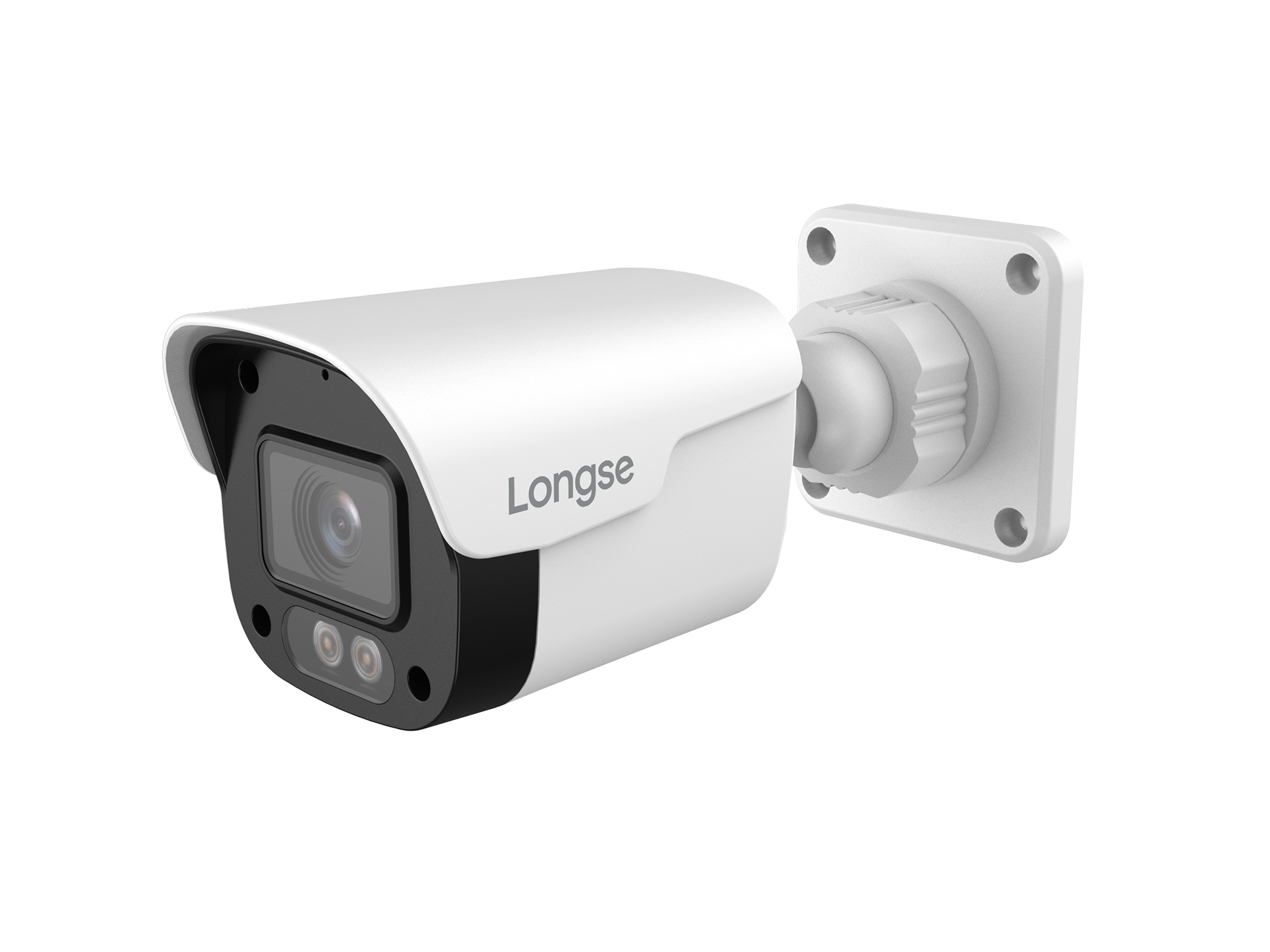

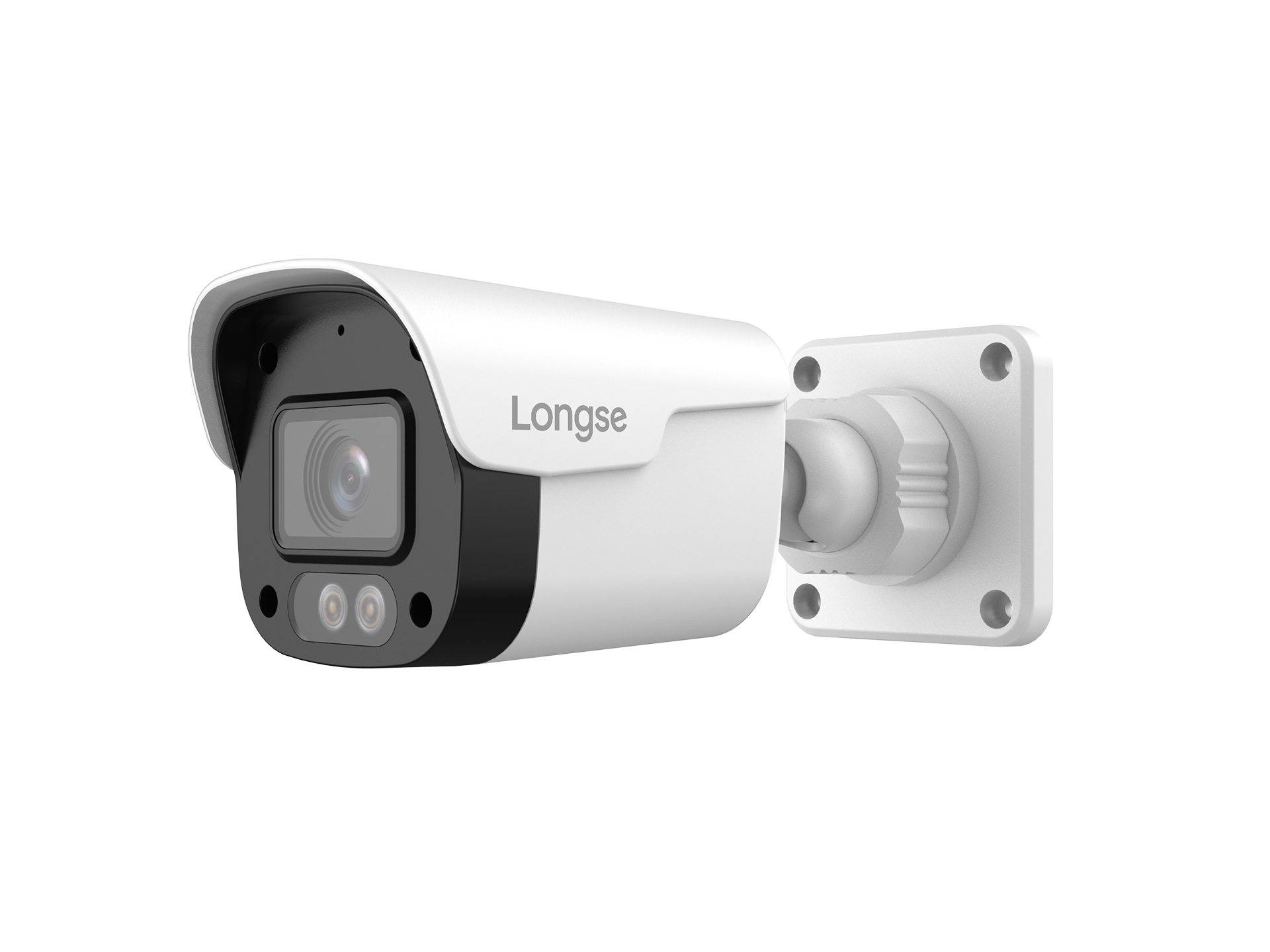

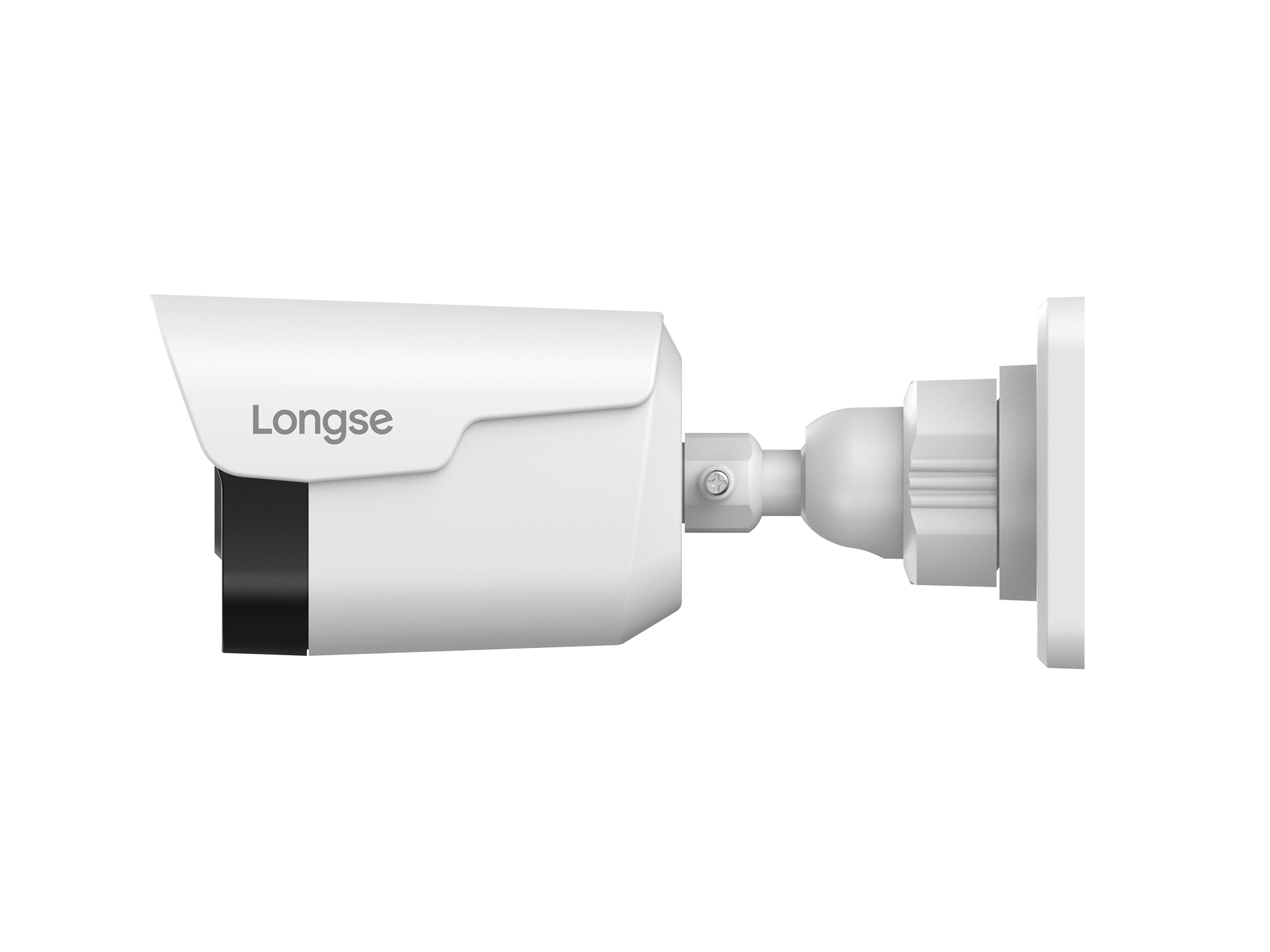

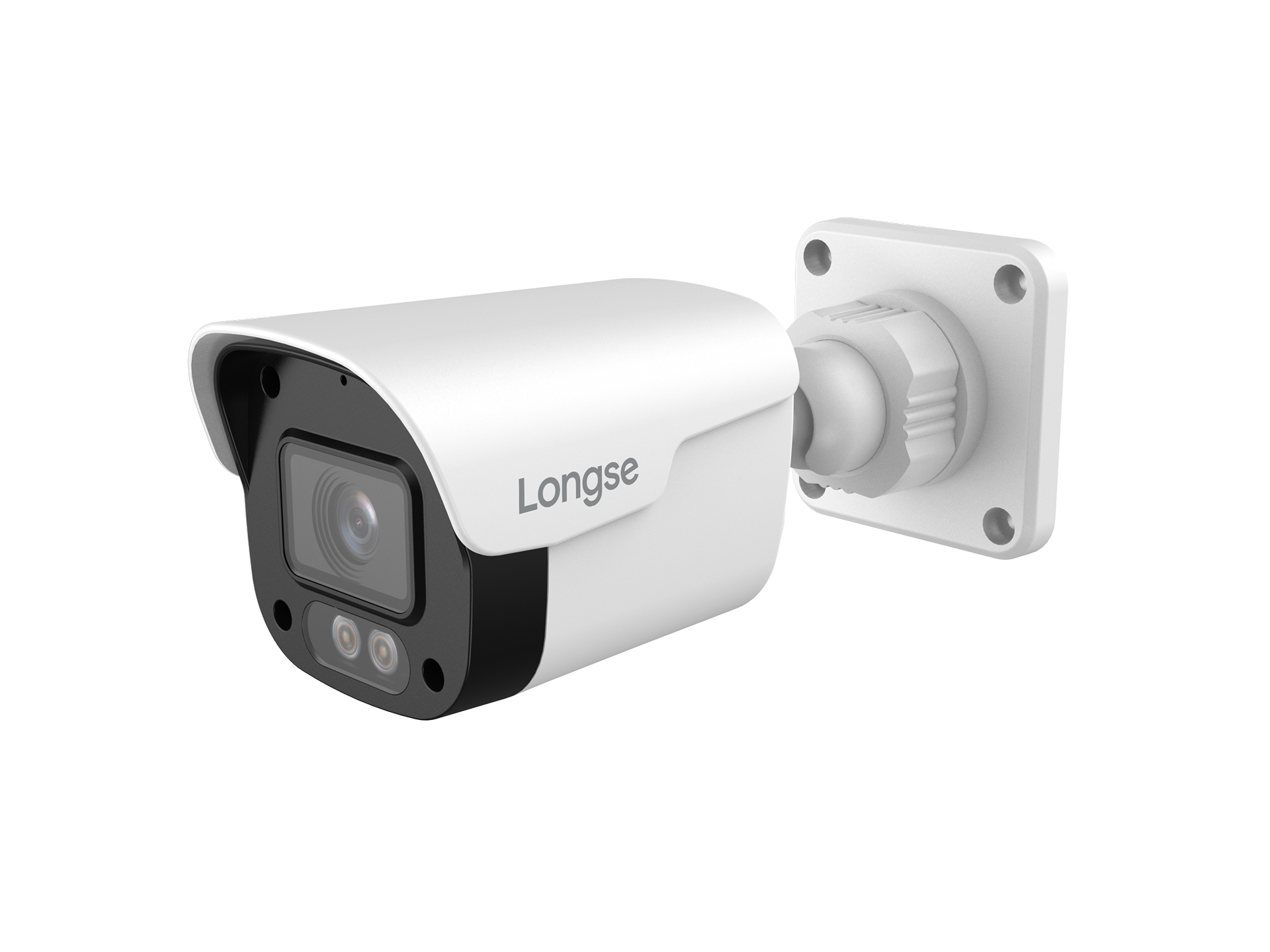

照片
文件
- BPSCFC4RC-datasheet.pdf (文档, 4.0 MB)
