CMLEKL2R-X5
Network Camera
- 厂商:
- Longse
- 收录年份:
- 2025
Longse
200万电动变焦海螺网络摄像机
特性
- 200万像素高清成像
- 2.7-13.5mm 电动变焦
- 1/2.8" SONY Starvis 背照式CMOS传感器
- 支持H.264/H.265/H.264+/H.265+压缩
- 红外距离：40m
- 支持120dB
- 外壳：金属，IP67
| 系列 | Value |
|---|---|
| 图像传感器 | 1/2.8" SONY Starvis Back-illuminated CMOS sensor |
| 分辨率 | 2MP |
| 有效像素 | 1945(H)*1097(V) |
| 压缩 | H.264/H.265/H.264+/H.265+ |
| 音频压缩 | G711A/U,AAC,MP2L2 |
| 制式 | PAL/NTSC |
| 电子快门时间 | Auto: 1/3-1/100000Sec |
| 最低照度 | Color: 0.001 Lux@(F1.6, AGC ON), B/W: 0 Lux with IR |
| 信噪比 | 60dB |
| 扫描方式 | Progressive |
| 视频输出 | Network |
| 复位按键 | Optional |
| 焦距 | 2.7-13.5mm Motor Zoom, horizontal FOV 110°—32°, vertical FOV 58°—19°, diagonal FOV 132°—36° |
| 聚焦控制 | Auto |
| 镜头类型 | Auto |
| 光圈 | F1.6 - F3.3 |
| 像素 | AF-2MP |
| 补光灯 | 2PCS |
| 补光距离 | 40M |
| 补光灯状态 | Auto Control |
| 补光灯开启 | Smart, Manual & Timed mode |
| 以太网 | RJ-45 (10/100Base-T) |
| 无线 | N/A |
| 协议 | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/G/M) |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| 视频延时 | 300ms (Within the Lan) |
| 主码流1 | 1920*1080@30fps |
| 主码流2 | 1280*720@30fps |
| 主码流3 | 720*480@30fps |
| 子码流1 | 720*480@30fps |
| 子码流2 | N/A |
| 子码流3 | N/A |
| 三码流 | N/A |
| IE浏览器 | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| 智能手机 | iPhone, Android |
| 智能分析 | Intrusion Detetion(based on human and Vehicle Detection), Motion Detection(supports the detection based on human movement) |
| 日夜转换 | Color/ B&W (IR-CUT ) |
| 图像配置 | Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, Anti Flicker, Video Tampering, HLC |
| 全彩 | N/A |
| 走廊模式 | N/A |
| 透雾模式 | N/A |
| ROI | Support |
| BLC | Support |
| 宽动态 | 120dB |
| 移动侦测 | Support(support enable the detection based on human and Vehicle movement) |
| 隐私遮挡 | 3 Rectangular Zone |
| 录像模式 | NVR/CMS/Web |
| 语言 | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| 音频 | Default: Built in Mic; Option: Audio I/O |
| 报警 | Default: Without; Option: Alarm I/O |
| SD卡槽 | Default: Without; Option: External SD card slot (Max 512GB) |
| RS485 | N/A |
| 外壳 | Metal ,IP67 |
| 防剪支架 | NO |
| 红外滤光片（IR Cut） | YES |
| 工作温度 | -20℃ ~ +60℃ RH95% Max |
| 存储温度 | -20℃ ~ +60℃ RH95% Max |
| 供电方式 | DC12V±10%, 700mA |
| 尺寸 | φ115 x113(H) mm |
| 重量（净重/毛重） | Approx. 680 g / Approx. 800 g |

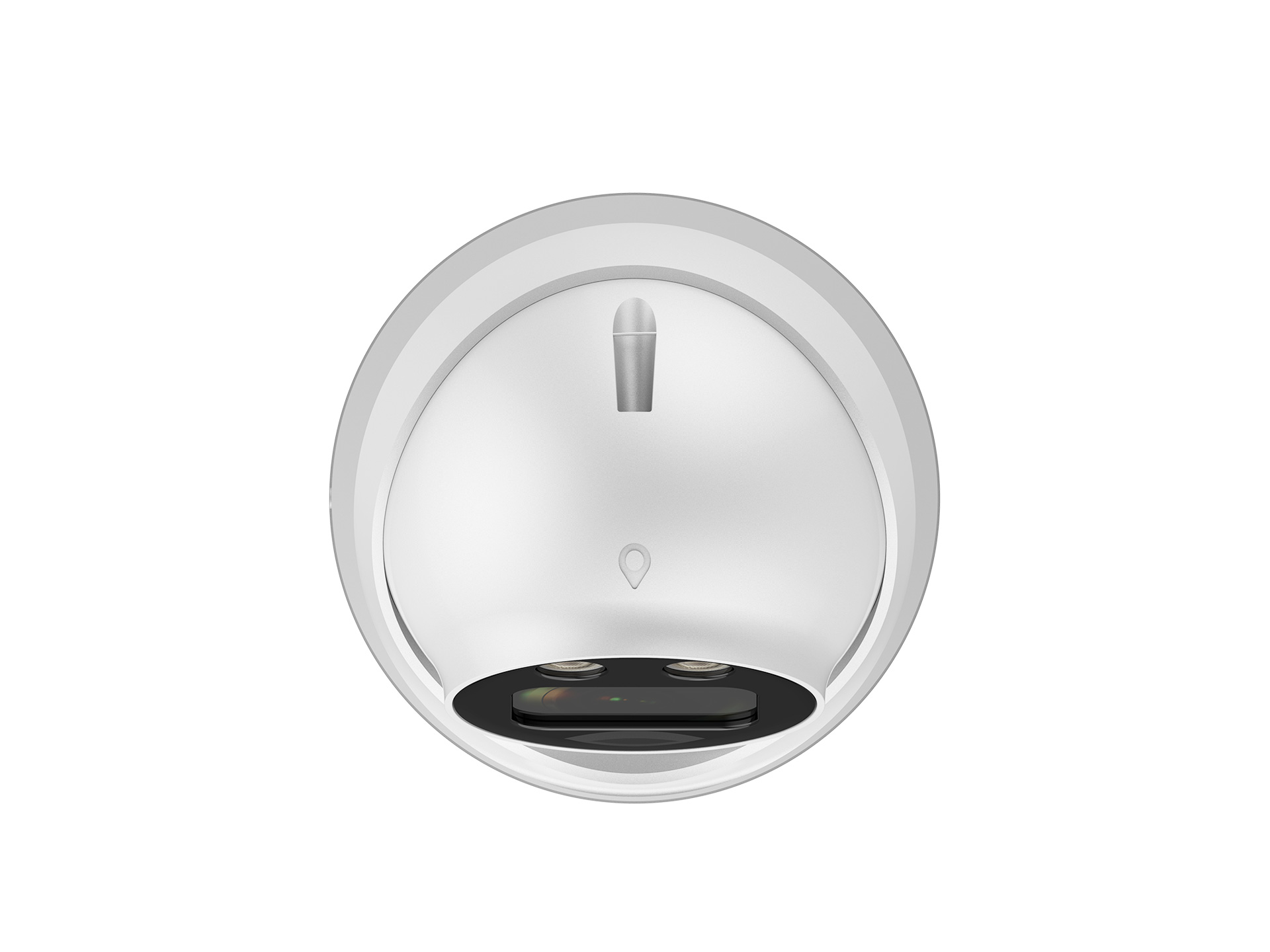

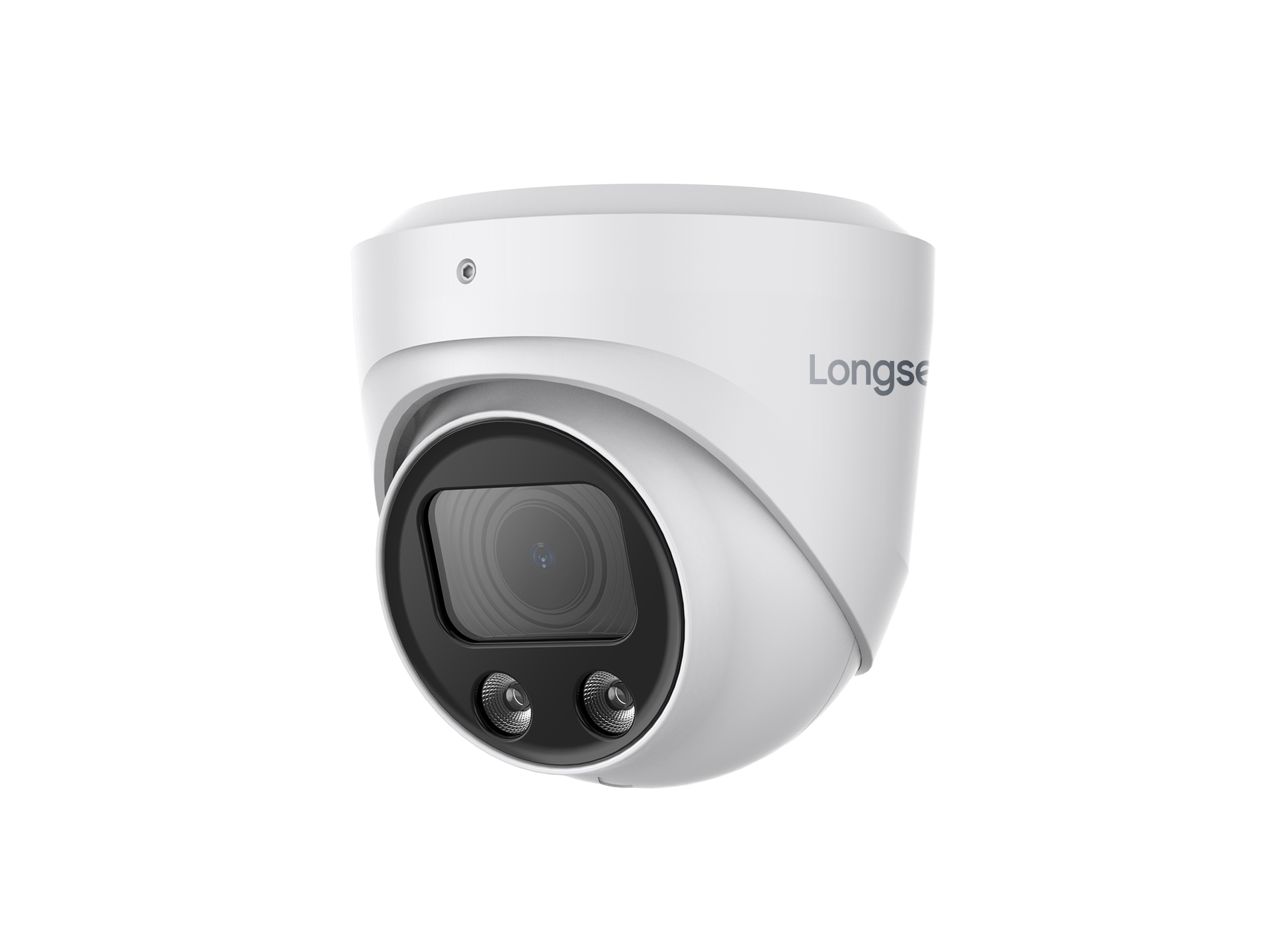

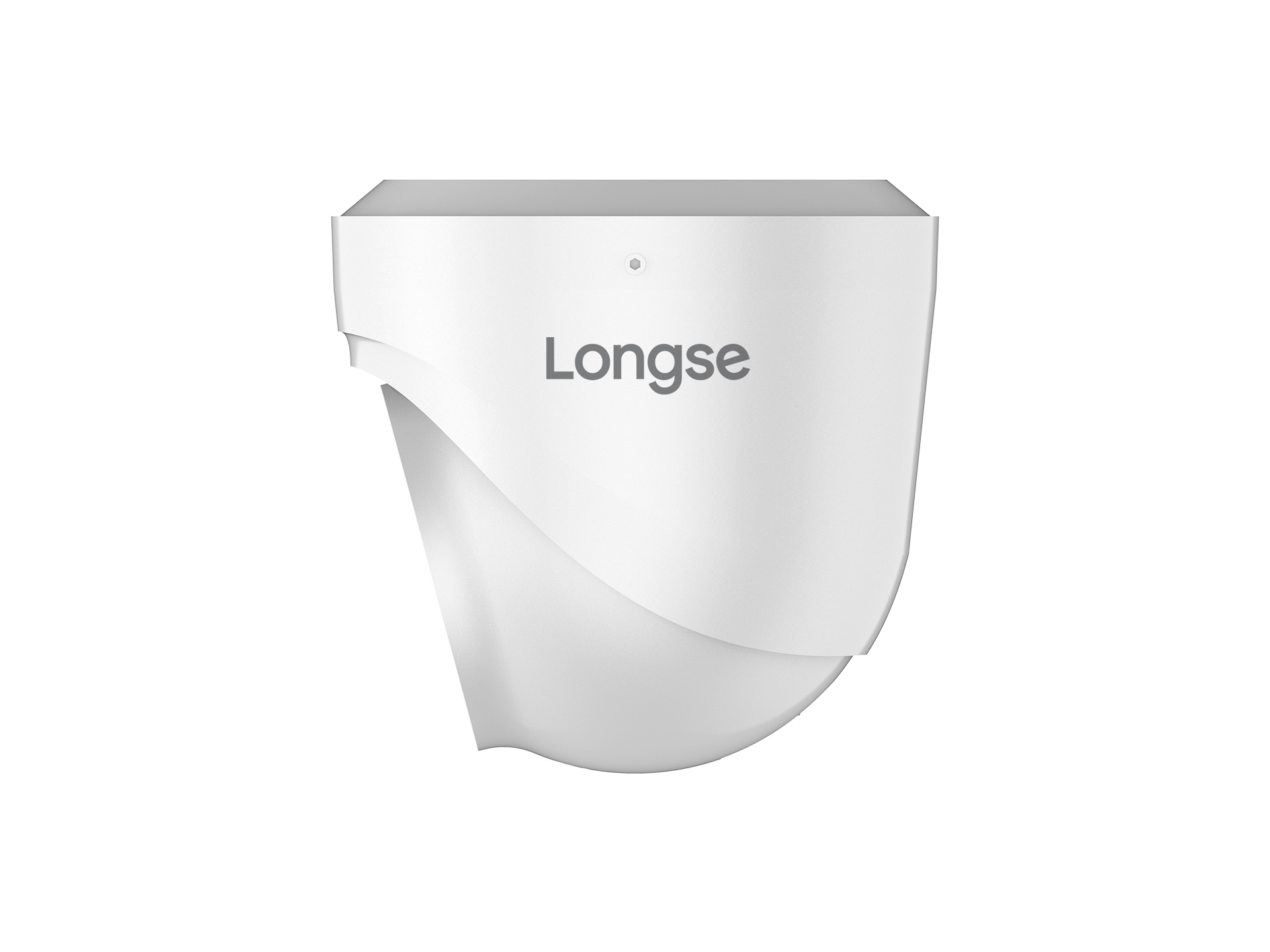

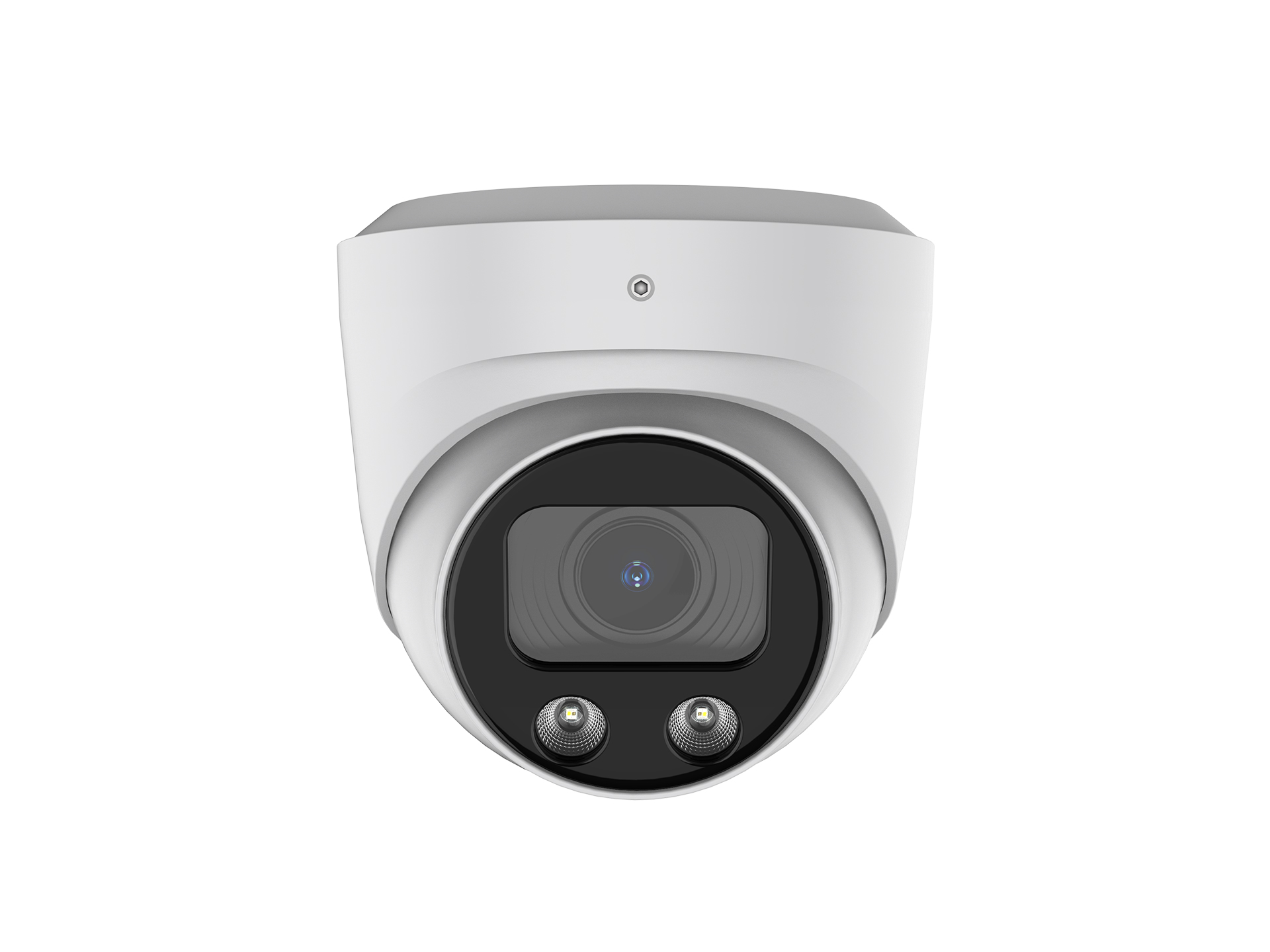

照片
文件
- CMLEKL2R-X5-datasheet.pdf (文档, 3.1 MB)
