CMLFKS8DP
Network Camera
- 厂商:
- Longse
- 收录年份:
- 2025
Longse
800万双目全景网络摄像机
特性
- 800万像素高清成像
- 1/1.8" SONY Starvis2 背照式CMOS传感器
- 支持H.264/H.264+/H.265/H.265+/MJPEG压缩
- 4mm定焦镜头
- 外壳：金属和塑料，IP67
| 系列 | Dual-lens |
|---|---|
| 图像传感器 | 1/1.8" SONY Starvis2 Back-illuminated CMOS sensor |
| 分辨率 | 8MP |
| 有效像素 | 2704(H)*1540(V)*2 |
| 压缩 | H.264/H.264+/H.265/H.265+/MJPEG |
| 音频压缩 | G711A/U,AAC,MP2L2 |
| 制式 | PAL/NTSC |
| 电子快门时间 | Auto: 1/3-1/100000Sec |
| 最低照度 | Color: 0.005 Lux@(F1.0, AGC ON), 0 Lux with white light, B/W: 0 Lux with IR |
| 信噪比 | 60dB |
| 扫描方式 | Progressive |
| 视频输出 | Network |
| 复位按键 | Support |
| 焦距及视场角 | 4 mm, horizontal FOV 226°, vertical FOV 61° |
| 镜头类型 | Fixed focal lens, 4 mm |
| 聚焦控制 | Fixed |
| 光圈 | F1.0 |
| 像素 | 4MP |
| 补光灯 | IR 4PCS; Warm light 4PCS |
| 补光距离 | IR 50m; Warm light 50m |
| 补光灯状态 | Auto Control |
| 补光灯开启 | Smart, Manual & Timed mode |
| 以太网 | RJ-45 (10/100Base-T) |
| 无线 | N/A |
| 协议 | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/G/M) |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| 视频延时 | 300ms (Within the Lan) |
| 主码流1 | 5120*1440@30fps |
| 主码流2 | N/A |
| 主码流3 | N/A |
| 子码流1 | 1920*540@30fps |
| 子码流2 | N/A |
| 子码流3 | N/A |
| 三码流 | N/A |
| IE浏览器 | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| 智能手机 | iPhone, Android |
| 智能分析 | Intrusion Detection/Line Crossing Detection/Enter Area Detection/Leave Area Detection/Line Crossing Count(based on human, vehicle and non-motor vehicle detection), Loitering Detection/People Gathering Detection(based on human detection), Motion Detection(supports the detection based on human, vehicle and non-motor vehicle movement), Illegal Parking(based on vehicle shape and license plates), License Plate Detection, Abandoned Object Detection, Removed Object Detection, Heat Map, Fire Detection, Video Structured Analytics |
| 日夜转换 | Color/ B&W (IR-CUT ) |
| 图像配置 | Saturation/Brightness/Contrast/Sharpness, 3D NR, White Balance, Anti Flicker, Video Tampering, HLC, Distortion(Default enable, not configurable), Scene Change Detection |
| 全彩 | Support |
| 走廊模式 | N/A |
| 透雾模式 | Support |
| ROI | Support |
| BLC | Support |
| 宽动态 | N/A |
| 移动侦测 | Support(support enable the detection based on human movement only) |
| 隐私遮挡 | 3 Rectangular Zone |
| 录像模式 | NVR/CMS/Web |
| 语言 | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| 音频 | Default: Built in Mic+Built in Speaker; Option: Audio I/O; Support Sound Detection |
| 报警 | Default: Alarm I/O |
| SD卡槽 | Default: External SD card slot (Max 512GB) |
| RS485 | N/A |
| 外壳 | Metal+Plastic, IP67 |
| 防剪支架 | NO |
| 红外滤光片（IR Cut） | YES |
| 工作温度 | -30℃ ~ +60℃ RH95% Max |
| 存储温度 | -30℃ ~ +60℃ RH95% Max |
| 供电方式 | DC12V±10%, 950mA |
| 尺寸 | φ152 x 156.28 mm |
| 重量（净重/毛重） | Approx. 1188 g / Approx. 1463 g |

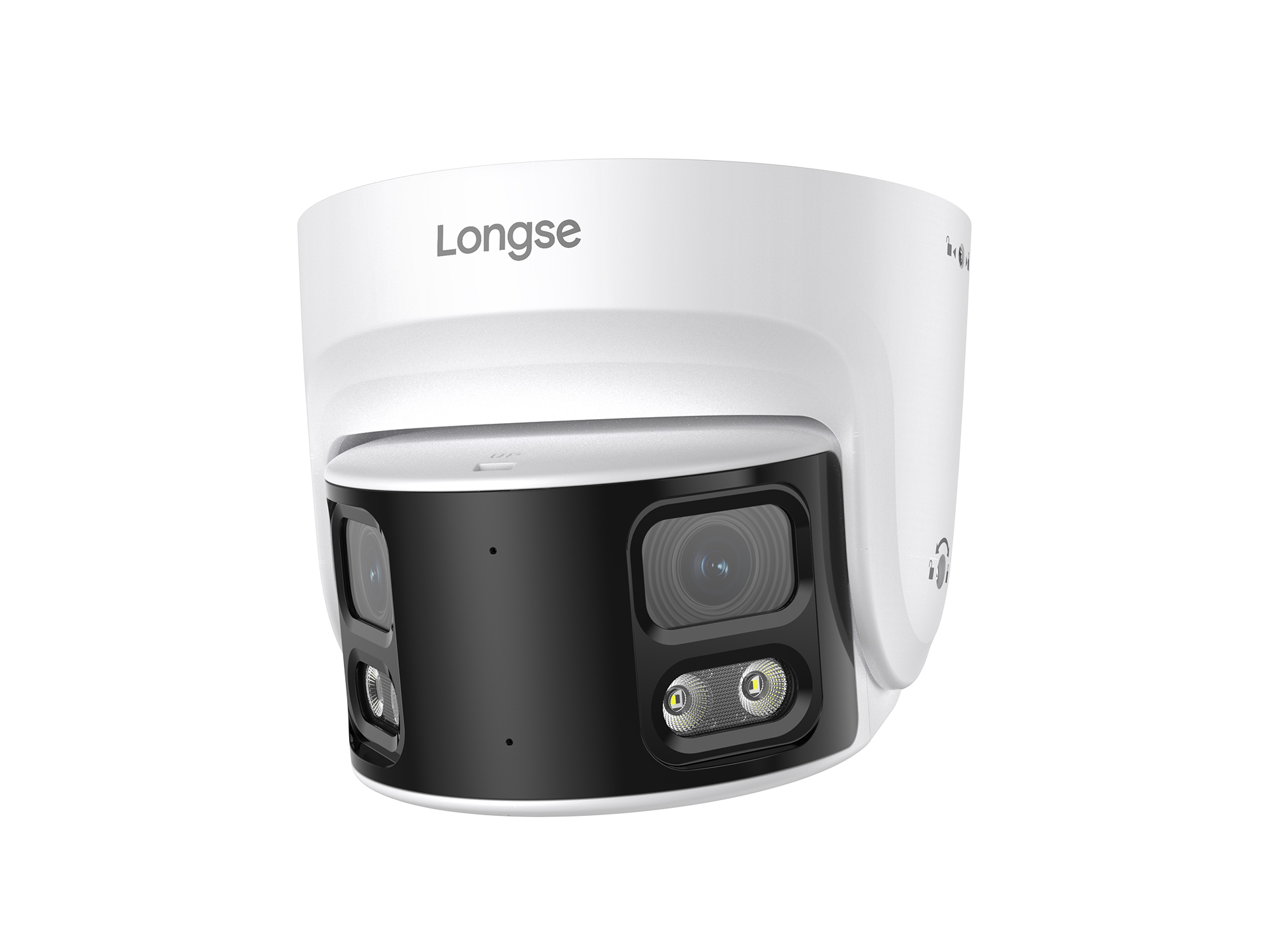

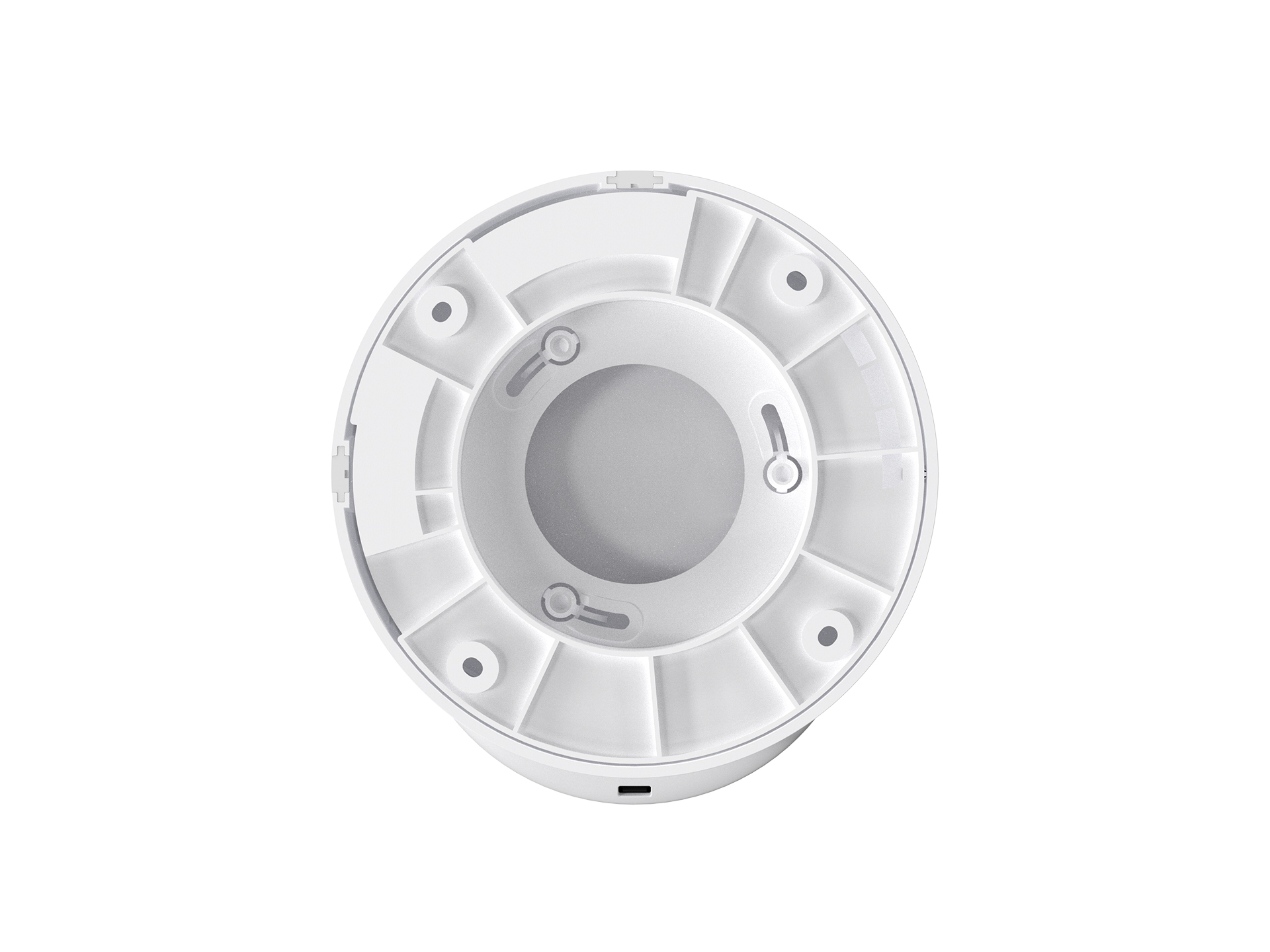

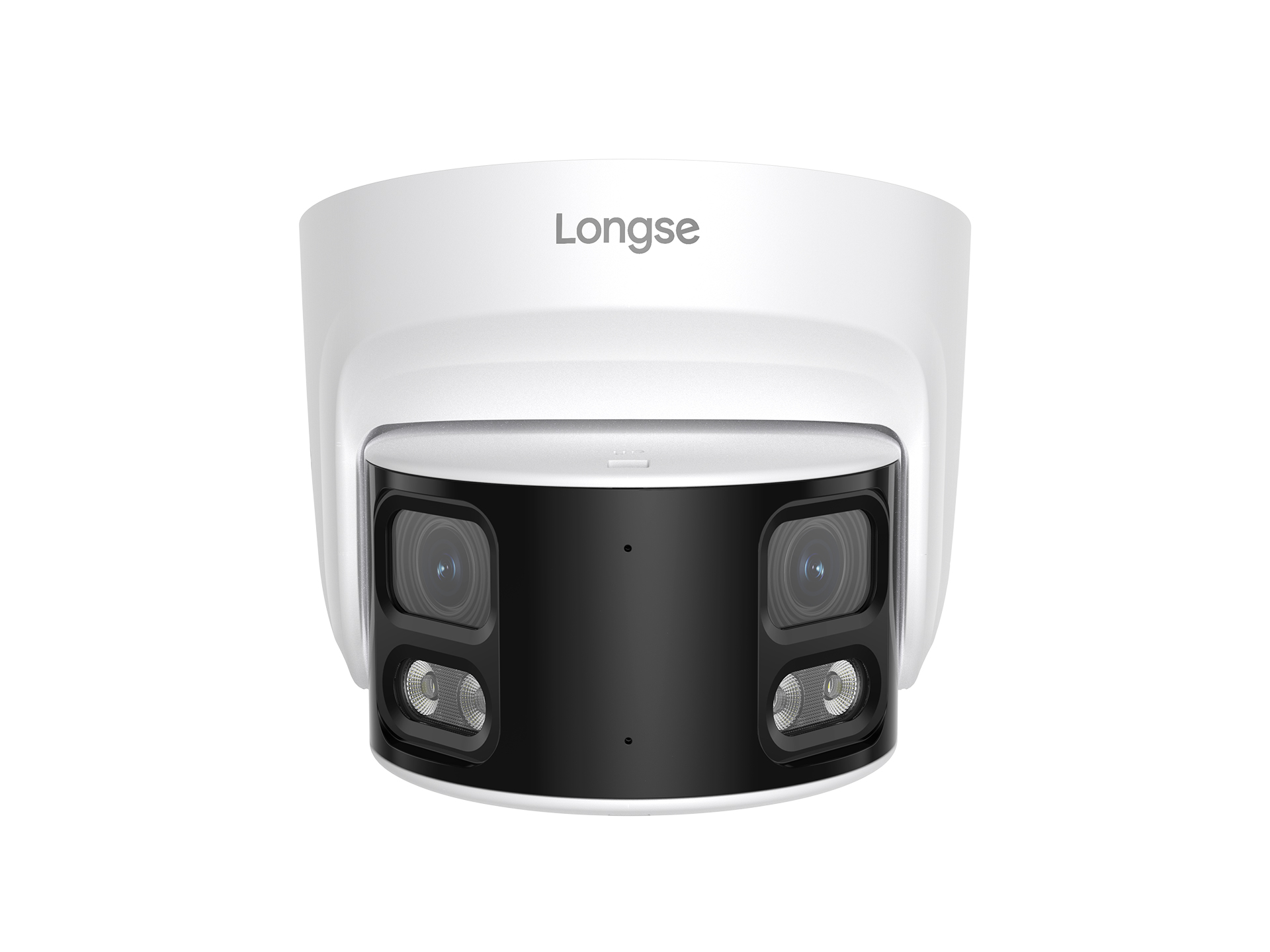

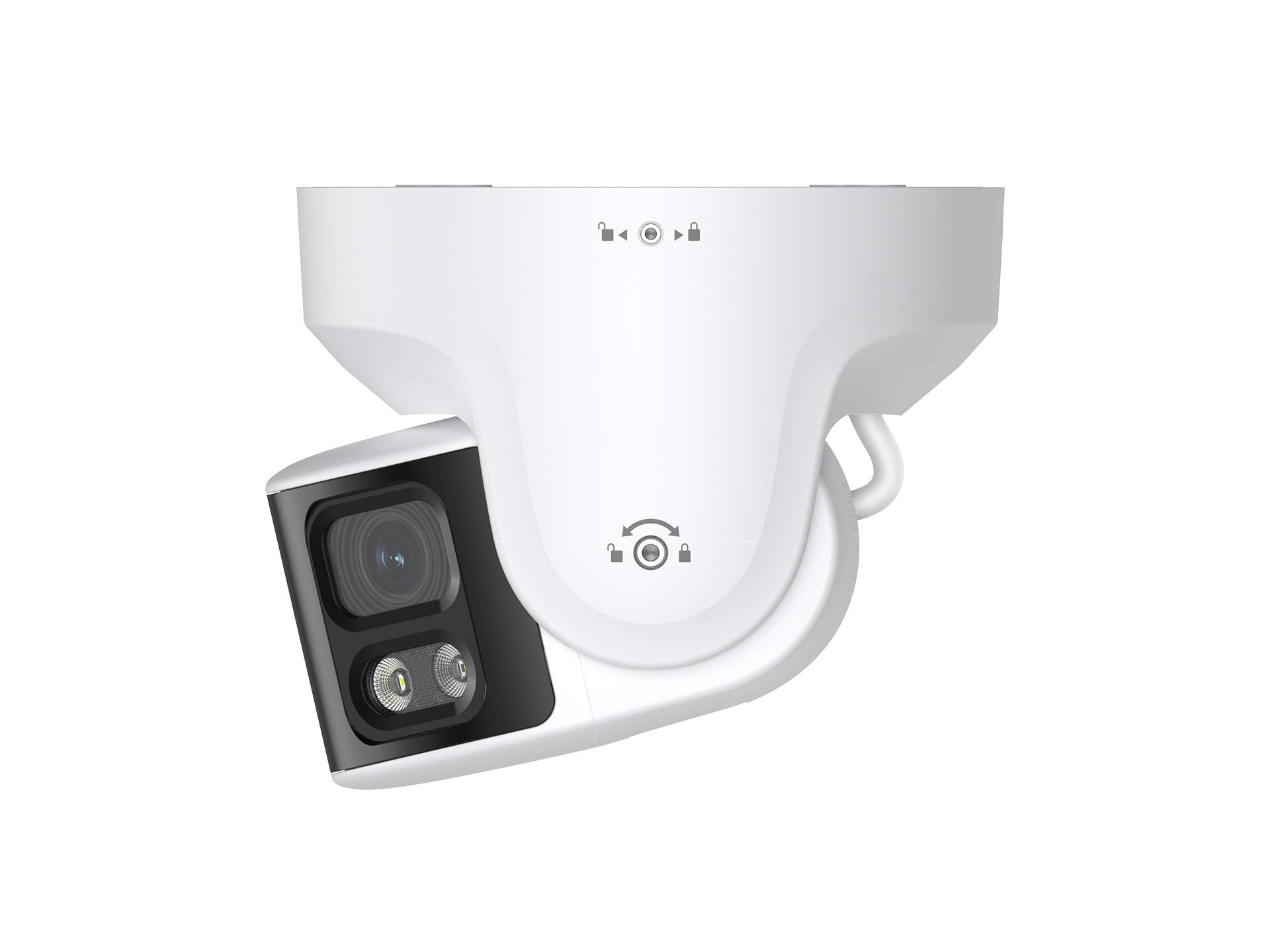

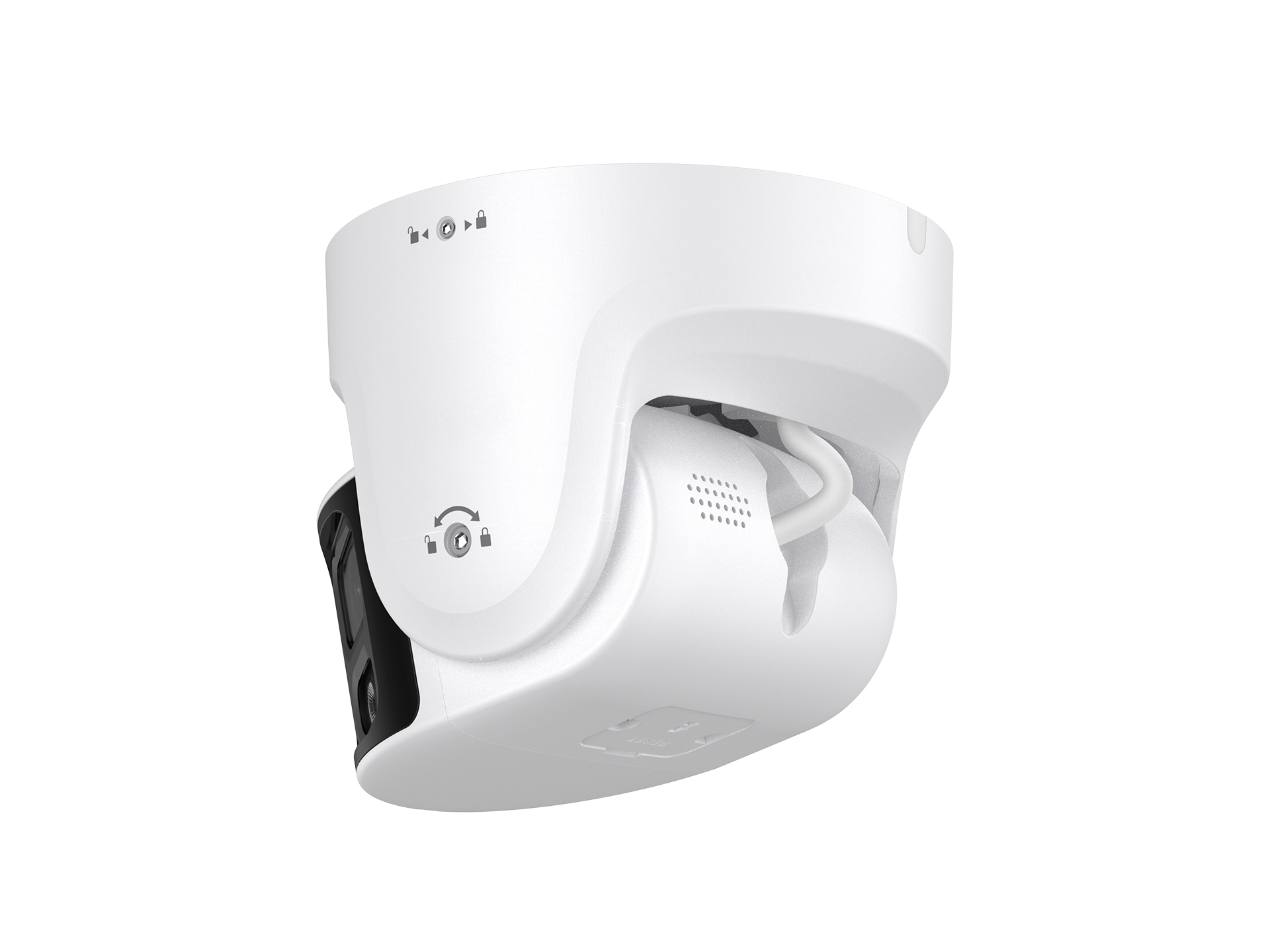

照片
文件
- CMLFKS8DP-datasheet.pdf (文档, 4.7 MB)
