FC-A80
IP camera module
- Maker:
- Anjoy Vision
- Sensor:
- SC830AI
- Listed:
- 2022
Anjoy Vision
8MP dual-light module
Features
- 1/2.7-inch 8MP CMOS sensor;
- H.265+, H.265, H.264 encoding;
- Two lighting control signals supported: CDS, PWM;
- Supports software light sensing: dual-light mode, full-colour mode, IR mode
- Supports image flip, supports digital WDR
- Supports smart analysis: human detection, custom area
- Supports two-way audio, voice announcements, custom voice
- Onvif supported;
- SDK (WINDOWS, Android, Linux) provided
| Model | FC-A80 |
|---|---|
| Image sensor | 8MP, 1/2.7" CMOS SC830AI |
| Video processing | H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~6Mbps; frame rate adjustable 1~25 fps; Main stream: 15PFS@3840X2160, 25FPS@(3072X1728, 2592X1944, 2560X14402304×1296, 1920×1080, 1280× |
| Image output | 720); sub stream: 720×480, D1, VGA, 640×360; |
| Audio interface | Audio: 1 ch line input, 1 ch output |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| LED board interface | CDS, PWM IR, PWM warm light; |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5 |
| Functions | OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm; |
| Network protocols | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols |
| Mobile monitoring | Mobile monitoring (iOS, Android) |
| Power supply | DC12V power input, power consumption 130mA |
| Operating conditions | -40~+85℃ |
| Dimensions | 38 (L) * 38 (W) |

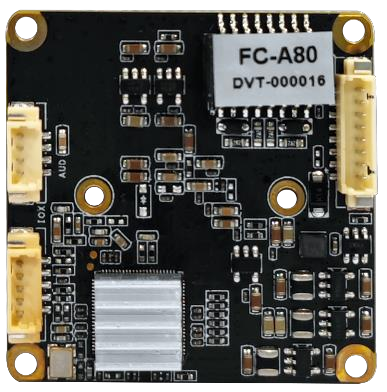

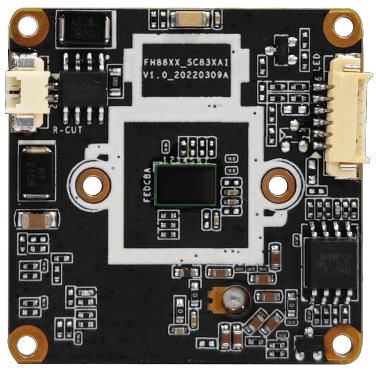

Photos
Files

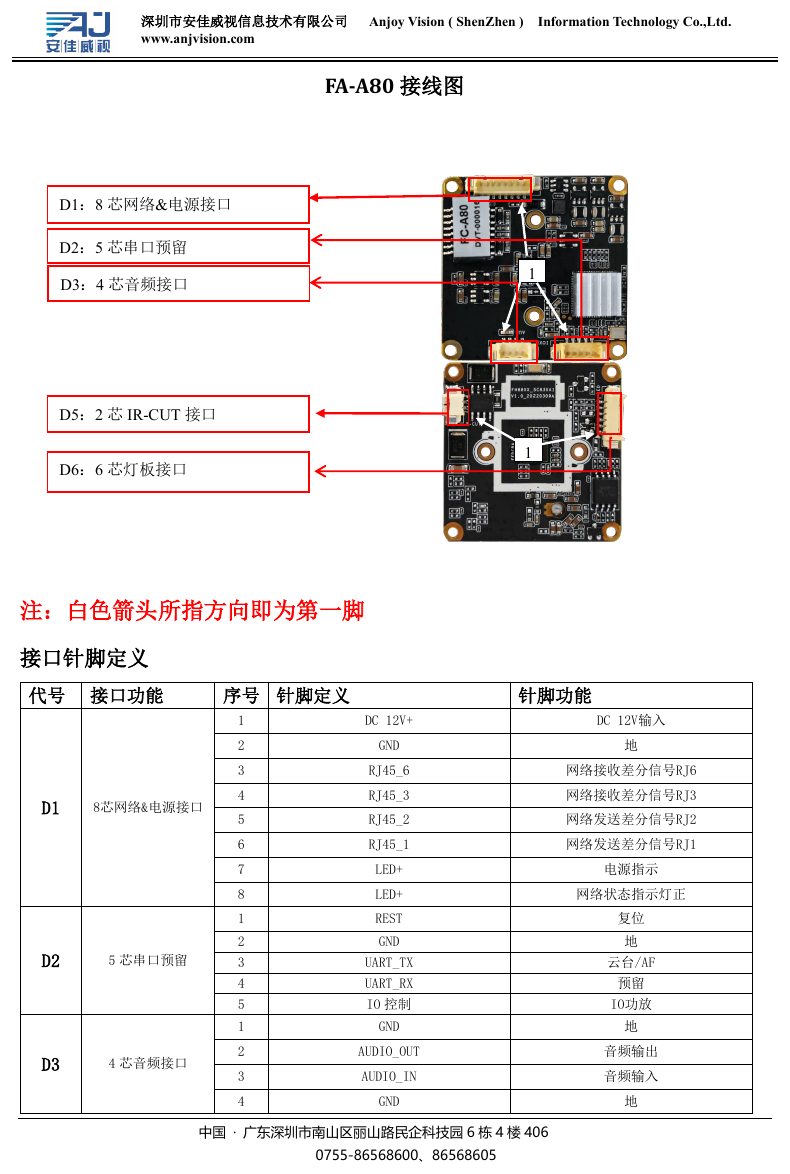

- FC-A80-pinout-1.png (pinout, 234 KB)
- FC-A80-pinout-2.png (pinout, 39 KB)
- FC-A80-spec-sheet.pdf (document, 179 KB)
- FC-A80-wiring-diagram.pdf (document, 269 KB)
