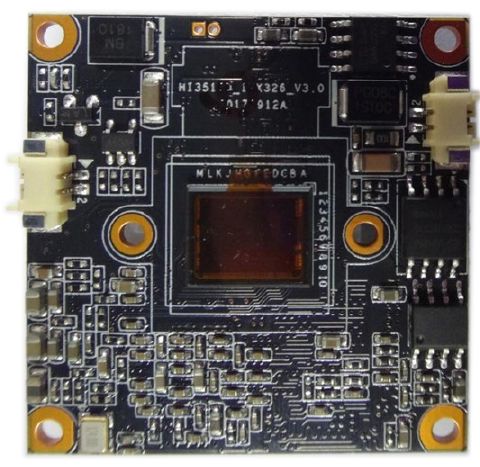

HC500L2
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- HI3516DV100
- Sensor:
- IMX326
- Listed:
- 2018
Anjoy Vision
H265+/H.265/H.264 5MP 38 single-board module
| Model | HC500L2 |
|---|---|
| SoC | Hisilicon Hi3516D |
| Image sensor | 1/2.9", starlight SONY IMX326 |
| Minimum illumination | Colour 0.01 Lux |
| Signal-to-noise ratio | ≥ 39 dB; P/N video standard selectable, auto white balance, 3D noise reduction, WDR, face overexposure prevention, defog, |
| Video processing | Custom title, video ROI, WDR, selectable H.264/H.265 encoding formats, for ultra-low storage use, adjustable bitrate/frame rate; main stream: 2592*1944@18fps 2592*1520@25fps 2048*1536/1080P/720P@30fps |
| Image resolution | Sub stream: VGA/640*360/480*360/CIF@30fps; supports CBR/VBR |
| Audio processing | Audio line input/output, G711U/G711A/ACC encoding, supports two-way audio, supports sound-linked alarm with customisable sound |
| Network interface | One RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection |
| Protocol support | HTTP/RTSP/RTMP/DHCP/NTP/ONVIF/P2P/UPNP/GB28181 and other network protocols; Hikvision and Hanbang protocols supported |
| Storage | None |
| IO interface | Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware |
| LED board interface | Supports passive mode |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in passive/manual/scheduled mode |
| Functions | Browser access via IE6.0 and later (embedded Web Server), motion detection and OSD, JPEG snapshots, P2P cloud service, IP filtering, SDK (WINDOWS, Android, Linux) provided |
| General parameters | DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg |
| Operating temperature | -30~85℃ |

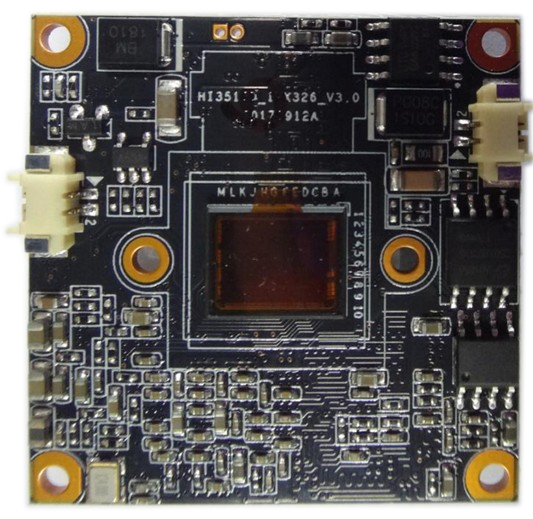

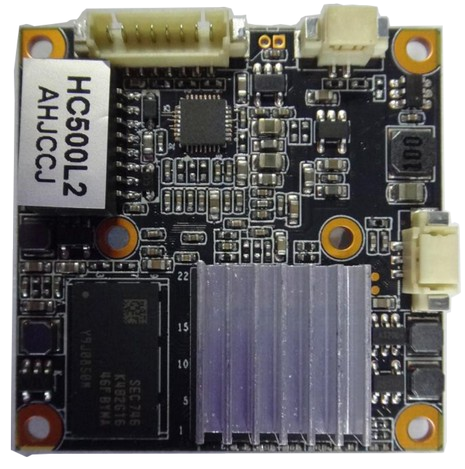

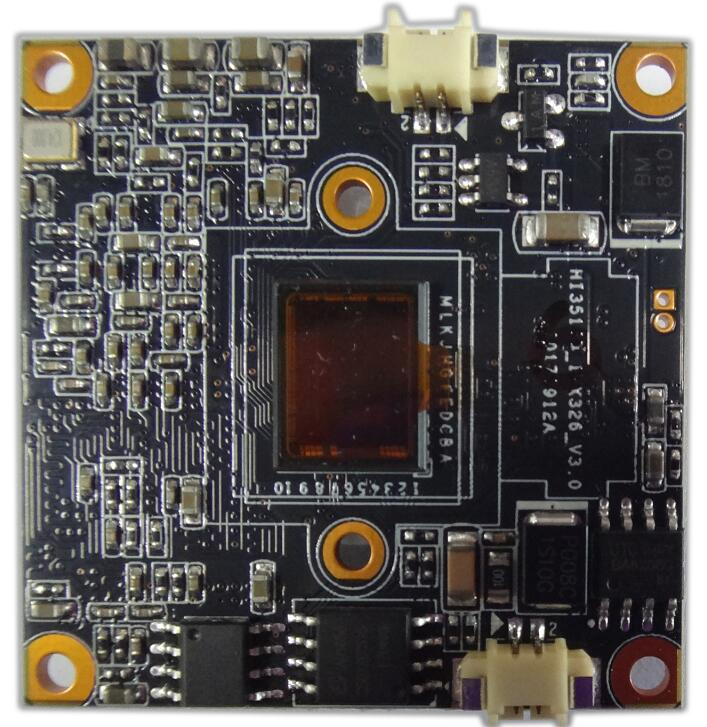

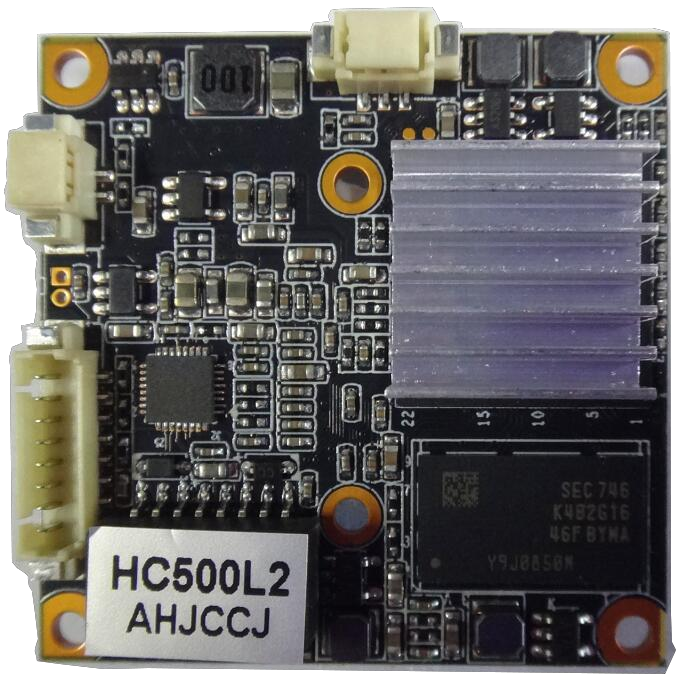

Photos
Files

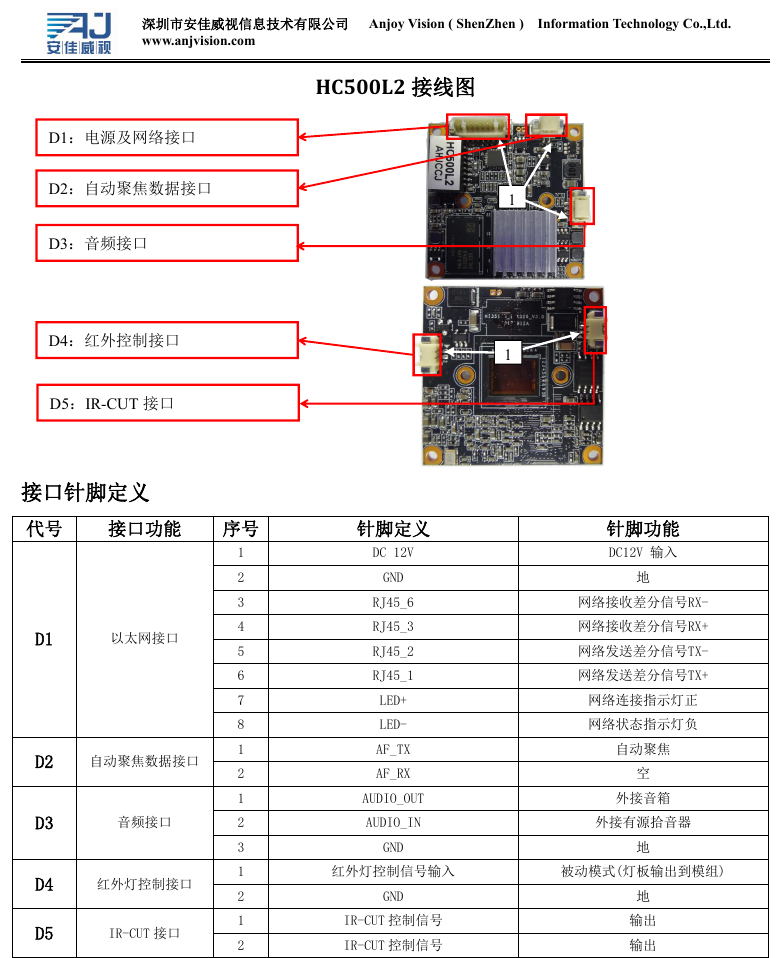

- HC500L2-pinout-1.png (pinout, 230 KB)
- HC500L2-spec-sheet.pdf (document, 334 KB)
- HC500L2-wiring-diagram.pdf (document, 338 KB)
