MC-A31
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- SSC335
- Sensor:
- SC3336
- Listed:
- 2022
Anjoy Vision
3MP dual-light module
Features
- 1/2.8-inch 3MP CMOS sensor;
- H.265+, H.265, H.264 encoding
- Supports software light sensing: dual-light mode, full-colour mode, IR mode
- Supports smart analysis: human detection, custom area
- Supports two-way audio, voice announcements, custom voice
- Supports image flip, supports digital WDR
- Rest lighting switching supported
- Onvif supported;
- SDK (WINDOWS, Android, Linux) provided
| Model | MC-A31 |
|---|---|
| SoC | SSC335 |
| Image sensor | 3MP, 1/2.8" CMOS SC3336 |
| Video processing | H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~6Mbps; frame rate adjustable 1~25 fps; |
| Image output | Main stream: 20FPS@2304×1296, 25FPS@(1920×1080, 1280×720); sub stream: 720×480,D1,VGA,640×360; |
| Audio interface | Audio: 1 ch line input, 1 ch output |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| LED board interface | PWM IR, PWM warm light; |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5 |
| Functions | OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm; |
| Network protocols | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols |
| Power supply | DC12V power input, power consumption 120mA |
| Operating conditions | -40~+85℃ |
| Dimensions | 38 (L) * 38 (W) |

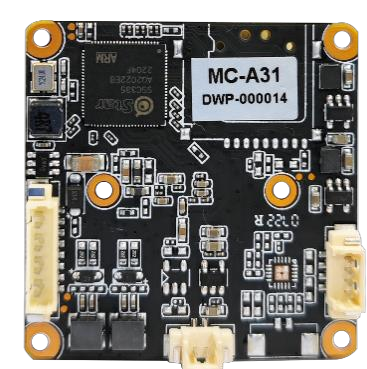

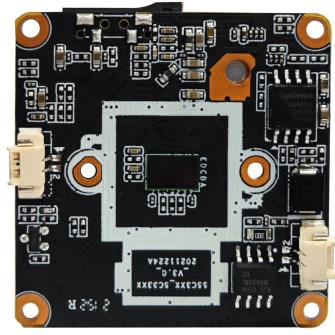

Photos
Files

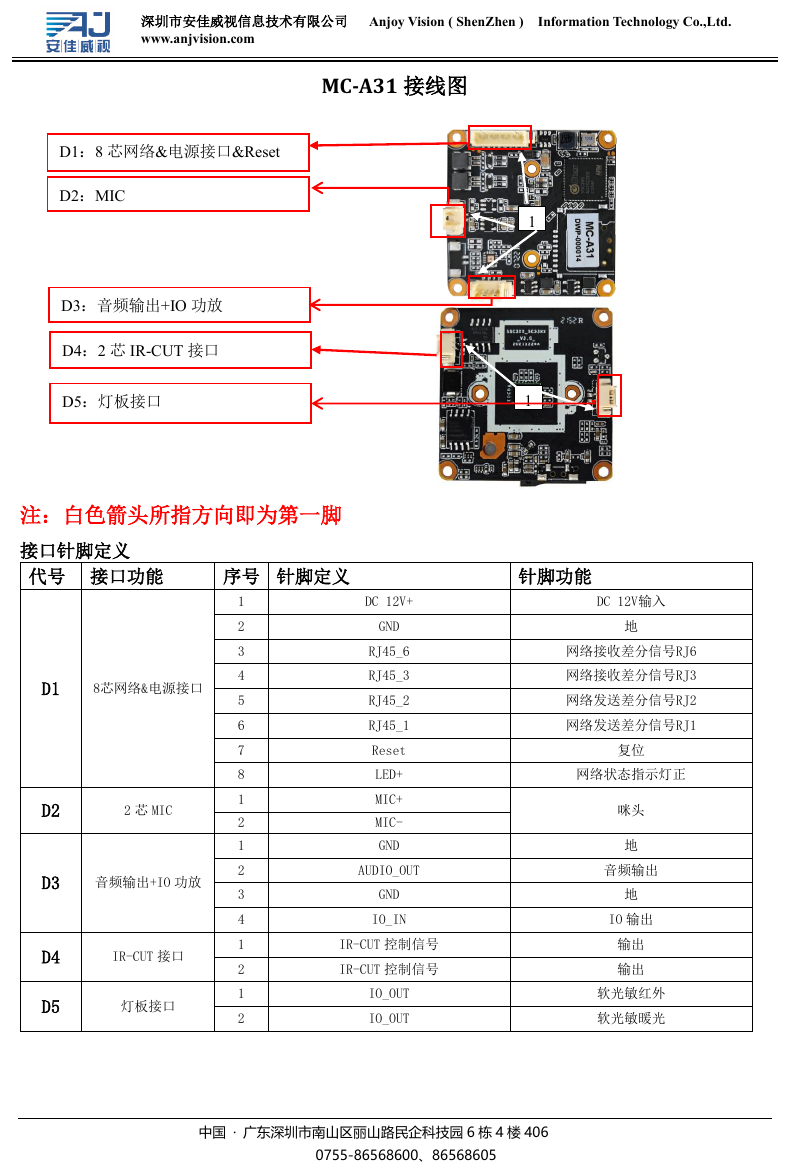

- MC-A31-pinout-1.png (pinout, 235 KB)
- MC-A31-spec-sheet.pdf (document, 179 KB)
- MC-A31-wiring-diagram.pdf (document, 249 KB)
