MC-A38P
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- SSC37X
- Listed:
- 2025
Anjoy Vision
3MP dual-light module
Features
- 1/3-inch 3MP CMOS sensor;
- H.265+, H.265, H.264 encoding
- Supports software light sensing: dual-light mode, full-colour mode, IR mode
- Supports smart analysis: human detection, custom area
- Supports two-way audio, voice announcements, custom voice
- Supports image flip, supports digital WDR
- Onvif supported;
- Integrated POE
| Model | MC-A38P |
|---|---|
| SoC | SSC37X |
| Image sensor | 3MP, 1/3" CMOS |
| Video processing | H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~3Mbps; frame rate adjustable 1~25 fps; |
| Image output | Main stream: 25FPS@(2304×1296, 1920×1080, 1280×720); sub stream: D1,VGA,640×360; |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| LED board interface | PWM IR, PWM warm light, CDS; |
| Audio input | Audio: 1 ch line input (MIC) |
| Audio output | 1 output, 1 output; |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5 |
| Functions | OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm; |
| Network protocols | HTTP/RTSP/DHCP/NTP/ONVIF and other network protocols |
| POE | Power supply: 802.3af (max. output power 12W), DC12V 96mA |
| Operating conditions | -30~+65℃ |
| Dimensions | 53mm×38mm |

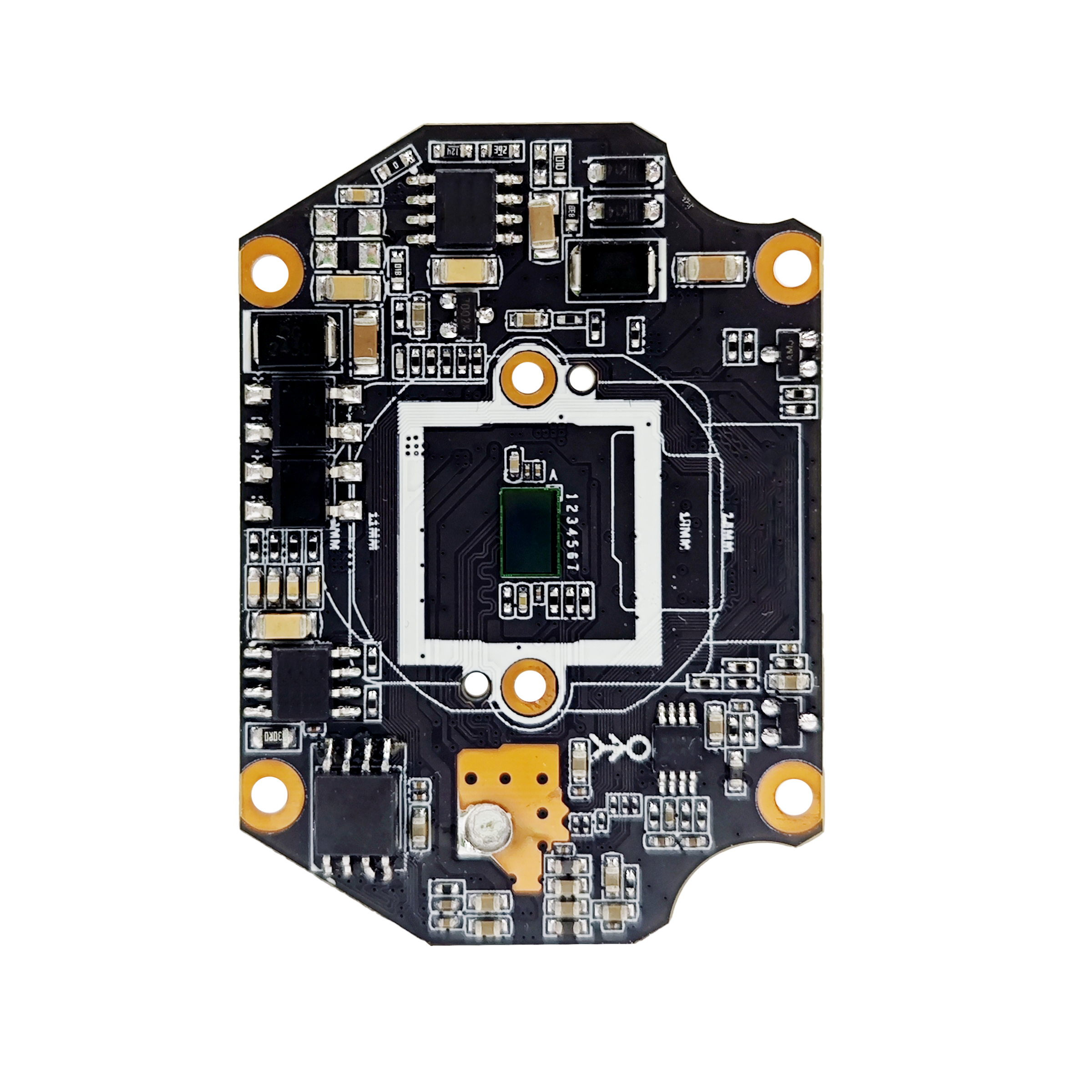

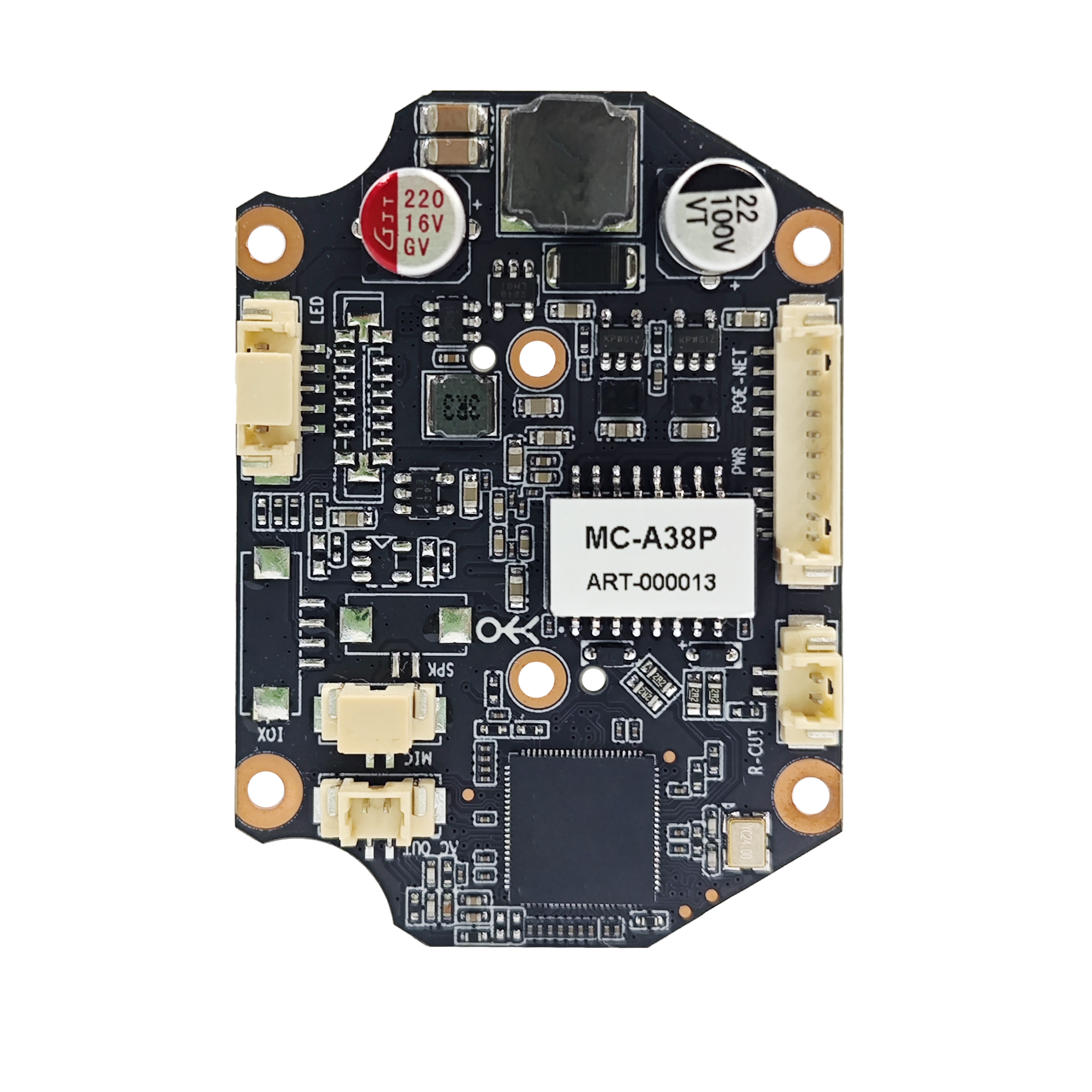

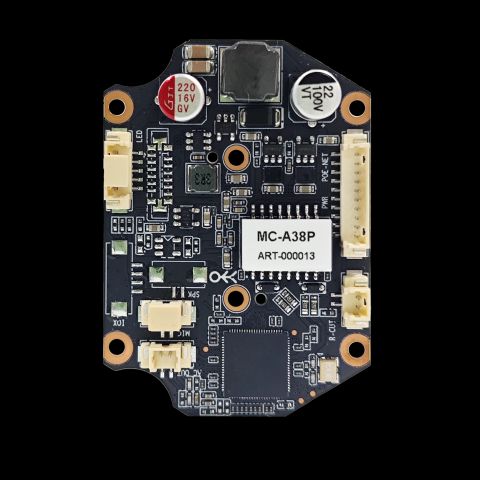

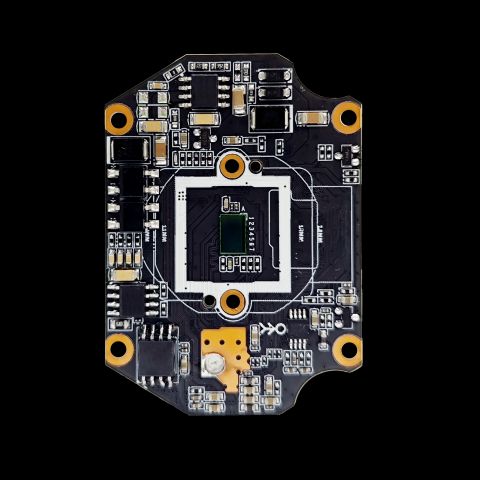

Photos
Files
- MC-A38P-spec-sheet.pdf (document, 160 KB)
