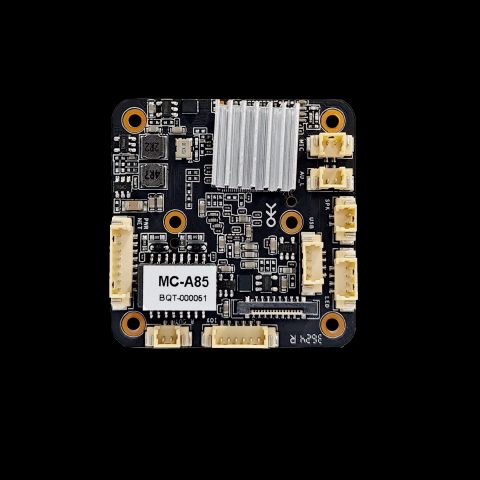

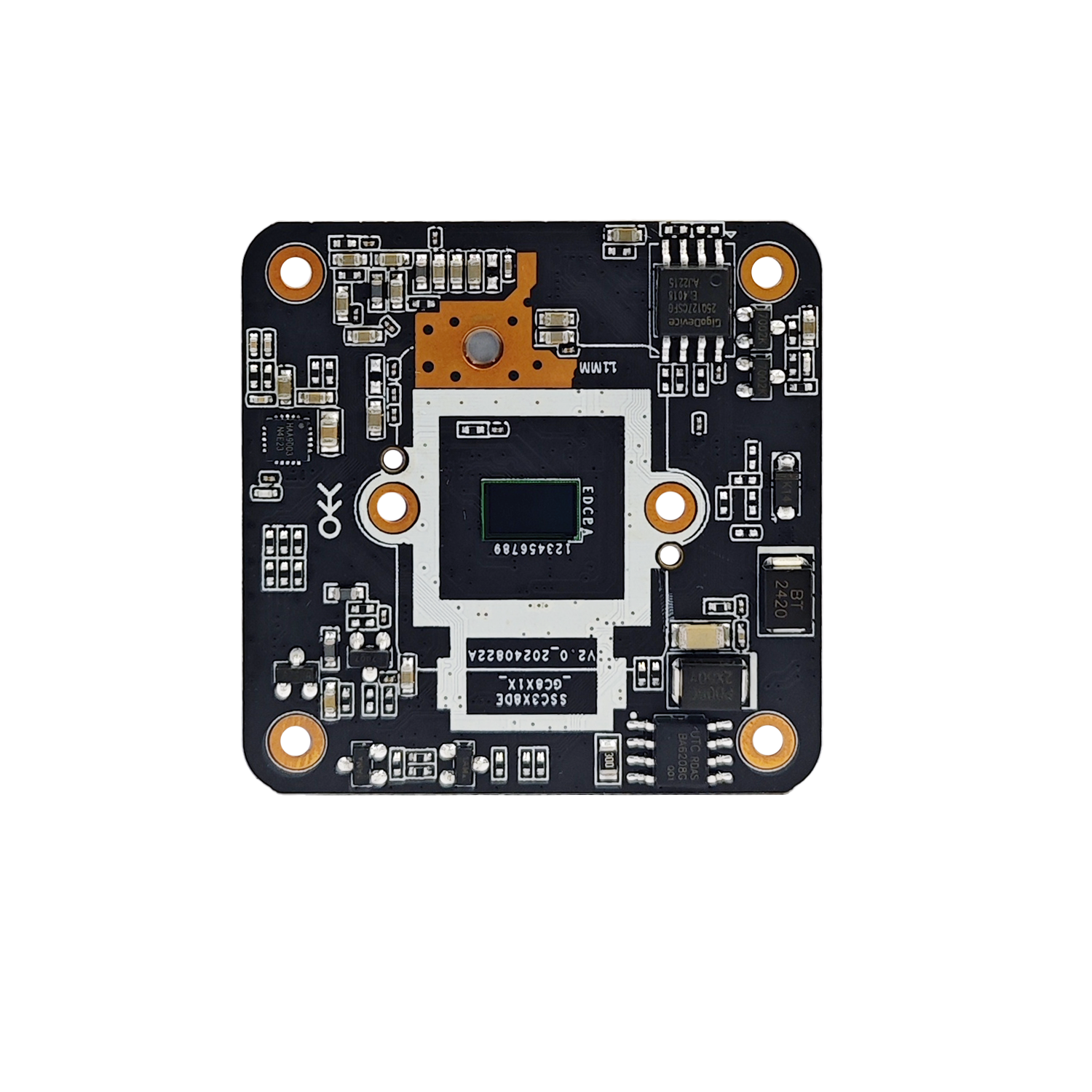

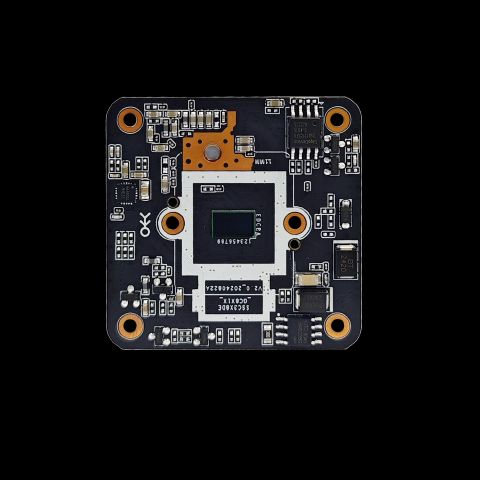

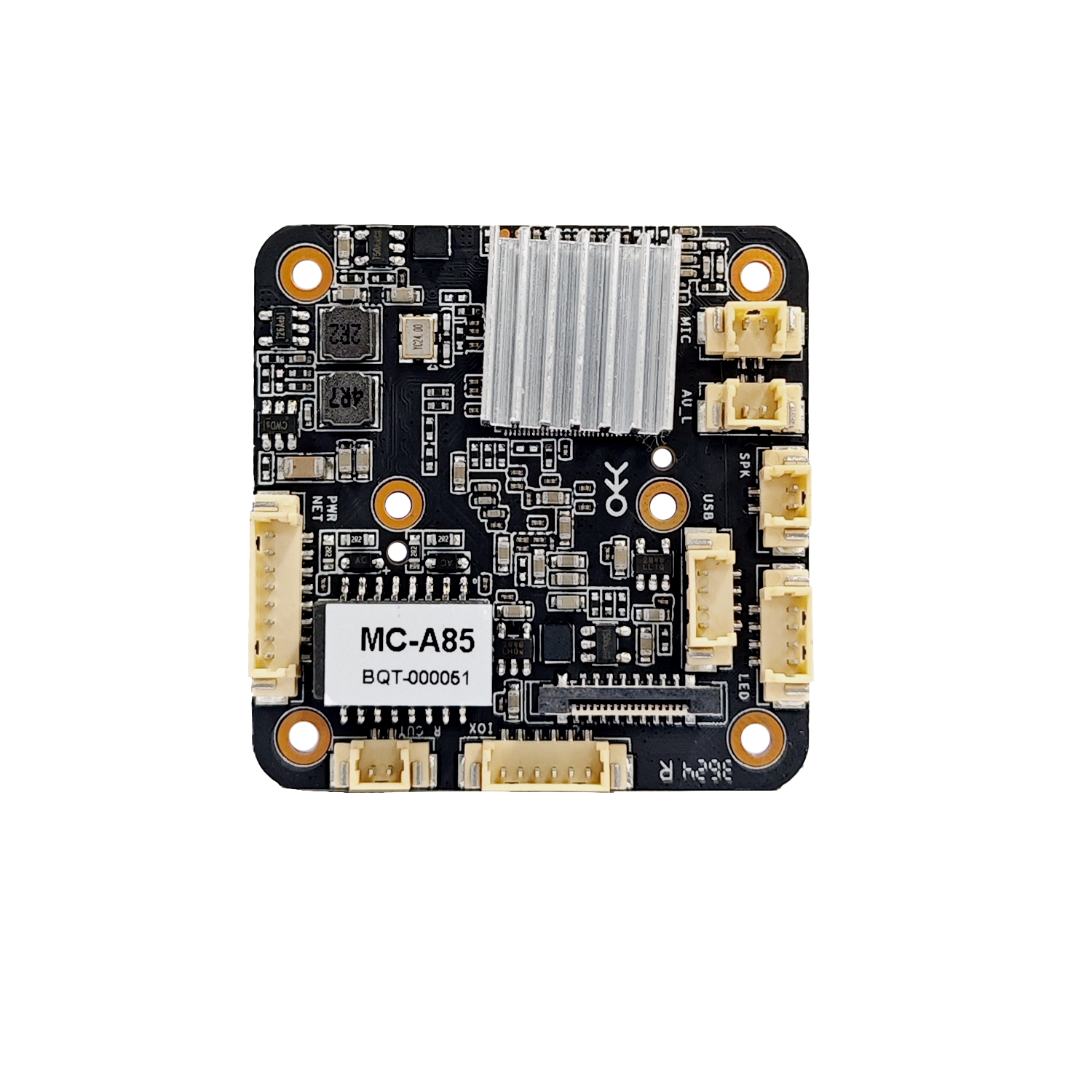

MC-A85

IP camera module

Anjoy Vision

8MP smart AI module

1/2.7-inch 8MP black-light CMOS sensor;
H.265+, H.265, H.264 encoding;
Two lighting control signals supported: CDS, PWM;
Supports software light sensing: IR mode, dual-light mode, full-colour mode
Supports image flip
Supports smart analysis: human detection, vehicle detection, custom area, tripwire detection
Supports two-way audio, voice announcements, custom voice
Onvif supported;
Supports character overlay
IP address filtering;
POE expansion supported;
Privacy masking, 1 ch IO alarm input/output

Specifications
Model	MC-A85
SoC	SSC378DE
Image sensor	8MP, 1/2.7" CMOS
Video processing	H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~12Mpbs; frame rate adjustable 1~20 fps; Main stream: 20@FPS(3840×2160),25FPS@(3072×2048)30FPS@(2592×1944,2560×1440,2304×1296, 1920×1080,
Image output	1280×720); sub stream: 720×480, D1, VGA, 640×360;
Audio interface	Audio: 1 ch line input, 1 ch output, 1 ch SPK output (8 Ω 2W)
Audio processing	G.711 encoding; two-way voice intercom; audio-video synchronisation;
IRCUT interface	Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode

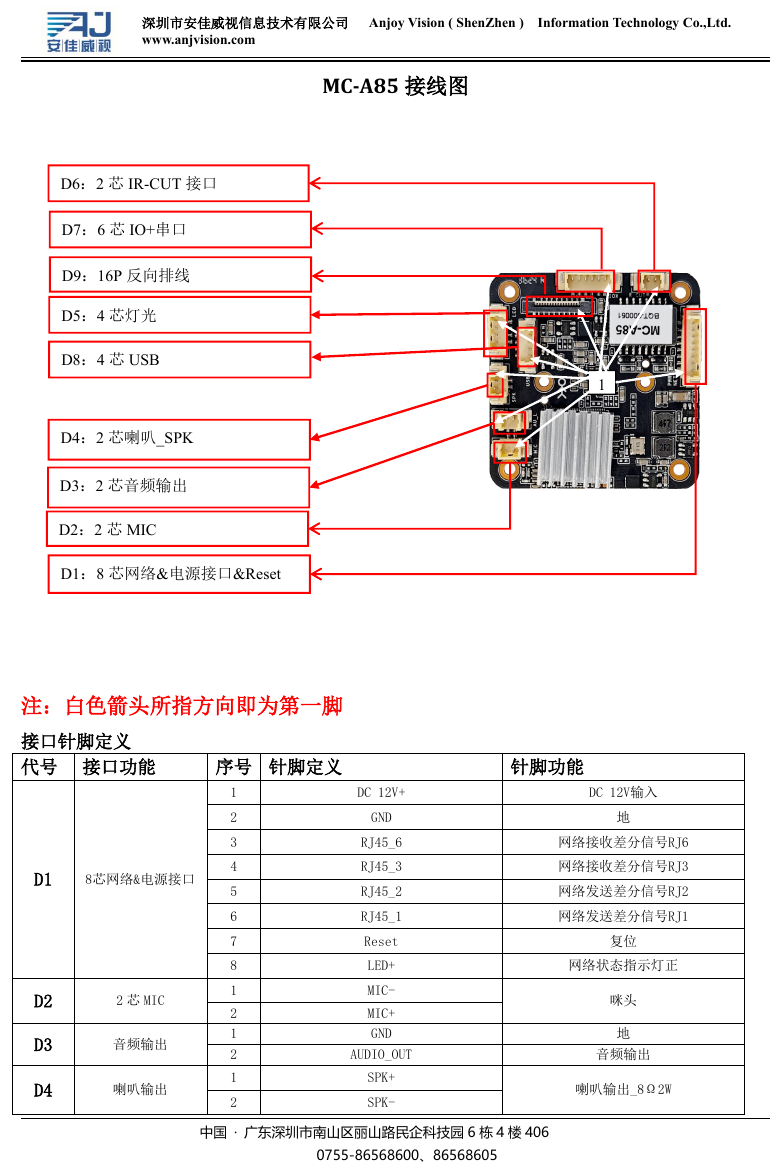

Network interface	1 × RJ45 Ethernet interface, 10/100M auto-negotiating;

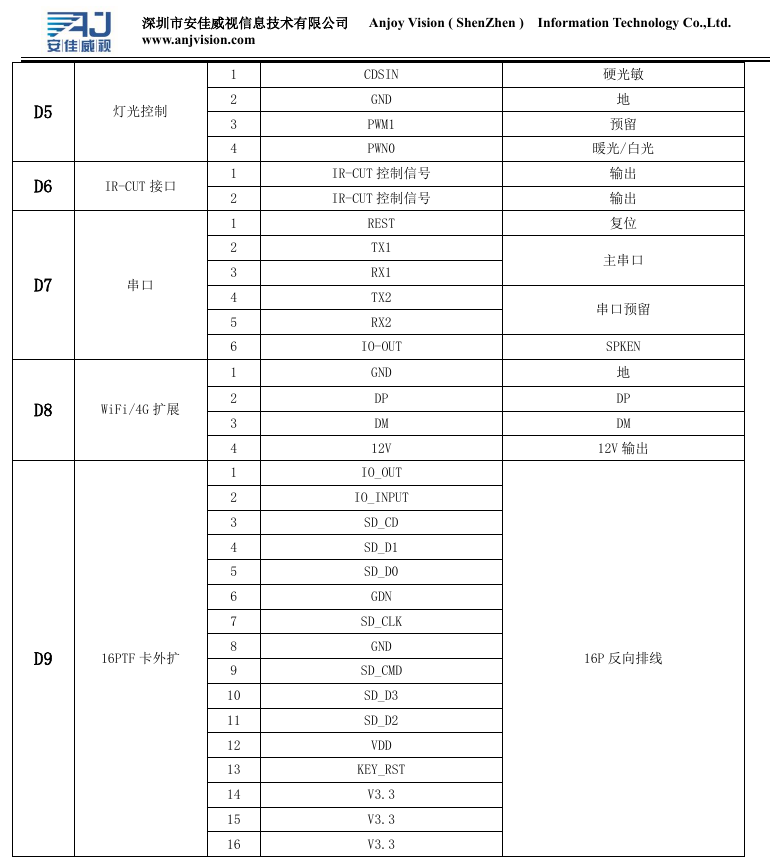

LED board interface	CDS, PWM IR, PWM warm light;
IO interface	Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware
Reliability	Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5
Functions	OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm;
Network protocols	HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols;
Mobile monitoring	Mobile monitoring (iOS, Android) AC18Pro(Videolink)
Power supply	DC12V power input
Operating conditions	-40~+85℃
Dimensions	42 (L) * 42 (W)
