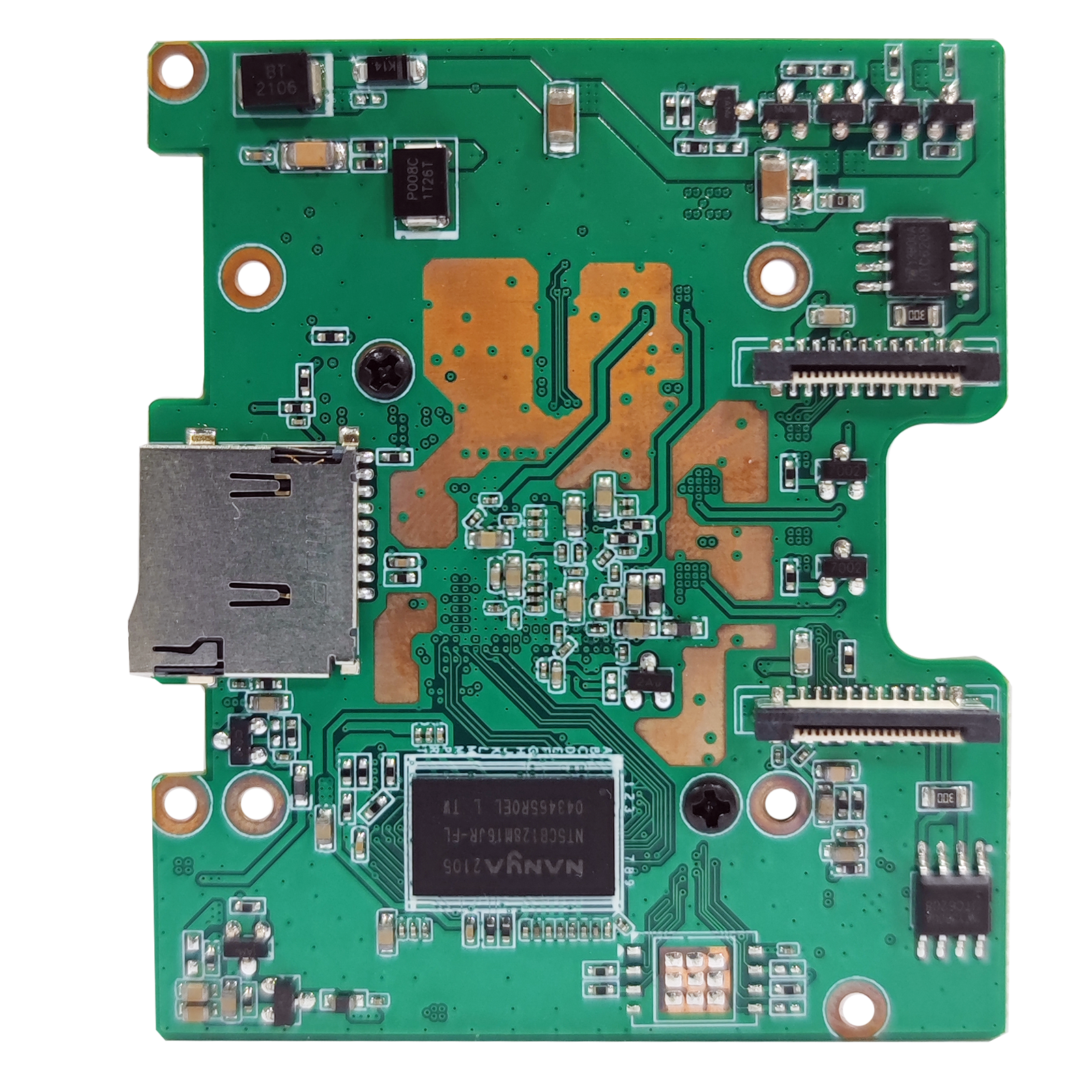

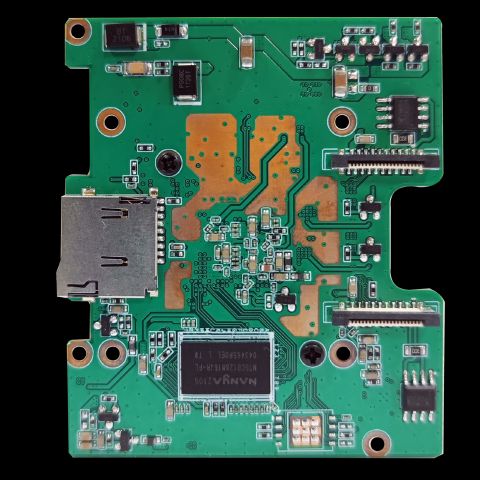

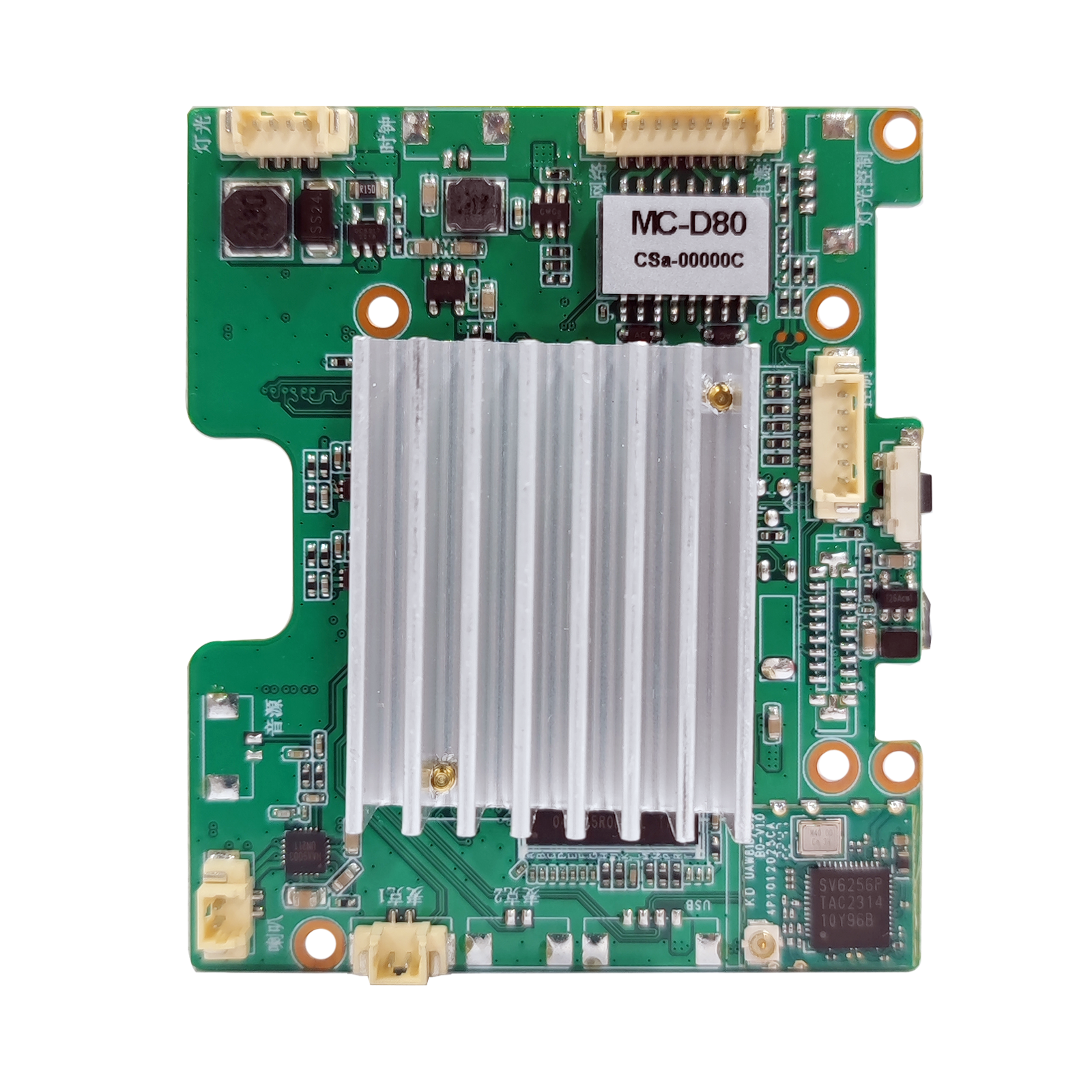

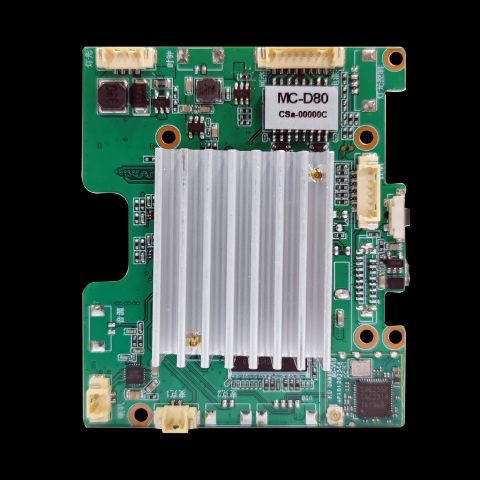

MC-D80

IP camera module

Anjoy Vision

8MP dual-lens panoramic stitching module

Dual-lens stitching, panoramic ultra-wide view;
Maximum resolution 4096*1944@20fps
Supports human detection, area intrusion, line-crossing detection, sound and light alarm
Built-in LED board driver for more stable operation; lighting modes supported: dual-light, full-colour, IR
2.8MM lens, horizontal field of view 180°;
Supports backlight compensation, highlight suppression, 3D digital noise reduction
Supports local storage on MicroSD/MicroSDHC/MicroSDXC cards up to 512 GB
Supports two-way audio
2 audio inputs, 1 audio output
POE expansion supported;

Specifications
Model	MC-D80
SoC	MSC359G

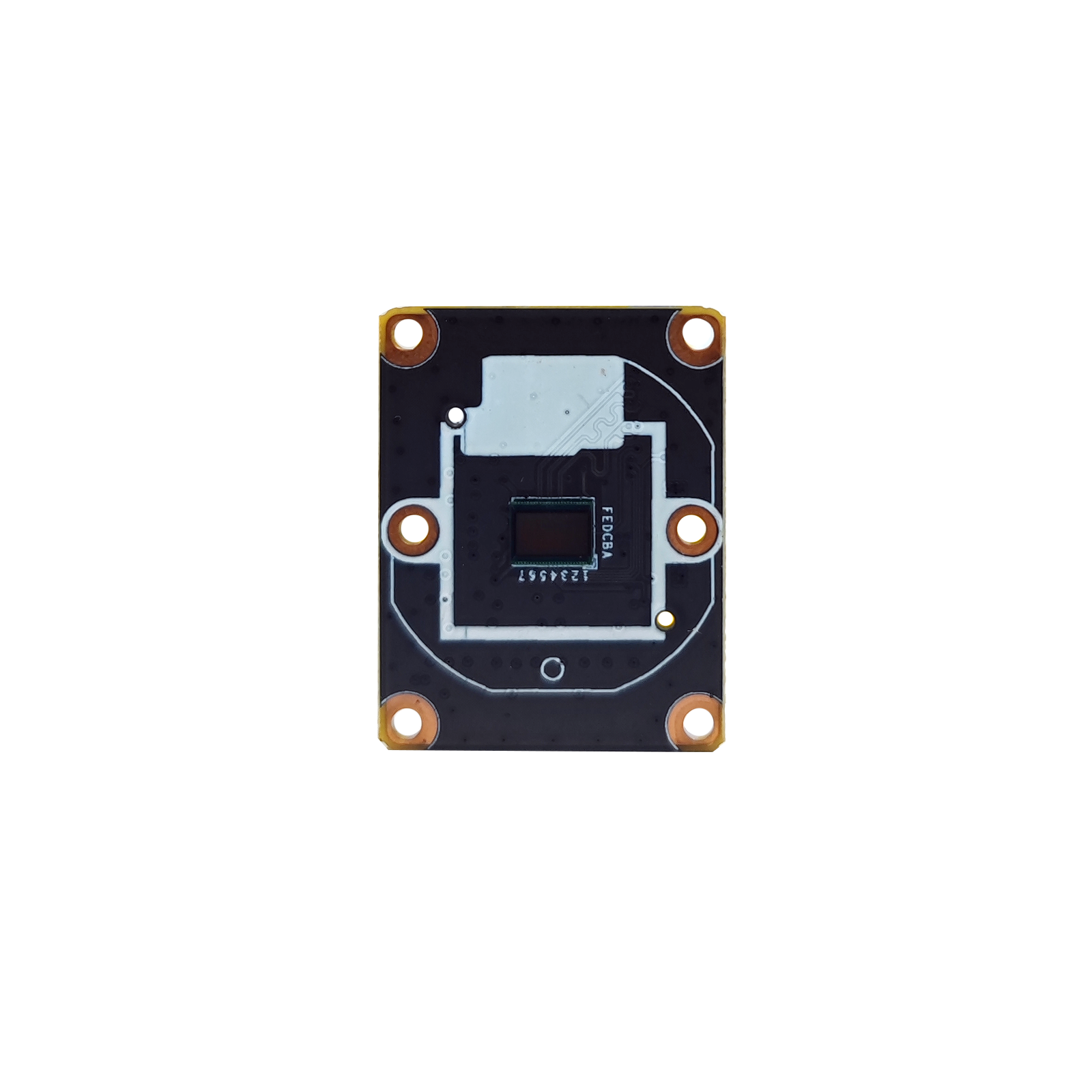

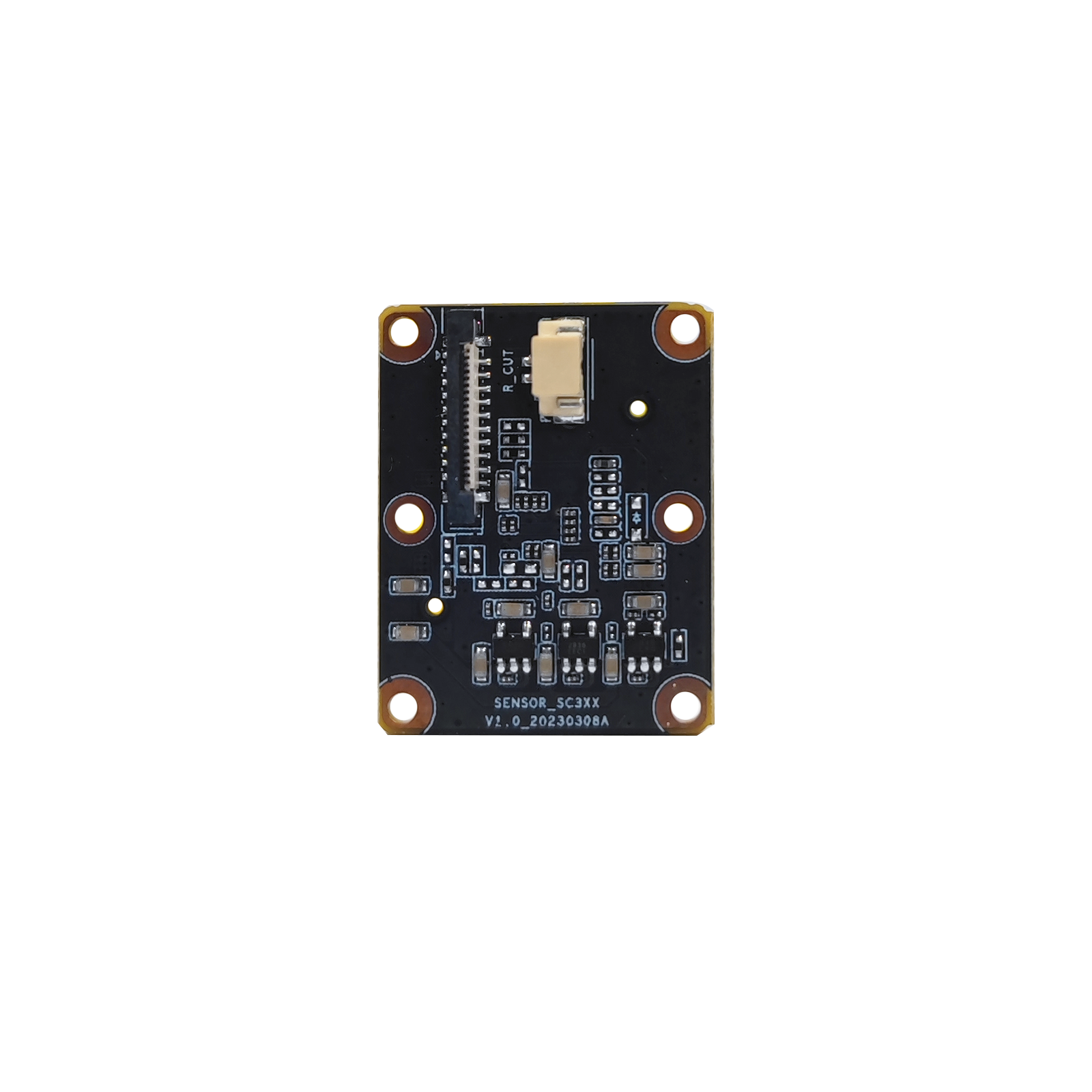

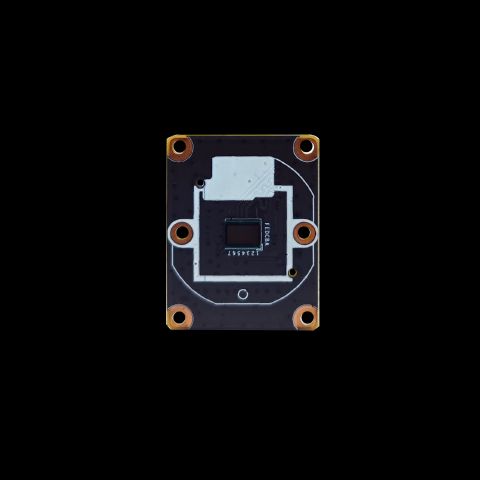

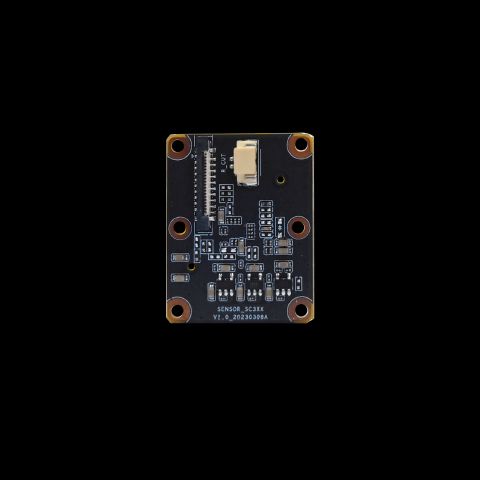

Image sensor	1/2.7-inch CMOS, starlight
Video processing	H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~6Mbps;
Image output	Main stream: 20@fps(4096*1944); sub stream: 20@fps(1024×480, 768×360);
Audio interface	2 ch MIC input, 1 ch built-in amplifier output (8Ω2W);
Audio processing	G.711 encoding; two-way voice intercom; audio-video synchronisation;
Network interface	1 × RJ45 Ethernet interface, 10/100M auto-negotiating;
TF interface	1 × TF storage slot, up to 512G;
Reset button interface	Supports hardware reset
LED board interface	Integrated two-channel LED board driver module, smart dual-light by default
Reliability	Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5
Functions	OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm;
Network protocols	Supports TCP/TP, IPv4, DHCP, RTSP, P2P
Mobile monitoring	Mobile monitoring (iOS, Android) AC18Pro
Power supply	DC12V power input
Operating conditions	-20~65℃
