MC-E12
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- SSC325
- Listed:
- 2019
Anjoy Vision
H265+/H.265/H.264 3MP 38 single-board module
| Model | MC-E12 |
|---|---|
| SoC | MSTAR SSC325 |
| 1/2.9", low-light | 317 |
| Minimum illumination | Colour 0.01 Lux |
| Signal-to-noise ratio | 37 dB |
| Audio processing | Audio line input/output, G711U/G711A encoding, supports half-duplex two-way audio |
| Network interface | One RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection |
| Protocol support | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols |
| IO interface | Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware |
| LED board interface | Supports active mode and passive mode; requires a matching LED board |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode |
| General parameters | DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg |
| Operating temperature | -30~85℃ |

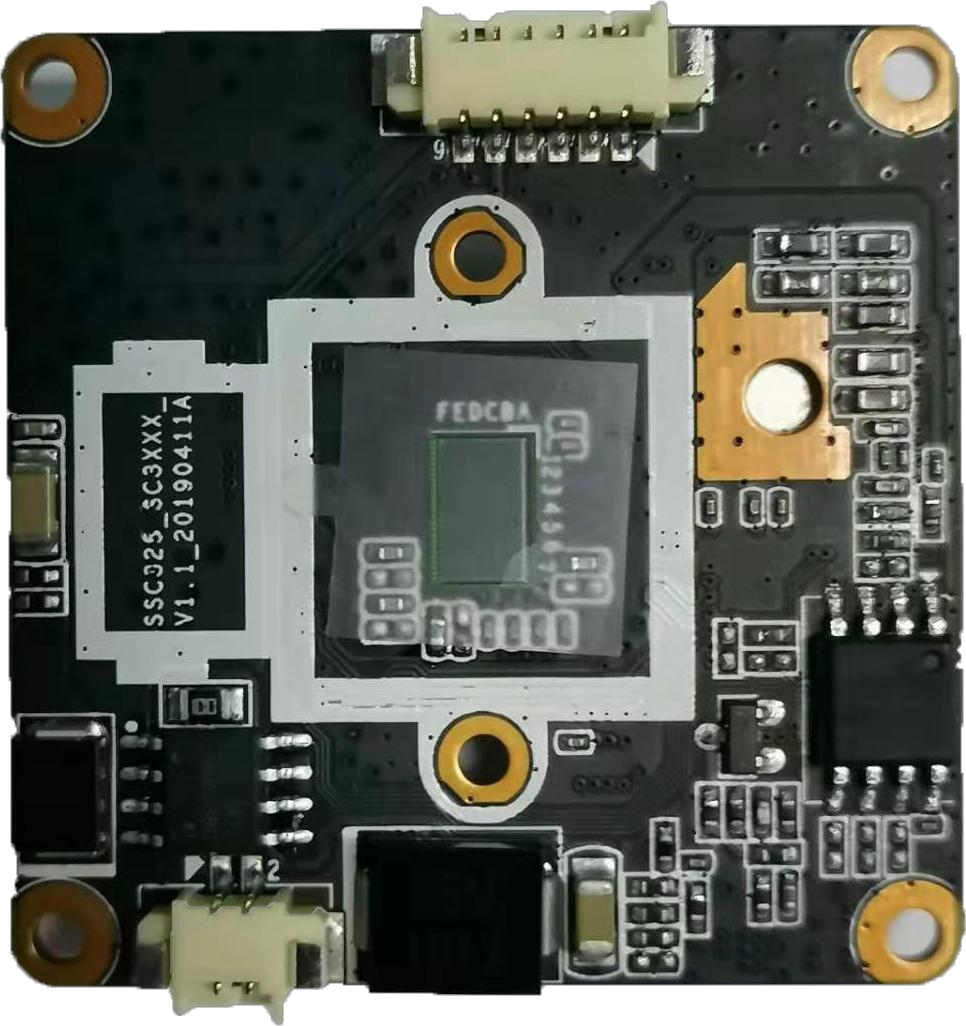

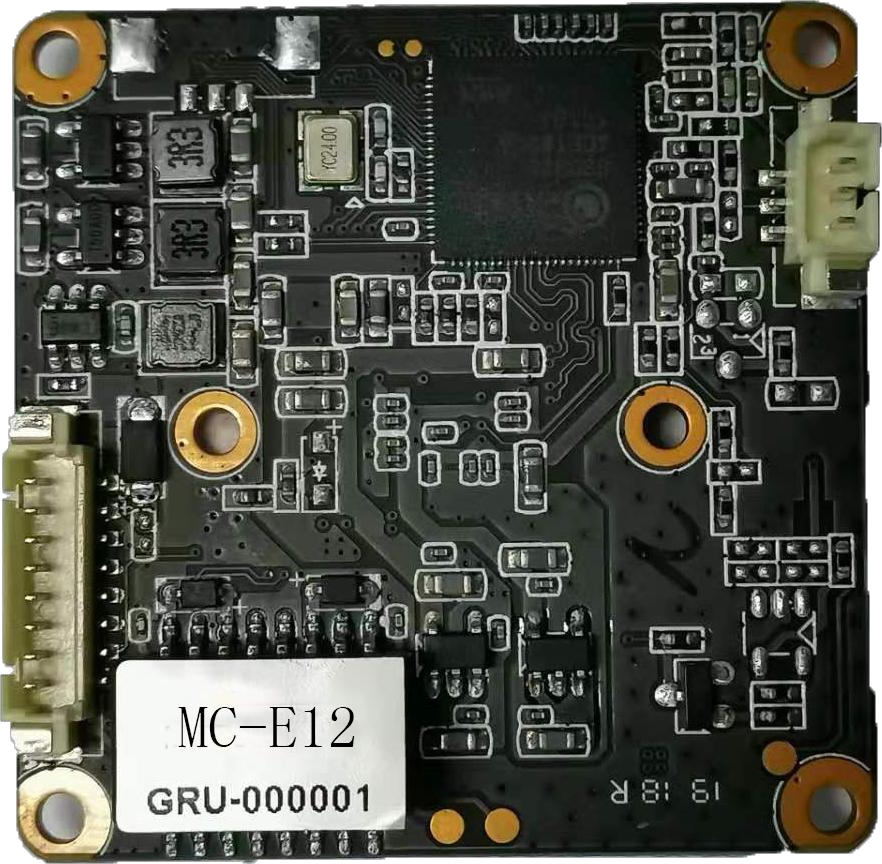

Photos
Files

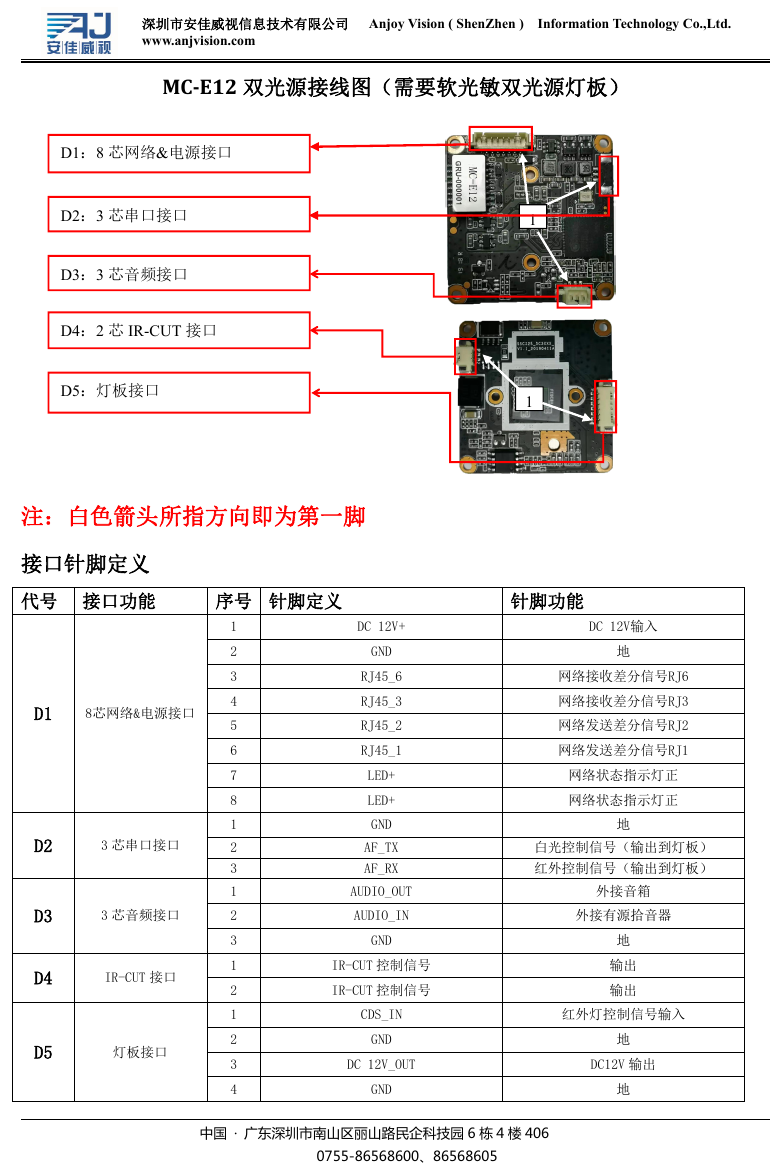

- MC-E12-pinout-1.png (pinout, 237 KB)

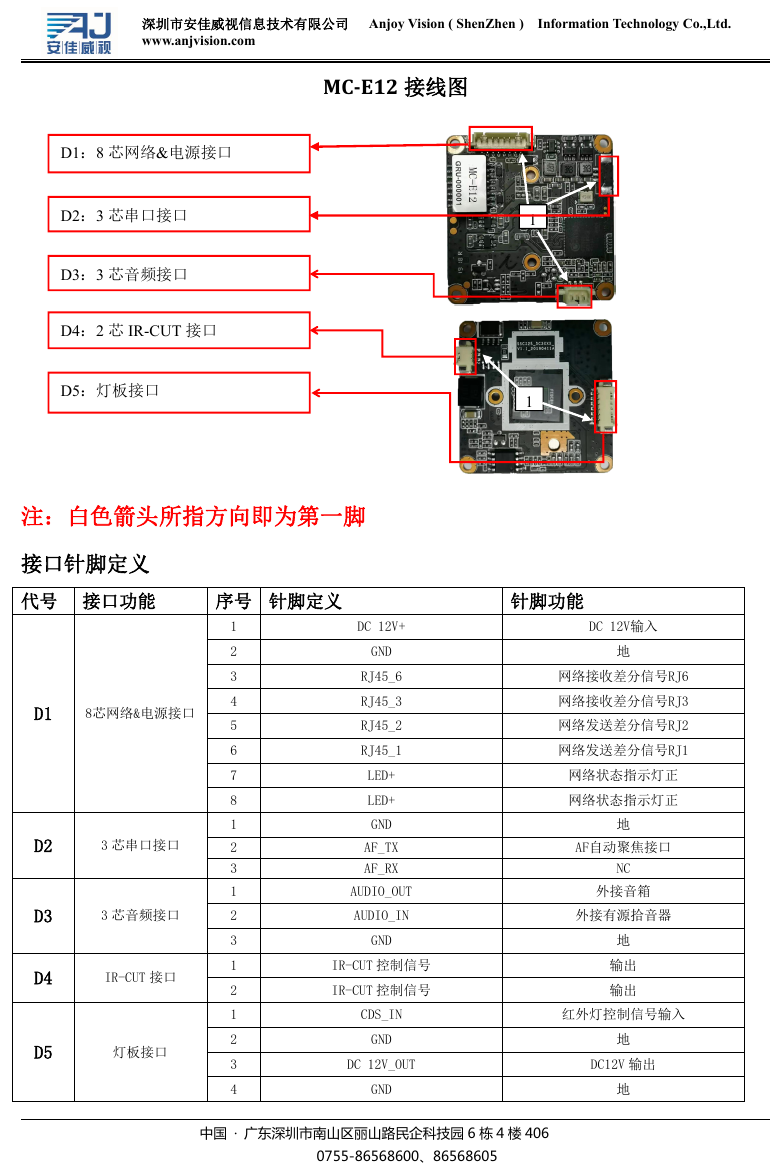

- MC-E12-pinout-2.png (pinout, 227 KB)
- MC-E12-spec-sheet.pdf (document, 404 KB)
- MC-E12-wiring-diagram.pdf (document, 412 KB)
- MC-E12-wiring-diagram-2.pdf (document, 412 KB)
