MC-E16
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- SSC325
- Sensor:
- SP2305
- Listed:
- 2020
Anjoy Vision
H265+/H.265/H.264 3MP 38 single-board module
| Model | MC-E16 |
|---|---|
| SoC | SigmaStar SSC325 |
| Image sensor | 1/2.7", 3MP SP2305 |
| Minimum illumination | B/W 0.001 Lux |
| Signal-to-noise ratio | 50 dB |
| Video processing | P/N video standard selectable, auto white balance, 3D noise reduction, WDR, face overexposure prevention, defog, selectable H.264/H.265/H.265+ encoding formats, for ultra-low storage use, adjustable bitrate/frame rate; main stream: 2304*1296@25fps, 1080P/720P/D1@30fps |
| Image resolution | Sub stream: D1/VGA/640*360/CIF@30fps; supports CBR/VBR |
| Audio processing | Audio line input/output, G711U/G711A encoding, supports two-way audio, supports MP3 file playback |
| Network interface | One RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection |
| Protocol support | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols |
| Storage | None |
| IO interface | None |
| LED board interface | Supports automatic mode and external control mode; requires a matching LED board |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external/manual/scheduled mode |
| Functions | Browser access with IE6.0 or later (embedded Web Server); motion detection and custom OSD; Safari, Chrome, FireFox, Opera and Edge browsers supported; mobile web access; JPEG snapshots; P2P cloud service (danale); IP filtering; SDK provided (WINDOWS, Android, Linux); active IR; alarm-triggered sound with customisable audio |
| General parameters | DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg |
| Operating temperature | -30~85℃ |

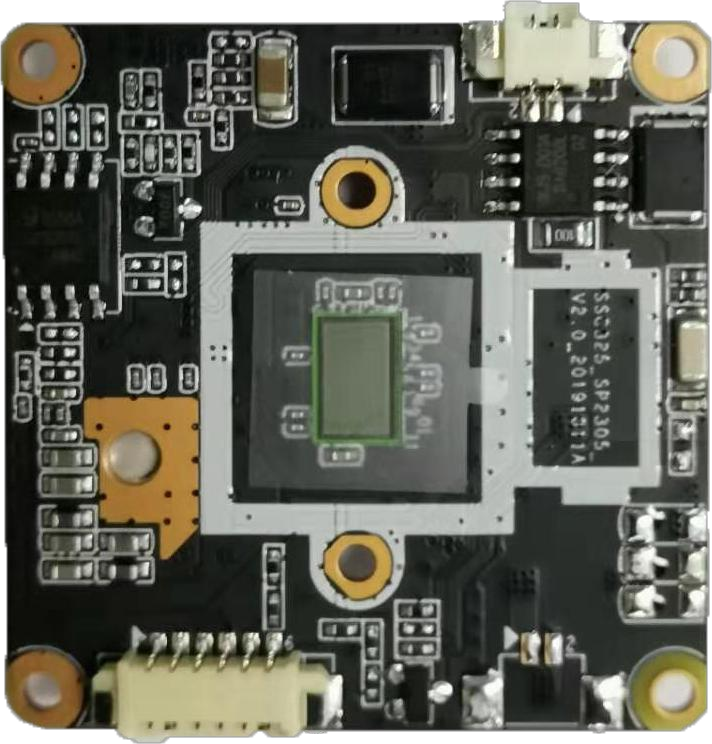

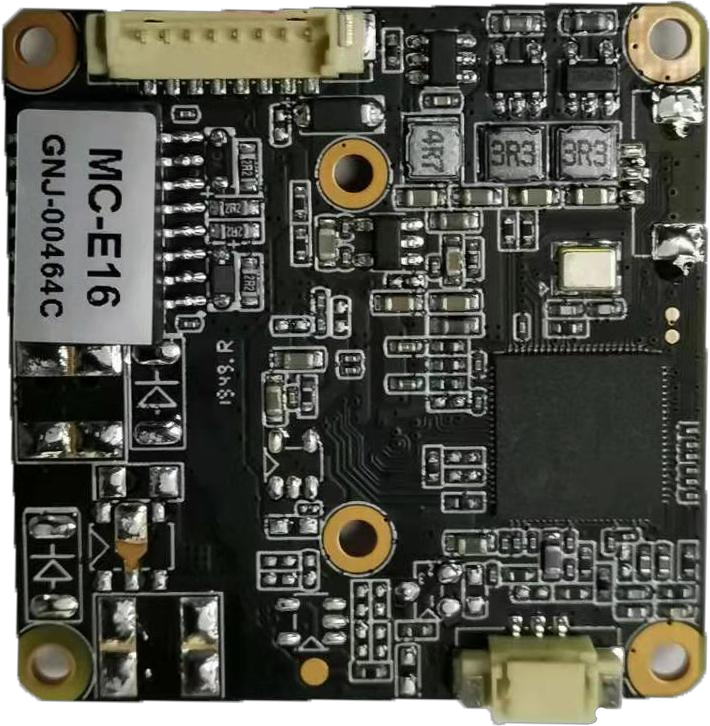

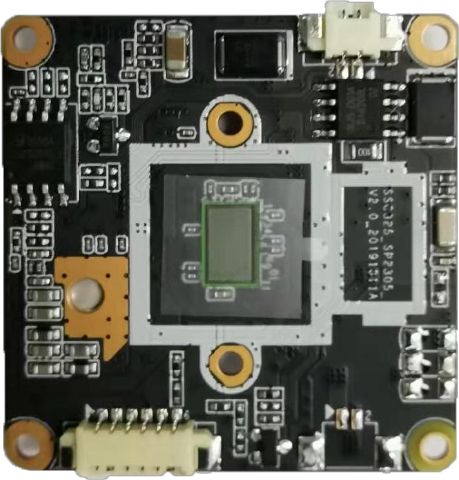

Photos
Files

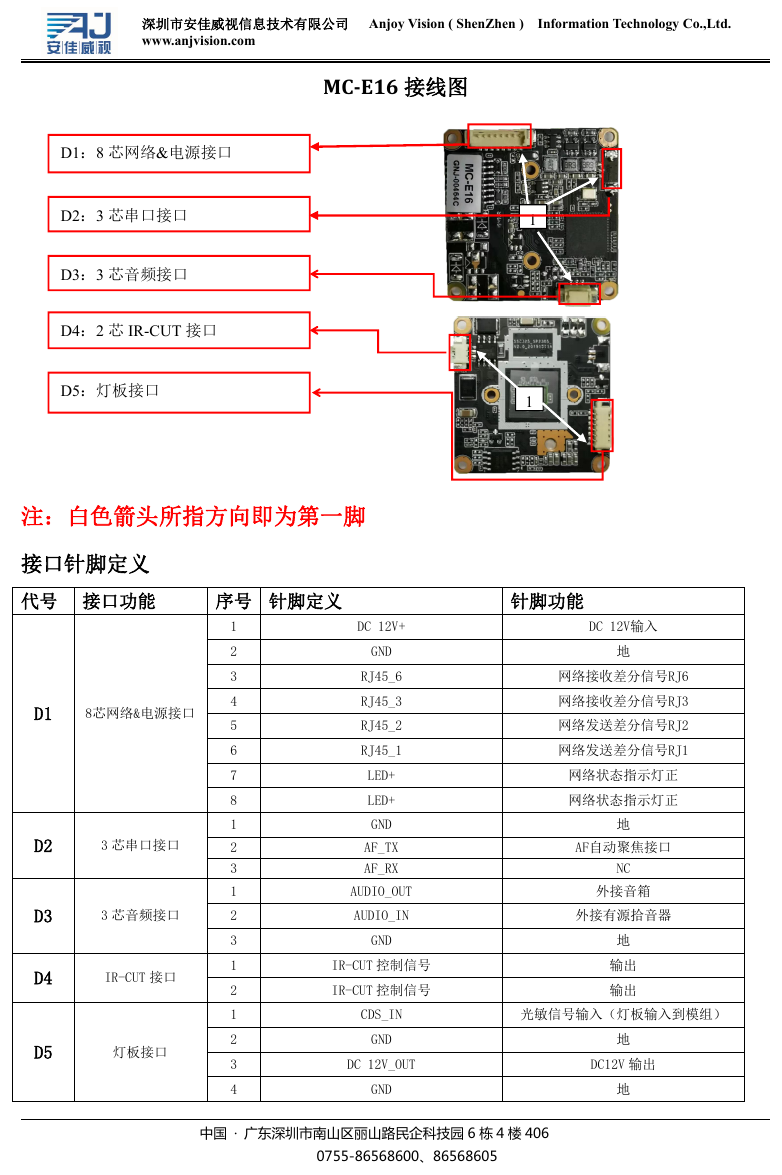

- MC-E16-pinout-1.png (pinout, 236 KB)
- MC-E16-spec-sheet.pdf (document, 321 KB)
- MC-E16-wiring-diagram.pdf (document, 331 KB)
