MC-E25
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- SSC325
- Sensor:
- SC4237
- Listed:
- 2019
Anjoy Vision
H265+/H.265/H.264 4MP 38 single-board module
| Model | MC-E25 |
|---|---|
| SoC | MSTAR SSC325 |
| Image sensor | 1/2.7", low-light CMOS SC4237 |
| Minimum illumination | Colour 0.01 Lux |
| Signal-to-noise ratio | 37 dB |
| Video processing | P/N video standard selectable, auto white balance, 3D noise reduction, face overexposure prevention, selectable H.264/H.265/H.265+ encoding; format selectable, for ultra-low storage use, adjustable bitrate/frame rate |
| Image resolution | Main stream: 2560*1440@20fps, 3MP@25fps, 1080P/720P/D1@30fps, sub stream: D1/VGA/640*360/CIF@30fps; supports CBR/VBR |
| Audio processing | Audio line input/output, G711U/G711A encoding, supports half-duplex two-way audio |
| Network interface | One RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection |
| Protocol support | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols |
| Storage | None |
| IO interface | None |
| LED board interface | Supports passive mode |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled by external control/manual/scheduled; browser access with IE6.0 and above (embedded web server); motion detection; supports mobile web access |
| Functions | P2P cloud service (danale); IP filtering; SDK provided (WINDOWS, Android, Linux); alarm-triggered sound with customisable audio |
| General parameters | DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg |
| Operating temperature | -30~85℃ |

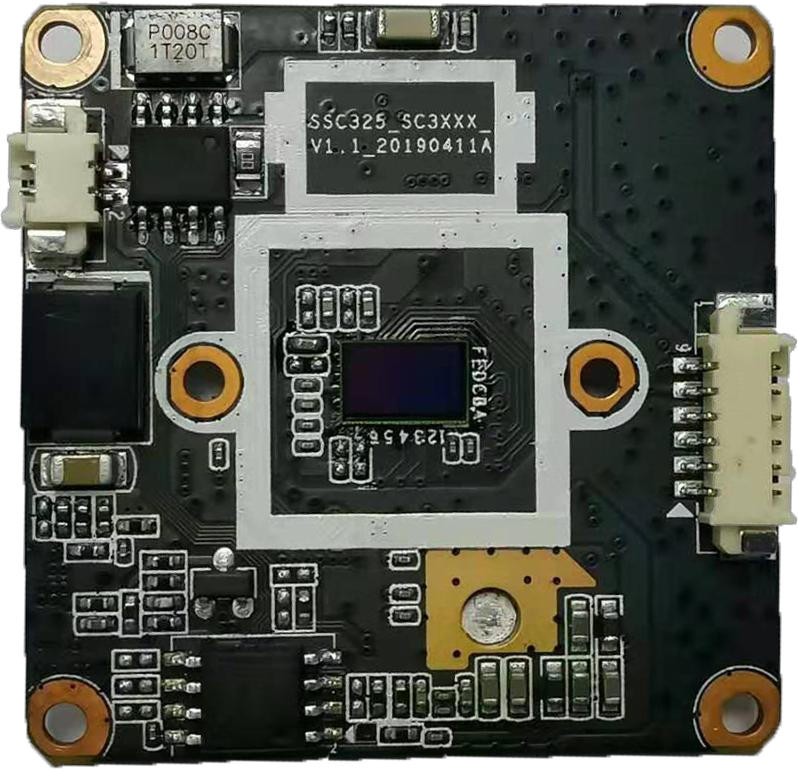

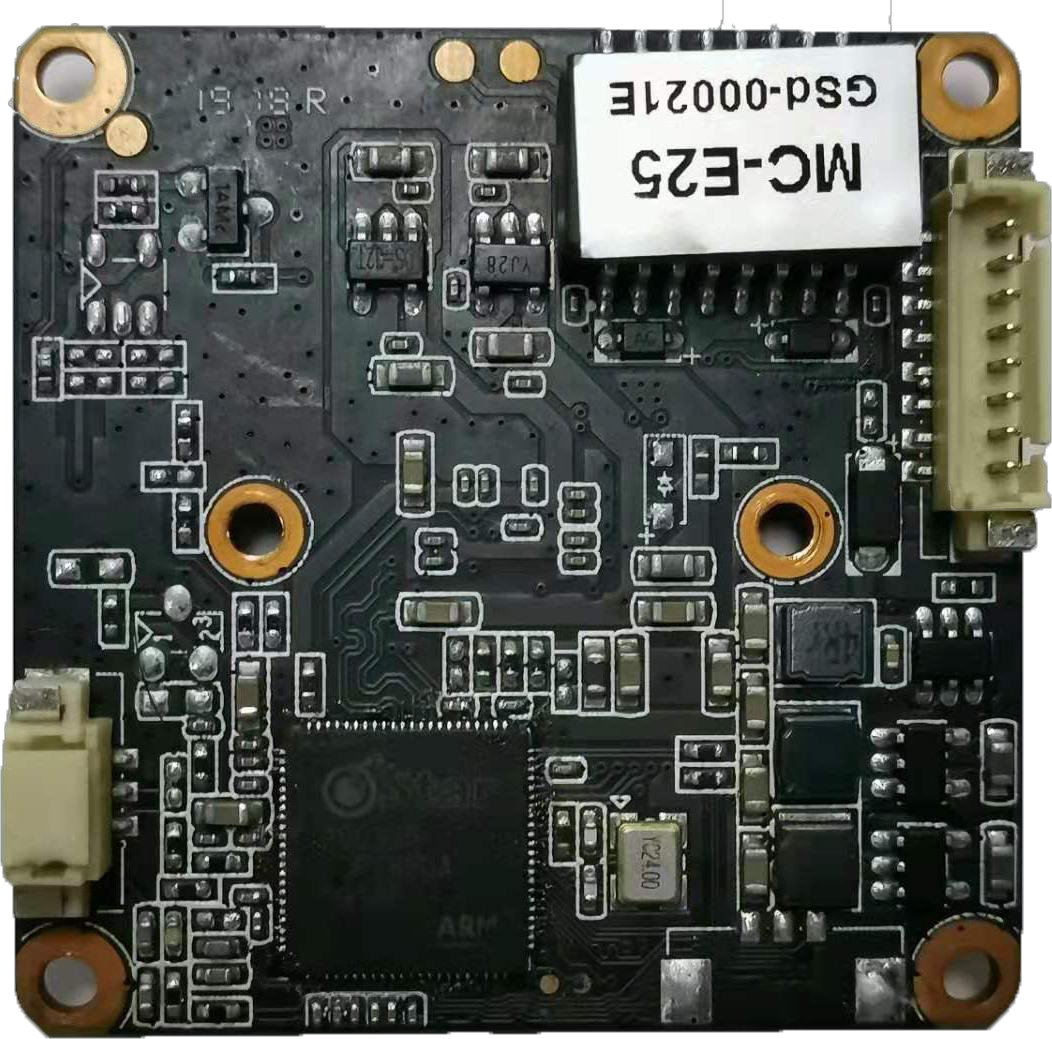

Photos
Files

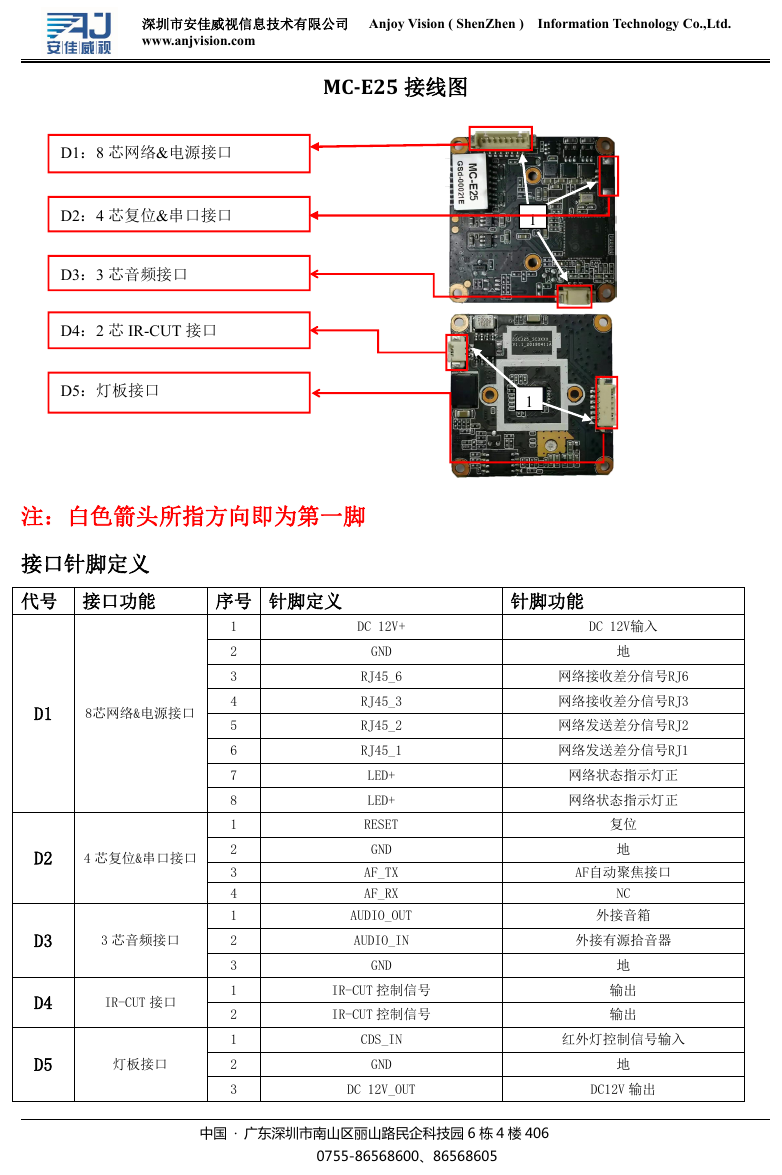

- MC-E25-pinout-1.png (pinout, 238 KB)
- MC-E25-spec-sheet.pdf (document, 422 KB)
- MC-E25-wiring-diagram.pdf (document, 435 KB)
