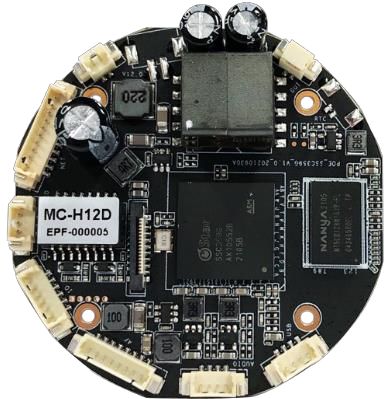

MC-H12D

IP camera module

Anjoy Vision

12MP smart AI black-light module

1/2.49-inch 12MP black-light CMOS sensor;
1T of compute;
H.265+, H.265, H.264 encoding;
Two lighting control signals supported: CDS, PWM;
Supports software light sensing: full-colour mode, IR mode, dual-light mode
Supports image flip, supports HDR
Deep perimeter: 4 arming modes supported — line crossing, area entry, area exit, area intrusion
Classified detection and arming for motor vehicles, non-motor vehicles and pedestrians;
Supports two-way audio, voice announcements, custom voice
Onvif supported;
Supports character overlay
IP address filtering;
POE expansion supported;
SDK (WINDOWS, Android, Linux) provided

Specifications
Model	MC-H12D
SoC	SSC359 ARM Cortex0A53 1.2GHz, external 4G DDR

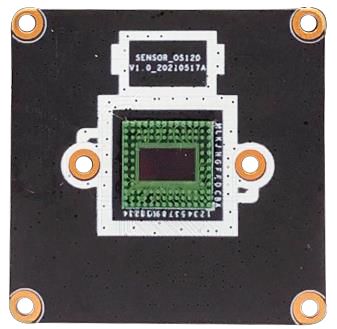

Image sensor	12MP, 1/2.49" CMOS OS12D40
Video processing	H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~12Mbps; frame rate adjustable 1~30 fps; Main stream: 25@FPS(4000×3000)30@FPS(3840×2160, 3072×2048,2592×1944)60@FPS(2560×1440,2304
Image output	×1296, 1920×1080, 1280×720); sub stream: 720×480,D1,VGA,640×360;
Audio interface	Audio: 1 ch line input, 1 ch output
Audio processing	G.711 encoding; two-way voice intercom; audio-video synchronisation;
IRCUT interface	Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode
Network interface	1 × RJ45 Ethernet interface, 10/100M auto-negotiating;
LED board interface	CDS, PWM IR, PWM warm light;
IO interface	Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware
Reliability	Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5
Functions	OSD, real-time audio and video transmission, perimeter detection algorithm, dual-light alarm, sound alarm;
Network protocols	HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols;
Mobile monitoring	Mobile monitoring (iOS, Android) Danale
Power supply	DC12V/48V POE
Operating conditions	-40~+85℃
