MC-J26
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- SSC377
- Listed:
- 2024
Anjoy Vision
3MP starlight full-colour module
Features
- 1/2.9-inch 3MP CMOS sensor;
- H.265+, H.265, H.264 encoding
- Supports software light sensing: full-colour mode, IR mode, dual-light mode
- Supports smart analysis: accurate human detection, area detection, tripwire detection
- Supports two-way audio, voice announcements, custom voice
- Supports image flip, supports digital WDR
- Onvif supported;
- SDK (WINDOWS, Android, Linux) provided
| Model | MC-J26 |
|---|---|
| SoC | SSC377 |
| Image sensor | 3MP, 1/2.9" CMOS |
| Video processing | H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~4Mbps; frame rate adjustable 1~25 fps; |
| Image output | Main stream: 25FPS@(2304×1296)30FPS@(1920×1080, 1280×720); sub stream: D1,VGA,640×360; |
| Audio interface | Audio: 1 ch line input, 1 ch output |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| LED board interface | PWM IR, PWM warm light; |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5 |
| Functions | OSD, real-time audio and video transmission, precise human detection, dual-light alarm, sound alarm; |
| Network protocols | HTTP/RTSP/DHCP/NTP/ONVIF and other network protocols |
| Power supply | DC12V power input, power consumption 100mA |
| Operating conditions | -40~+65℃ |
| Dimensions | 38 (L) * 38 (W) |

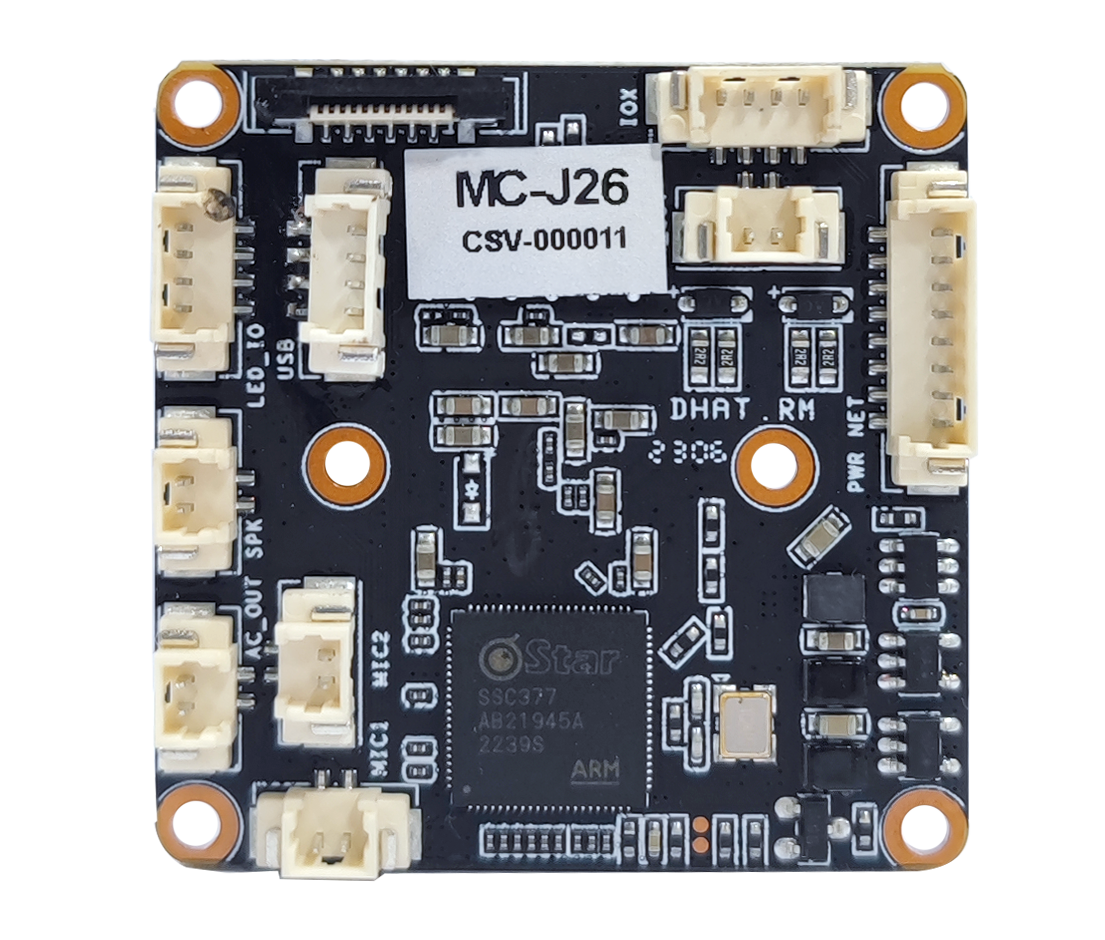

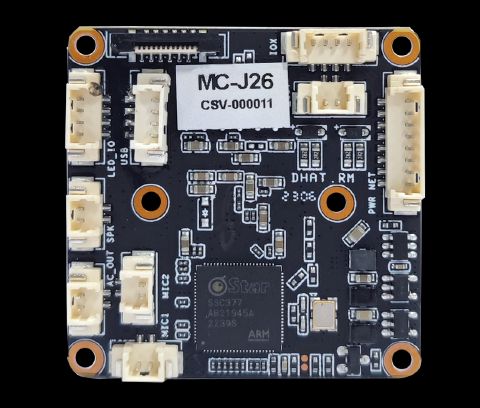

Photos
Files

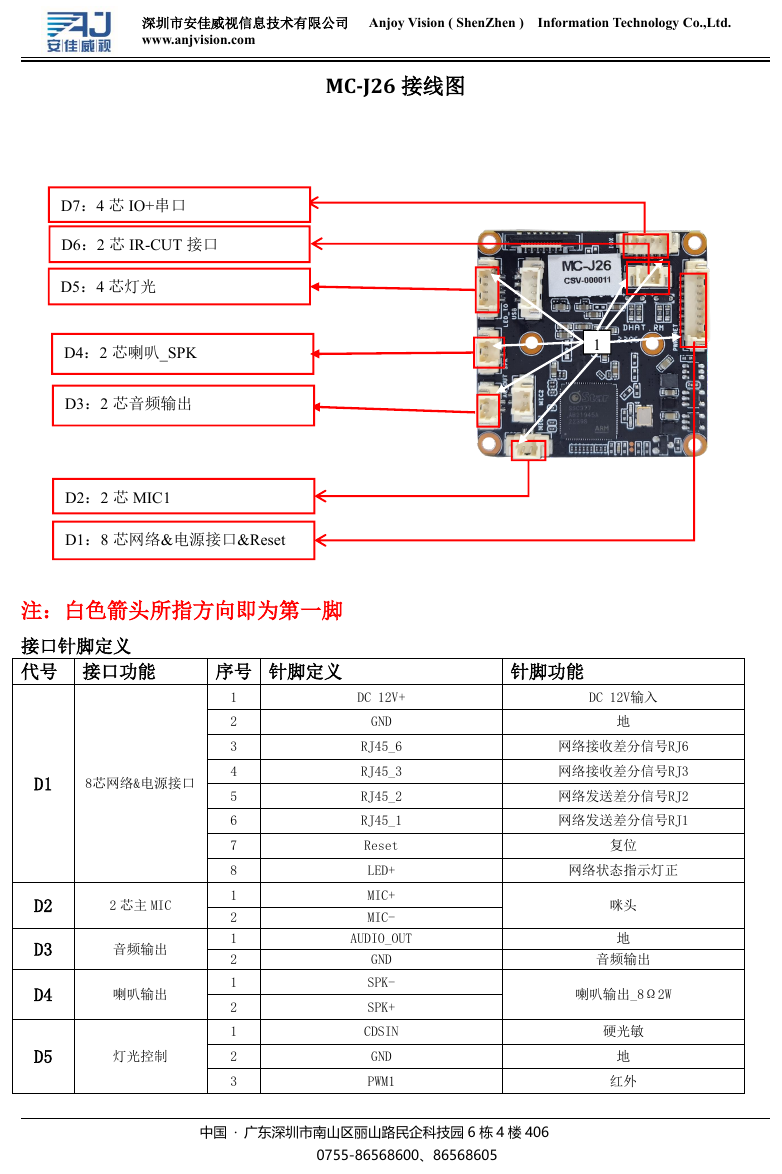

- MC-J26-pinout-1.png (pinout, 223 KB)

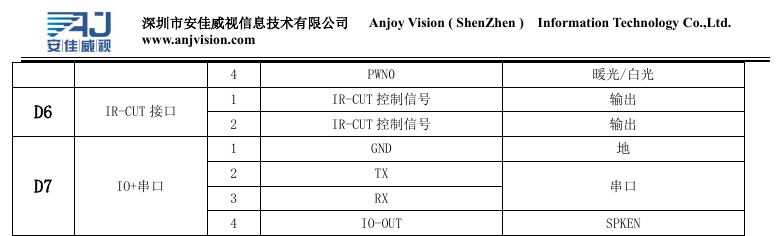

- MC-J26-pinout-2.png (pinout, 34 KB)
- MC-J26-spec-sheet.pdf (document, 166 KB)
- MC-J26-wiring-diagram.pdf (document, 302 KB)
