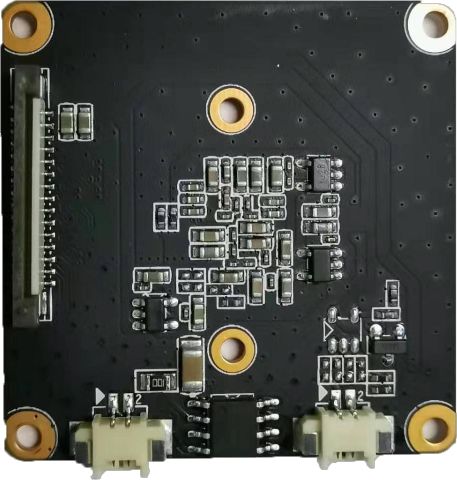

MC-K18

IP camera module

Anjoy Vision

8MP smart AI black-light module

1/2.8-inch 8MP black-light CMOS sensor;
H.265+, H.265, H.264 encoding;
Two lighting control signals supported: CDS, PWM;
Supports software light sensing: full-colour mode, IR mode, dual-light mode
Supports image flip, supports HDR
Supports smart analysis: face detection algorithm, licence plate recognition algorithm (China), perimeter protection
Supports two-way audio, voice announcements, custom voice
Onvif supported;
Supports character overlay
IP address filtering;
Expandable: TF card, WIFI, 4G, 1 ch IO alarm input and output;
SDK (WINDOWS, Android, Linux) provided

Specifications
Model	MC800S5
SoC	SSC378QE
Image sensor	8MP, 1/2.8" CMOS IMX415
Video processing	H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~12Mpbs; frame rate adjustable 1~20 fps; Main stream: 20@FPS(3840×2160),25FPS@(3072×2048,2592×1944,2560×1440,2304×1296, 1920×1080, 1280
Image output	×720); sub stream: 720×480,D1,VGA,640×360;
Audio interface	Audio: 1 ch line input, 1 ch output
Audio processing	G.711 encoding; two-way voice intercom; audio-video synchronisation;
IRCUT interface	Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode
Network interface	1 × RJ45 Ethernet interface, 10/100M auto-negotiating;
LED board interface	CDS, PWM IR, PWM warm light;
IO interface	Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware
Reliability	Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5
Functions	OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm;
Network protocols	HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols;
Mobile monitoring	Mobile monitoring (iOS, Android) Danale
Power supply	DC12V power input 170mA
Operating conditions	-40~+85℃
Dimensions	2×38 (L) * 38 (W)
