MC-L18
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- SSC30KQ
- Listed:
- 2022
Anjoy Vision
6MP starlight module
Features
- 1/2.7-inch starlight CMOS sensor;
- H.265+, H.265, H.264 encoding;
- Two lighting control signals supported: CDS, PWM;
- Supports software light sensing: dual-light mode, full-colour mode, IR mode
- Supports image flip, supports digital WDR
- Smart analysis: human detection, vehicle detection, non-motor vehicle detection
- Supports two-way audio, voice announcements, custom voice
- Onvif supported;
- Supports character overlay
- IP address filtering;
- POE expansion supported;
- SDK (WINDOWS, Android, Linux) provided
| Model | MC-L18 |
|---|---|
| SoC | SSC30KQ |
| Image sensor | 1/2.7" starlight CMOS |
| Video processing | H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~8Mbps; frame rate adjustable 1~30 fps; Main stream: 25FPS(3072×2048, 2592×1944, 2688x1520)30FPS@(2560×1440,2304×1296, 1920×1080, 1280 |
| Image output | ×720); sub stream: 720×480,D1,VGA,640×360; |
| Audio interface | Audio: 1 ch line input, 1 ch output |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| LED board interface | CDS, PWM IR, PWM warm light; |
| IO interface | Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5 |
| Functions | OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm; |
| Network protocols | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols; |
| Mobile monitoring | Mobile monitoring (iOS, Android) AC18Pro |
| Power supply | DC12V power input, power consumption 170mA |
| Operating conditions | -40~+85℃ |
| Dimensions | 38 (L) * 38 (W) |

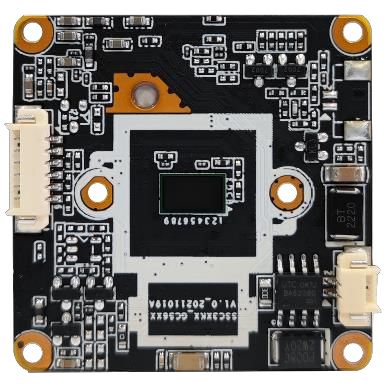

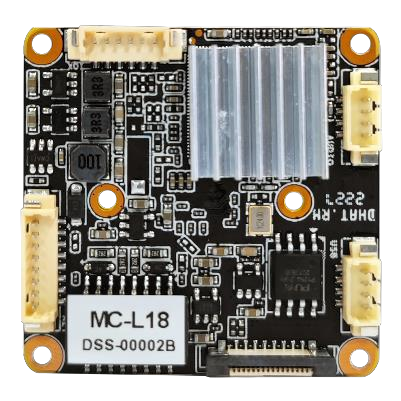

Photos
Files

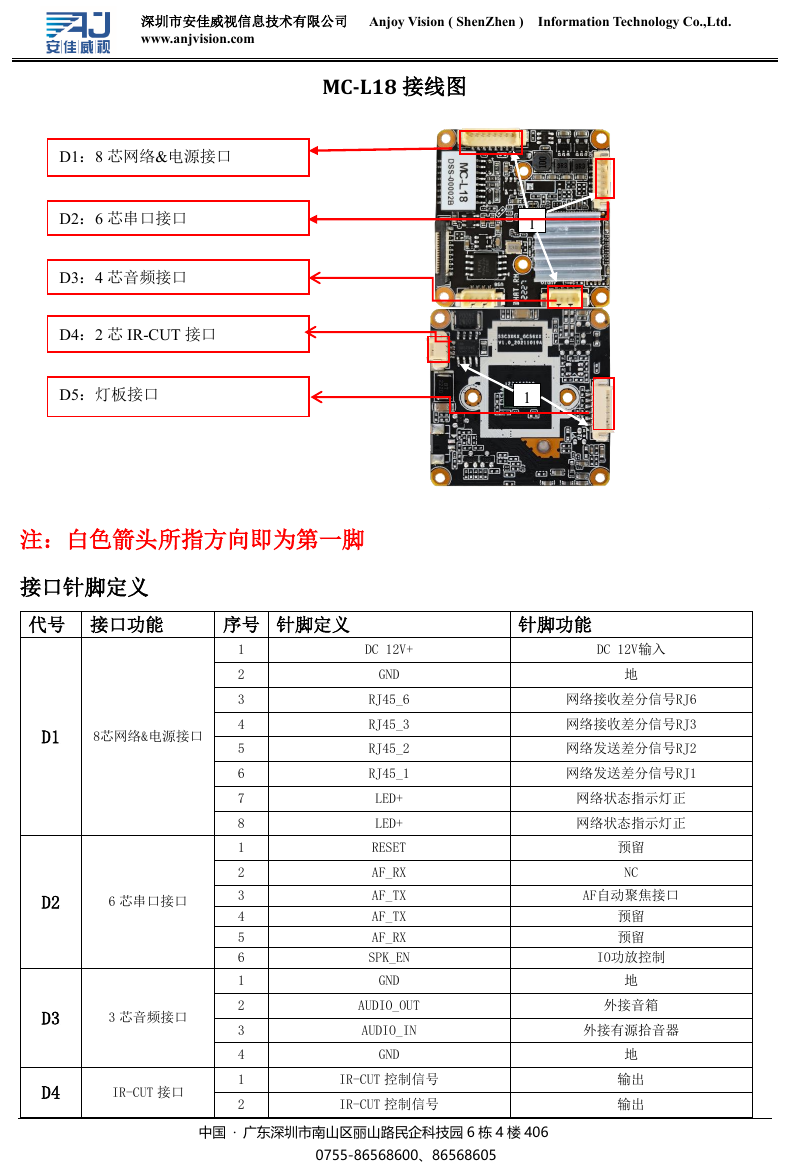

- MC-L18-pinout-1.png (pinout, 250 KB)
- MC-L18-spec-sheet.pdf (document, 174 KB)
- MC-L18-wiring-diagram.pdf (document, 277 KB)
