MC200E
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- MSC313E
- Sensor:
- SC2135
- Listed:
- 2018
Anjoy Vision
| Hardware structure | MSTAR MSC313E + 2MP 1/2.7" low-light CMOS SC2135 |
|---|---|
| Minimum illumination | Colour 0.01 Lux@F1.2, B/W 0.005 Lux@F1.8 |
| Wide dynamic range | Digital WDR mode |
| Signal-to-noise ratio | ≥ 39 dB |
| Image quality | Saturation, contrast, sharpness and brightness settings, auto white balance, manual white balance, backlight compensation, highlight suppression settings, auto exposure, 2D/3D noise reduction strength, defog mode, WDR mode strength |
| Video functions | Privacy masking, OSD character overlay, motion detection |
| Interfaces | Audio line input/output, optional TF card storage, WIFI |
| Encoding format | H.264 Main Profile/High Profile; H.265/HEVC Main Profile/High Profile; 2MP main stream: 1920*1080, 1-20 fps |
| Image resolution | 1MP main stream: 1280*720, 1-30 fps; sub stream: 640*480, 640*360, 1-30 fps |
| Image mode | Horizontal flip, vertical flip |
| Video compression bit rate | Continuously adjustable 32Kbps-3.5Mbps, CBR/VBR supported |
| Audio encoding | G.711A/U audio codec; two-way voice intercom; audio-video synchronisation |
| Network interface | 10/100M auto-sensing Ethernet port, lightning protection rated differential mode > 2000V, common mode > 6000V |
| Protocol support | HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P and other network protocols; Hikvision proprietary protocol supported |
| Data storage | Optional TF card on-device storage |
| Mobile client | Supports Windows Mobile, iPhone, iPad and Android platforms; browser access with IE6.0 and above (Web Server embedded in the device); playback/download of on-device recordings; unified client software, |
| Functions | Supports CMS platform applications; SDK provided; P2P remote preview; cloud storage; P2P remote viewing of recordings on the camera's TF card |
| 1/2.7" | SC2135 CMOS sensor, latest MSTAR MSC313E platform, standard single-layer 38mm*38mm format, supports day/night switching |
| Features | (optional IR-CUT supported), IR-sensitive, photoresistor signal linkage supported |
| General parameters | DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg |

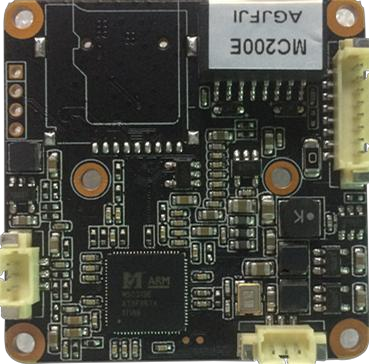

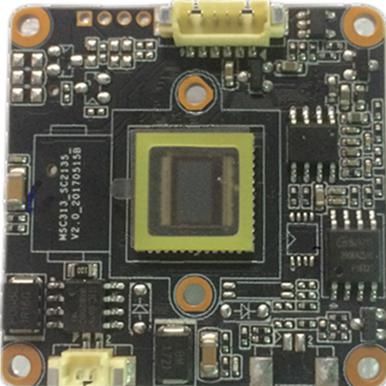

Photos
Files

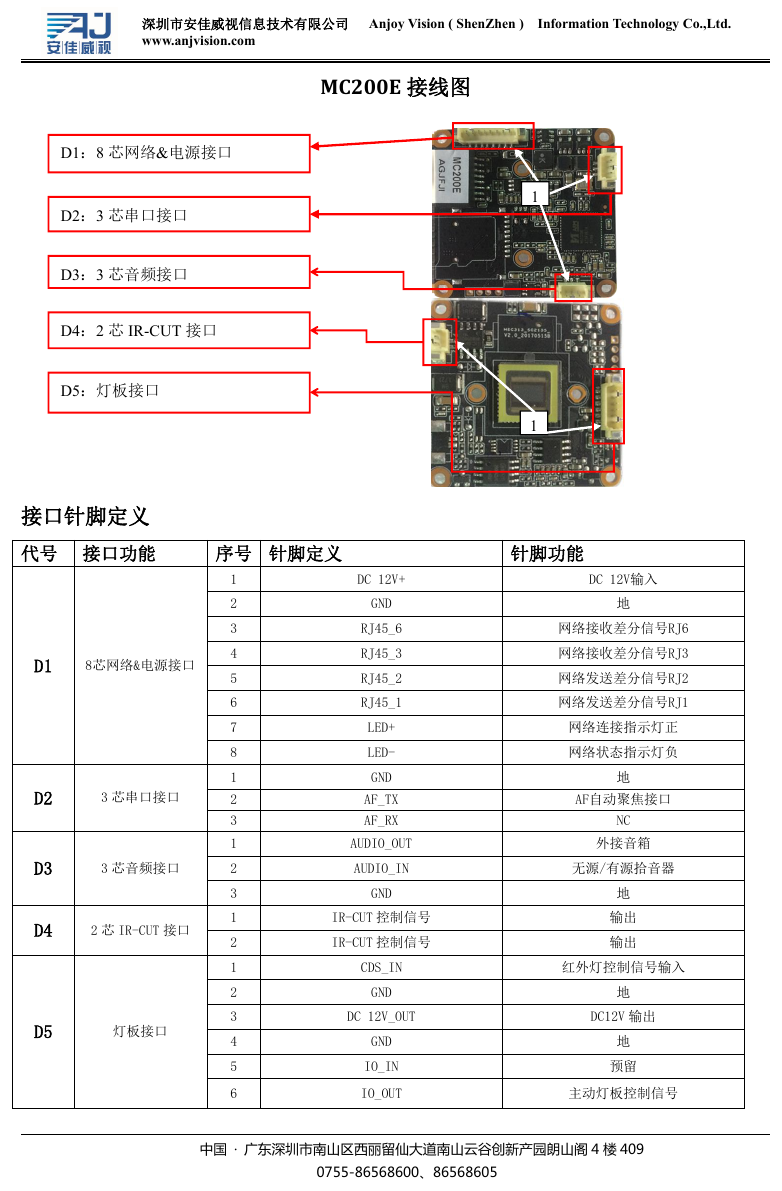

- MC200E-pinout-1.png (pinout, 261 KB)
- MC200E-spec-sheet.pdf (document, 222 KB)
- MC200E-wiring-diagram.pdf (document, 210 KB)
