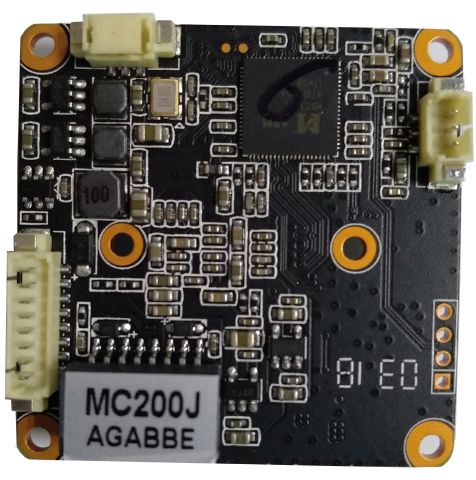

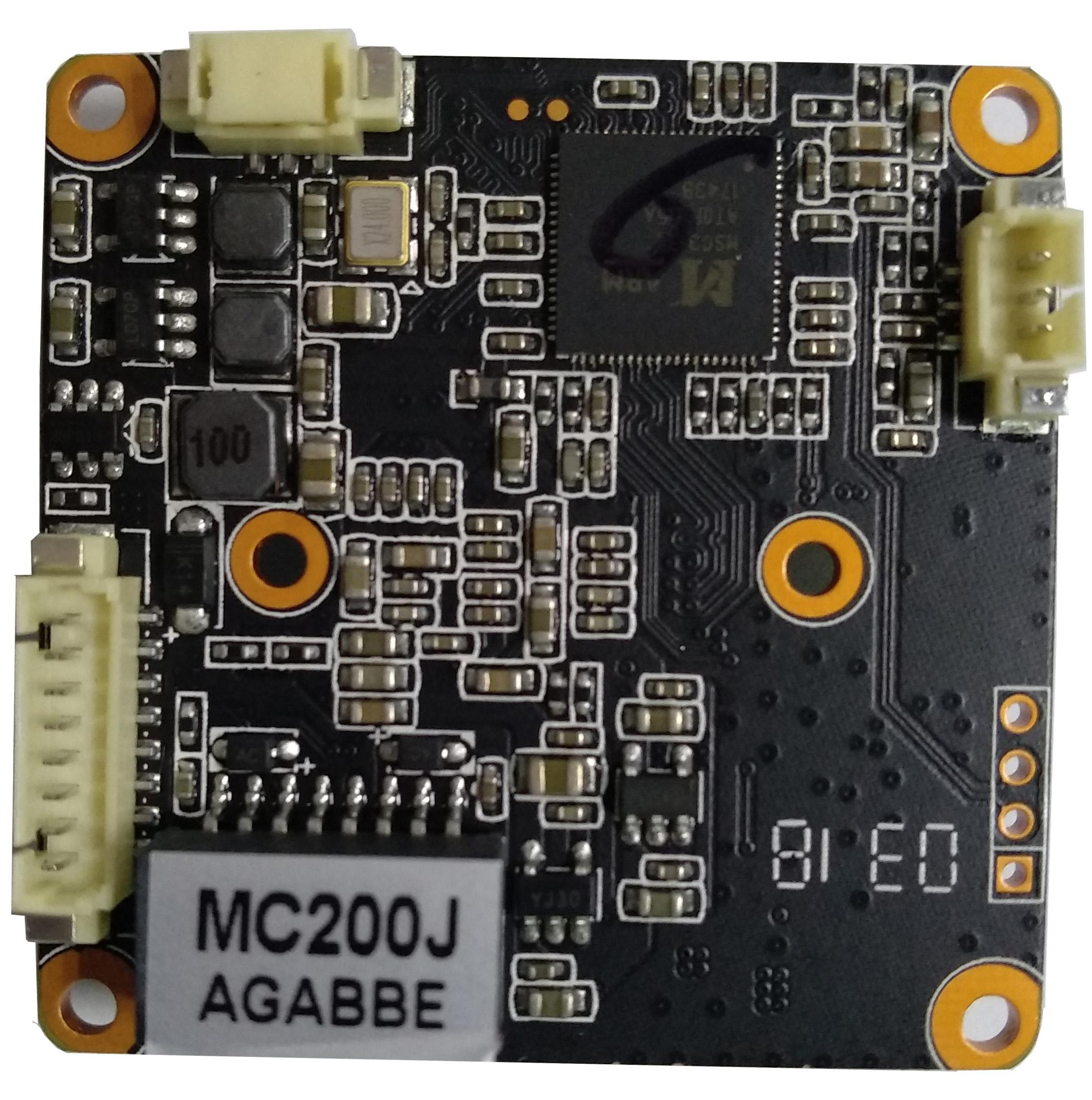

MC200J

IP camera module

Anjoy Vision

H265+/H.265/H.264 2MP super starlight 38 single-board module

Specifications
Model	MC200J
SoC	MSTAR MSC313E

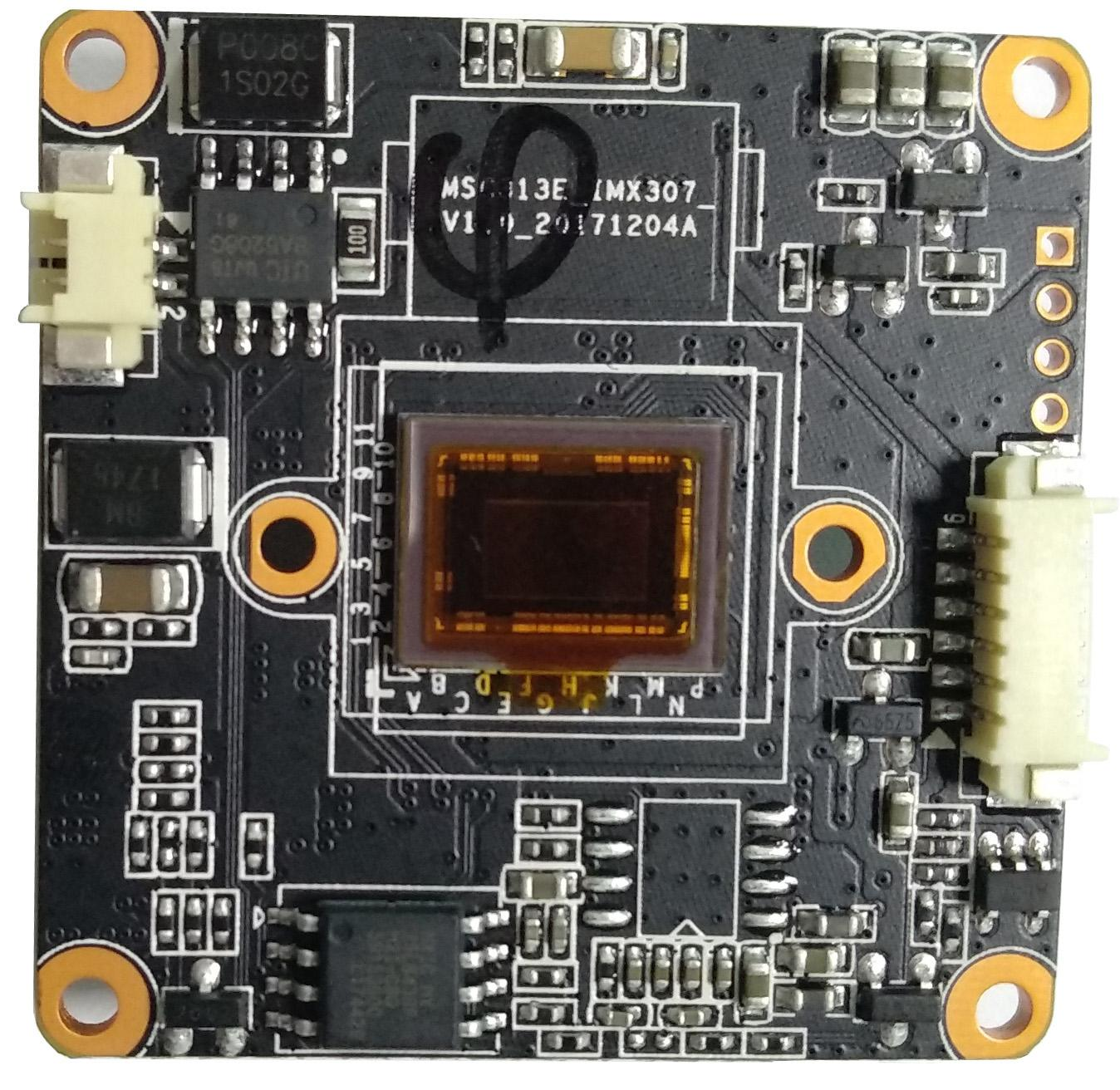

Image sensor	1/2.8", 2MP ultra-low-light CMOS Sony IMX307
Minimum illumination	Colour 0.01 Lux
Signal-to-noise ratio	≥ 50 dB
Video processing	P/N video standard selectable, auto white balance, 3D noise reduction, WDR, face overexposure prevention, defog, selectable H.264/H.265/H.265+ encoding formats, for ultra-low storage use, adjustable bitrate/frame rate
Image resolution	Main stream: 1080P/720P/D1@25fps, sub stream: D1/VGA/640*360/CIF@25fps; supports CBR/VBR
Audio processing	Audio line input/output, G711U/G711A encoding, supports two-way audio, supports sound-linked alarm with customisable sound
Network interface	One RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection
Protocol support	HTTP/RTSP/RTMP/DHCP/DDNS/NTP/ONVIF/P2P/UPNP and other network protocols; Hikvision and Hanbang protocols supported
Storage	None
IO interface	Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware
LED board interface	Supports active mode and passive mode; requires a matching LED board
IRCUT interface	Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in active/passive/manual/scheduled mode
Functions	Browser access via IE6.0 and later (embedded Web Server), motion detection and OSD, JPEG snapshots, P2P cloud service, IP filtering, SDK (WINDOWS, Android, Linux) provided
Operating temperature	-30~85℃
General parameters	DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg
