MC500L5
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- MStar 316DM
- Listed:
- 2020
Anjoy Vision
H265+/H.265/H.264 5MP 38 single-board module
| Model | MC500L5 |
|---|---|
| SoC | MSTAR 316DM+OS05A10 |
| Image sensor | 1/2.7", 5MP |
| Minimum illumination | Colour 0.01 Lux |
| Signal-to-noise ratio | ≥ 39 dB |
| Video processing | P/N video standard selectable, auto white balance, 3D noise reduction, WDR, face overexposure prevention, defog, custom title, selectable H.264/H.265/H.265+ encoding formats, for ultra-low storage use, adjustable bitrate/frame rate; main stream: 2592*1944@15fps,2560*1440@20fps,2048*1520/2304*1296@25fps,1080P/720P@30fps |
| Image resolution | Sub stream: D1@/VGA/640*360@25fps, 480*360/CIF@30fps; supports CBR/VBR |
| Audio processing | Audio line input/output, G711U/G711A/ACC encoding, supports two-way audio, supports sound-linked alarm with customisable sound |
| Network interface | One RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection |
| Protocol support | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols |
| Storage | Supports local storage (optional), supports 8G/16G/32G/64G/128G |
| IO interface | Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware |
| LED board interface | Supports automatic mode and external control mode; requires a matching LED board |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external/manual/scheduled mode; browser access with IE6.0 and above (embedded web server); motion detection and custom OSD; supports Safari, Chrome, FireFox, Opera, Edge browsers; supports mobile web access |
| Functions | JPEG snapshots |
| Autozoom | P2P cloud service (danale); IP filtering; SDK provided (WINDOWS, Android, Linux); warm light and IR with software light sensing |
| General parameters | DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg |
| Operating temperature | -30~85℃ |

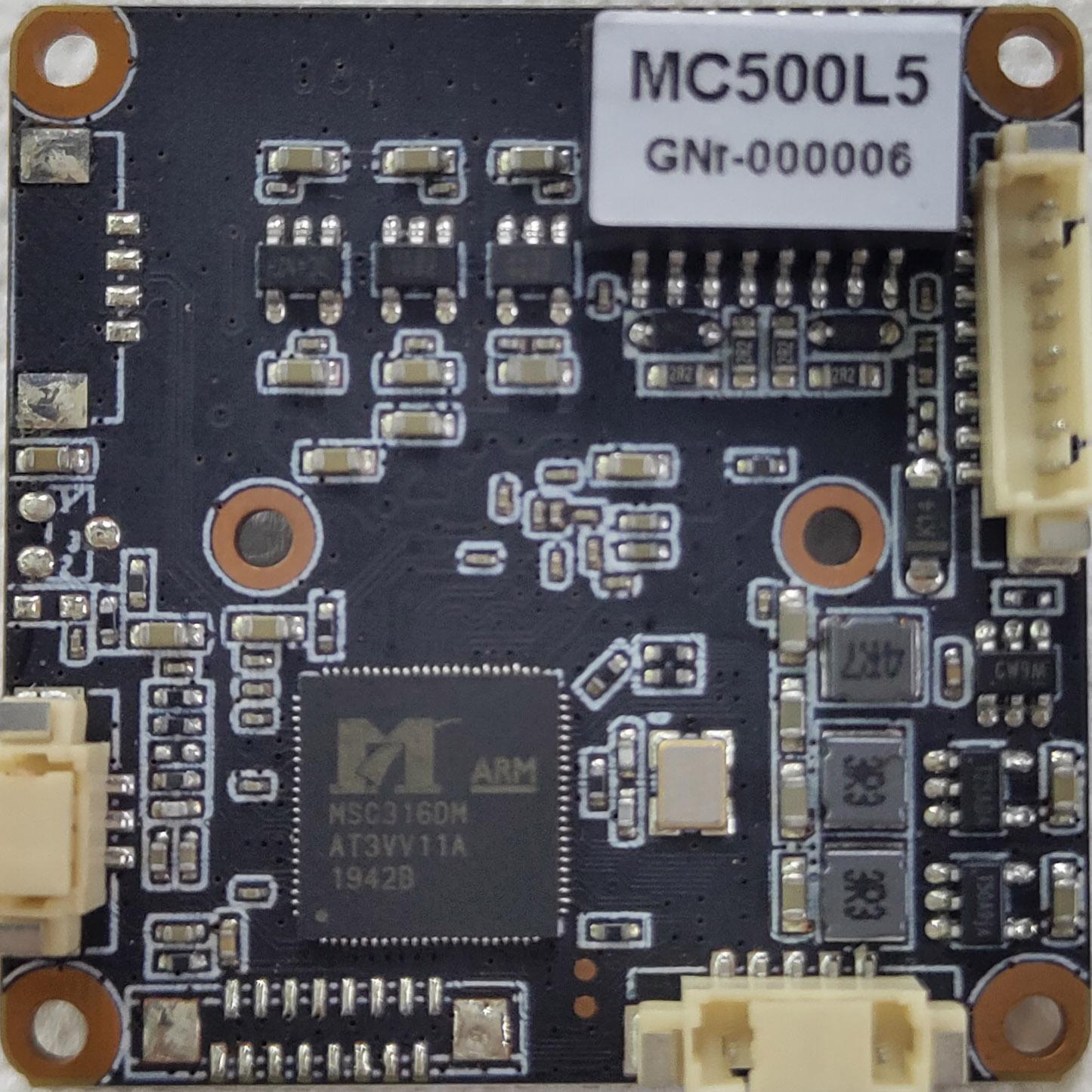

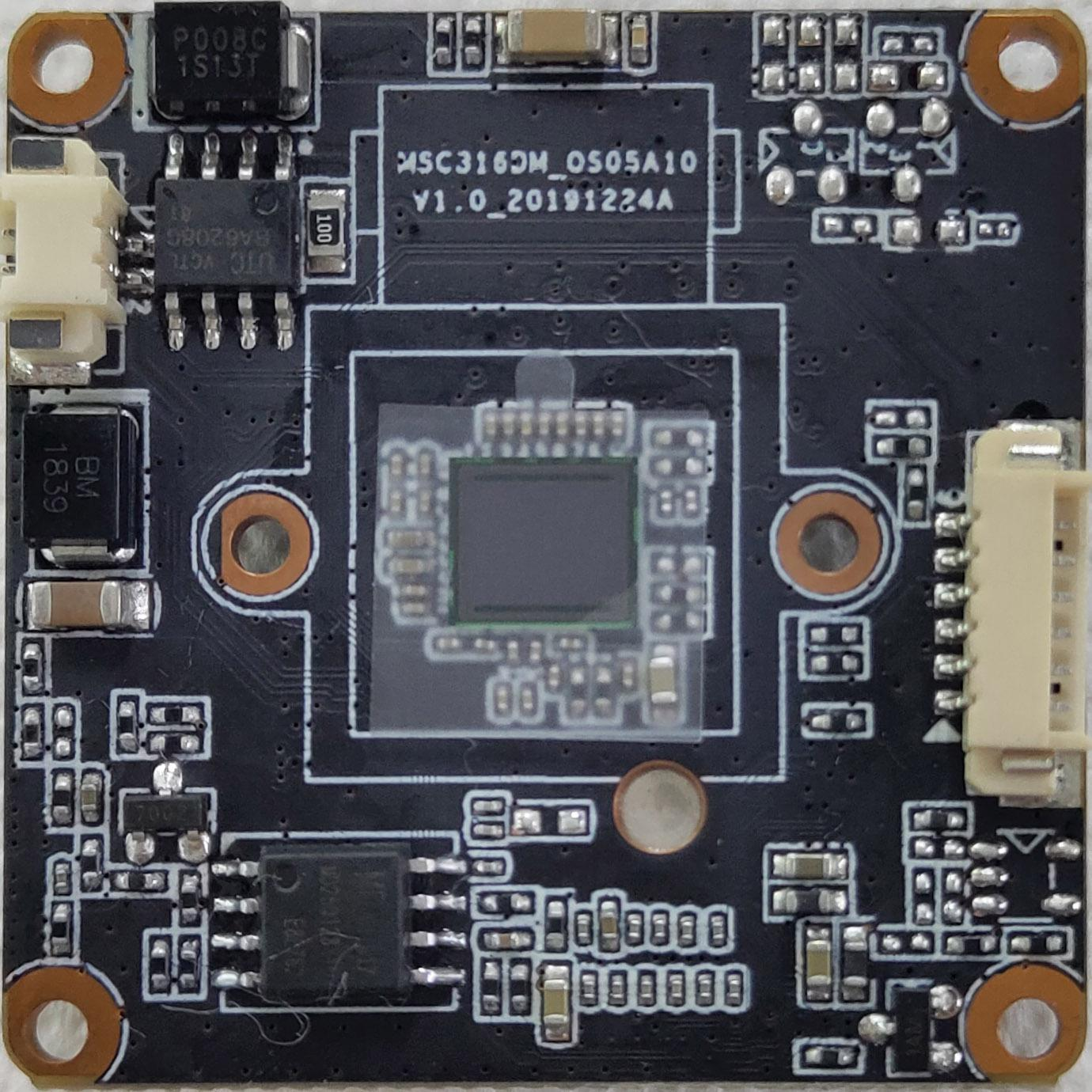

Photos
Files

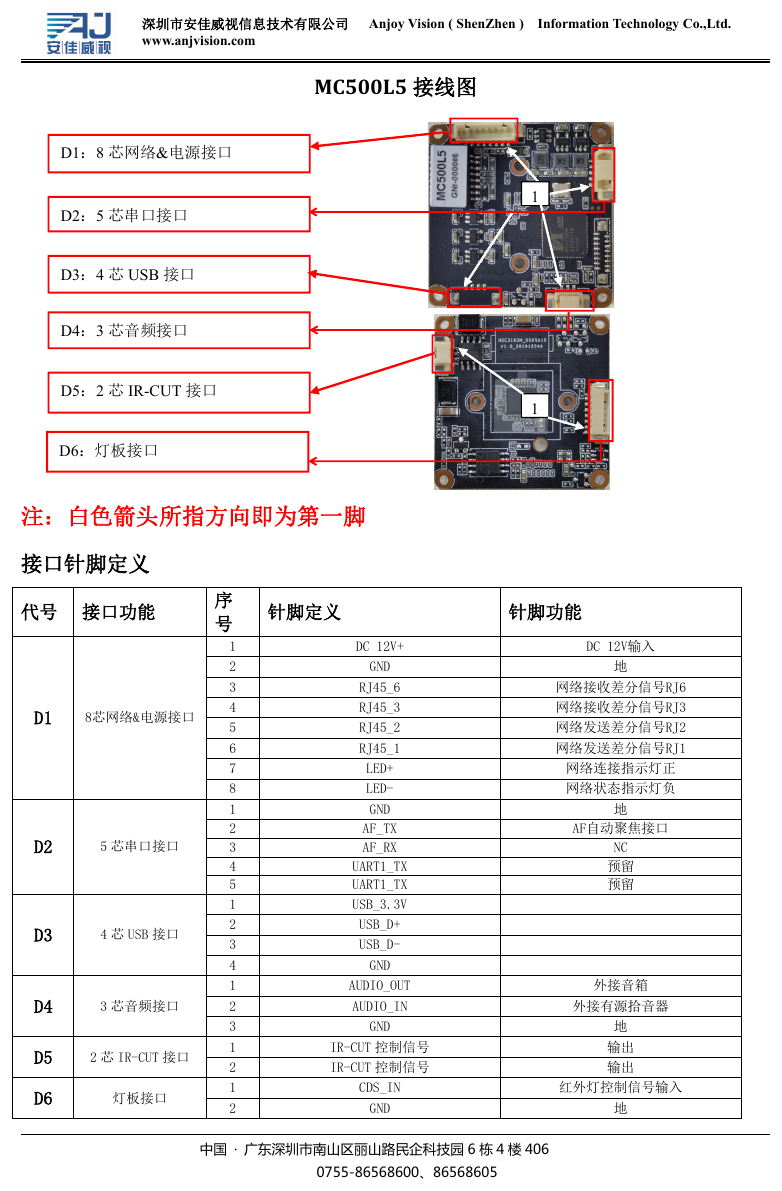

- MC500L5-pinout-1.png (pinout, 268 KB)
- MC500L5-spec-sheet.pdf (document, 543 KB)
- MC500L5-wiring-diagram.pdf (document, 693 KB)
