MC500L8

IP camera module

Maker:
Anjoy Vision
Sensor:
IMX335
Listed:
2021

Anjoy Vision

H265+/H.265/H.264 5MP starlight 38 single-board module

Specifications
ModelMC500L8
SoCMSTAR SSC337DE
Image sensor1/2.7", 5MP CMOS IMX335
Minimum illuminationColour 0.01 Lux
Signal-to-noise ratio≥ 50 dB
Video processingP/N video standard selectable, auto white balance, 3D noise reduction, WDR, face overexposure prevention, defog, selectable H.264/H.265/H.265+ encoding formats, for ultra-low storage use, adjustable bitrate/frame rate, manual shutter value adjustment
Image resolutionMain stream: 5MP@25fps, 4MP@25fps, 3MP@25fps, 1080P/720P/D1@30fps; sub stream: D1/VGA/640*360/CIF@30fps; supports CBR/VBR
Audio processingG711U/G711A encoding; two-way voice intercom
Network interfaceOne RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection
Protocol supportHTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols
StorageNone
IO interfaceSupports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware
LED board interfaceSupports software light sensing mode and hardware light sensor mode; requires a matching LED board
IRCUT interfaceIntegrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode; human detection and area detection built in by default; motion detection and custom OSD; JPEG snapshot; P2P cloud service (danale)
FunctionsIP filtering; SDK provided (WINDOWS, Android, Linux); IR mode with software light sensing; full-colour mode with software light sensing; alarm-triggered sound with customisable audio
General parametersDC12V/POE，1.9W Max 38*38
Operating temperature-30~85℃

Photos

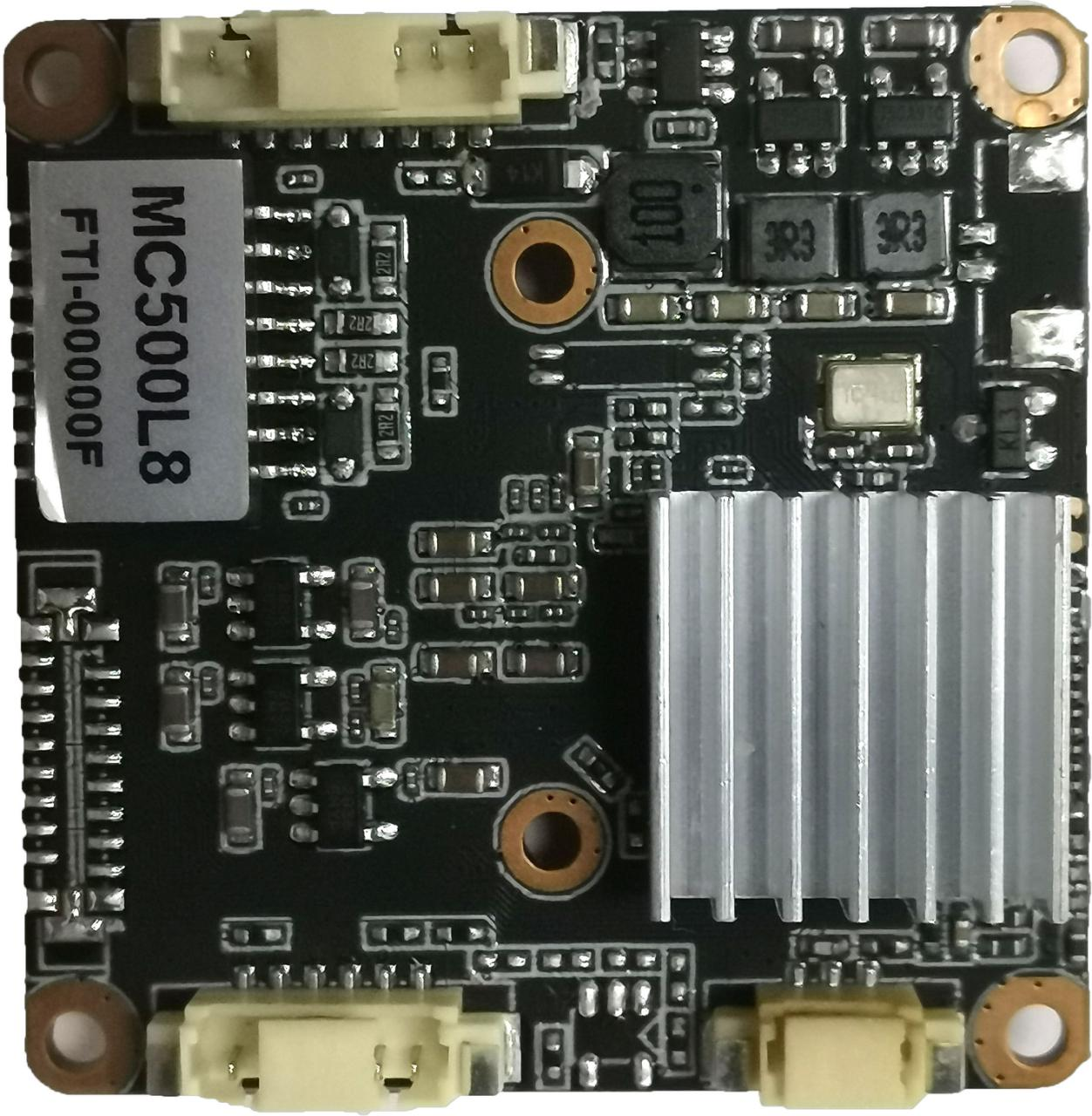

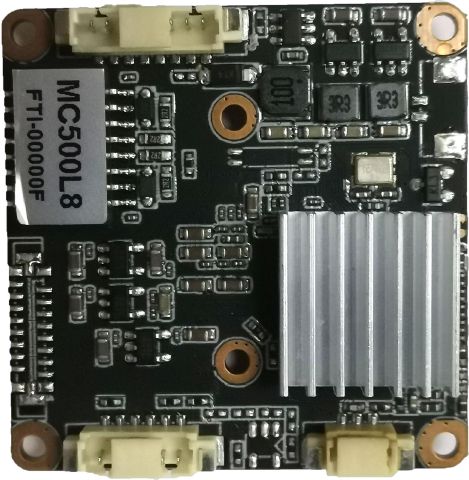

  • front of MC500L8
  • photo of MC500L8
