MC500N
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- SSC328Q
- Sensor:
- IMX335
- Listed:
- 2019
Anjoy Vision
H265+/H.265/H.264 5MP 38 two-board module
| Model | MC500N |
|---|---|
| SoC | SigmaStar SSC328Q |
| Image sensor | 1/2.7", 5MP SONY IMX335 |
| Minimum illumination | Colour 0.01 Lux |
| Signal-to-noise ratio | 50dB |
| Video processing | P/N video standard selectable, auto white balance, 3D noise reduction, HDR, face overexposure prevention, defog, selectable H.264/H.265/H.265+ encoding formats, for ultra-low storage use, adjustable bitrate/frame rate; main stream: 2592*1944/2688*1520/2560*1440/2048*1520/2304*1296/1080P/720P@30Fps |
| Image resolution | Sub stream: D1/VGA/640*360/CIF@30fps; supports CBR/VBR |
| Audio processing | Audio line input/output, G711U/G711A/AAC encoding, supports two-way audio, supports MP3 file playback |
| Network interface | One RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection |
| Protocol support | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols |
| Storage | Supports local storage (optional), supports 8G/16G/32G/64G/128G |
| IO interface | Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware |
| LED board interface | Supports automatic mode and external control mode; requires a matching LED board |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external/manual/scheduled mode |
| Functions | Browser access with IE6.0 or later (embedded Web Server); motion detection and custom OSD; Safari, Chrome, FireFox, Opera and Edge browsers supported; mobile web access; JPEG snapshots; P2P cloud service (danale); HDR up to 128dB; IP filtering; SDK provided (WINDOWS, Android, Linux); IR with software light sensing |
| General parameters | DC12V/POE, 2.4W Max, 38 (L) × 38 (W) × 24 (H) mm (excluding lens), 0.20 kg |
| Operating temperature | -30~85℃ |

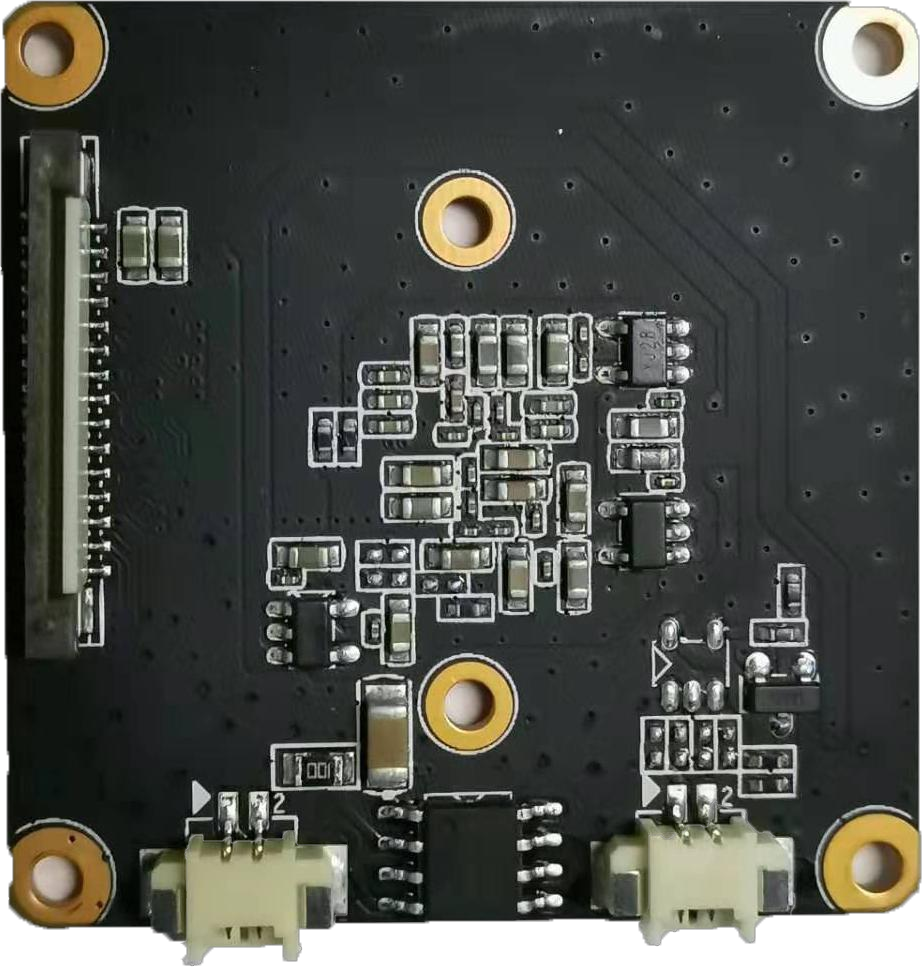

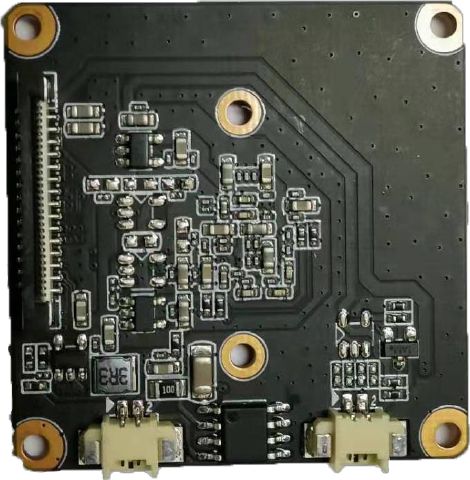

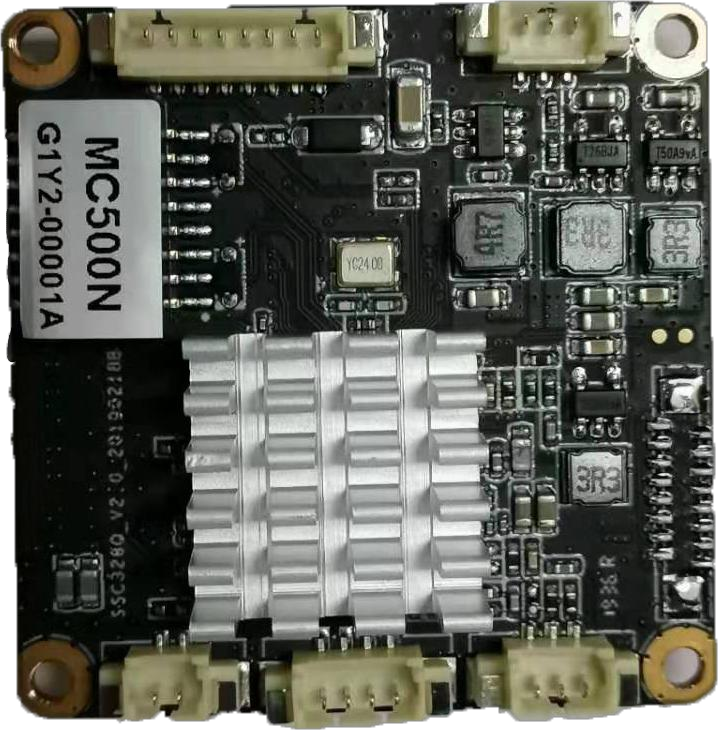

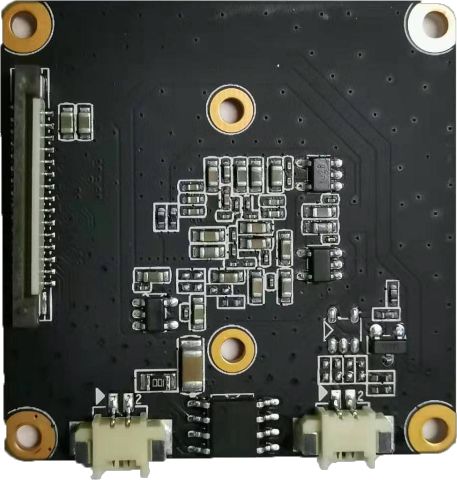

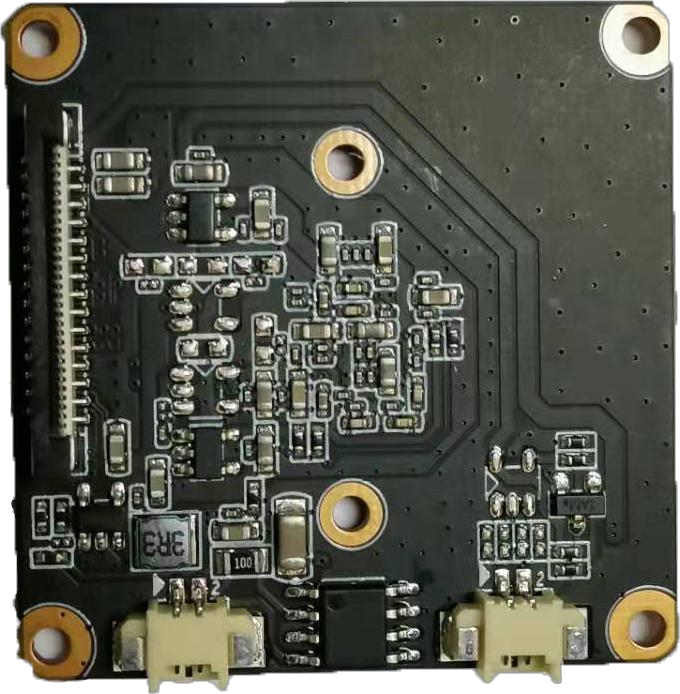

Photos
Files

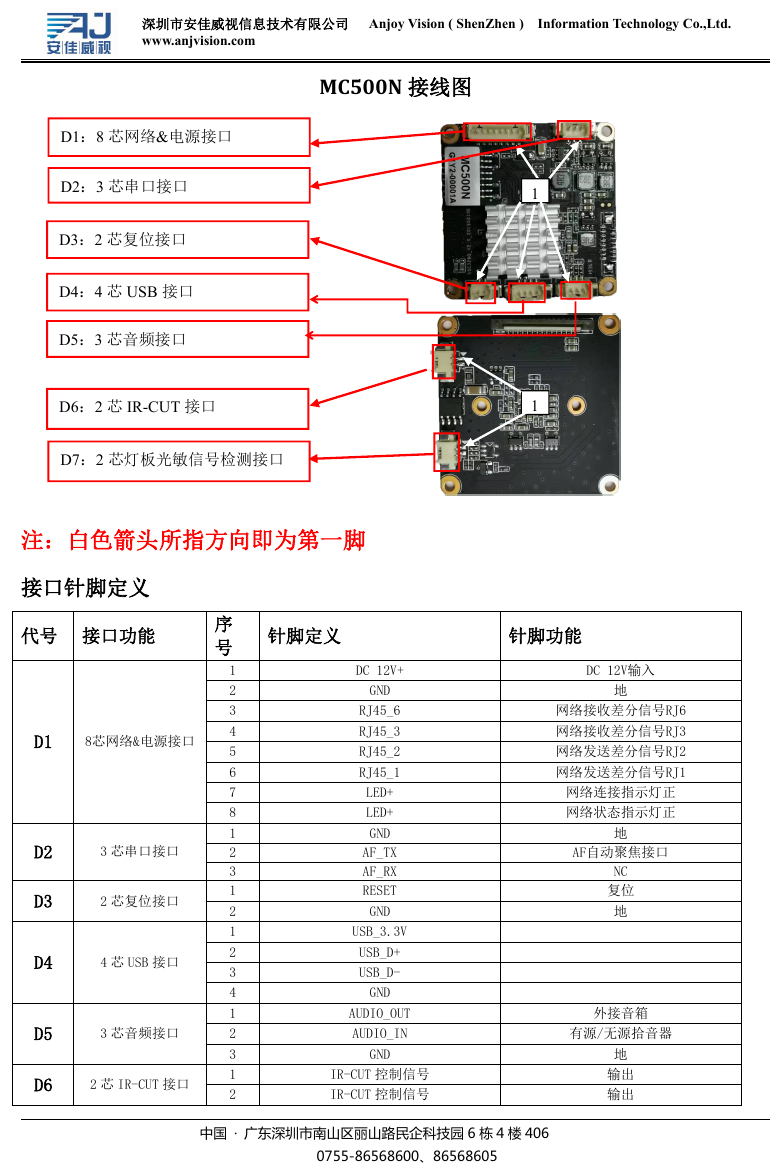

- MC500N-pinout-1.png (pinout, 247 KB)
- MC500N-spec-sheet.pdf (document, 316 KB)
- MC500N-wiring-diagram.pdf (document, 353 KB)
