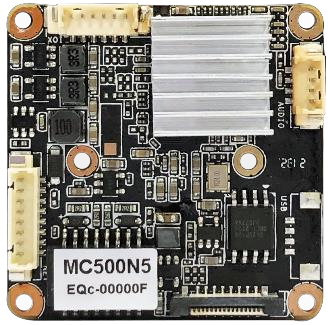

MC500N5

IP camera module

Anjoy Vision

5MP smart AI module

1/2.8-inch 5MP black-light CMOS sensor;
0.5T of compute;
H.265+, H.265, H.264 encoding;
Two lighting control signals supported: CDS, PWM;
Supports software light sensing: dual-light mode, full-colour mode, IR mode
Supports image flip, supports digital WDR
Deep perimeter: 4 arming modes supported — line crossing, area entry, area exit, area intrusion
Classified detection and arming for motor vehicles, non-motor vehicles and pedestrians;
Supports two-way audio, voice announcements, custom voice
Onvif supported;
Supports character overlay
IP address filtering;
POE expansion supported;
SDK (WINDOWS, Android, Linux) provided

Specifications
Model	MC500N5
SoC	SSC30KQ

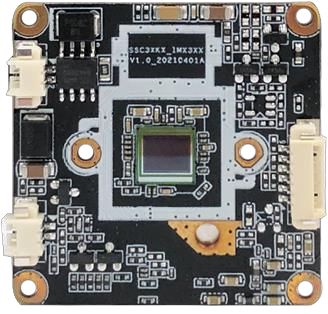

Image sensor	5MP, 1/2.8" CMOS IMX335
Video processing	H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~8Mpbs; frame rate adjustable 1~30 fps;
Image output	Main stream: 30FPS@(2592×1944, 2560×1440, 2304×1296, 1920×1080, 1280×720); sub stream: 720×480, D1, VGA, 640×360;
Audio interface	Audio: 1 ch line input, 1 ch output
Audio processing	G.711 encoding; two-way voice intercom; audio-video synchronisation;
IRCUT interface	Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode
Network interface	1 × RJ45 Ethernet interface, 10/100M auto-negotiating;
LED board interface	CDS, PWM IR, PWM warm light;
IO interface	Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware
Reliability	Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5
Functions	OSD, real-time audio and video transmission, perimeter detection algorithm, dual-light alarm, sound alarm;
Network protocols	HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols;
Mobile monitoring	Mobile monitoring (iOS, Android) Danale
Power supply	DC12V power input, power consumption 170mA
Operating conditions	-40~+85℃
Dimensions	38 (L) * 38 (W)
