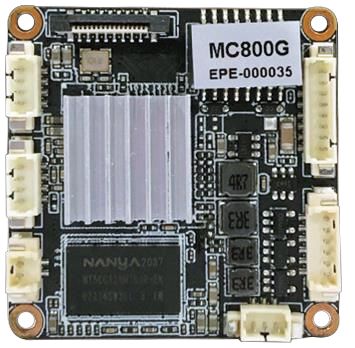

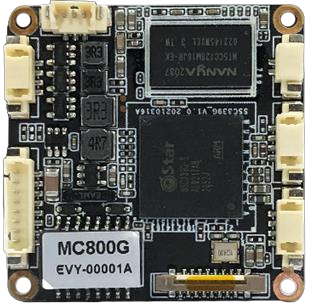

MC800G

IP camera module

Anjoy Vision

8MP full real-time smart AI black-light full-colour module

2 video channels and 1 audio channel, two independent channels, 30 fps live video (8MP)
1T of compute;
H.264/H.265/H.265+ video compression;
G.711/G711A/AAC audio compression;
Embedded Web Server, full support for monitoring, configuration and upgrade via Internet Explorer;
Deep perimeter: 4 arming modes supported — line crossing, area entry, area exit, area intrusion
Classified detection and arming for motor vehicles, non-motor vehicles and pedestrians;
Real-time two-way audio over the Internet; video frame rate adjusts automatically to bandwidth;
DHCP for easy dynamic IP addressing;
Video bitrate continuously adjustable 64Kbps-12Mbps, frame rate continuously adjustable (5-30)
IP filtering;
Supports sound-linked alarm and custom voice
Custom OSD;
Supports autofocus and PTZ
Safari, Chrome, FireFox, Opera, Edge browsers supported;

Specifications
Model	MC800G
SSC339G	Dual-core CA7 processor, 1.2GHz clock, external 4G DDR
Image sensor	1/2.8" 8MP CMOS IMX415;
Video processing	H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~12Mbps; frame rate adjustable 1~30 fps;
Audio interface	1 audio input, 1 audio output;
Audio processing	G.711/G711A/AAC audio compression; two-way voice intercom; audio-video synchronisation;
Network interface	1 × RJ45 Ethernet interface, 10/100M auto-negotiating;
TF interface	(Optional) 1 TF storage interface, up to 128G
IO interface	Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and firmware
LED board interface	External control mode, requires a matching LED board;
Reliability	Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5
Functions	OSD, real-time audio and video transmission, perimeter detection algorithm, dual-light alarm, sound alarm;
Network protocols	Supports TCP/TP, IPv4, DHCP, RTSP, P2P
Mobile monitoring	Mobile monitoring (iOS, Android); supports AC18Pro
Power supply	DC12V power input;
Operating conditions	-30~85℃
Dimensions	2×38 (L) * 38 (W) (excluding lens)
