MC800L
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- SSC328Q
- Sensor:
- OS08A10
- Listed:
- 2019
Anjoy Vision
| Hardware structure | MSTAR SSC328Q + 8MP 1/2" CMOS OV OS08A10 |
|---|---|
| Minimum illumination | Colour 0.001Lux, B/W 0.0001Lux |
| Wide dynamic range | ≥80dB |
| Signal-to-noise ratio | ≥50dB |
| Video functions | Privacy masking, OSD character overlay, motion detection |
| Image resolution | 3MP main stream: 2304*1296, 1-30 fps |
| 1MP main stream: 1280*720, | 1-30 fps |
| Image mode | Horizontal flip and vertical flip |
| Video compression bit rate | Continuously adjustable 500Kbps-12Mbps, CBR/VBR supported |
| Audio encoding | G.711/ G.711.A audio codec; two-way voice intercom; audio-video synchronisation |
| Network interface | 10/100M auto-sensing Ethernet port, lightning protection |
| Protocol support | HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P and other network protocols; GB/T28181 protocol optional |
| SD card | Supports multiple storage mechanisms, on-device storage |
| Mobile client | Supports Windows Mobile, iPhone, iPad and Android platforms |
| 1/2" | OV OS08A10 CMOS sensor, latest MSTAR SSC328Q platform, standard single-layer 38mm*38mm format, supports day/night |
| General parameters | DC12V/POE, 1.2W Max, 38 (L) * 38 (W) * 15 (H) mm (excluding lens), 0.012 kg |

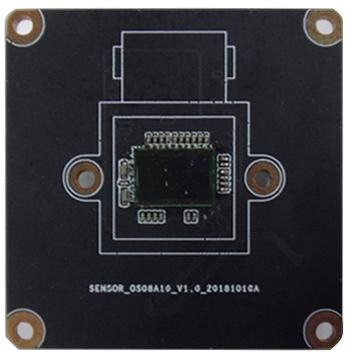

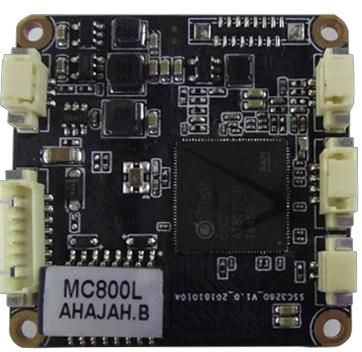

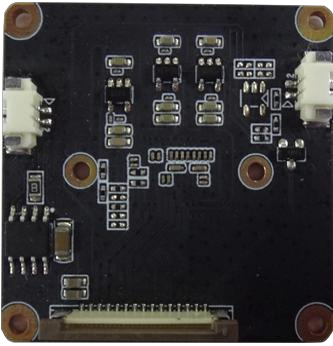

Photos
Files

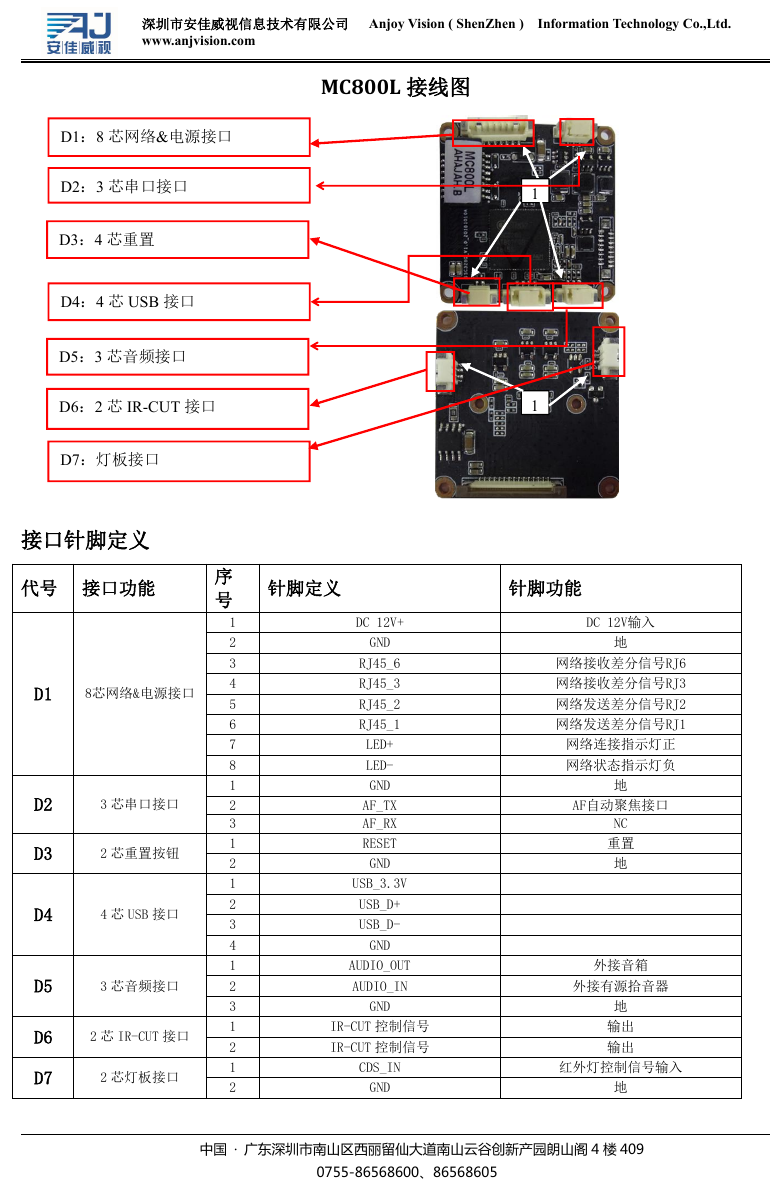

- MC800L-pinout-1.png (pinout, 252 KB)
- MC800L-spec-sheet.pdf (document, 206 KB)
- MC800L-wiring-diagram.pdf (document, 196 KB)
