MC800N
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- SSC328Q
- Sensor:
- IMX415
- Listed:
- 2019
Anjoy Vision
H265+/H.265/H.264 8MP 38 two-board module
| Model | MC800N |
|---|---|
| SoC | SigmaStar SSC328Q |
| Image sensor | 1/2.8", 8MP Sony IMX415 |
| Minimum illumination | Colour 0.01 Lux |
| Signal-to-noise ratio | 72dB |
| Video processing | P/N video standard selectable, auto white balance, 3D noise reduction, HDR, face overexposure prevention, defog, selectable H.264/H.265/H.265+ encoding formats, for ultra-low storage use, adjustable bitrate/frame rate |
| Image resolution | Main stream: 3840*2160@20fps, 3072*2048/2592*1944/2560*1440/2304*1296/2048*1536/1080P/960P/720P/D1@30fps; sub stream: 720*480D1/VGA/640*360/CIF@30fps; supports CBR/VBR |
| Audio processing | Audio line input/output, G711U/G711A/AAC encoding, supports half-duplex two-way audio |
| Network interface | One RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection |
| Protocol support | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols |
| Storage | None |
| IO interface | Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware |
| LED board interface | External control mode, requires a matching LED board |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled by external/manual/scheduled control; browser access with IE6.0 and above (embedded web server); motion detection and custom OSD; supports Safari, Chrome, FireFox, Opera, Edge browsers |
| Functions | Supports mobile web access |
| SDK (WINDOWS, Android, Linux) provided | JPEG snapshots; P2P cloud service (danale); IP filtering |
| General parameters | DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 24 (H) mm (excluding lens), 0.20 kg |
| Operating temperature | -30~85℃ |

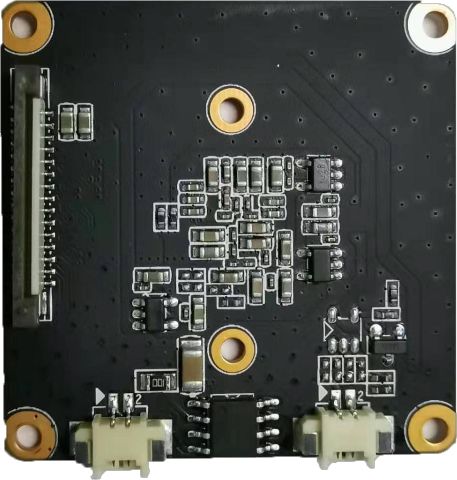

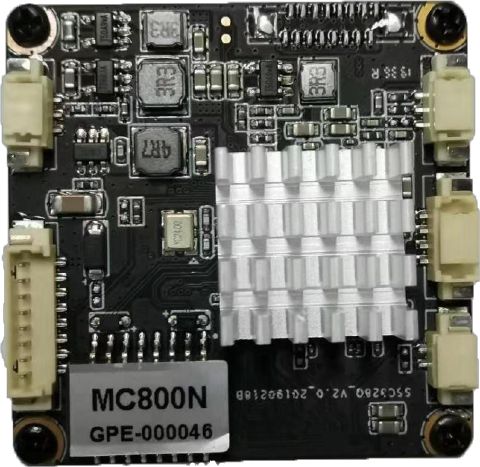

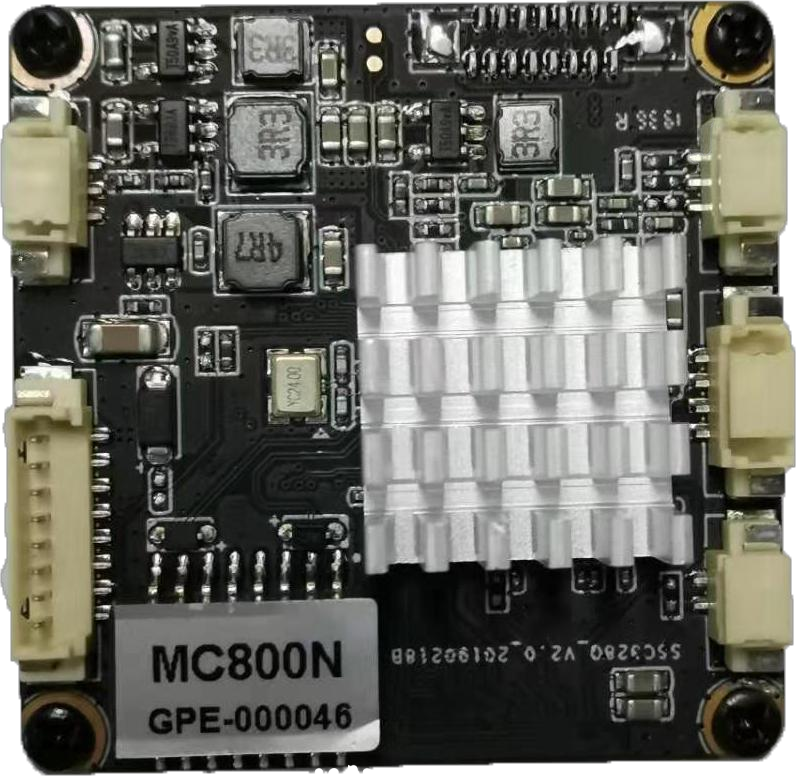

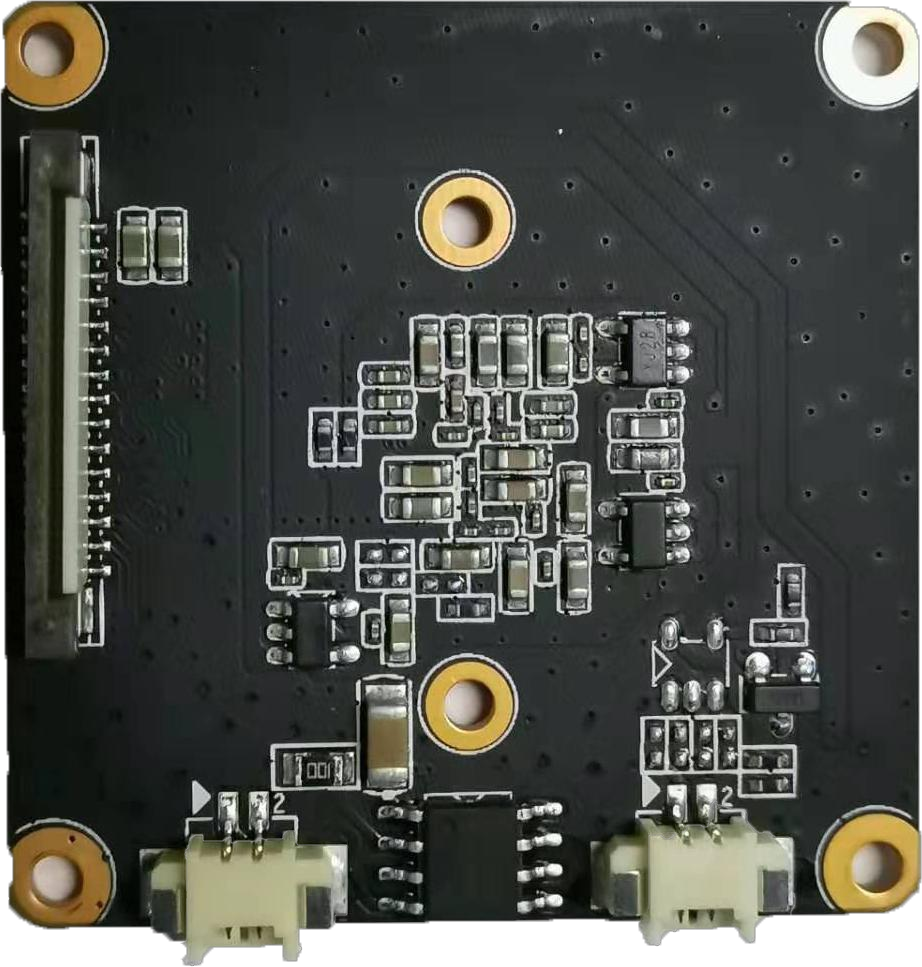

Photos
Files

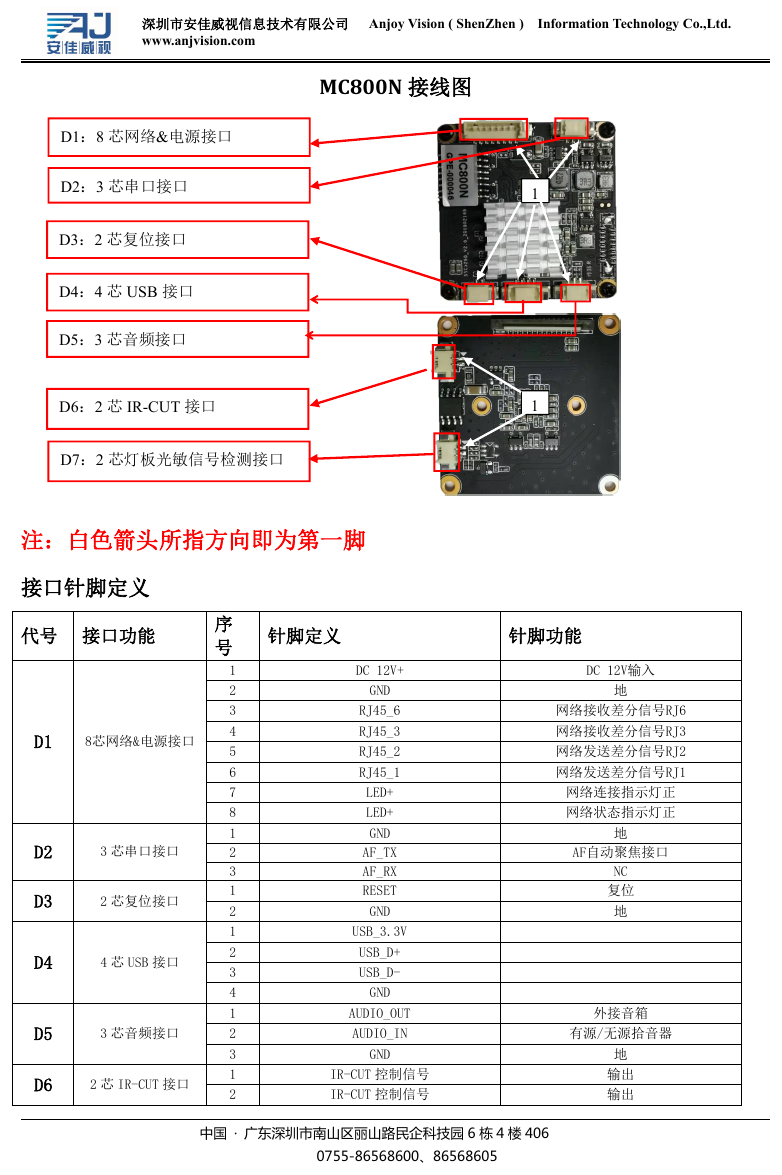

- MC800N-pinout-1.png (pinout, 249 KB)
- MC800N-spec-sheet.pdf (document, 351 KB)
- MC800N-wiring-diagram.pdf (document, 362 KB)
