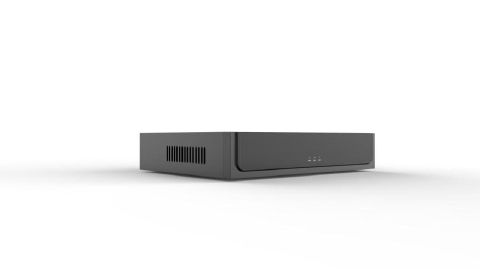

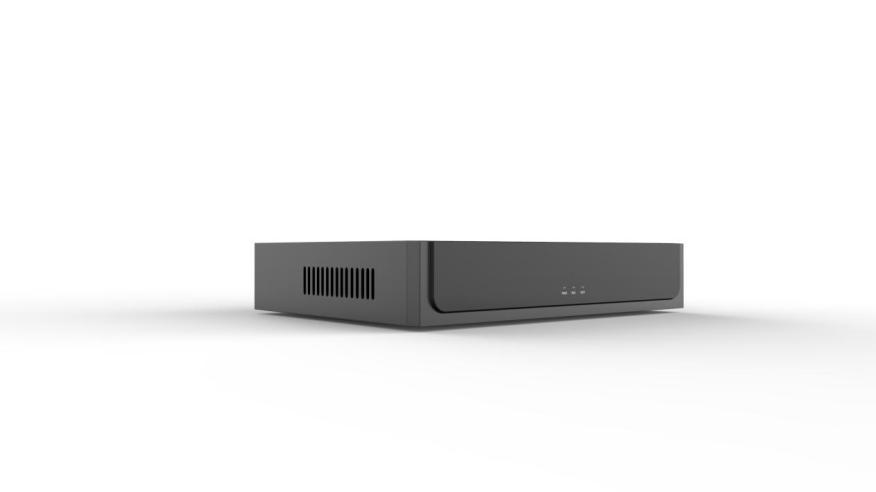

MN3236B

Network video recorder

Anjoy Vision

Connects network cameras from many mainstream manufacturers compliant with the ONVIF and RTSP standards
Mixed connection of H.265 and H.264 devices;
Powerful decoding, up to 16 ch 1080P decoding
Preview, storage and playback of 12MP HD network video
HDMI and VGA same-source output (independent output in later versions); HDMI up to Ultra HD 4K output, VGA HD 1080P output
2 SATA interfaces, up to 14T HDD per port
Fast playback and smart search by person, vehicle and event type, greatly improving recording playback and retrieval efficiency
Centralised management of IP devices, including one-click adding, parameter configuration, batch upgrade, import/export, etc.;
Supports cloud service; remote preview/playback/configuration from a phone via the AC18Pro/Videolink APP

Specifications
Product model	MN3236B
Video input	36 ch
Incoming bandwidth	280MB
HDMI output	1 ch, resolution: 3840×2160, 2560×1440, 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768
VGA output	1 ch, resolution: 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768
Audio output	1 ch, HDMI/AUX interface (3.5mm)
Recording resolution	25 ch 12MP, 36 ch 8MP/5MP/4MP/3MP/1080P/720P
Synchronous playback	Instant playback, regular playback, smart playback
Synchronous playback	2 ch 12MP / 4 ch 8MP / 8 ch 4MP / 16 ch 2MP
Backup mode	Regular backup, recording clip backup
Type	2 × SATA interfaces
Maximum capacity	Up to 14TB HDD per interface
Audio	1 HDMI output, 1 × 3.5mm audio input/output jack
Network interface	1 × RJ45 1000M/100M/10M auto-negotiating Ethernet
USB interface	2 × USB2.0
Network protocols	TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P and other network protocols
Power supply	DC12V 5A (external adapter)
Operating temperature	-10℃～＋55℃
Dimensions	330×255×53mm (W×D×H)
