MS400L2
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- MSC316DM
- Sensor:
- SC4236
- Listed:
- 2018
Anjoy Vision
H265+/H.265/H.264 4MP dual light source human recognition 38 single-board module
| Model | MS400L2 |
|---|---|
| SoC | MSTAR MSC316DM |
| Image sensor | 1/2.6", 4MP SC4236 |
| Minimum illumination | Colour 0.01 Lux |
| Signal-to-noise ratio | ≥ 37 dB |
| Video processing | P/N video standard selectable, auto white balance, 3D noise reduction, WDR, face overexposure prevention, defog, custom title, selectable H.264/H.265/H.265+ encoding formats, for ultra-low storage use, adjustable bitrate/frame rate; main stream: 2560*1440@20fps,2304*1536/2048*1520/2304*1296/1080P/720P@25fps |
| Image resolution | Sub stream: D1/VGA/640*360/480*360/CIF@25fps; supports CBR/VBR |
| Audio processing | Audio line input/output, G711U/G711A/ACC encoding, supports two-way audio, supports sound-linked alarm with customisable sound |
| Network interface | One RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection |
| Protocol support | HTTP/RTSP/RTMP/DHCP/NTP/ONVIF/P2P/UPNP/GB28181 and other network protocols; Hikvision and Hanbang protocols supported |
| Storage | Up to 128G storage, requires a tail board with an SD card slot |
| IO interface | Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware |
| LED board interface | Supports passive mode |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in passive/manual/scheduled mode |
| Functions | Supports motion detection and human recognition alarm; supports browser access with IE6.0 and above (embedded web server); custom OSD; supports JPEG snapshot; supports P2P cloud service; supports IP filtering; SDK provided (WINDOWS, Android, Linux) |
| General parameters | DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg |
| Operating temperature | -30~85℃ |
Photos
Files

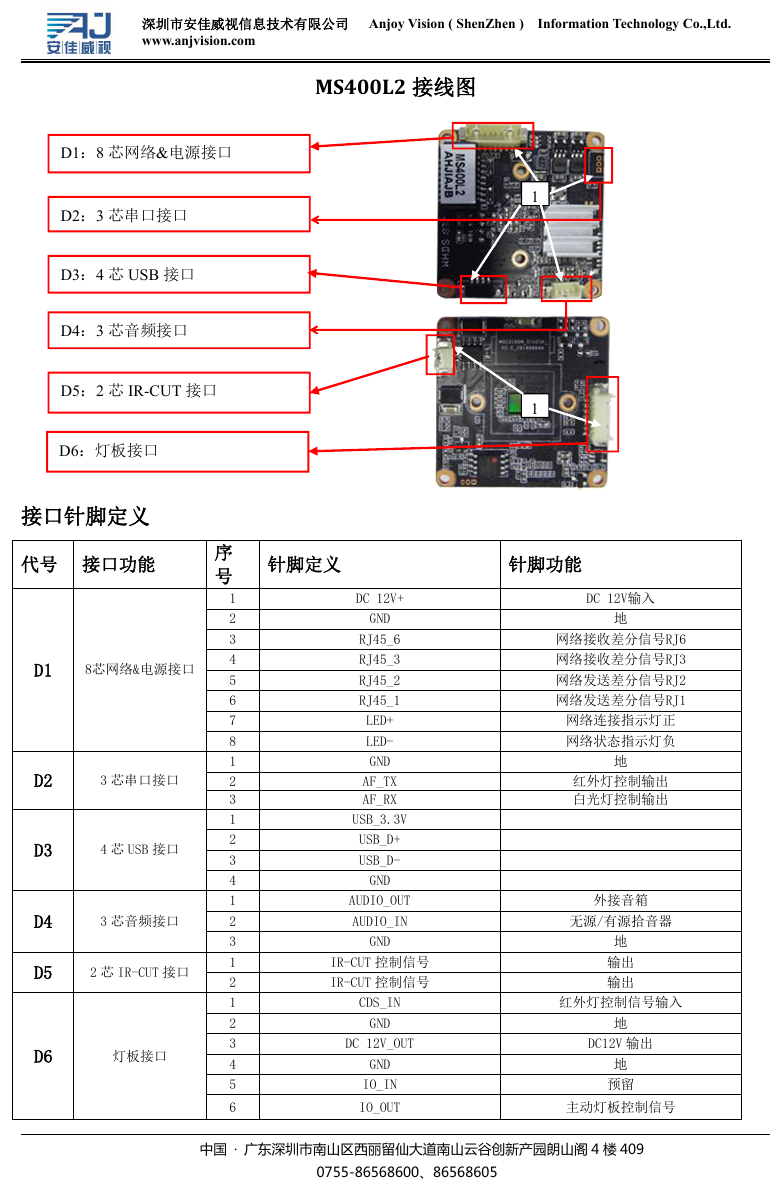

- MS400L2-pinout-1.png (pinout, 255 KB)
- MS400L2-spec-sheet.pdf (document, 158 KB)
- MS400L2-wiring-diagram.pdf (document, 172 KB)
