MT-E6-4G
4G camera module
- Maker:
- Anjoy Vision
- SoC:
- MSC335
- Sensor:
- SC2332
- Listed:
- 2021
Anjoy Vision
H.265+ 2MP human detection/smart dual-light/wifi module
Features
- 1080P resolution, clear image;
- 4G / wired network switching;
- H.265+ smart encoding reduces bandwidth load;
- Micro SD card / cloud storage;
- Supports multiple cloud services (AC18Plus/Tuya), etc.
- GB28181/ONVIF protocols supported;
- Supports dual-light alarm / smart human detection / sound alarm / two-way audio
| Model | MT-E6-4G |
|---|---|
| SoC | MSC335 |
| Image sensor | 1/3" 2MP low-light CMOS SC2332, colour 1.0Lux@F2.0, B/W 0.1Lux@F2.0; integrated IR-CUT driver, day/night switching, software light sensing; |
| Video processing | H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~8Mpbs; frame rate adjustable 1~30 fps; |
| Image output | Main stream: 2304×1296, 1920×1080, 1280×720; sub stream: D1,VGA,640×360; |
| Audio interface | 1 ch MIC input, 1 ch built-in amplifier output (8Ω2W/4Ω3W); |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| TF interface | 1 × TF storage slot, up to 128G; wireless communication over FDD-LTE/TDD-LTE/WCDMA and other network standards, maximum downlink rate 150Mbps and maximum uplink rate 50Mbps; |
| Reset button interface | Supports hardware reset |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5 |
| Functions | OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm; |
| Network protocols | Supports TCP/TP, IPv4, DHCP, RTSP, P2P |
| Mobile monitoring | Mobile monitoring (iOS, Android); optional AC18Plus/Tuya/Danale services |
| Power supply | DC12V power input, power consumption 1.9W |
| Operating conditions | -20~65℃ |
| Dimensions | 2×38 (L) * 38 (W) (excluding lens) |

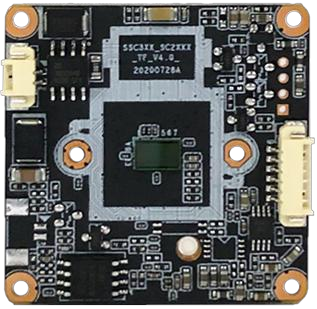

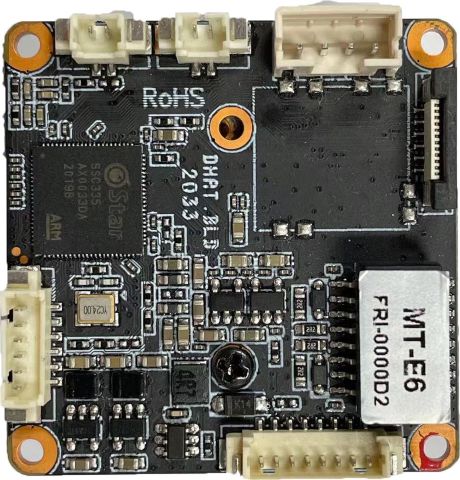

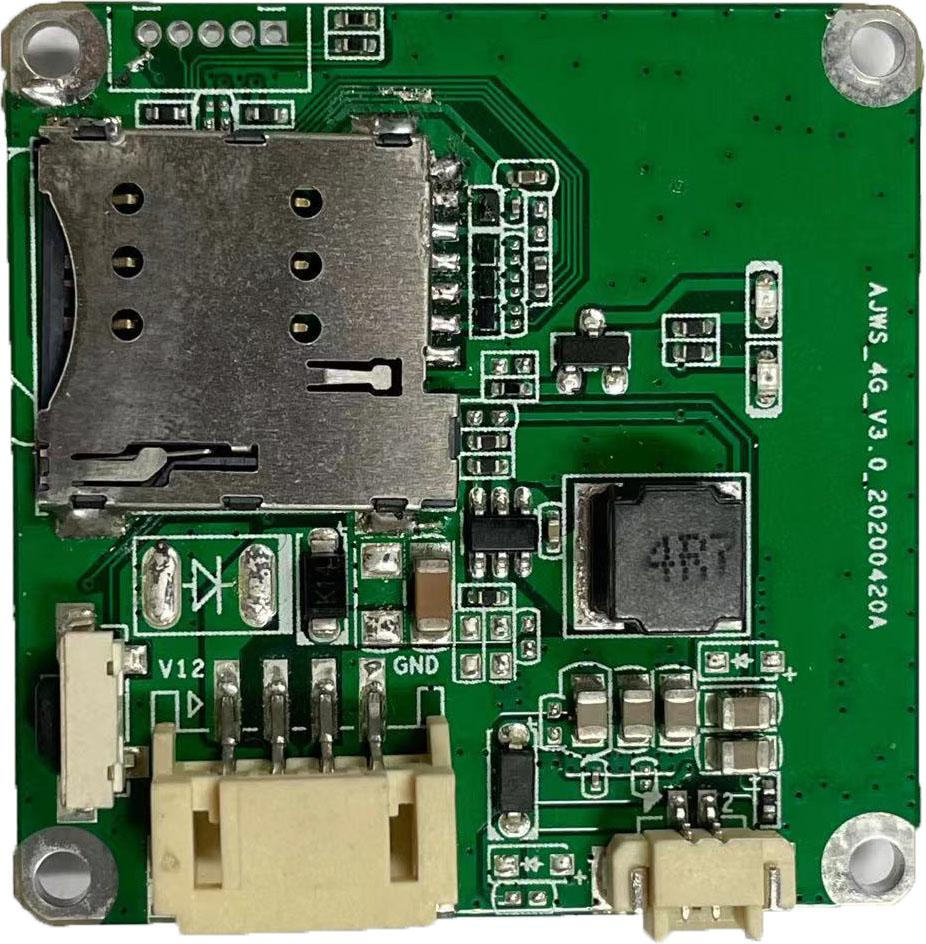

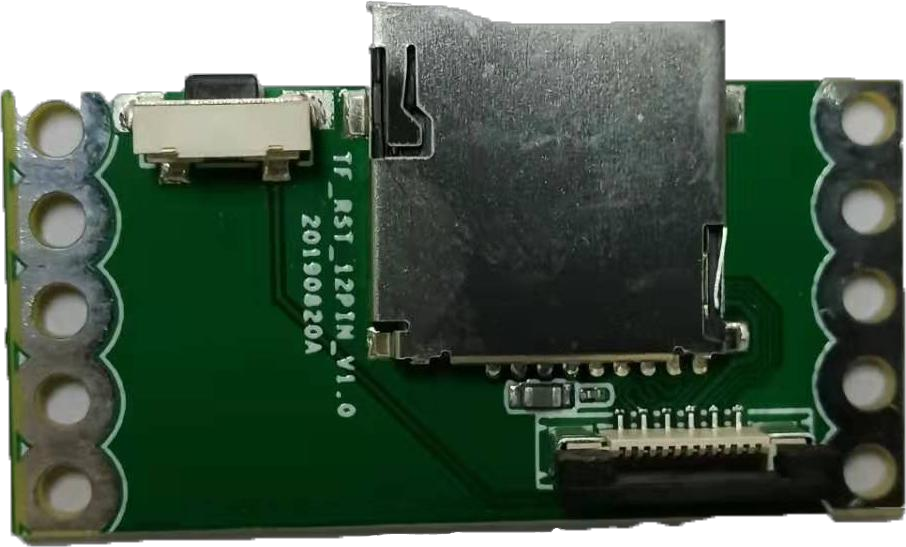

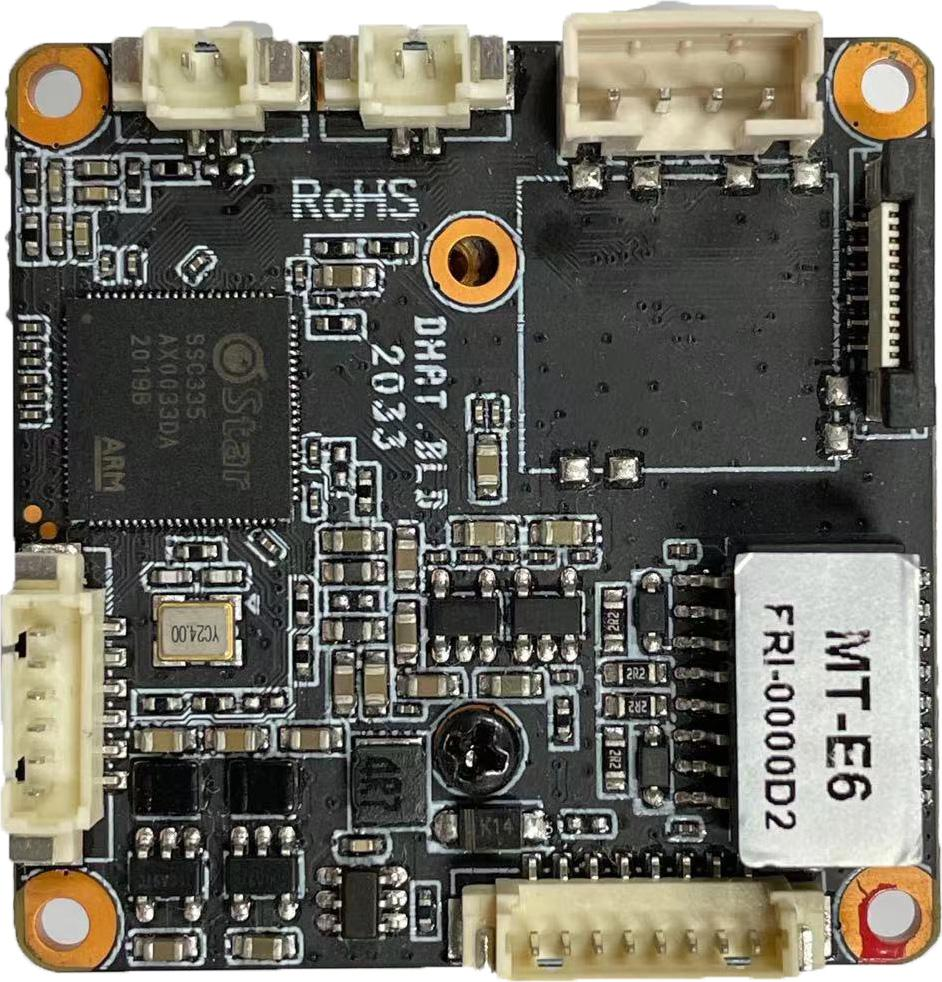

Photos
Files

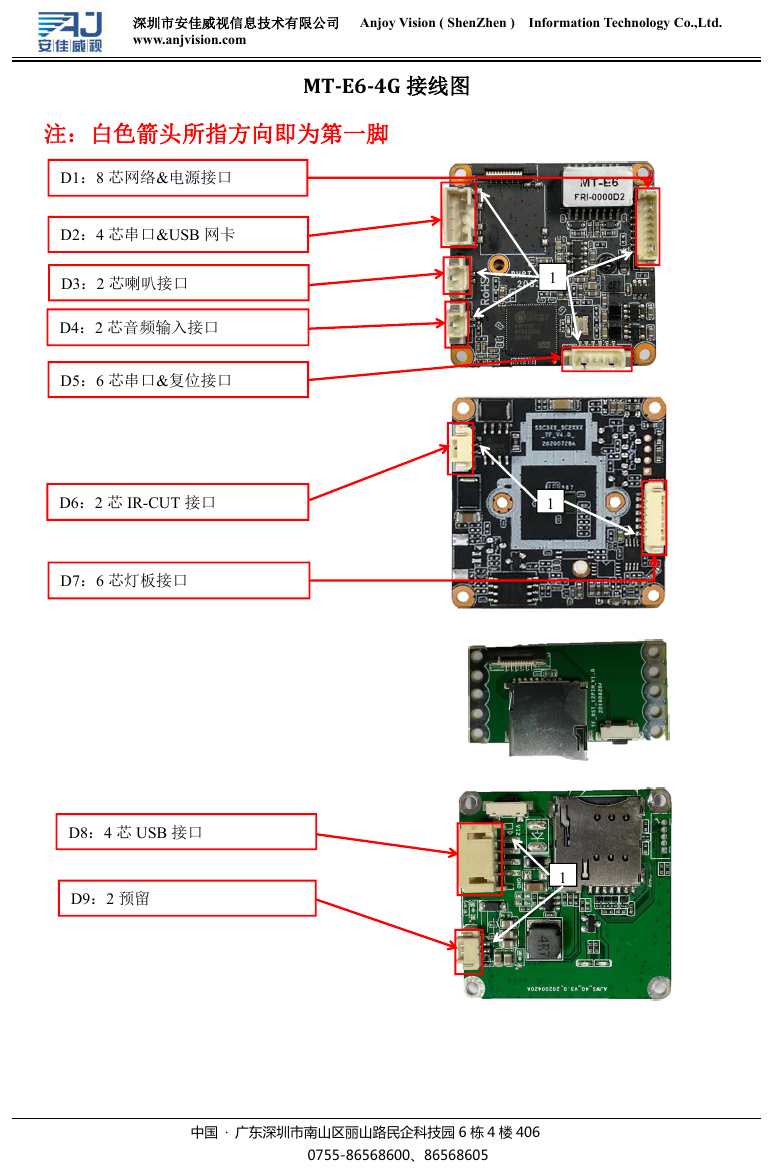

- MT-E6-4G-pinout-1.png (pinout, 391 KB)

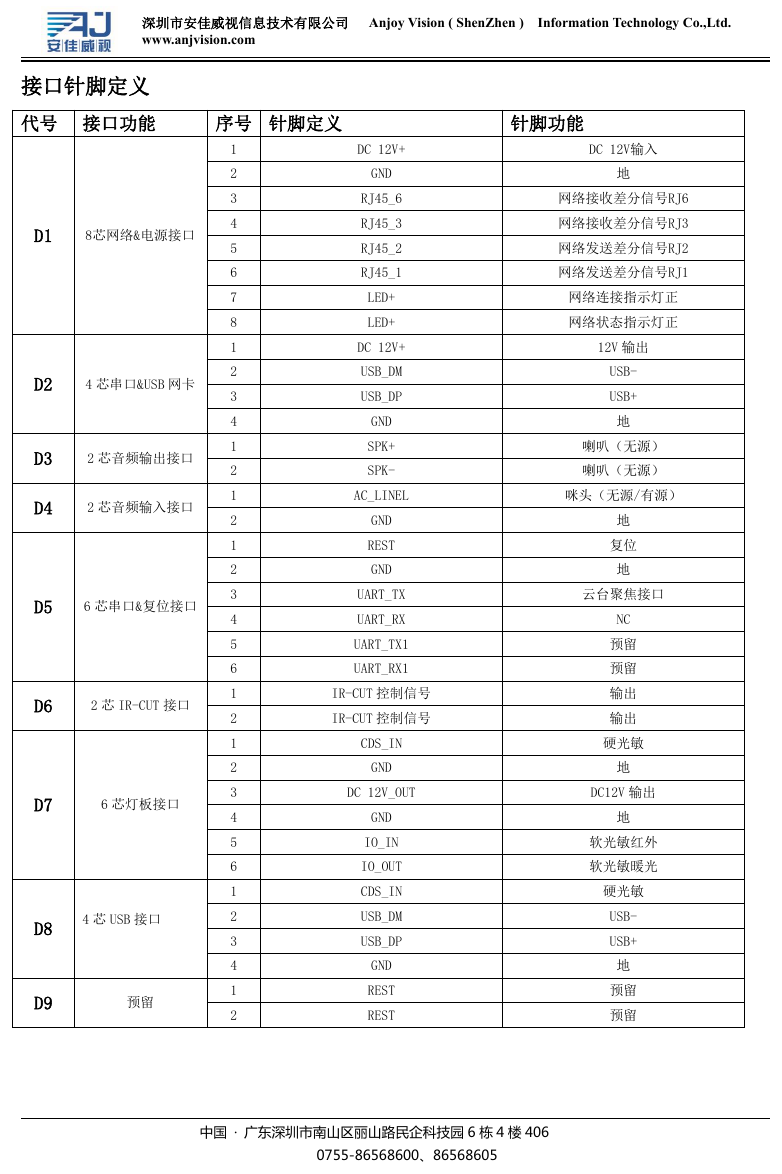

- MT-E6-4G-pinout-2.png (pinout, 139 KB)
- MT-E6-4G-spec-sheet.pdf (document, 173 KB)
- MT-E6-4G-wiring-diagram.pdf (document, 584 KB)
