MT-E6-W

Wi-Fi camera module

Maker:
Anjoy Vision
SoC:
MSC335
Listed:
2020

Anjoy Vision

H.265+ 2MP human detection/smart dual-light/wifi module

Features

  • 1080P resolution, clear image;
  • Supports switching between wireless and wired network
  • H.265+ smart encoding reduces bandwidth load;
  • Micro SD card / cloud storage;
  • Supports multiple cloud services (AC18Plus/Tuya), etc.
  • GB28181 protocol supported;
  • Supports dual-light alarm / smart human detection / sound alarm / two-way audio
Specifications
ModelMT-E6-W
SoCMSC335
Image sensor1/3" 2MP low-light CMOS, colour 1.0Lux@F2.0, B/W 0.1Lux@F2.0; integrated IR-CUT driver, day/night switching, software light sensing;
Video processingH.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~8Mpbs; frame rate adjustable 1~30 fps;
Image outputMain stream: 2304×1296, 1920×1080, 1280×720; sub stream: D1,VGA,640×360;
Audio interface1 ch MIC input, 1 ch built-in amplifier output (8Ω2W/4Ω3W);
Audio processingG.711 encoding; two-way voice intercom; audio-video synchronisation;
Network interface1 × RJ45 Ethernet interface, 10/100M auto-negotiating;
TF interface1 × TF storage slot, up to 128G;
WiFi2.4GHz, 1T1R, IEEE 802.11b/g/n protocol;
Reset button interfaceSupports hardware reset
ReliabilityFull lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5
FunctionsOSD, real-time audio and video transmission, human detection, area detection, dual-light alarm, sound alarm;
Network protocolsSupports TCP/TP, IPv4, DHCP, RTSP, P2P
Mobile monitoringMobile monitoring (iOS, Android); optional AC18Plus/Tuya services
Power supplyDC12V power input, power consumption 1.9W
Operating conditions-20~65℃
Dimensions38 (L) * 38 (W) * 15 (H) mm (excluding lens)

Photos

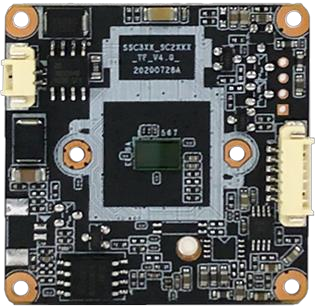

  • front of MT-E6-W

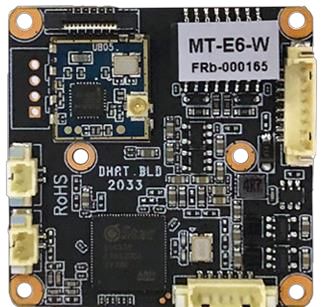

  • photo of MT-E6-W
