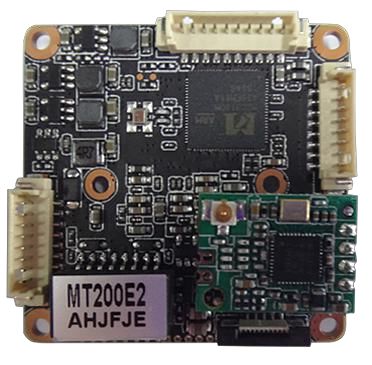

MT200E2

Wi-Fi camera module

Anjoy Vision

H265+/H.265/H.264 2MP 38 single-board module

Specifications
Model	MT200E2
SoC	MSTAR 316DM

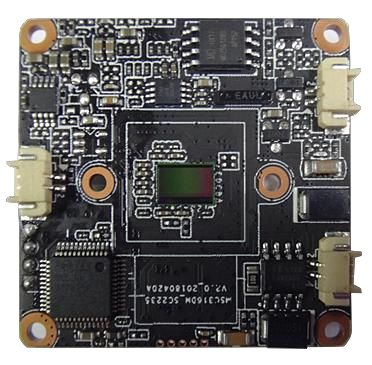

Image sensor	1/2.7", 2MP low-light CMOS SC2235
Minimum illumination	Colour 0.01 Lux
Signal-to-noise ratio	≥ 39 dB
Video processing	P/N video standard selectable, auto white balance, 3D noise reduction, WDR, face overexposure prevention, defog, selectable H.264/H.265/H.265+ encoding formats, for ultra-low storage use, adjustable bitrate/frame rate
Image resolution	Main stream: 1080P/720P/D1@25fps, sub stream: D1/VGA/640*360/CIF@25fps; supports CBR/VBR
Audio processing	Audio line input/output, G711U/G711A encoding, supports two-way audio, supports sound-linked alarm with customisable sound
Network interface	One RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection
Protocol support	HTTP/RTSP/RTMP/DHCP/DDNS/NTP/ONVIF/P2P/UPNP and other network protocols; Hikvision and Hanbang protocols supported
Storage	Supports up to 128G storage; requires a TF card expansion board
Expansion interfaces	Supports motorised zoom and autofocus interface; requires a zoom lens and zoom firmware
LED board interface	Supports passive mode
IRCUT interface	Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in passive/manual/scheduled mode
Functions	Browser access via IE6.0 and later (embedded Web Server), motion detection and OSD, JPEG snapshots, AP mode, P2P cloud service, IP filtering, SDK (WINDOWS, Android, Linux) provided
Operating temperature	-30~85℃
General parameters	DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg
