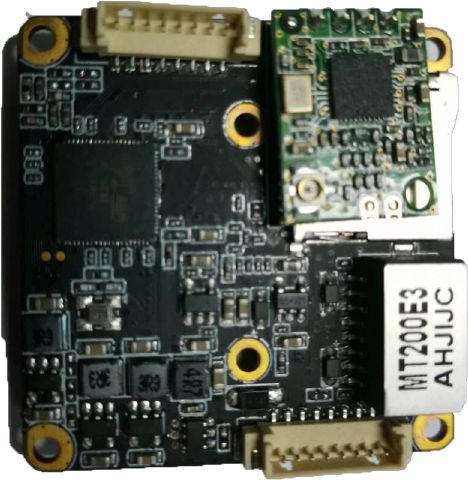

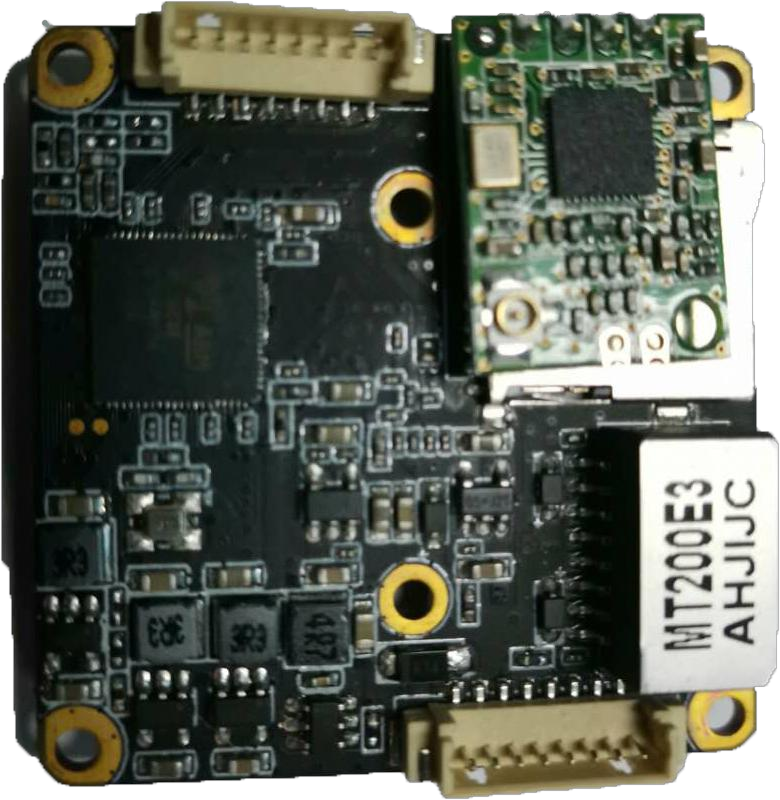

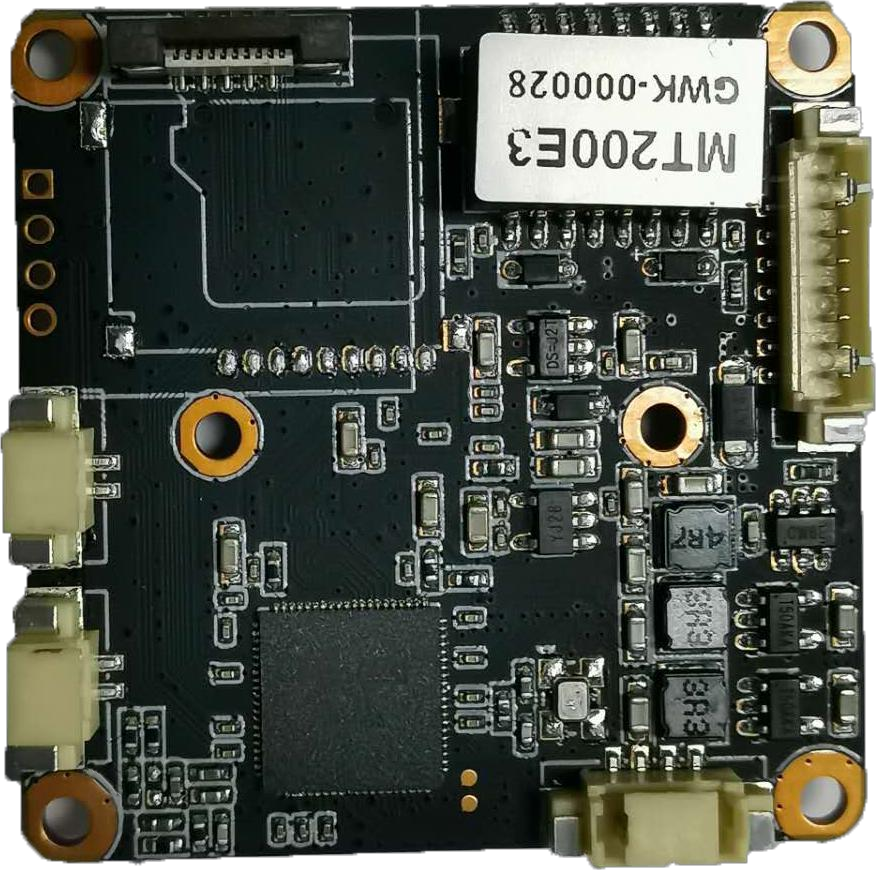

MT200E3

Wi-Fi camera module

Anjoy Vision

H265+/H.265/H.264 2MP 38 single-board module

Specifications
Model	MT200E3
SoC	MSTAR 313E

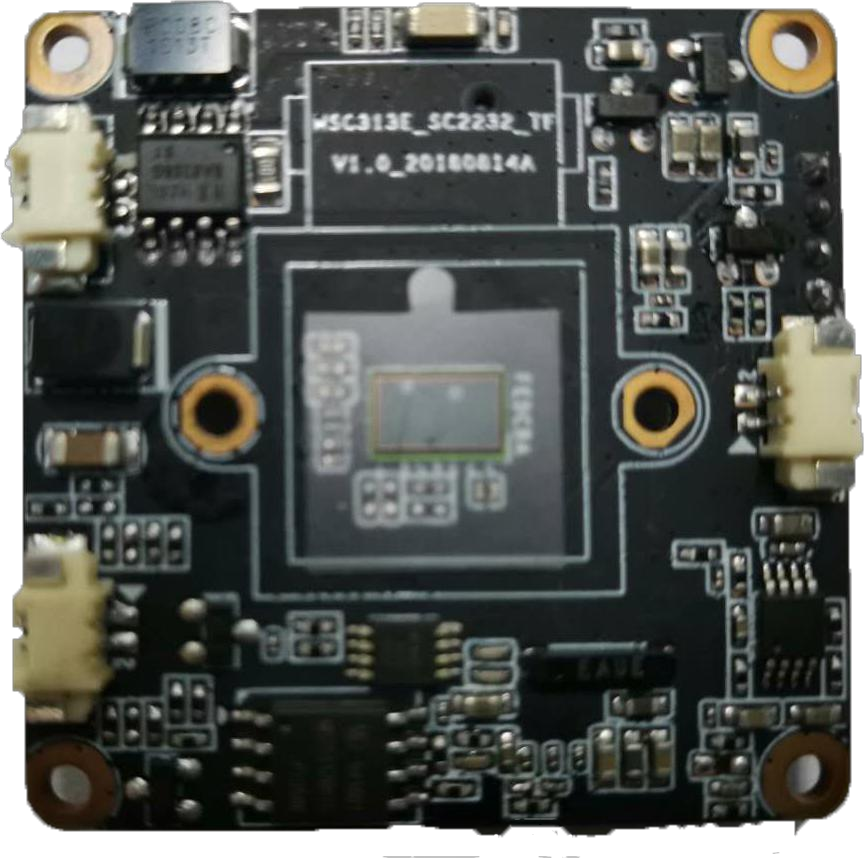

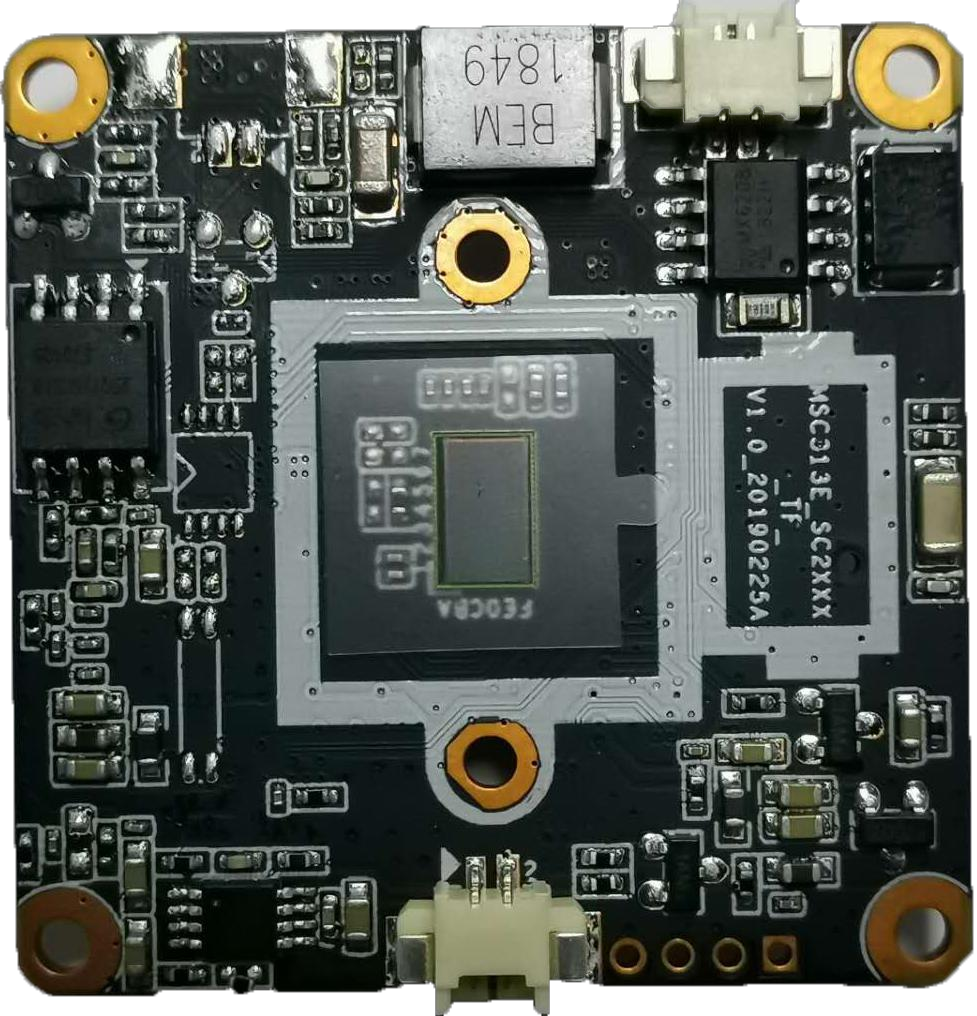

Image sensor	1/2.9", 2MP low-light CMOS SC2236
Minimum illumination	Colour 0.01 Lux
Signal-to-noise ratio	≥ 40 dB
Video processing	P/N video standard selectable, auto white balance, 3D noise reduction, WDR, face overexposure prevention, defog, H.265+ encoding format, for ultra-low storage use, adjustable bitrate/frame rate
Image resolution	Main stream: 1080P@15fps, sub stream: 720*480@15fps; supports CBR/VBR
Audio processing	Audio line input/output, G711U/G711A encoding, supports two-way audio, supports sound-linked alarm with customisable sound
Network interface	One RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection
Protocol support	HTTP/RTSP/RTMP/DHCP/NTP/ONVIF/P2P and other network protocols; Hikvision and Hanbang protocols supported
Storage	Supports up to 128G storage
Expansion interfaces	SD card and hardware reset
LED board interface	Supports passive mode

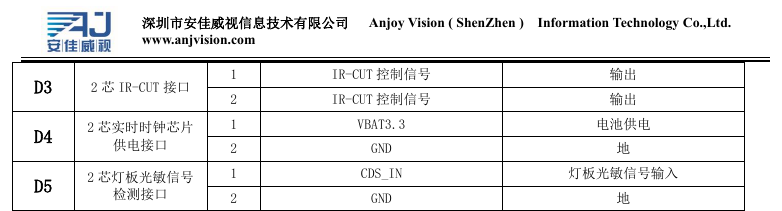

IRCUT interface	Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in passive/manual/scheduled mode
Functions	Browser access via IE6.0 and later (embedded Web Server), motion detection and OSD, JPEG snapshots, AP mode, P2P cloud service, IP filtering, SDK (WINDOWS, Android, Linux) provided, hardware reset
Operating temperature	-30~85℃
General parameters	DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg
