MT200E3-T
Wi-Fi camera module
- Maker:
- Anjoy Vision
- SoC:
- MStar 313E
- Sensor:
- SC2236
- Listed:
- 2019
Anjoy Vision
H265+ 2MP 38 single-board module
| Model | MT200E3-T |
|---|---|
| SoC | MSTAR 313E |
| Image sensor | 1/2.9", 2MP low-light CMOS SC2236 |
| Minimum illumination | Colour 0.01 Lux |
| Signal-to-noise ratio | ≥ 40 dB |
| Image definition | 1080P |
| Detection functions | Motion detection |
| Two-way audio | Half duplex |
| Custom voice | Supported |
| Protocol support | DHCP/P2P and other network protocols |
| Functions | 1080P HD picture, clear and true-to-life; 265+ encoding for very low storage use; IR night vision, clear picture at night; dedicated app for remote live view and playback; two connection options: WiFi or network cable; LAN device preview; real-time alarm push to the phone; local microSD storage, 8G/16G/32G/64G/128G supported, loop recording when full; HD recording playback with multi-speed fast forward and slow motion; customisable voice prompts, greeting or anti-theft; remote two-way voice talk; remote viewing from multiple devices |
| Operating temperature | -30~85℃ |
| General parameters | DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg |

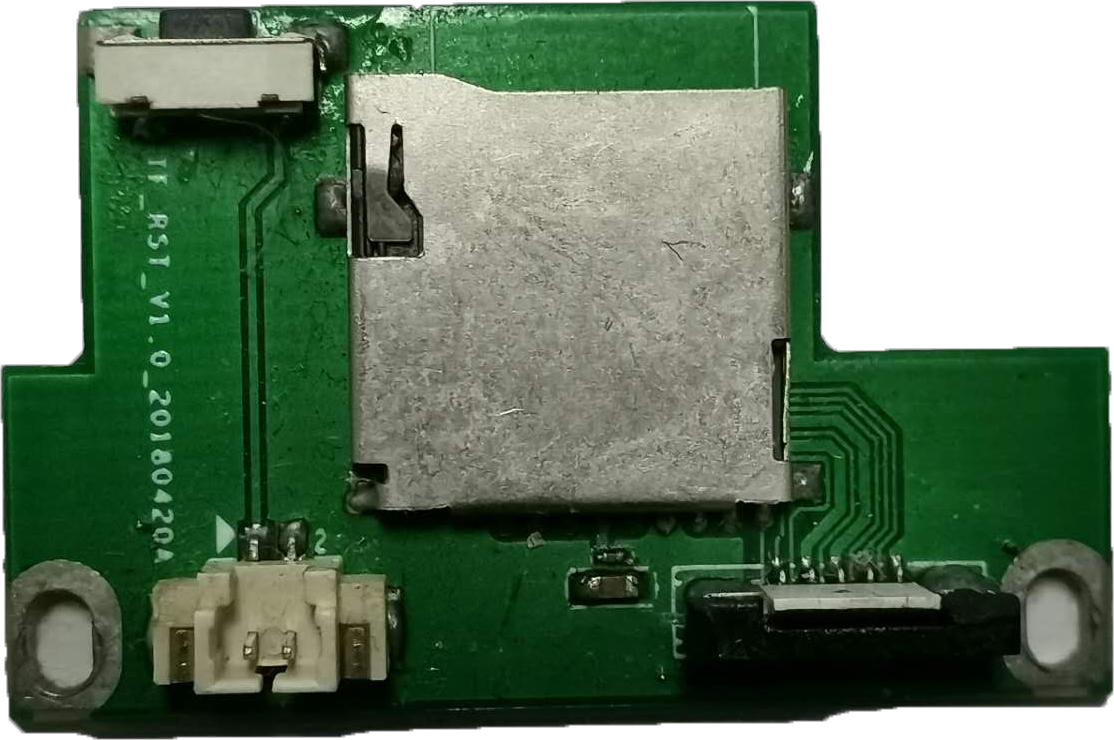

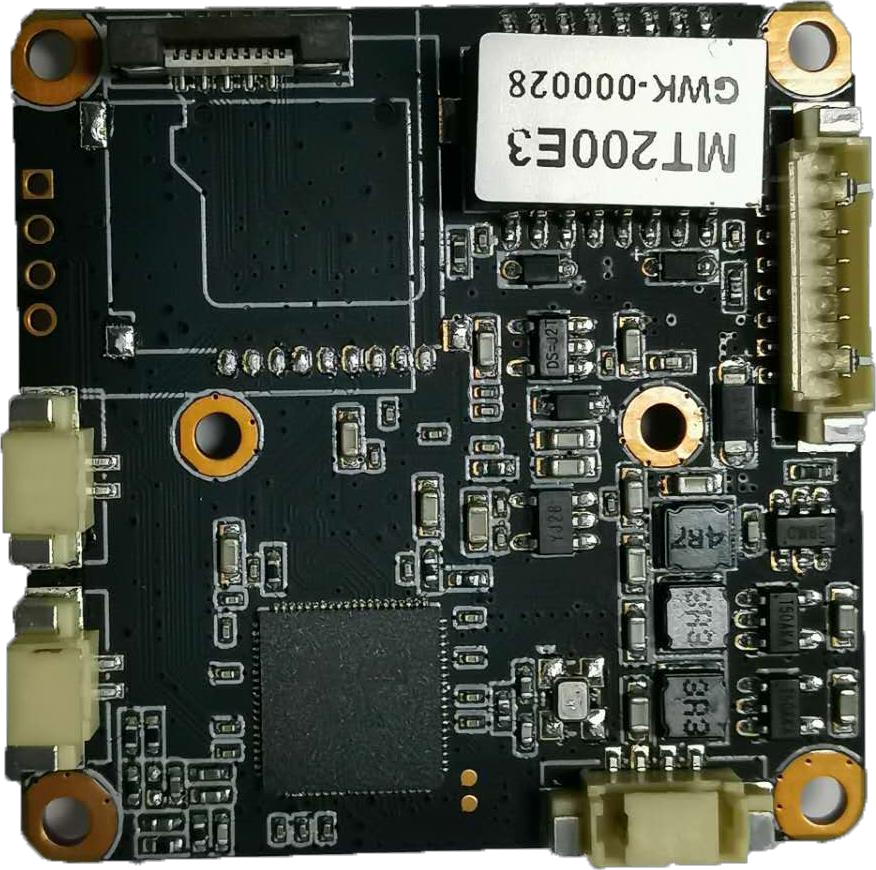

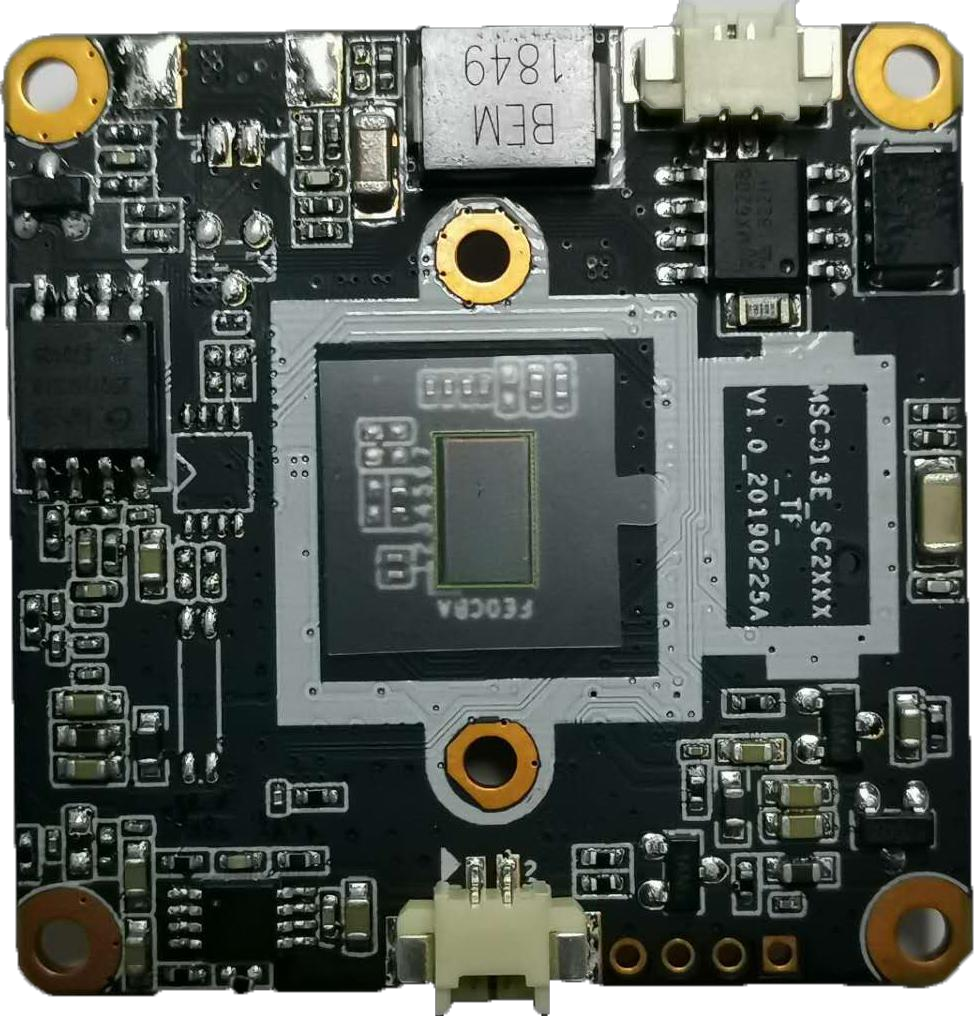

Photos
Files

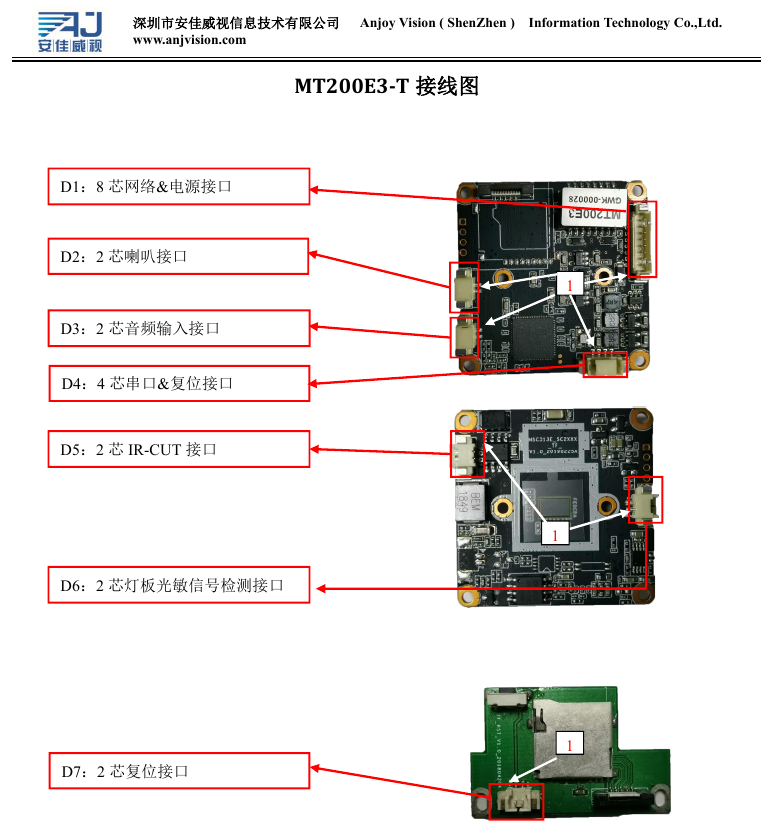

- MT200E3-T-pinout-1.png (pinout, 243 KB)

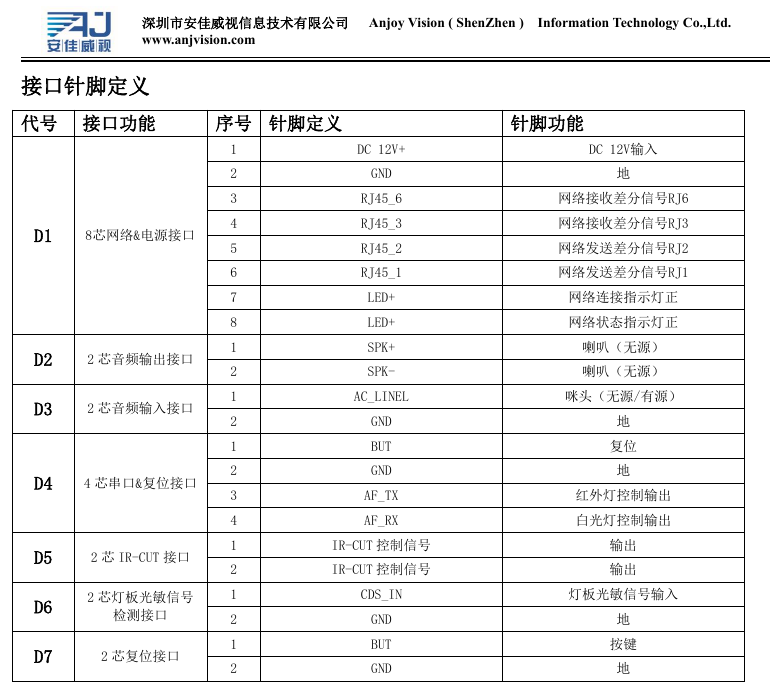

- MT200E3-T-pinout-2.png (pinout, 103 KB)
- MT200E3-T-spec-sheet.pdf (document, 531 KB)
- MT200E3-T-wiring-diagram.pdf (document, 547 KB)
