MT200E5
4G camera module
- Maker:
- Anjoy Vision
- SoC:
- MSC313E
- Sensor:
- SC2236
- Listed:
- 2019
Anjoy Vision
H265+ 2MP dual-light & autofocus & PTZ & WIFI 38 module
| Model | MT200E5 |
|---|---|
| SoC | MSC313E |
| Image sensor | 1/2.9", 2MP low-light CMOS SC2236 |
| Minimum illumination | Colour 0.01 Lux |
| Signal-to-noise ratio | ≥ 40 dB |
| Image definition | 1080P |
| Detection functions | Motion detection |
| Two-way audio | Half duplex |
| Custom voice | Supported |
| Protocol support | DHCP/P2P and other network protocols |
| Functions | Supports sound-and-light linked alarm (dual light source); supports PTZ and zoom; 1080P HD picture, true and clear imaging; 265+ encoding, ultra-low storage use; IR night vision, clearly visible picture at night; dedicated APP for remote live view and playback; two connection options, WiFi or network cable; LAN device preview; real-time alarm push to phone; local card storage, 8G/16G/32G/64G/128G supported, loop recording when full; HD recording playback with multi-speed fast forward and slow motion; customised voice prompts, greeting or anti-theft; remote two-way voice, communication at any distance; remote viewing from multiple devices |
| Operating temperature | -30~85℃ |
| General parameters | DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg |

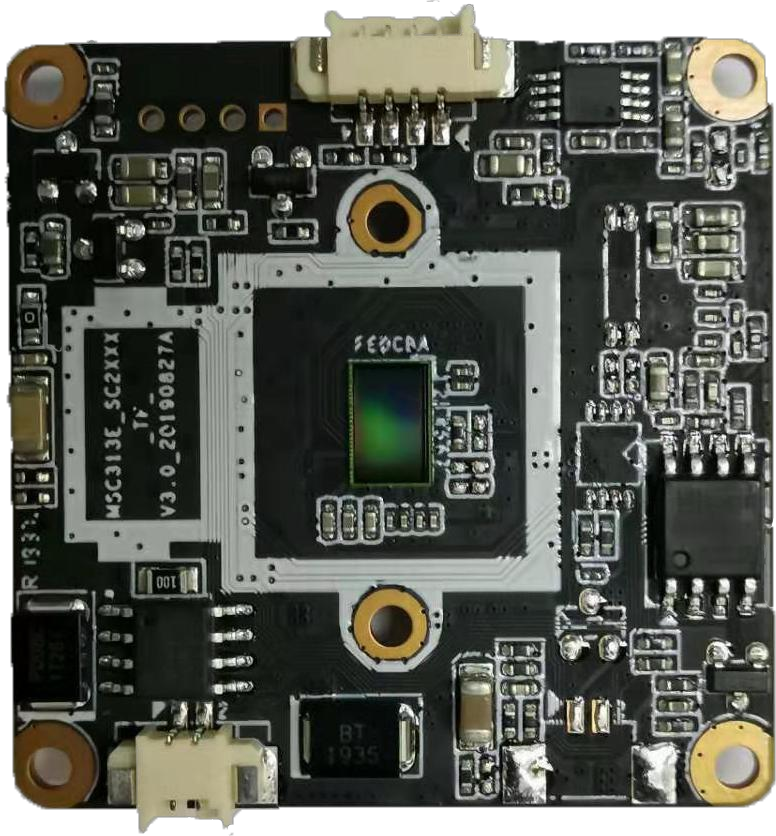

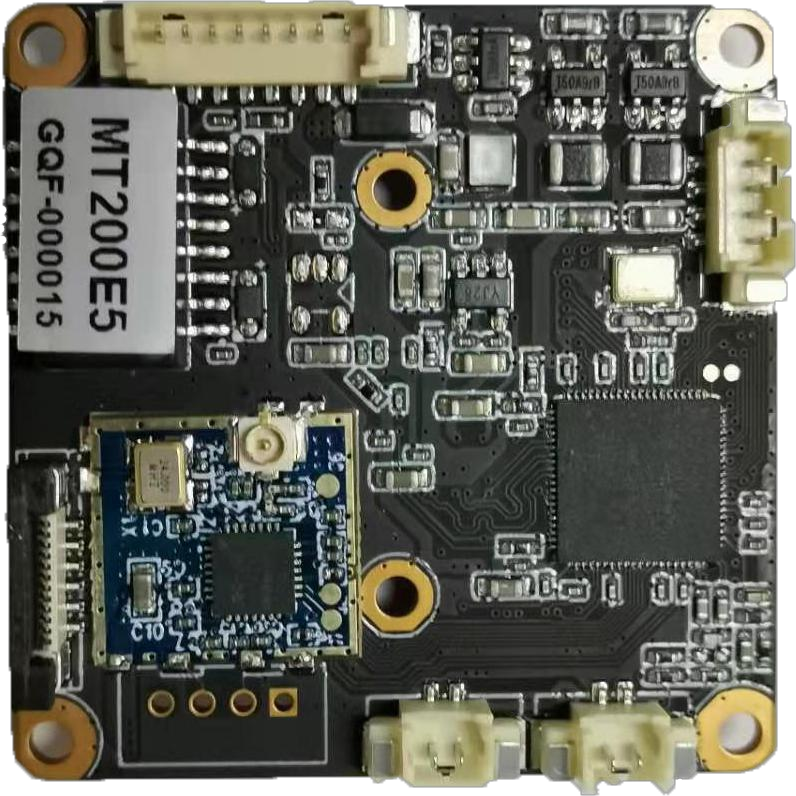

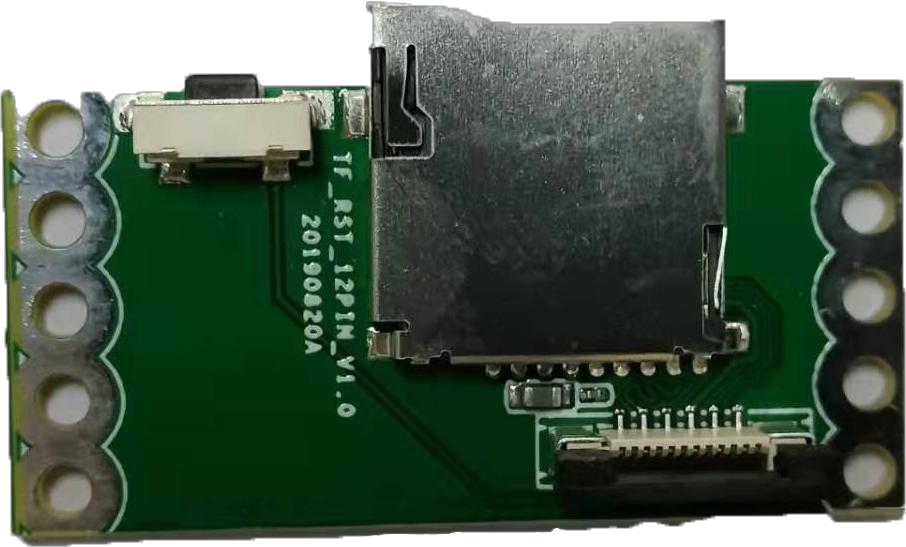

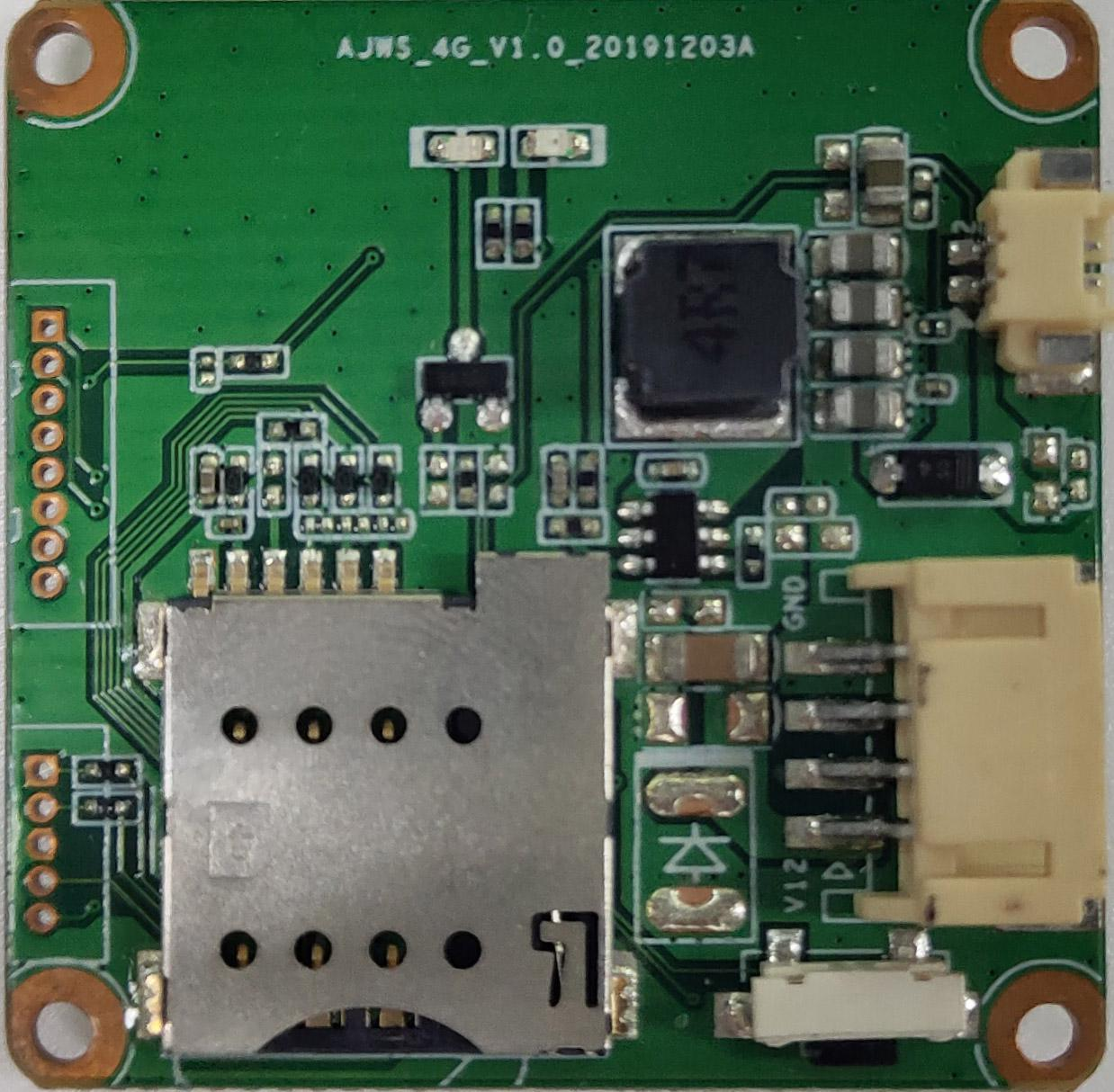

Photos
Files

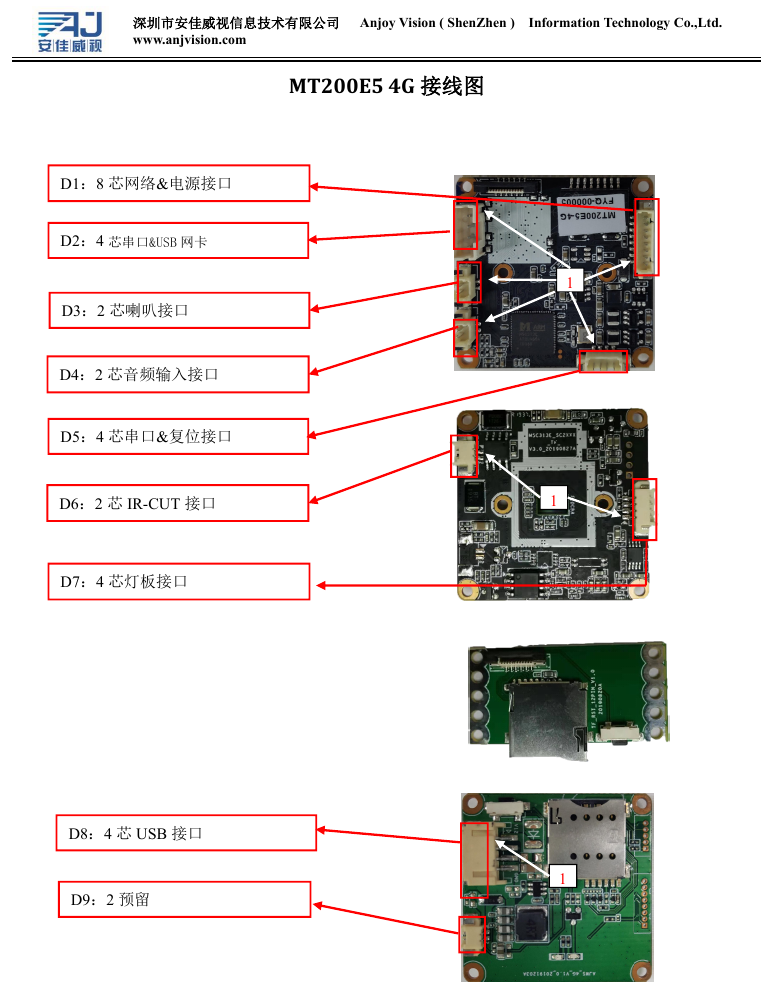

- MT200E5-pinout-1.png (pinout, 308 KB)

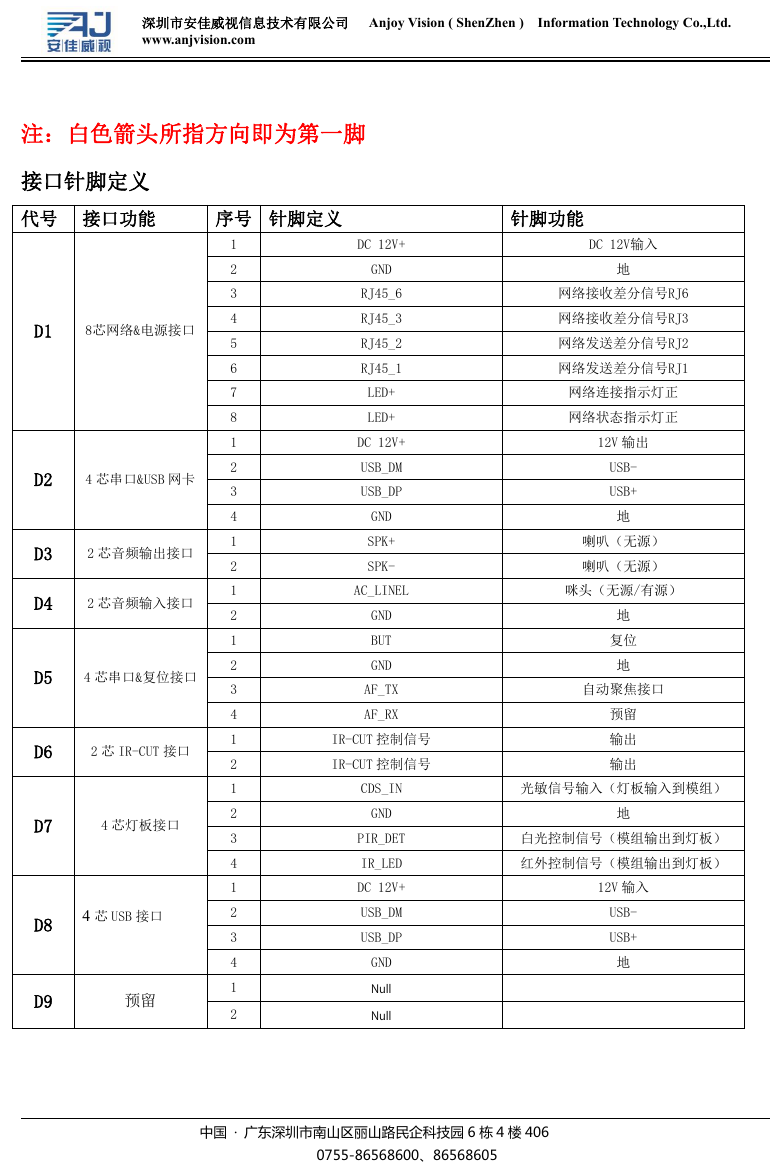

- MT200E5-pinout-2.png (pinout, 145 KB)

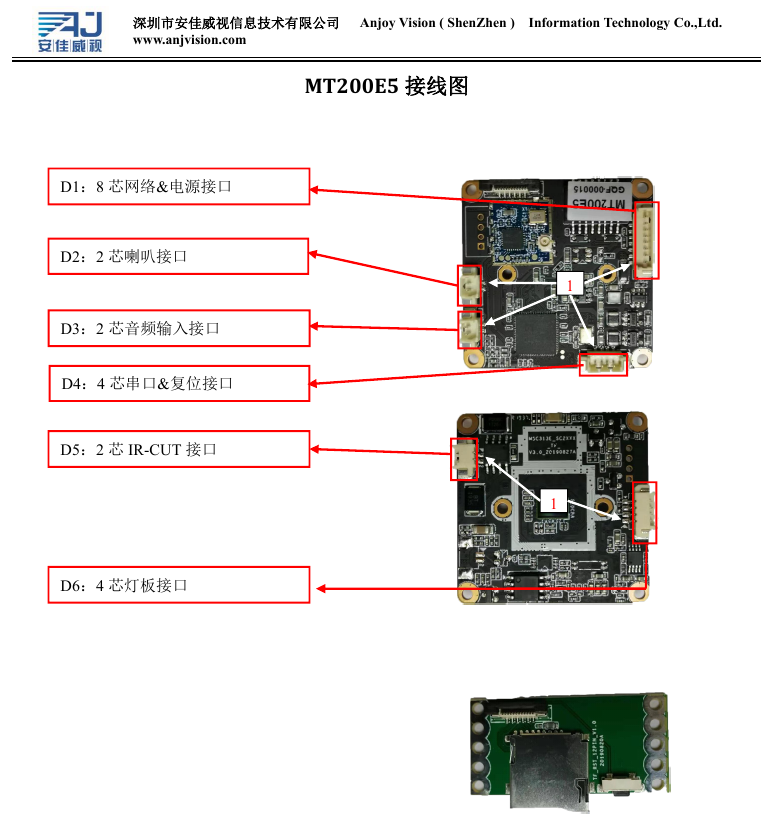

- MT200E5-pinout-3.png (pinout, 229 KB)

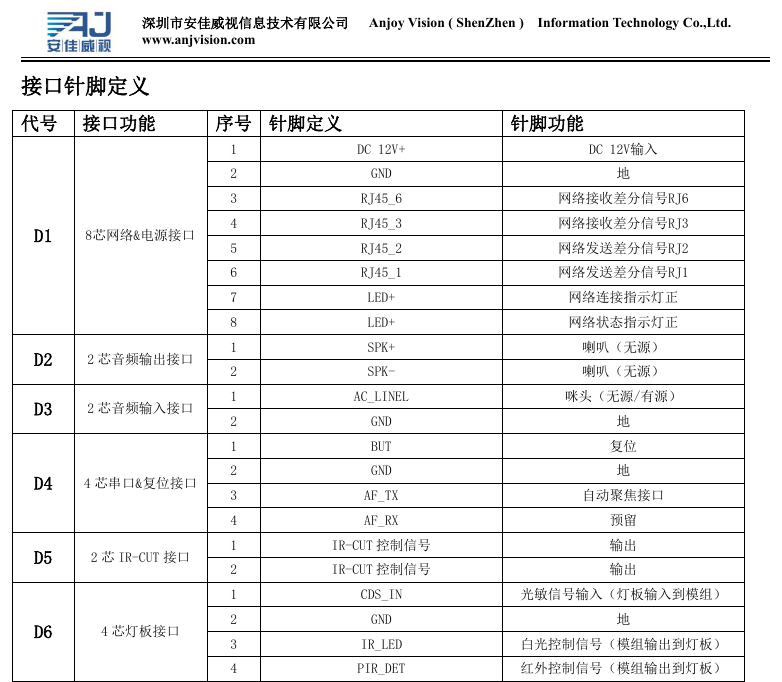

- MT200E5-pinout-4.png (pinout, 109 KB)
- MT200E5-wiring-diagram.pdf (document, 6.2 MB)
- MT200E5-spec-sheet.pdf (document, 415 KB)
- MT200E5-wiring-diagram-2.pdf (document, 430 KB)
