MY-E10Q
Wi-Fi camera module
- Maker:
- Anjoy Vision
- SoC:
- MSC335
- Listed:
- 2023
Anjoy Vision
H.265+ 3MP human detection/smart dual-light/wifi module
Features
- 3MP resolution, clear image;
- Supports switching between wireless and wired network
- H.265+ smart encoding reduces bandwidth load;
- Supports PTZ control, home position
- Micro SD card / cloud storage;
- Supports multiple cloud services: AC18Pro
- Supports customised Tuya/GB28181 protocol
- Supports human tracking / dual-light alarm / smart human detection / sound alarm / two-way audio
| Model | MY-E10Q |
|---|---|
| SoC | MSC335 |
| Image sensor | 1/3" 3MP low-light CMOS |
| Video processing | H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~2Mbps; |
| Image output | Main stream: 2304×1296, 1920×1080, 1280×720; sub stream: 640×360; |
| Audio interface | 1 ch MIC input, 1 ch built-in amplifier output (8Ω2W); |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| TF interface | 1 × TF storage slot, up to 512G; |
| WiFi | 2.4GHz, 1T1R, IEEE 802.11b/g/n protocol; |
| Reset button interface | Supports hardware reset |
| LED board interface | Integrated two-channel LED board driver module (recommended LED board: dual-light LED board) |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5 |
| Functions | OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm; |
| Network protocols | Supports TCP/TP, IPv4, DHCP, RTSP, P2P |
| Mobile monitoring | Mobile monitoring (iOS, Android) AC18Pro |
| Power supply | DC12V power input, power consumption 120mA |
| Operating conditions | -20~65℃ |
| Dimensions | 38 (L) * 50 (W) * 15 (H) mm (excluding lens) |

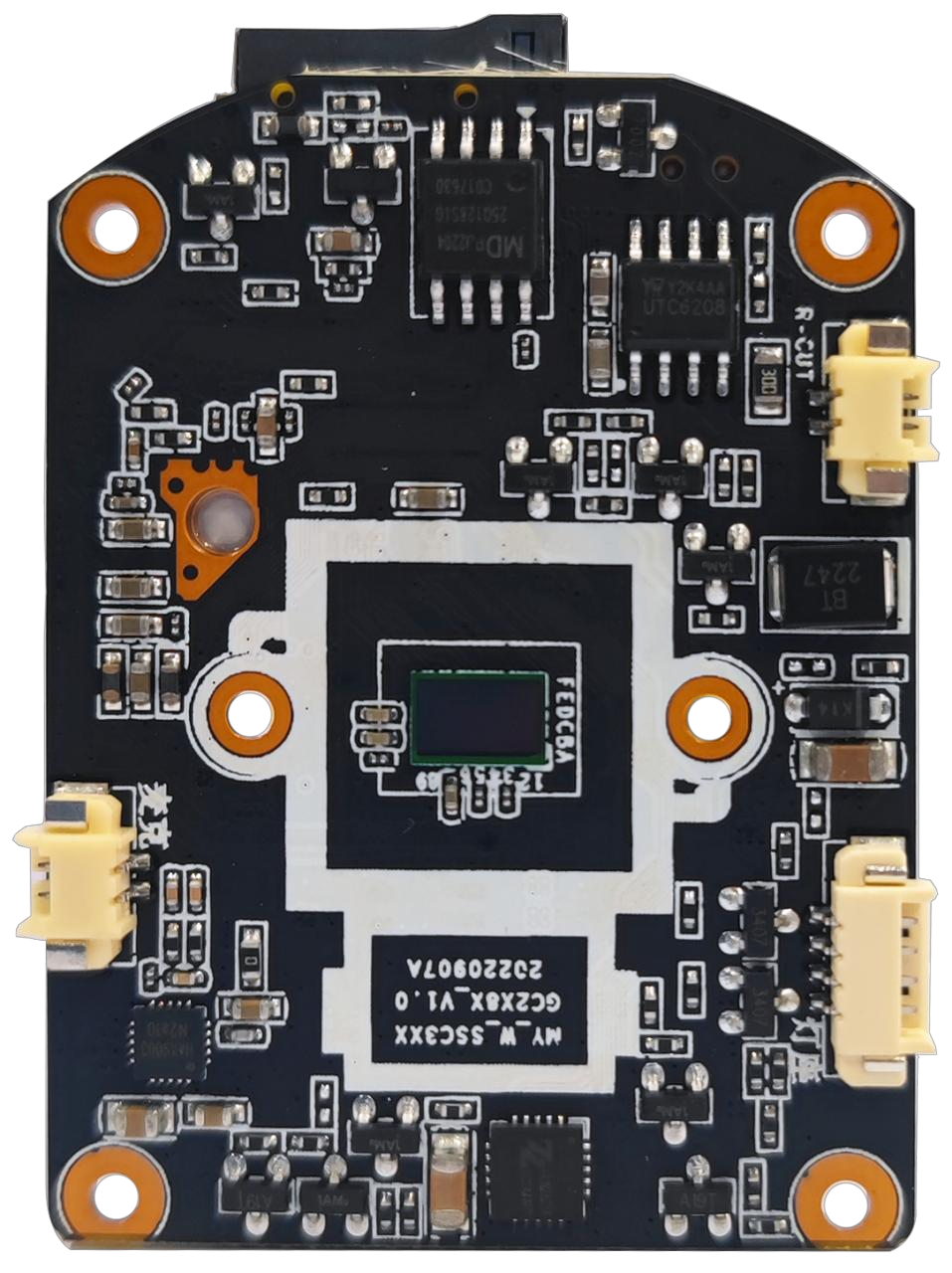

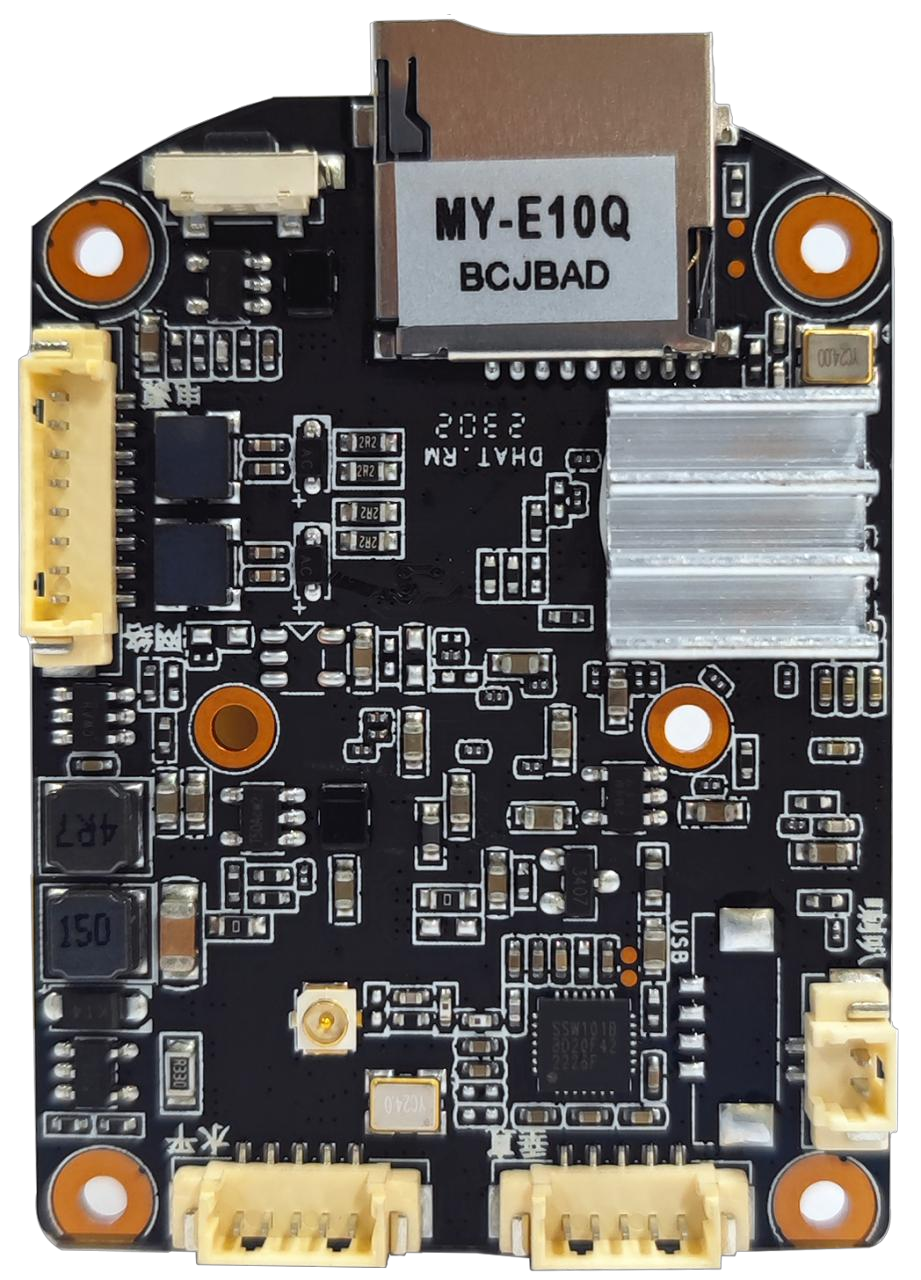

Photos
Files

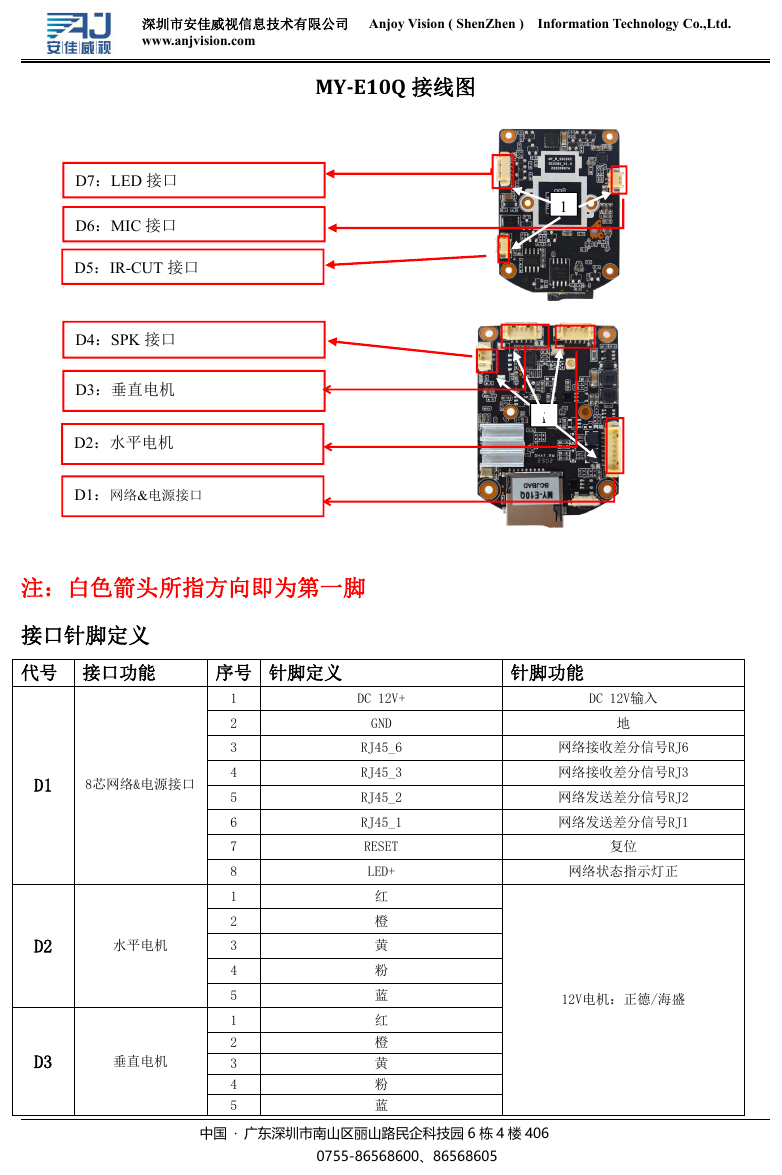

- MY-E10Q-pinout-1.png (pinout, 203 KB)

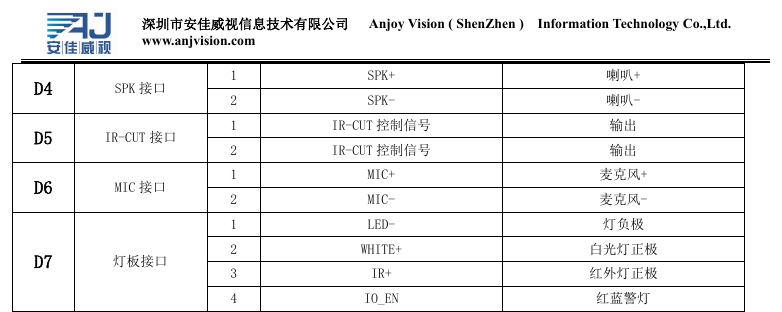

- MY-E10Q-pinout-2.png (pinout, 45 KB)
- MY-E10Q-spec-sheet.pdf (document, 191 KB)
- MY-E10Q-wiring-diagram.pdf (document, 521 KB)
