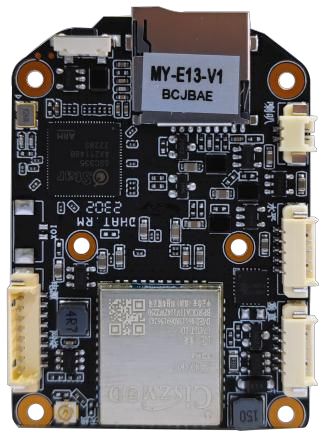

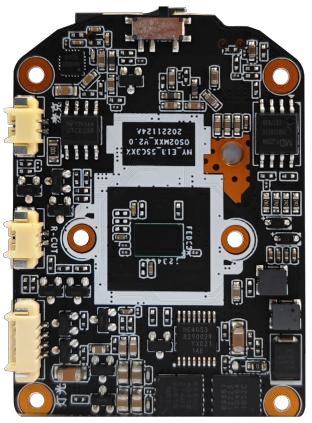

MY-E13

4G camera module

Anjoy Vision

H.265+ 3MP human detection/smart dual-light/4G module

3MP resolution, clear image;
All-carrier 4G, online as soon as powered, built-in dual China Telecom and China Mobile SIMs;
H.265+ smart encoding reduces bandwidth load;
Smart night vision: dual-light, IR, full-colour
Supports power-saving mode: light turns on when a person approaches and returns to power-saving mode when they leave
Supports active deterrence: sound and light deterrence, APP alarm push notifications
Supports two-way audio
Supports PTZ control, home position, human tracking
Micro SD card / cloud storage;

Specifications
Model	MY-E13
SoC	MSC335
Image sensor	1/2.9" 3MP low-light CMOS
Video processing	H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~1.5Mbps;
Image output	Main stream: 2304×1296, 1920×1080, 1280×720; sub stream: 640×360;
Audio interface	1 ch MIC input, 1 ch built-in amplifier output (8Ω2W);
Audio processing	G.711 encoding; two-way voice intercom; audio-video synchronisation;
Network interface	1 × RJ45 Ethernet interface, 10/100M auto-negotiating;
TF interface	1 × TF storage slot, up to 512G;
4G mode	All-carrier 4G, 2 built-in eSIMs, China Telecom/China Mobile
Reset button interface	Supports hardware reset
LED board interface	Integrated two-channel LED board driver module (recommended LED board: dual-light LED board)
Reliability	Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5
Functions	OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm;
Network protocols	Supports TCP/TP, IPv4, DHCP, RTSP, P2P
Mobile monitoring	Mobile monitoring (iOS, Android) AC18Pro
Power supply	DC12V power input
Operating conditions	-20~65℃
