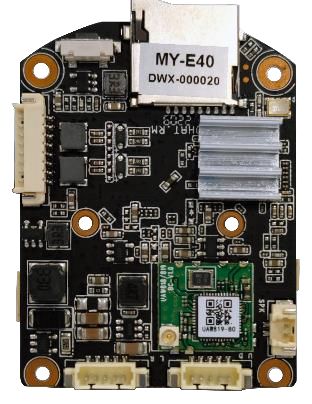

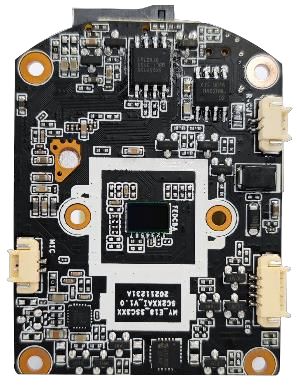

MY-E40

Wi-Fi camera module

Anjoy Vision

H.265+ 4MP black-light human detection/smart dual-light/dual-band wifi module

Product functions
1/3" 4MP black-light CMOS sensor
Supports three light modes: dual-light, full-colour, IR
Dual-band WiFi, 2.4GHz+5GHz, faster and more stable network transmission
Available with WiFi or Ethernet port
H.265+ smart encoding reduces bandwidth load
Supports PTZ rotation, home position
Supports two-way voice calls for clear communication
Supports Micro SD card (512GB) / cloud storage
APP remote control
Supports human tracking / dual-light alarm / smart human detection / sound alarm / two-way audio

Specifications
Model	MY-E40
Image sensor	1/3" 4MP low-light CMOS
Video processing	H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~2Mbps;
Image output	Main stream: 2560×1440, 2304×1296, 1920×1080, 1280×720; sub stream: 640×360;

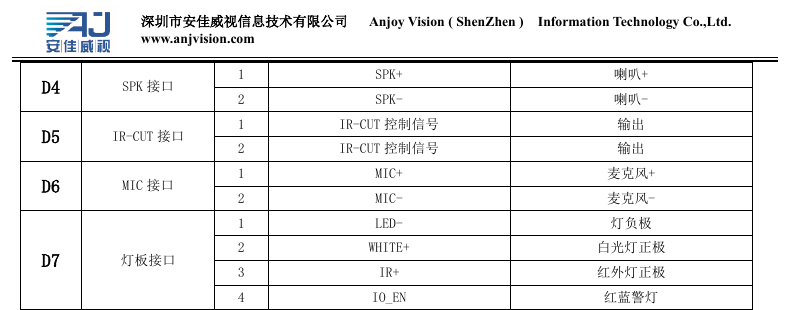

Audio interface	1 ch MIC input, 1 ch built-in amplifier output (8Ω2W);
Audio processing	G.711 encoding; two-way voice intercom; audio-video synchronisation;

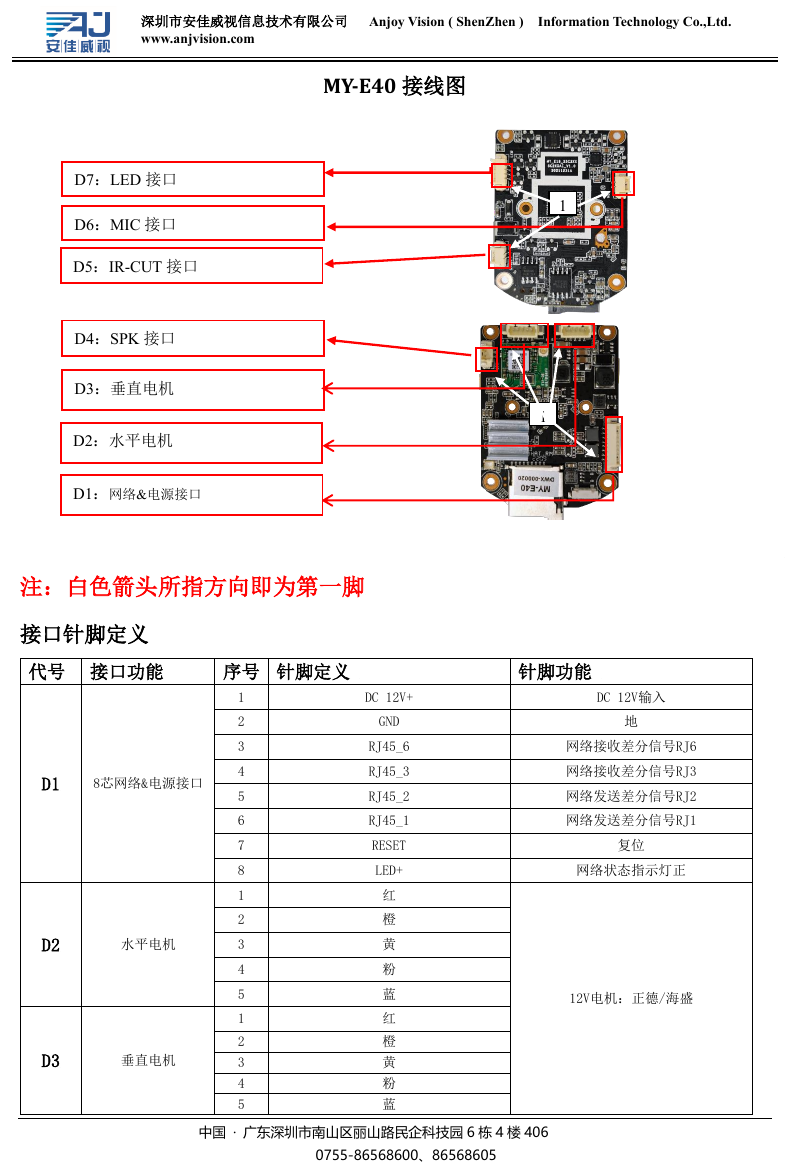

Network interface	1 × RJ45 Ethernet interface, 10/100M auto-negotiating;
TF interface	1 × TF storage slot, up to 512G;
WiFi	2.4GHz/5GHz, WiFi standard IEEE 802.11 a/b/g/n;
Reset button interface	Supports hardware reset; reset unbinds the device
LED board interface	Integrated two-channel LED board driver module (recommended LED board: dual-light LED board)
Reliability	Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5
Functions	OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm;
Network protocols	Supports TCP/TP, IPv4, DHCP, RTSP, P2P
Mobile monitoring	Mobile monitoring (iOS, Android); supports AC18Pro
Power supply	DC12V power input, power consumption 1.44W
Operating conditions	-20~65℃
Dimensions	38 (L) * 50 (W) * 15 (H) mm (excluding lens)
