MY-F13Q
Battery camera module
- Maker:
- Anjoy Vision
- SoC:
- SSC373
- Listed:
- 2024
Anjoy Vision
H.265+ ultra-low-power 3MP human detection smart 4G module
Features
- Ultra-low power consumption for longer battery life
- H.265+ encoding, ultra-low storage use;
- Built-in 4G with two networks: China Mobile/China Telecom, online as soon as powered;
- Active deterrence: human detection, sound and light warning, alarm push notifications;
- Supports PTZ control, home position, human tracking
- Smart night vision: full-colour mode
- Supports two-way audio
| Model | MY-F13Q |
|---|---|
| SoC | SSC373 |
| Image sensor | 1/2.9" 3MP low-light CMOS |
| Video processing | H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~1.5Mbps; |
| Image output | Main stream: 2304×1296, 1920×1080, 1280×720; sub stream: 640×360; |
| Audio interface | 1 ch MIC input, 1 ch built-in amplifier output (8Ω2W); |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| TF interface | 1 × TF storage slot, up to 512G; |
| 4G mode | 4G all-network, 2 built-in eSIM cards: China Telecom/China Mobile |
| Reset button interface | Supports hardware reset |
| LED board interface | Integrated LED board driver module (recommended LED board: full-colour LED board) |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5 |
| Functions | OSD, real-time audio and video transmission, human detection, sound alarm; |
| Network protocols | Supports TCP/TP, IPv4, DHCP, RTSP, P2P |
| Mobile monitoring | Mobile monitoring (iOS, Android) AC18Pro |
| Power supply | DC12V power input |
| Operating conditions | -20~65℃ |

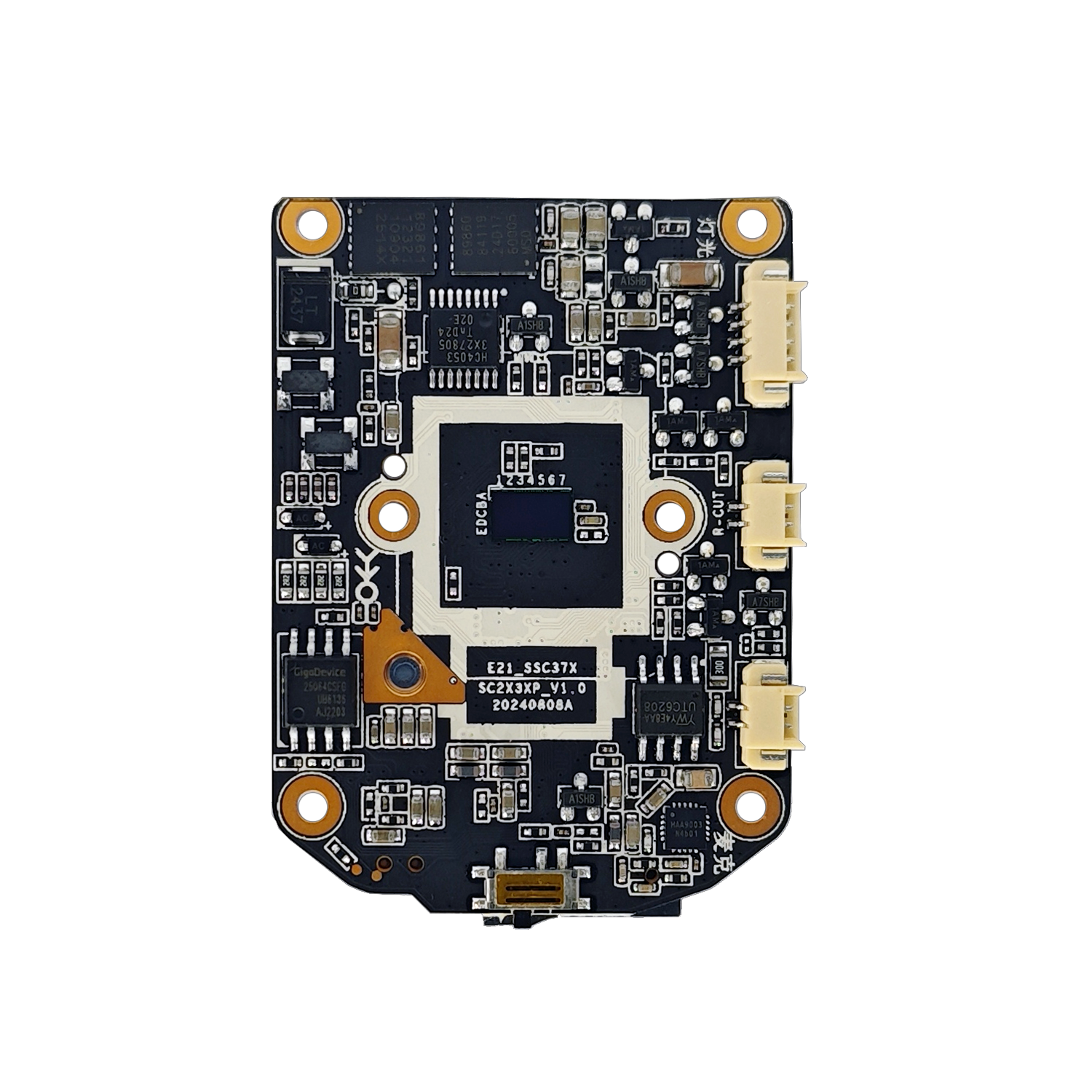

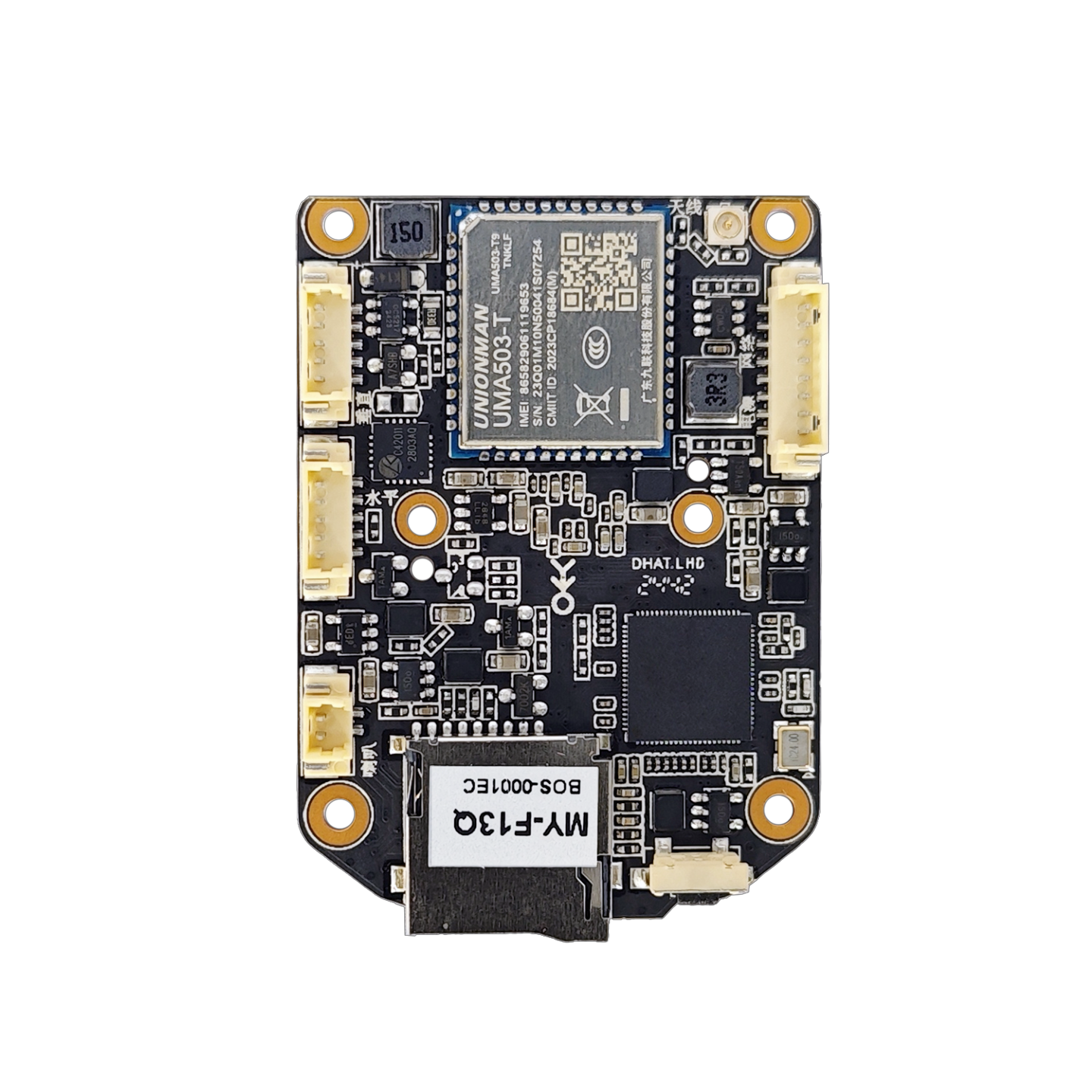

Photos
Files

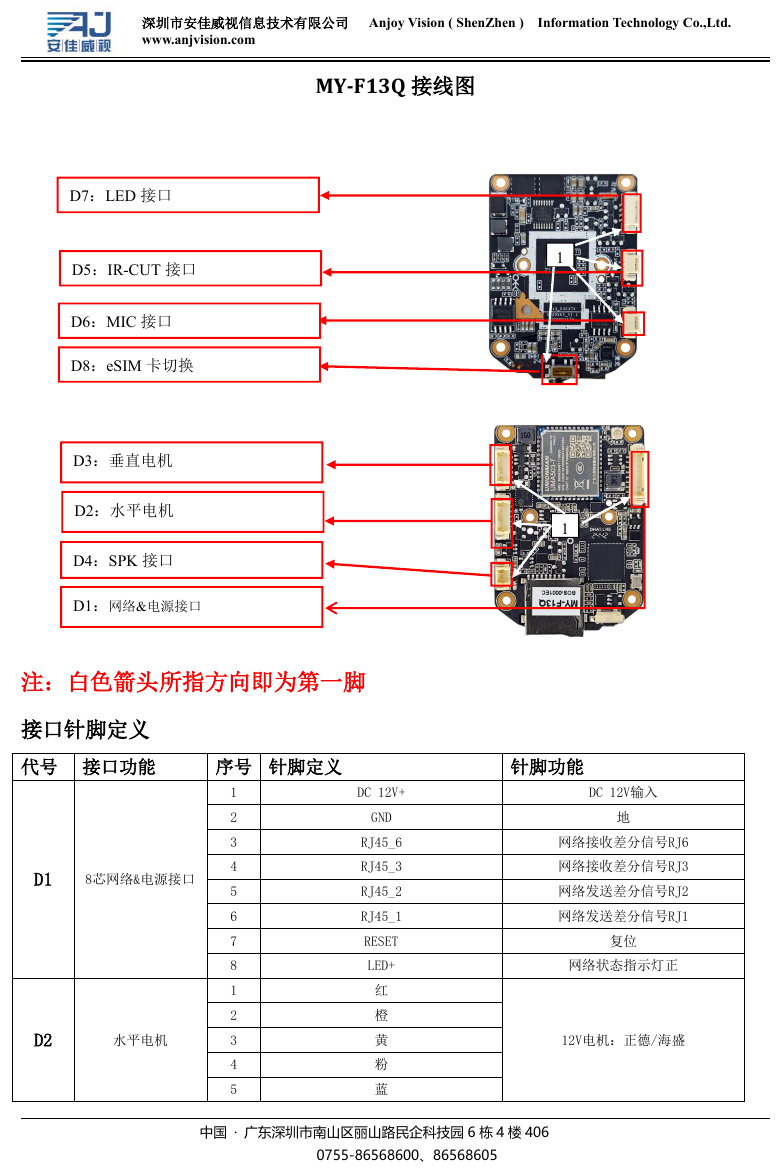

- MY-F13Q-pinout-1.png (pinout, 241 KB)

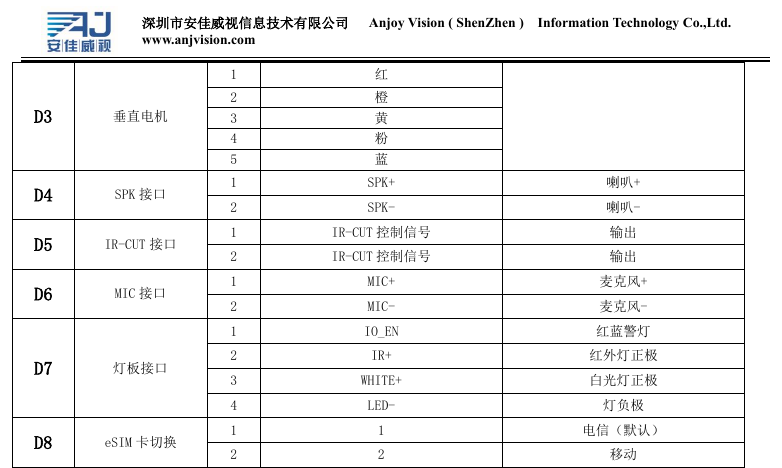

- MY-F13Q-pinout-2.png (pinout, 57 KB)
- MY-F13Q-spec-sheet.pdf (document, 183 KB)
- MY-F13Q-wiring-diagram.pdf (document, 255 KB)
