MY-F16C
Wi-Fi camera module
- Maker:
- Anjoy Vision
- Listed:
- 2024
Anjoy Vision
H.265+ 3MP human detection/smart dual-light/wifi6 module
Features
- Product functions
- 1/3" 3MP CMOS sensor
- Supports three light modes: dual-light, full-colour, IR
- Single-band WiFi6, 2.4GHz + Bluetooth network provisioning
- Available with WiFi or Ethernet port
- H.265+ smart encoding reduces bandwidth load
- Supports PTZ rotation, home position, human tracking
- Supports two-way voice calls for clear communication
- Supports Micro SD card (512GB) / cloud storage
- APP remote control
- Supports human tracking / dual-light alarm / sound alarm / two-way audio
- Smart human detection: area detection, tripwire detection
- ONVIF protocol supported
| Model | MY-F16C |
|---|---|
| Image sensor | 1/3" 3MP low-light CMOS |
| Video processing | H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~1.5Mbps; |
| Image output | Main stream: 2304×1296, 1920×1080, 1280×720; sub stream: 640×360; |
| Audio interface | 1 ch MIC input, 2 ch output: 1 ch amplifier output (8Ω2W), 1 ch active output; |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| TF interface | 1 × TF storage slot, up to 512G; |
| WiFi | 2.4GHz (WiFi6), WiFi standard IEEE 802.11 b/g/n/ax; |
| Bluetooth | Bluetooth 2.1+EDR/3.0/4.x/5.2 |
| Reset button interface | Supports hardware reset; reset unbinds the device |
| LED board interface | Integrated two-channel LED board driver module (recommended LED board: dual-light LED board) |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5 |
| Functions | OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm; |
| Network protocols | TCP/TP, IPv4, DHCP, RTSP, P2P, ONVIF supported; |
| Mobile monitoring | Mobile monitoring (iOS, Android); supports AC18Pro |
| Power supply | DC12V power input, power consumption 110mA |
| Operating conditions | -20~65℃ |
| Dimensions | 58 (L) * 38 (W) (excluding lens) |

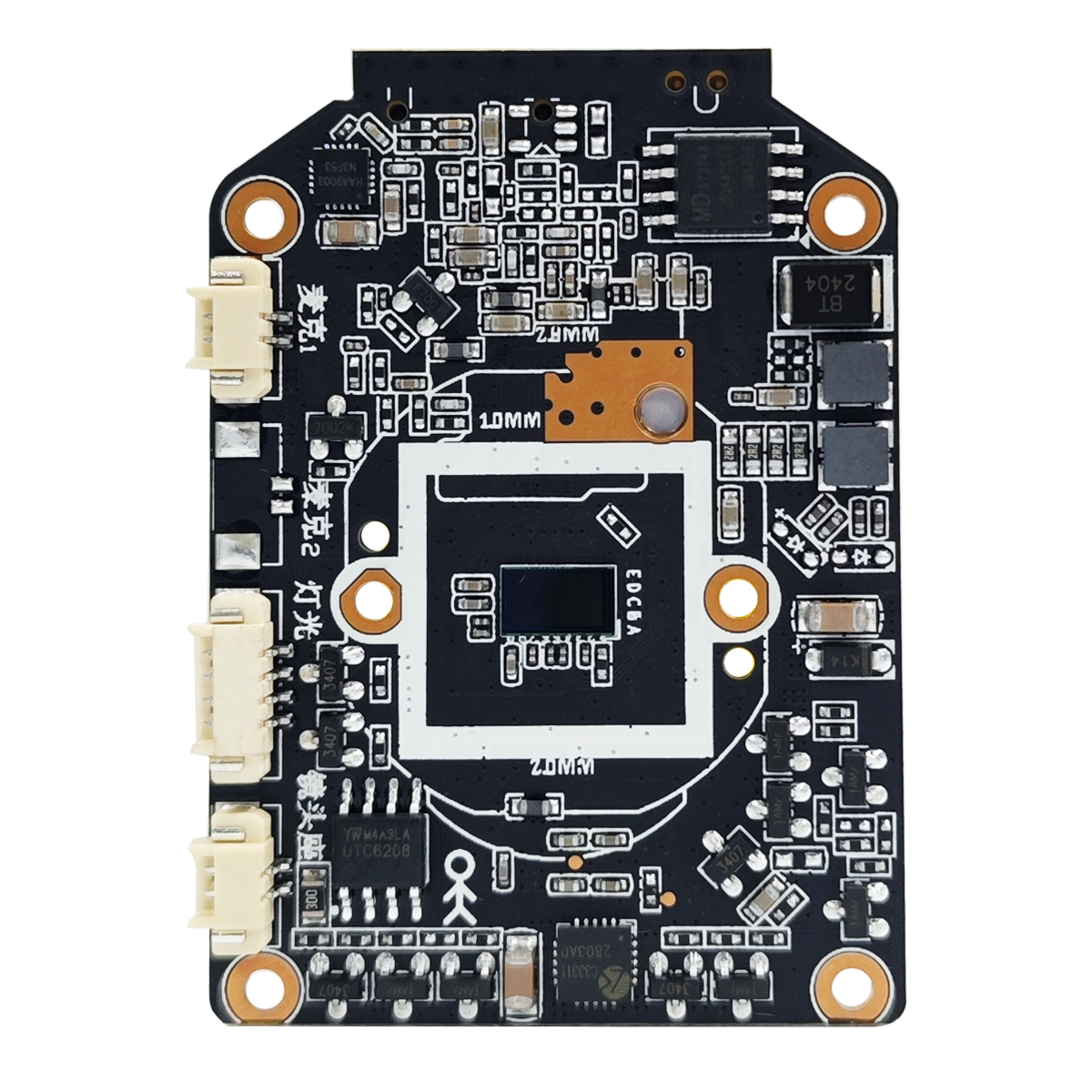

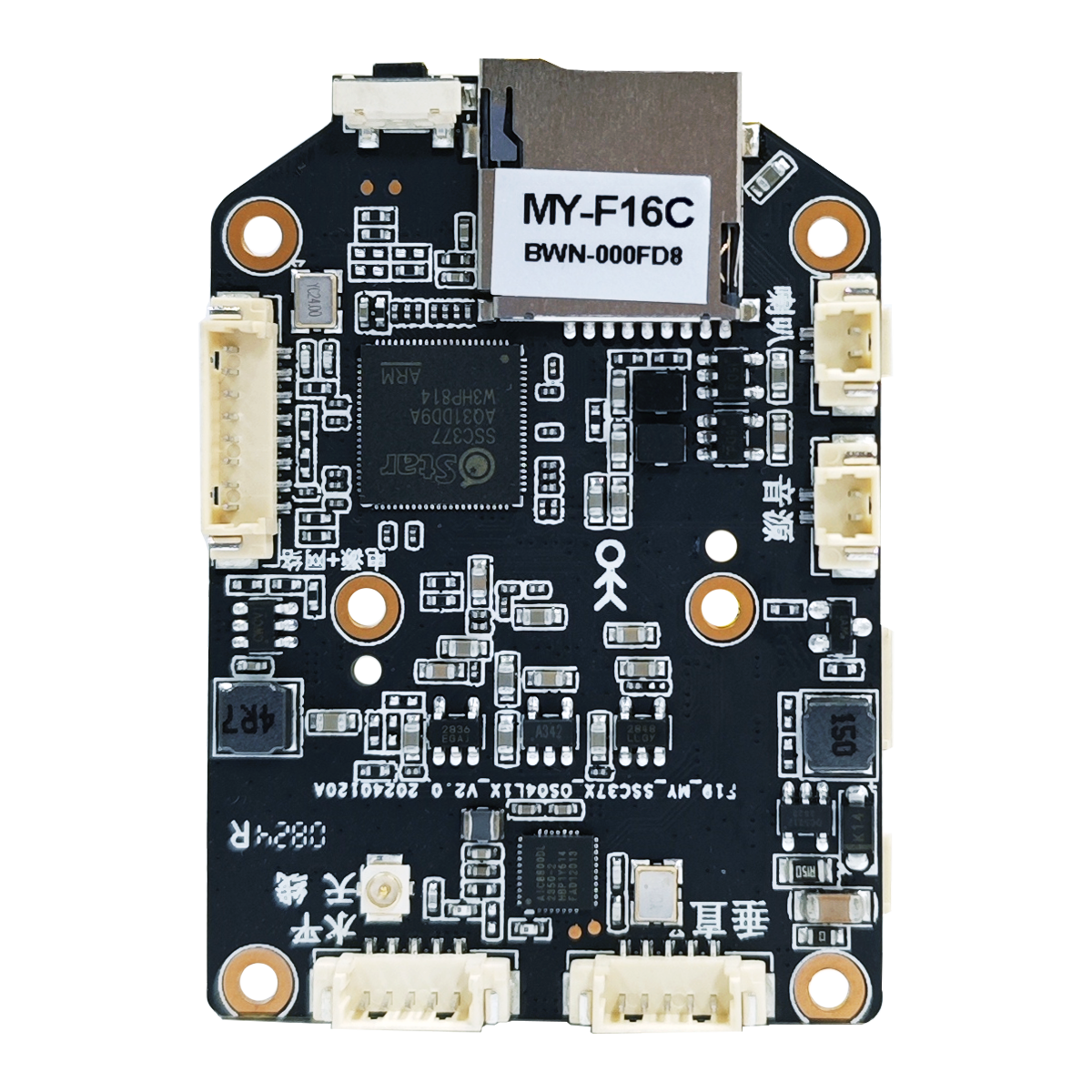

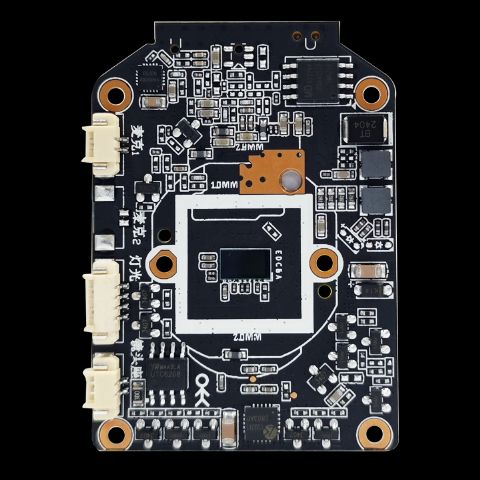

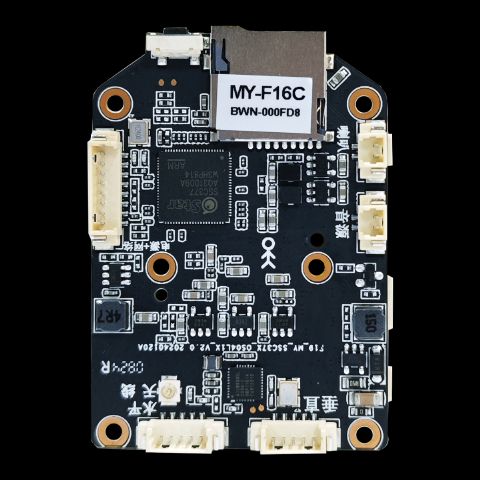

Photos
Files

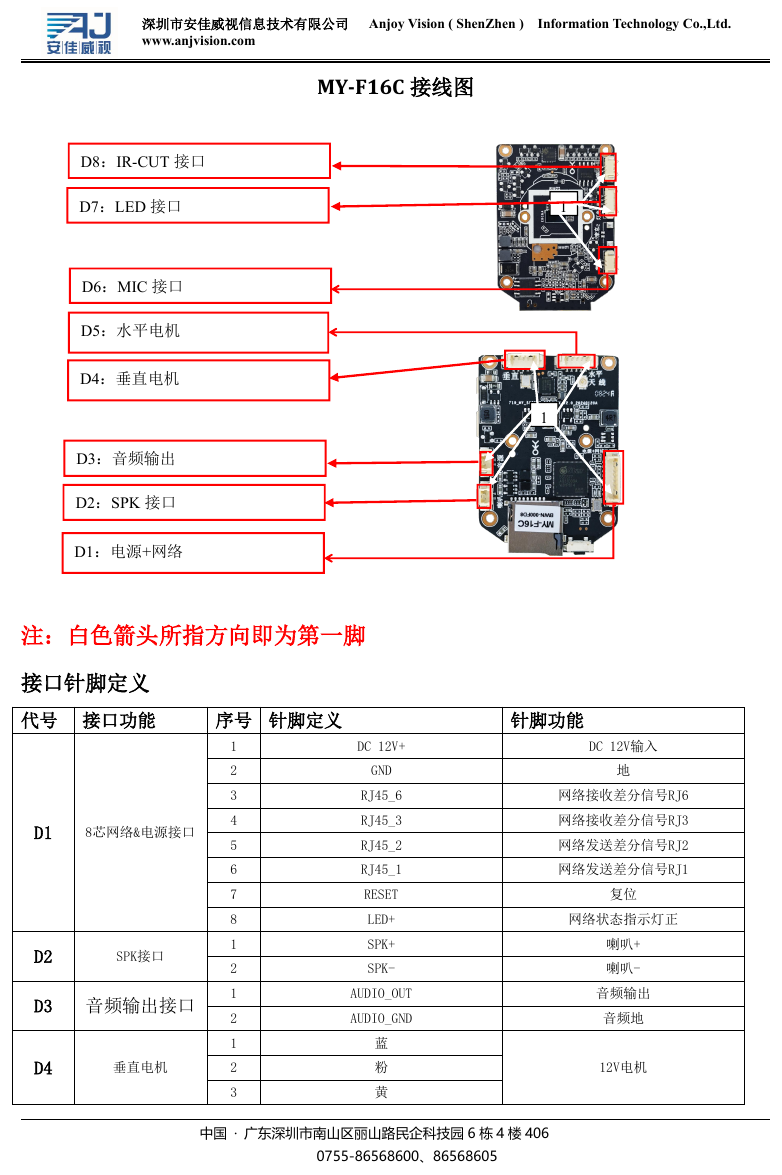

- MY-F16C-pinout-1.png (pinout, 214 KB)

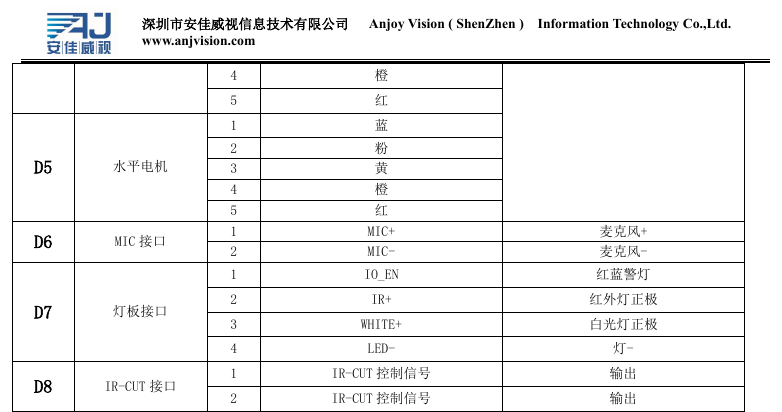

- MY-F16C-pinout-2.png (pinout, 46 KB)
- MY-F16C-spec-sheet.pdf (document, 200 KB)
- MY-F16C-wiring-diagram.pdf (document, 519 KB)
