MY-F18
Wi-Fi camera module
- Maker:
- Anjoy Vision
- Listed:
- 2023
Anjoy Vision
H.265+ 4MP human detection/smart dual-light/dual-band wifi module
Features
- Product functions
- 1/3" 4MP CMOS sensor
- Supports three light modes: dual-light, full-colour, IR
- Dual-band WiFi, 2.4GHz+5GHz, faster and more stable network transmission
- Available with WiFi or Ethernet port
- H.265+ smart encoding reduces bandwidth load
- Supports PTZ rotation, home position
- Supports two-way voice calls for clear communication
- Supports Micro SD card (512GB) / cloud storage
- APP remote control
- Supports human tracking / dual-light alarm / sound alarm / two-way audio
- Smart human detection: area detection, tripwire detection
| Model | MY-F18 |
|---|---|
| Image sensor | 1/3" 4MP low-light CMOS |
| Video processing | H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~2Mbps; |
| Image output | Main stream: 2560×1440, 2304×1296, 1920×1080, 1280×720; sub stream: 640×360; |
| Audio interface | 1 ch MIC input, 2 ch output: 1 ch amplifier output (8Ω2W), 1 ch active output; |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| TF interface | 1 × TF storage slot, up to 512G; |
| WiFi | 2.4GHz/5GHz, WiFi standard IEEE 802.11 a/b/g/n; |
| Reset button interface | Supports hardware reset; reset unbinds the device |
| LED board interface | Integrated two-channel LED board driver module (recommended LED board: dual-light LED board) |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5 |
| Functions | OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm; |
| Network protocols | Supports TCP/TP, IPv4, DHCP, RTSP, P2P |
| Mobile monitoring | Mobile monitoring (iOS, Android); supports AC18Pro |
| Power supply | DC12V power input, power consumption 120mA |
| Operating conditions | -20~65℃ |
| Dimensions | 58 (L) * 38 (W) (excluding lens) |

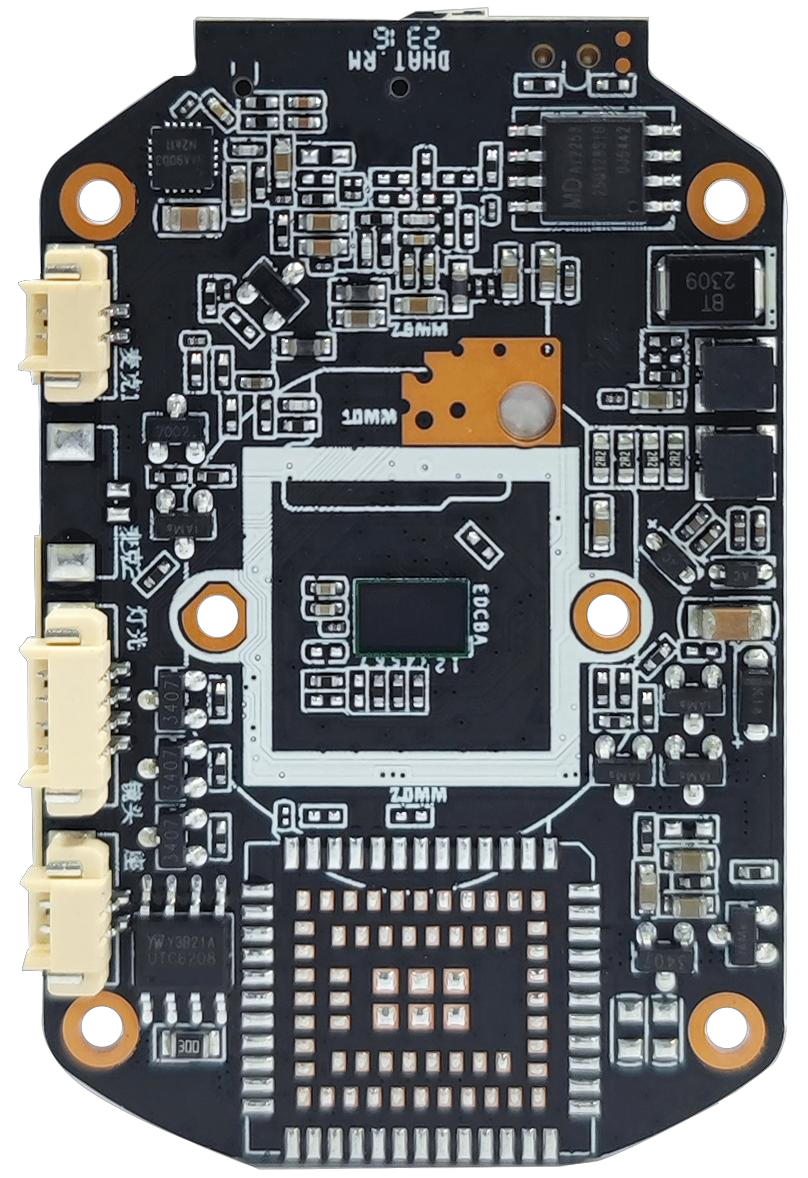

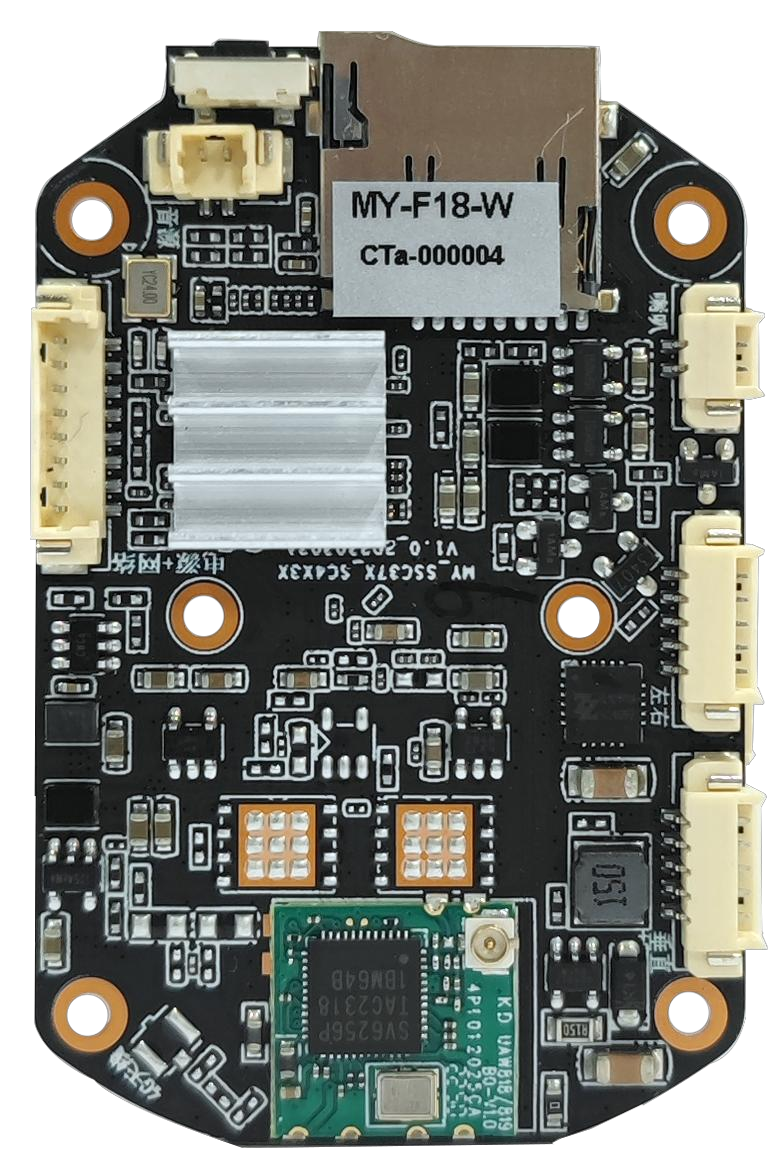

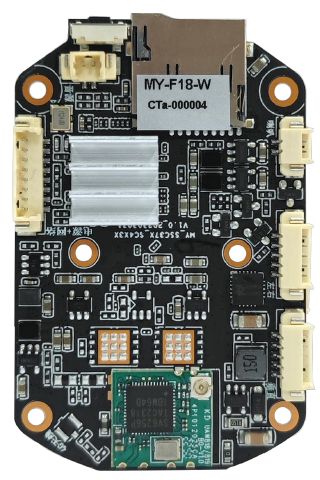

Photos
Files

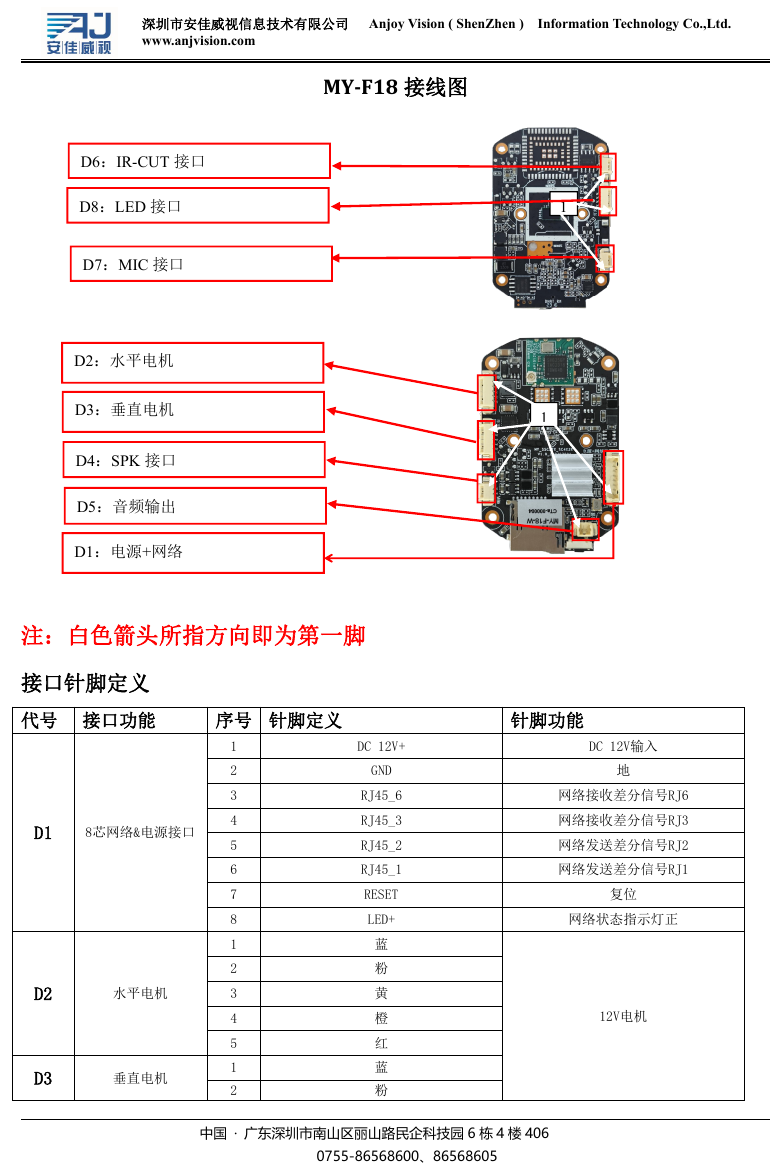

- MY-F18-pinout-1.png (pinout, 212 KB)

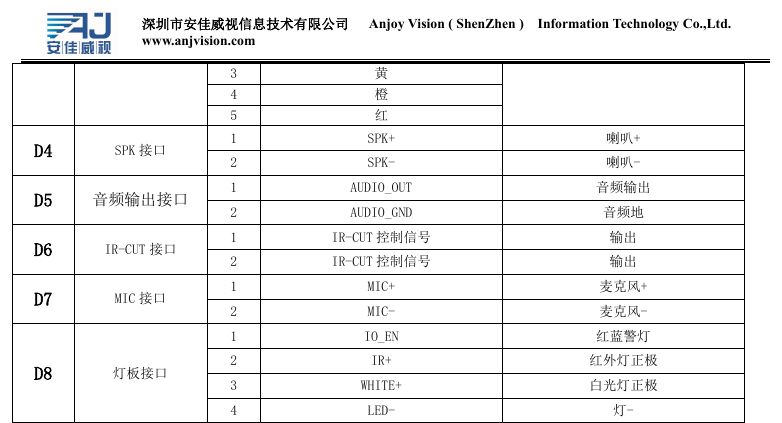

- MY-F18-pinout-2.png (pinout, 54 KB)
- MY-F18-spec-sheet.pdf (document, 196 KB)
- MY-F18-wiring-diagram.pdf (document, 513 KB)
