MY-V20
Dual-lens camera module
- Maker:
- Anjoy Vision
- Listed:
- 2025
Anjoy Vision
H.265+ 6MP bullet–PTZ linkage/low-power black-light/4G module
Features
- Product functions
- 1/2.8 CMOS sensor
- Light mode: full-colour
- Available with 4G or Ethernet port
- H.265+ smart encoding reduces bandwidth load
- Supports PTZ rotation, bullet–PTZ linkage
- Supports two-way voice calls for clear communication
- Supports Micro SD card (512GB)
- APP remote control
- Supports human tracking / sound alarm / two-way audio
- Smart human detection: area detection, tripwire detection
| Model | MY-V20 |
|---|---|
| Image sensor | 1/2.8 low-light CMOS |
| Video processing | H.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~1.5Mbps; |
| Audio interface | 1 ch MIC input, 1 ch amplifier output (8Ω2W); |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| TF interface | 1 × TF storage slot, up to 512G; |
| Reset button interface | Supports hardware reset; reset unbinds the device |
| LED board interface | Integrated LED board driver module (recommended LED board: 5V 300mA dual-light LED board) |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5 |
| Functions | OSD, real-time audio and video transmission, human detection, dual-light alarm, sound alarm; |
| Network protocols | Supports TCP/TP, IPv4, DHCP, RTSP, P2P |
| Mobile monitoring | Mobile monitoring (iOS, Android); supports AC18Pro |
| DC5V power input | Recommended battery pack: 12 cells, 20W solar panel |
| Operating conditions | -20~65℃ |
| Dimensions | 58 (L) * 38 (W) + 38 (L) * 38 (W) (excluding lens) |

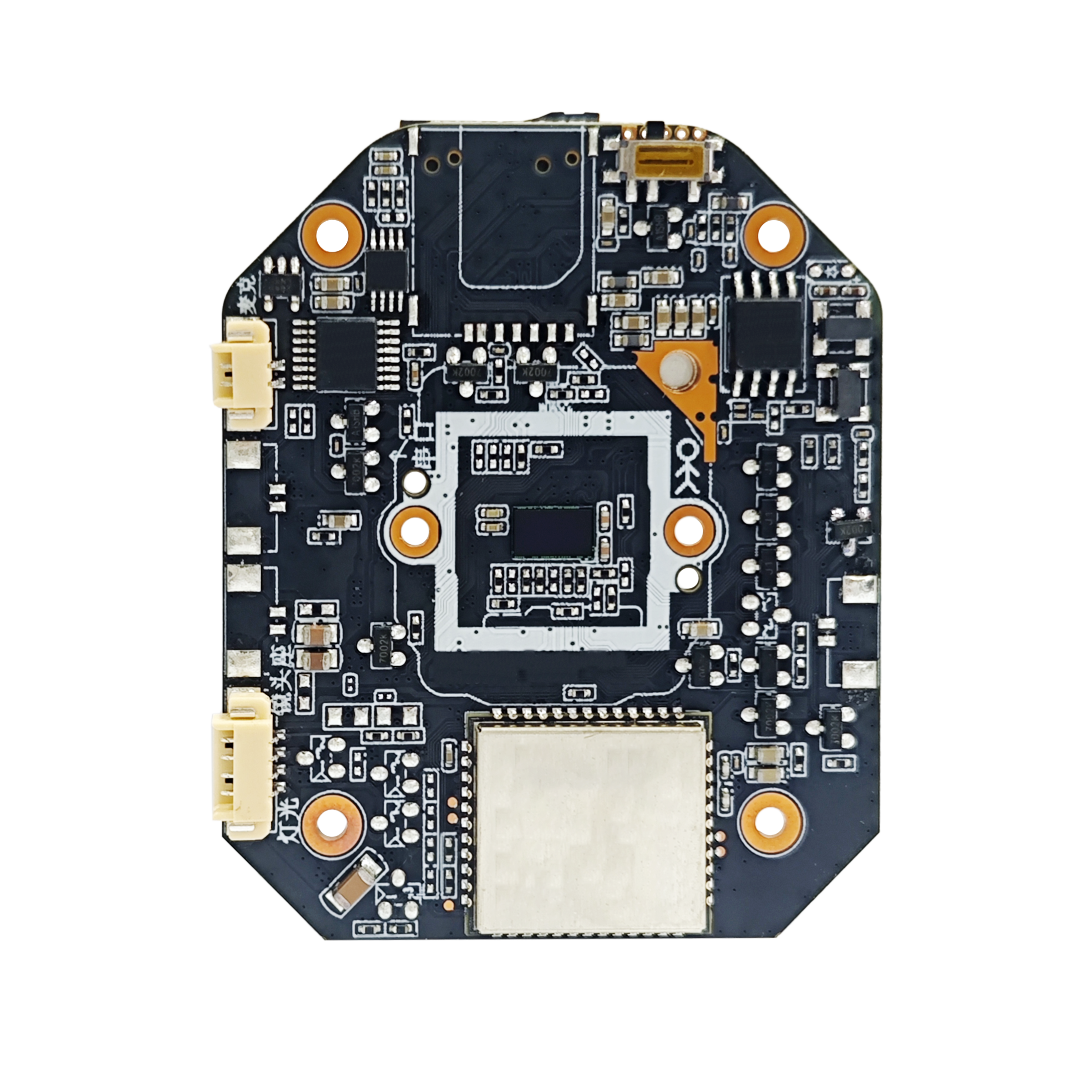

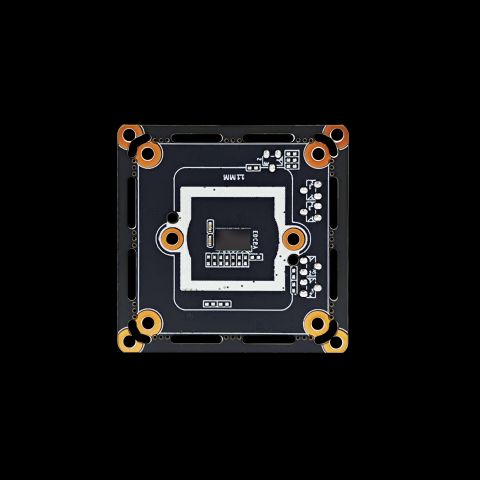

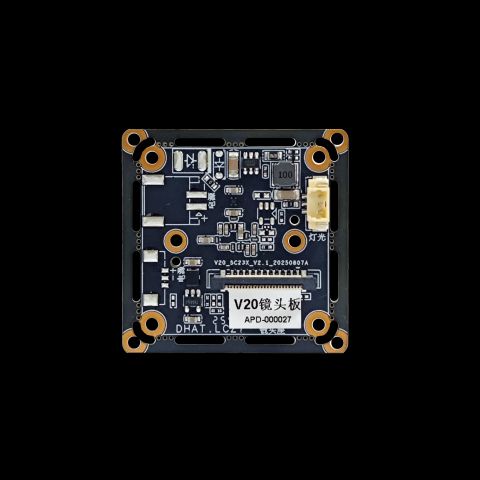

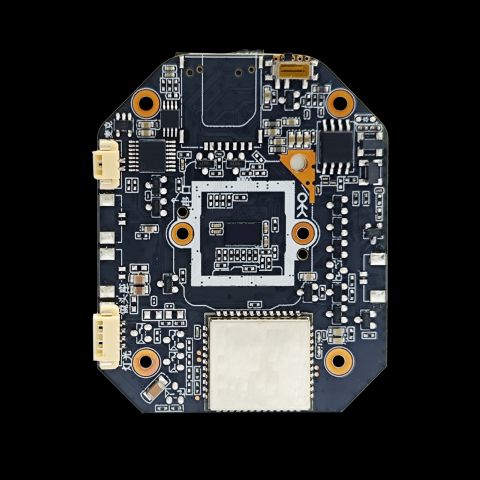

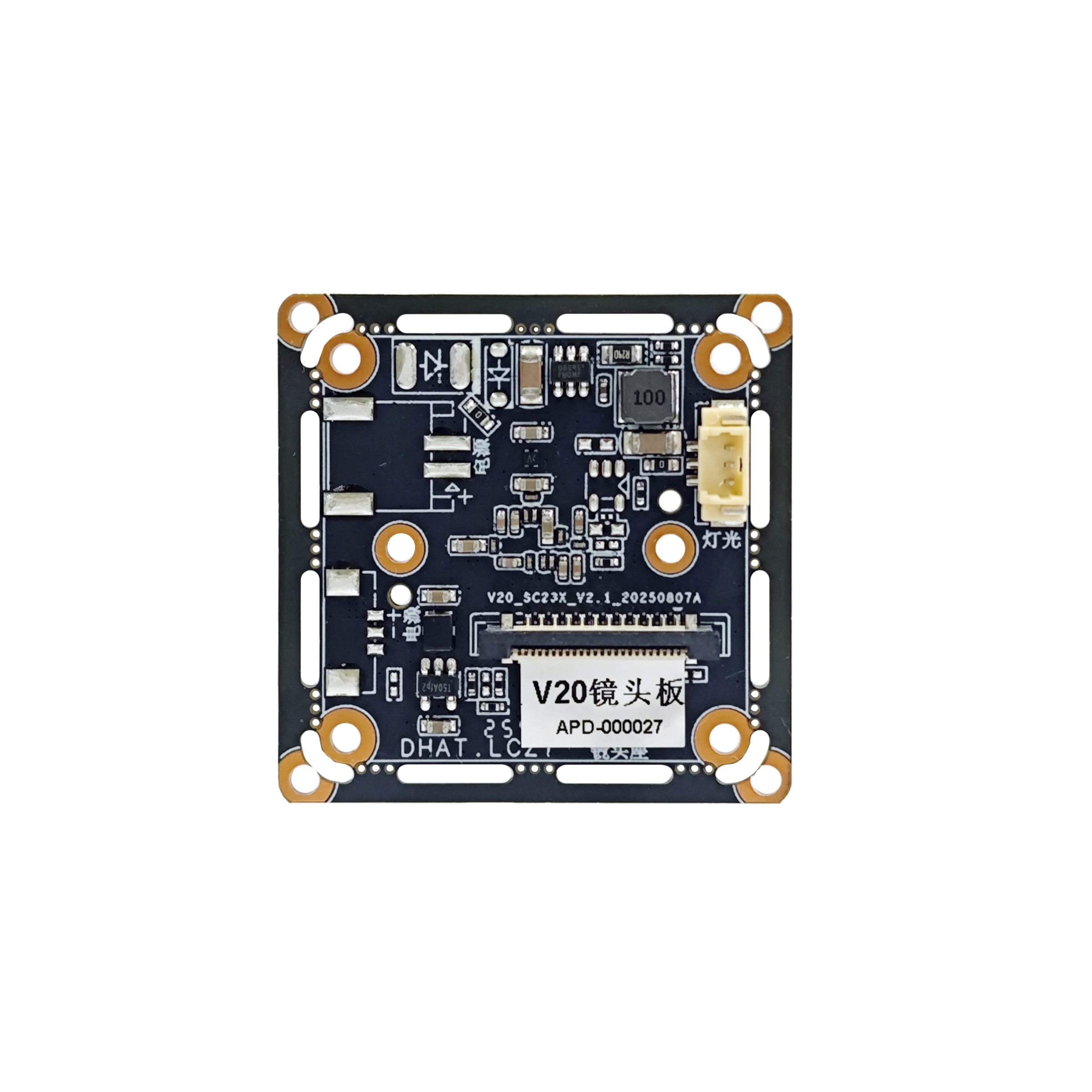

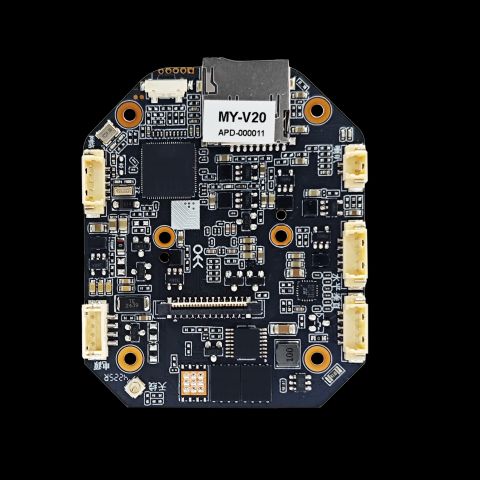

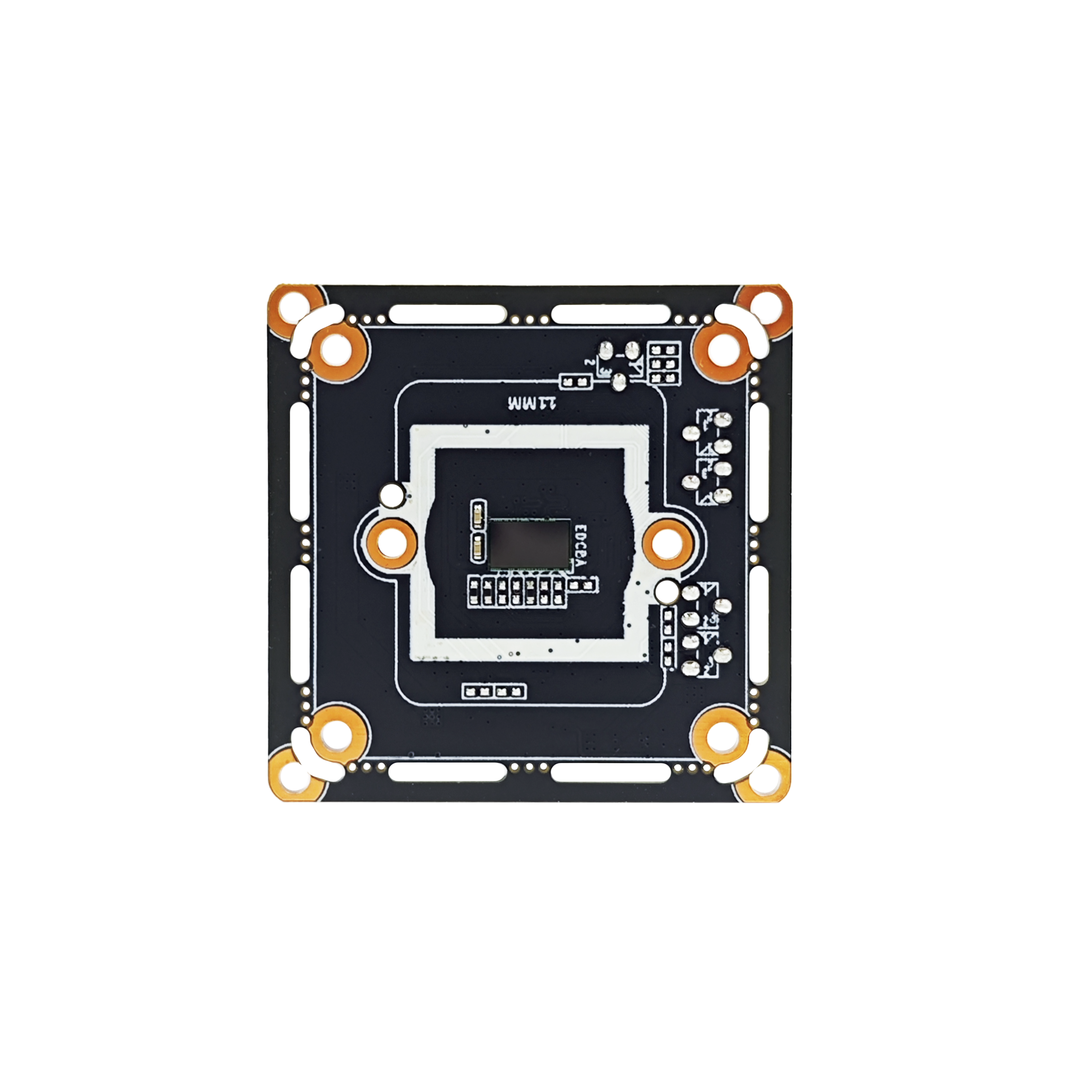

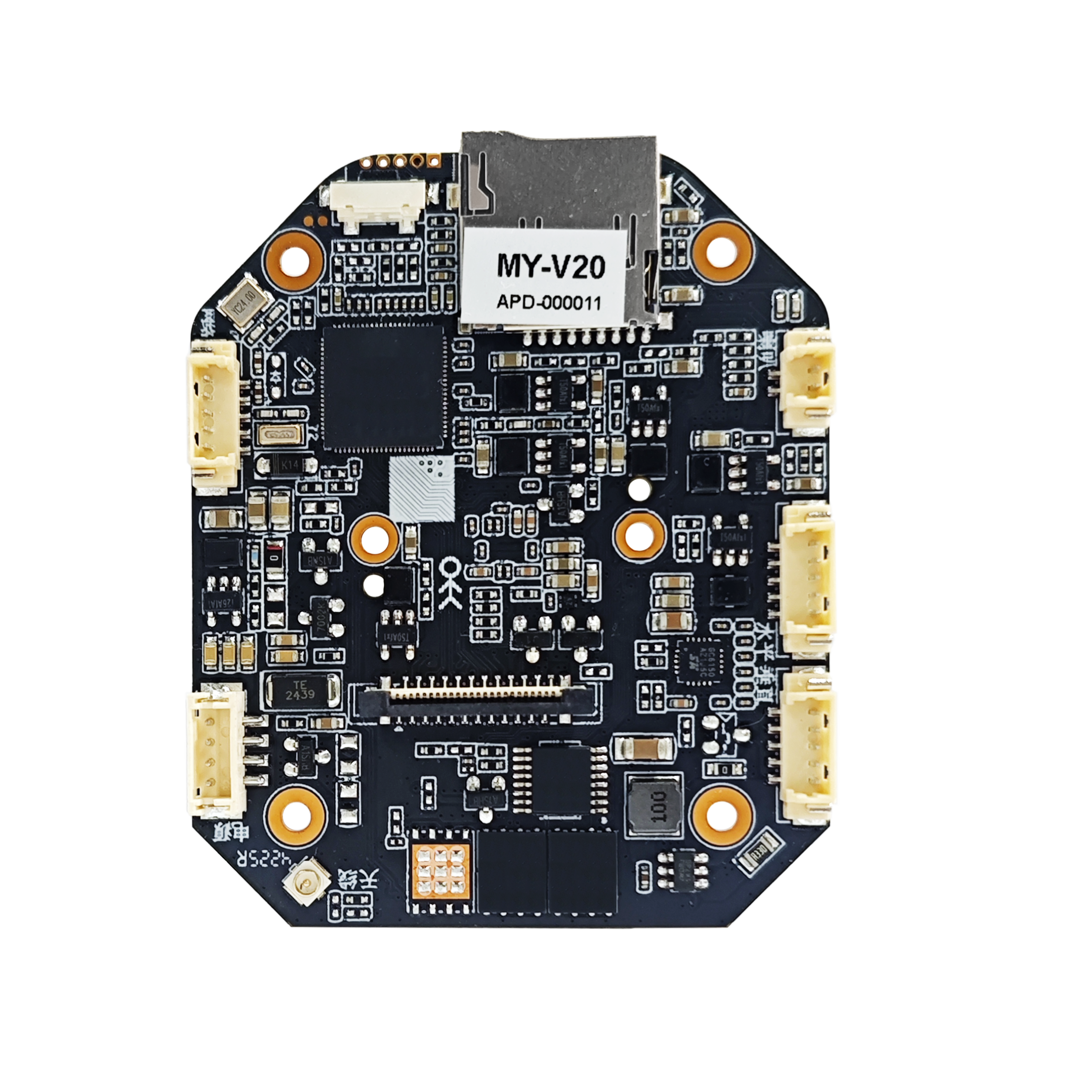

Photos
Files

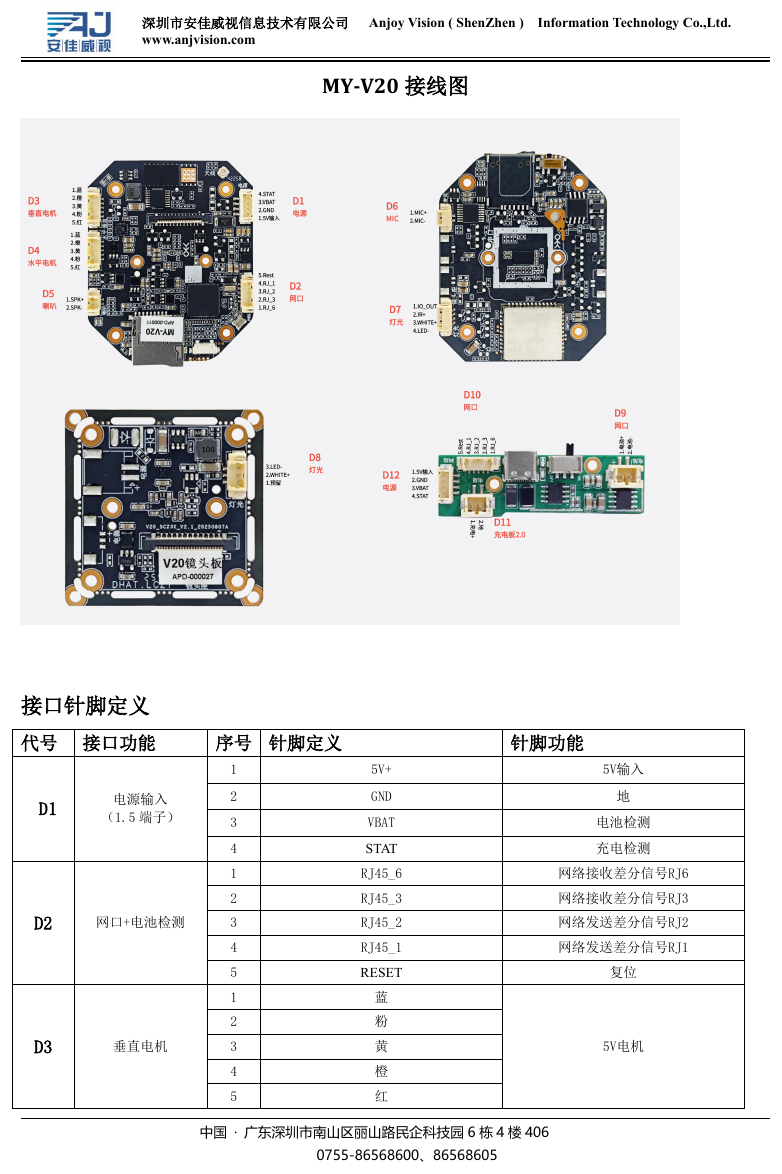

- MY-V20-pinout-1.png (pinout, 355 KB)

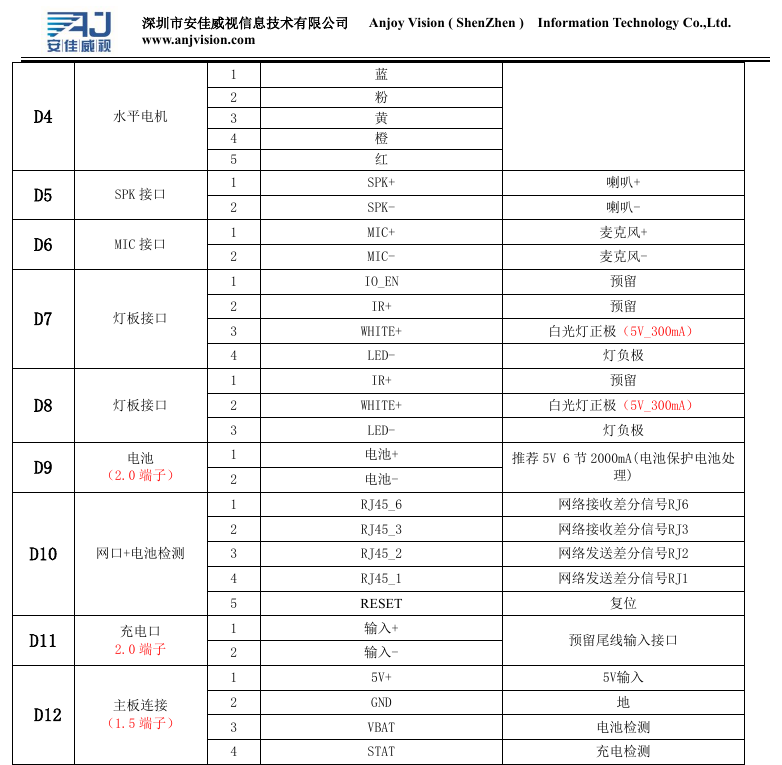

- MY-V20-pinout-2.png (pinout, 98 KB)

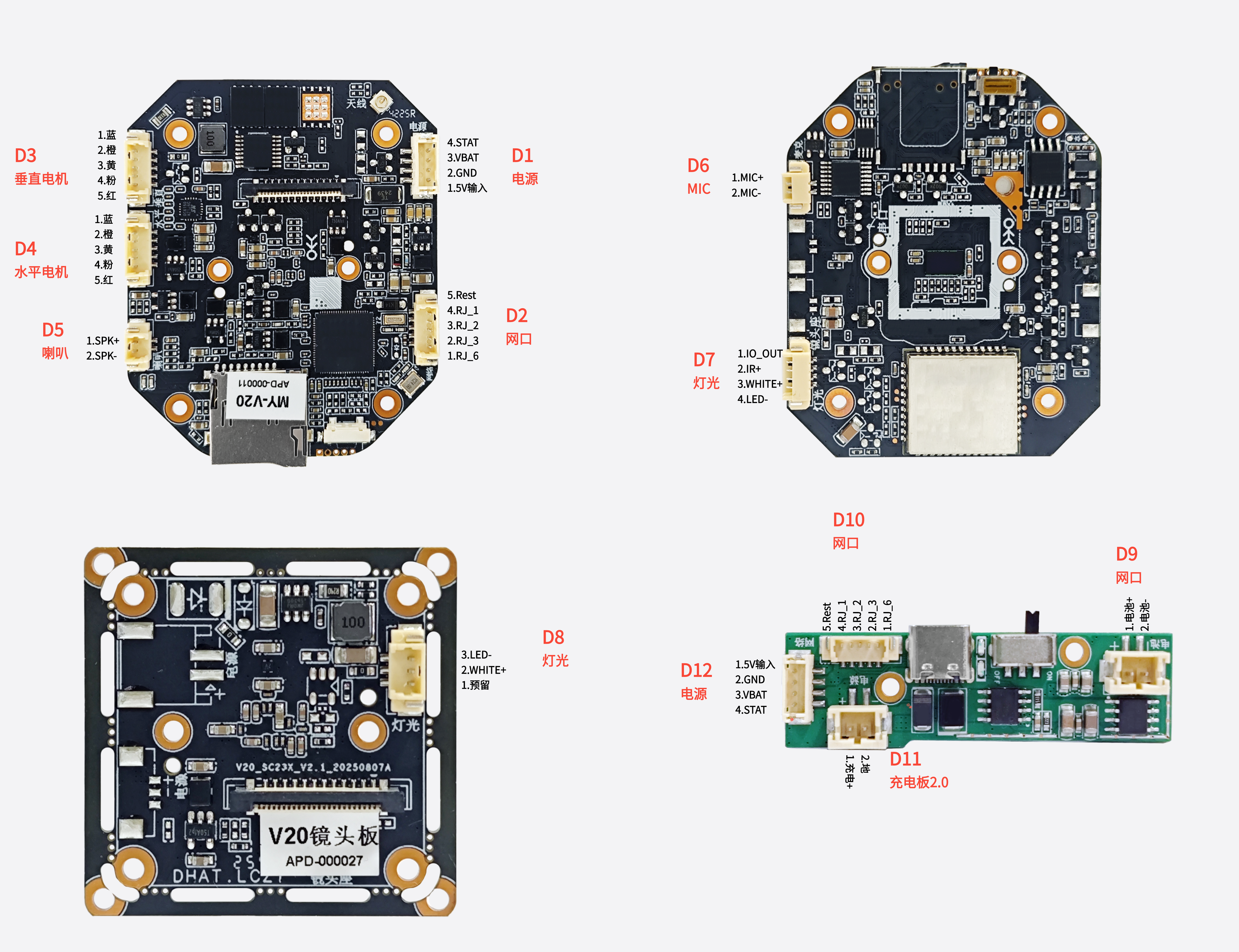

- MY-V20-pinout-3.png (pinout, 10.2 MB)
- MY-V20-spec-sheet.pdf (document, 194 KB)
- MY-V20-wiring-diagram.pdf (document, 882 KB)
