TC-A55
IP camera module
- Maker:
- Anjoy Vision
- Listed:
- 2026
Anjoy Vision
Features
- ARM Cortex-A7 1GHz SoC processor, 1G DDR3, 16MB flash ROM;
- 1/3” 5MP CMOS sensor, paired with the SoC's built-in ISP image processor;
- H.265 video compression, adjustable resolutions and frame rates, dynamic bitrate control, halving network transmission and storage;
- Supports electronic shutter, automatic day/night switching, auto white balance, backlight compensation, highlight suppression, face overexposure prevention;
- Supports DWDR digital wide dynamic range, 2D/3D noise reduction, image mirror and flip, image cropping, anti-flicker;
- Supports multi-line OSD character overlay, custom title, privacy area settings;
- Supports multiple IR-CUT day/night control modes and multiple light control modes with custom settings;
- Smart detection alarms with accurate detection of humans, vehicles and non-motor vehicles;
- Supports event linkage: snapshot and recording, sound-and-light alarm, phone push, FTP/Email upload;
- Filters out stationary targets to prevent false alarms; customisable arming schedule and custom uploaded alarm sounds;
- Remote viewing and playback anytime, anywhere from a phone APP or computer, two-way voice intercom;
- Supports cloud storage service with encrypted transmission and storage; evidence is not lost even if the device is destroyed; secure and convenient;
- Plugin-free HTML5 access from multiple browsers, good compatibility with Windows/Linux/Mac;
- Supports PTZ or motorised lens control, transparent sending of all Pelco commands (patrol, tracking, reset, lens learning, etc.);
- Supports ONVIF and GB28181 protocols, compatible with most third-party NVRs and management platforms on the market;
- Network protocols HTTP/RTSP/RTMP/FTP/SMTP/DHCP/NTP/DST/RTMP/P2P/HiK, etc.;
- Supports audio input/output; the onboard amplifier can drive a speaker directly;
- Service hotline: 400-855-1700
| Product name | MT-A55 |
|---|---|
| System structure | Embedded Linux, ARM 1GHz Soc, 1G DDR3, 16MB flash ROM |
| Imaging device | 1/3″ 5MP CMOS |
| Compression standard | H264/H265/H265+ |
| Electronic shutter | Auto, 1/10—1/10000 s |
| Digital noise reduction | Supports 2D/3D digital noise reduction |
| WDR | Supports DWDR |
| Encoding mode | H264/H265/H265+ |
| Bit rate | Adjustable 512 Kbps-8Mbps |
| Main stream | 25fps@5MP(2880x1620)/4MP(2560x1440)/(1920x1920)/3MP(2304x1296)/1080P/；720P |
| Sub stream | 25fps@800x448/704x576(D1)/640x480(VGA)/640x360(360P)/352x288(CIF) |
| Audio encoding | G711U, G711A, AAC supported; noise reduction |
| Audio interface | 1 input (Mic/Line) / 1 output supported (amplifier output 2W) |
| Light-sensor control | Software light sensing / hardware light sensor |
| Light mode | 2 PWM outputs; auto/dual-light/IR/full-colour modes supported |
| Alarm interface | Supports 1 red-blue light control interface |
| IR-CUT | 1 IR-CUT driver, typical 12V 40Ω |
| Reset function | 1 ch hardware reset supported; reset also possible with the software tool |
| OSD overlay | Supports channel name, time and date, custom title, multi-line OSD overlay |
| Privacy masking | Supports 4 areas |
| Smart detection | Motion detection, human detection, vehicle detection, non-motor vehicle detection (stationary targets can be filtered out) |
| Linked alarm | Arming with linked sound and light alarm, snapshot and recording, mobile push, red-blue light alarm output, frame flashing, FTP, Email; custom uploaded alarm sounds supported |
| Zoom and PTZ | Supports motorised lens control and PTZ control, supports transparent sending of preset commands |
| Network protocols | HTTP/RTSP/RTMP/FTP/SMTP/DHCP/NTP/DST/RTMP/P2P/HiK/GB28181 (optional) |
| ONVIF | ONVIF supported, compatible with most third-party NVRs on the market |
| Multiple browsers | Compatible with Firefox, Chrome, Edge, Safari, 360 and other browsers (Windows/Linux/Mac) |
| P2P cloud service | Supports remote P2P from mobile phones, supports cloud storage |
| Wired network port | 1 × RJ-45, 10/100Mbps auto-sensing |
| Operating conditions | Power input 12 VDC ± 10%, -30℃~60℃, 10~90RH; service hotline: 400-855-1700 |

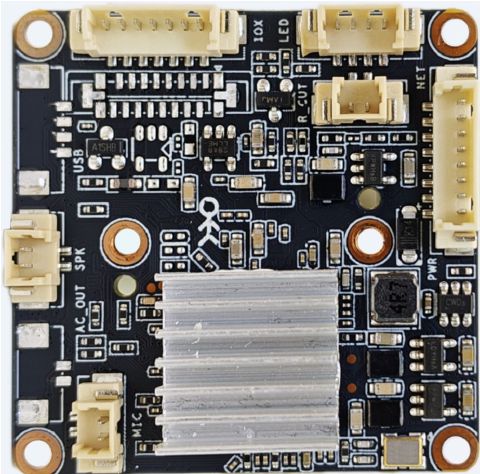

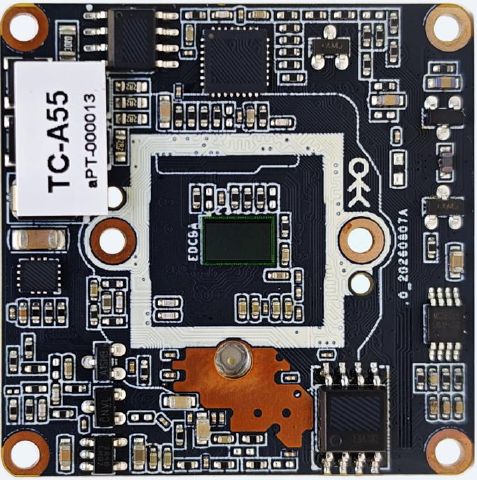

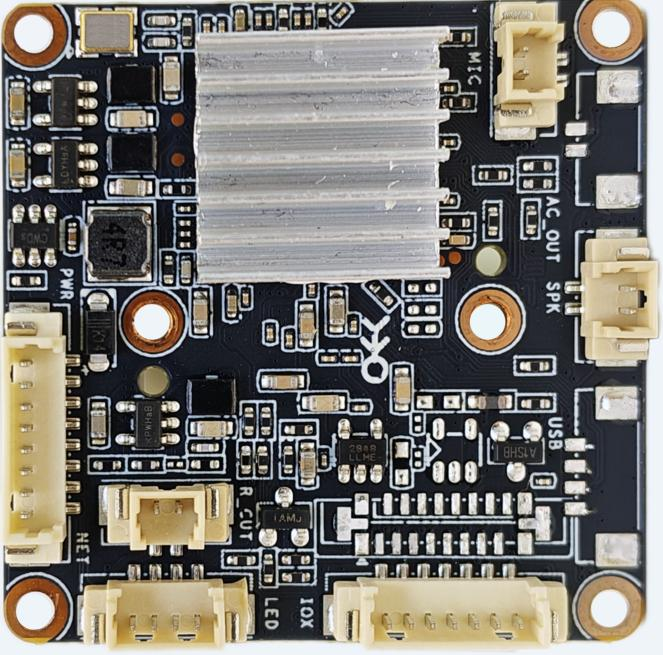

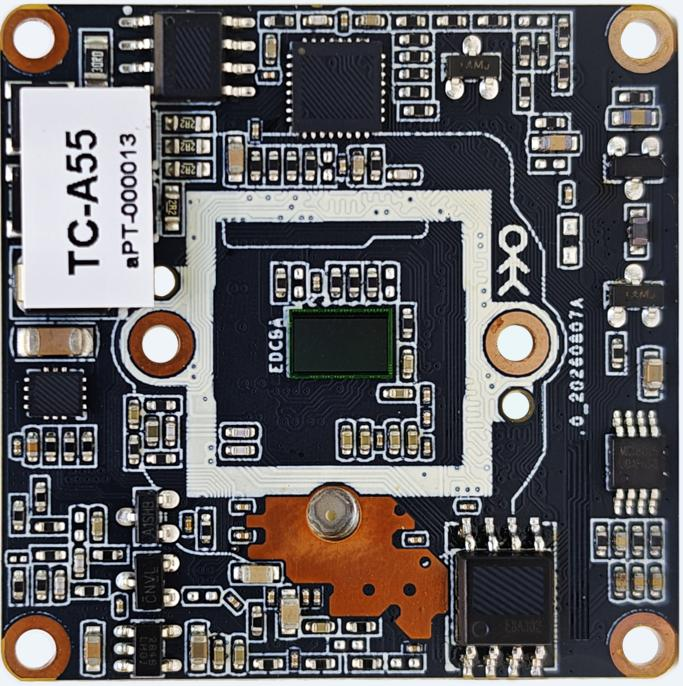

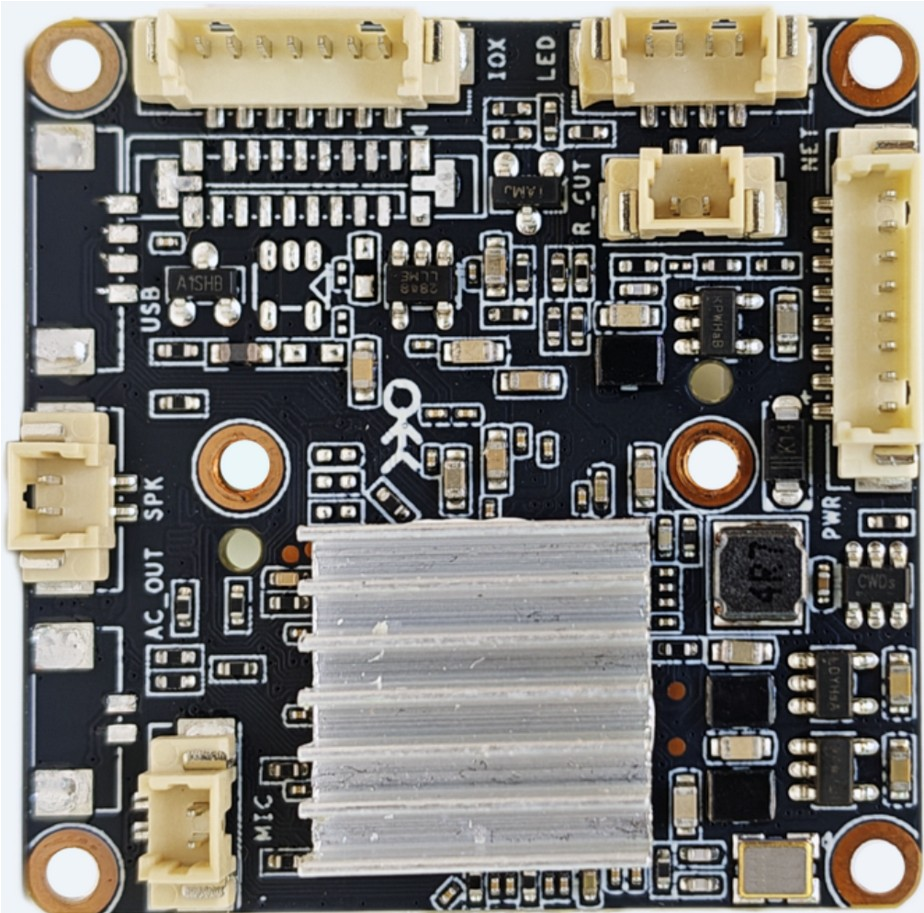

Photos
Files

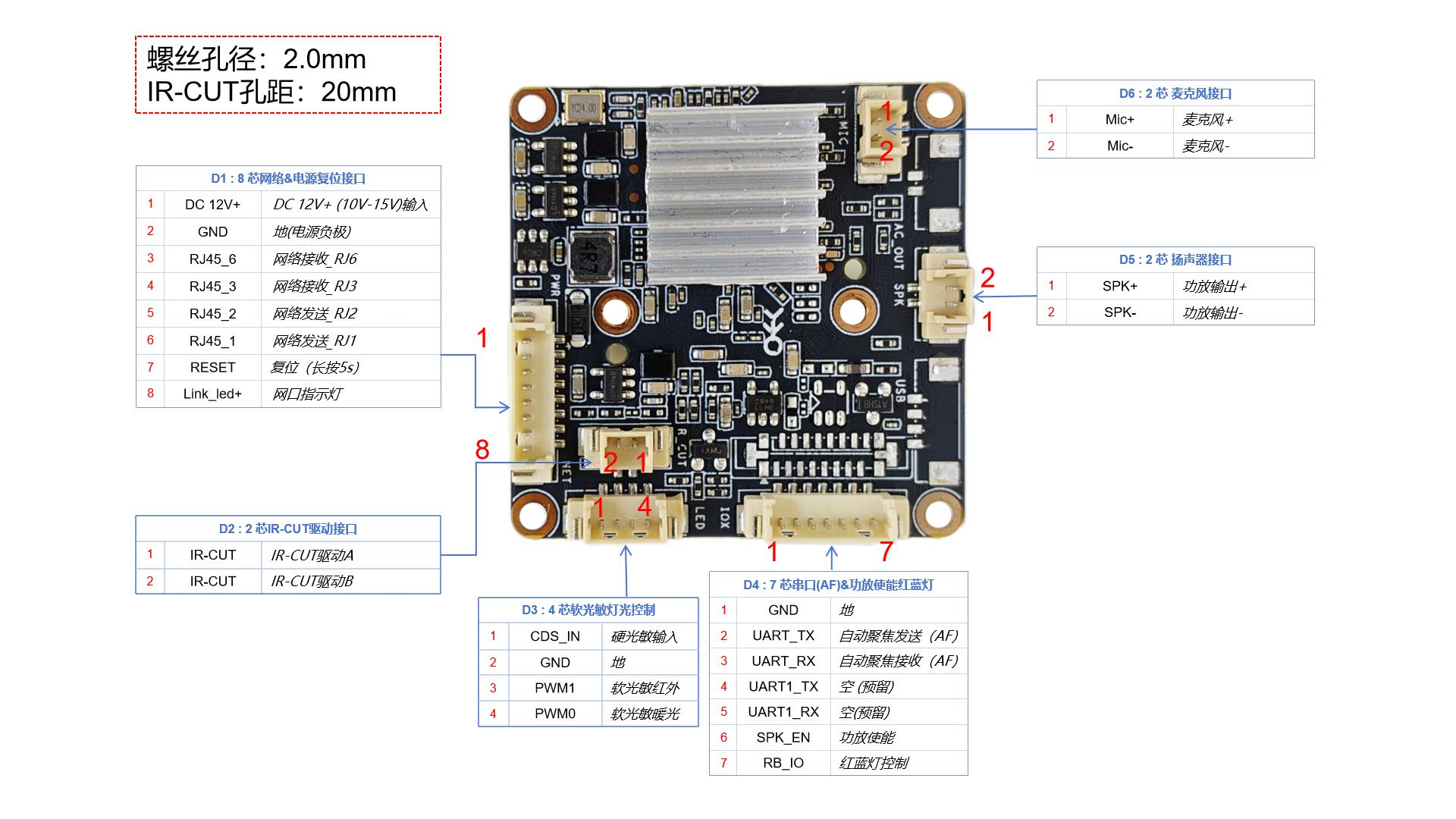

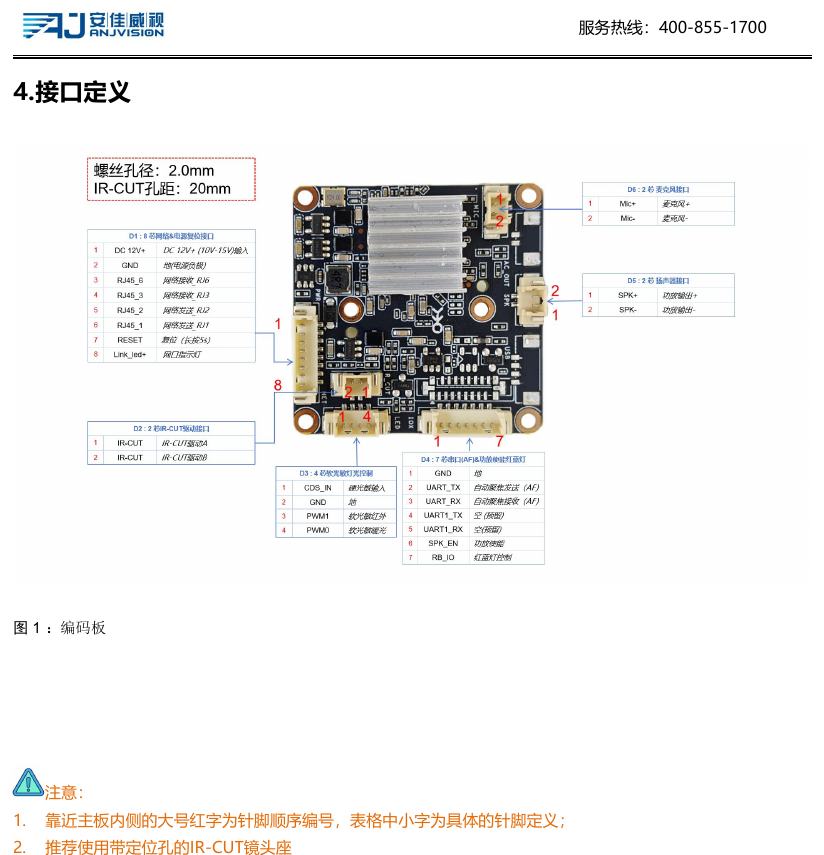

- TC-A55-pinout-1.png (pinout, 276 KB)

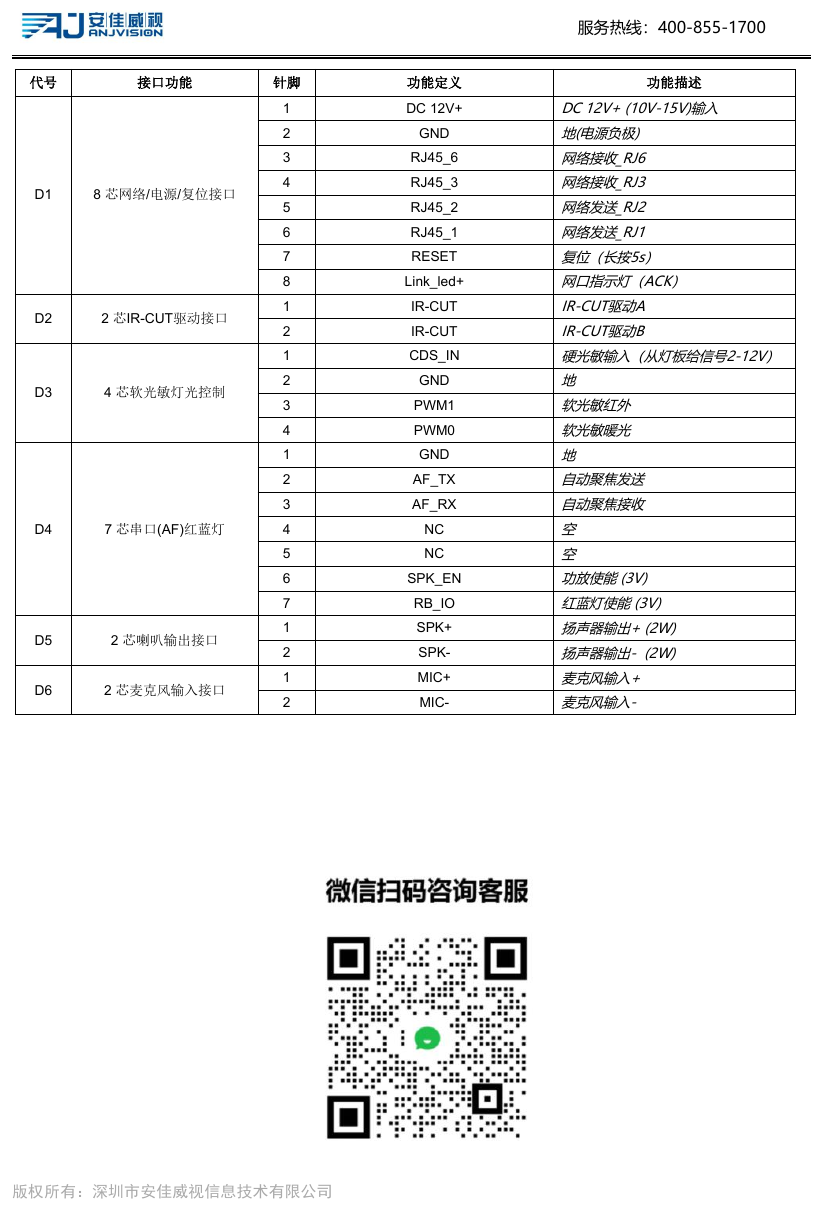

- TC-A55-pinout-2.png (pinout, 195 KB)
- TC-A55-spec-sheet-zh.pdf (document, 826 KB)
