XC-Z40
IP camera module
- Maker:
- Anjoy Vision
- Sensor:
- GC4653
- Listed:
- 2024
Anjoy Vision
4MP starlight dual-light module
Features
- 1/3-inch 4MP black-light CMOS sensor;
- Svac, H.265 encoding supported;
- Two lighting control signals supported: PWM IR, PWM white light;
- Supports software light sensing: full-colour mode, IR mode;
- Supports image flip
- Supports two-way audio, voice announcements, custom voice
- Onvif supported;
- Supports character overlay
- IP address filtering;
- POE expansion supported;
| Model | XC-Z40 |
|---|---|
| SoC | VC0728 |
| Image sensor | 4MP, 1/3" CMOS GC4653 |
| Video processing | Svac, H.265 video encoding; bitrate adjustable 0.1M~6Mpbs; frame rate adjustable 1~30 fps; |
| Image output | Main stream: 30FPS@(2560×1440, 2304×1296, 1920×1080, 1280×720); sub stream: 720×480, D1, VGA, 640×360; |
| Audio interface | Audio: 1 ch line input, 2 ch output (1 ch active, 1 ch SPK 8Ω2W); |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/manual/scheduled mode |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| TF card interface | External TF card expansion, up to 512G |
| LED board interface | PWM IR, PWM warm light; |
| IO interface | Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5 |
| Functions | Supports OSD, occlusion alarm, video loss, privacy masking; supports real-time audio and video transmission; |
| Network protocols | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols; |
| Power supply | DC12V power input interface, 150mA |
| Operating conditions | -40~+85℃ |

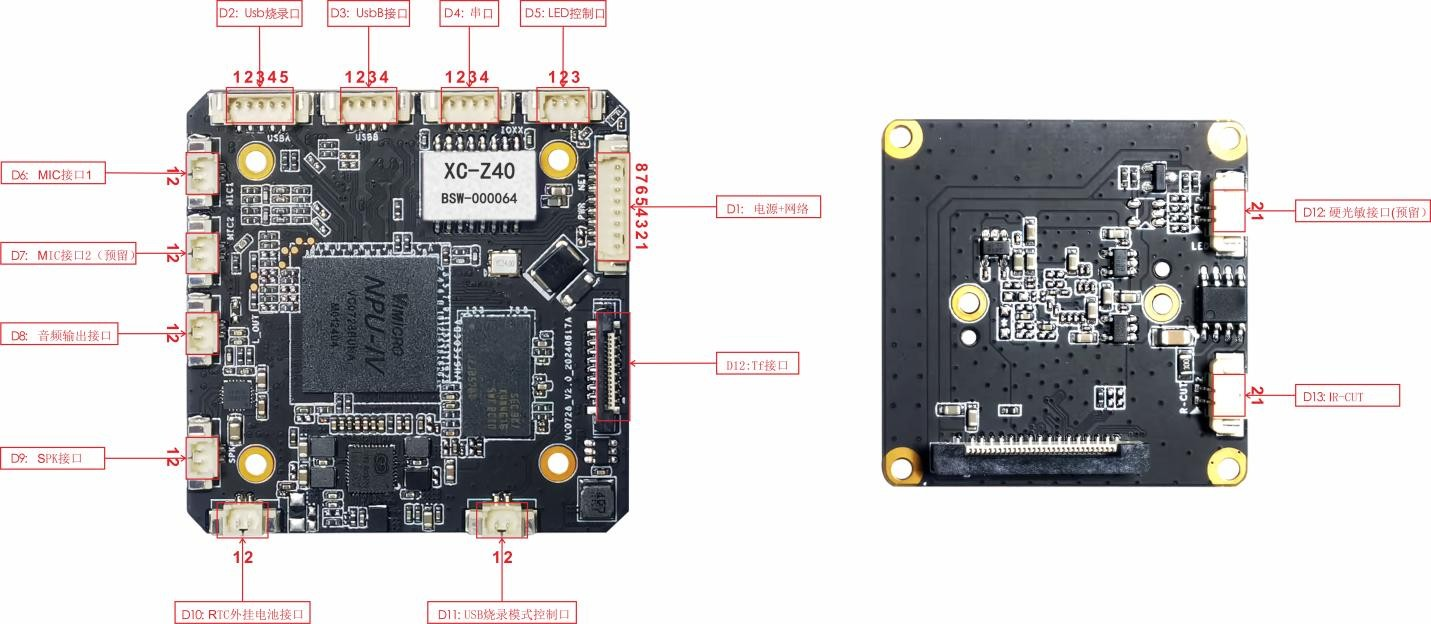

| Dimensions | 38*38 mounting holes (sensor board 38*38 + mainboard 50*50) |
Photos
Files

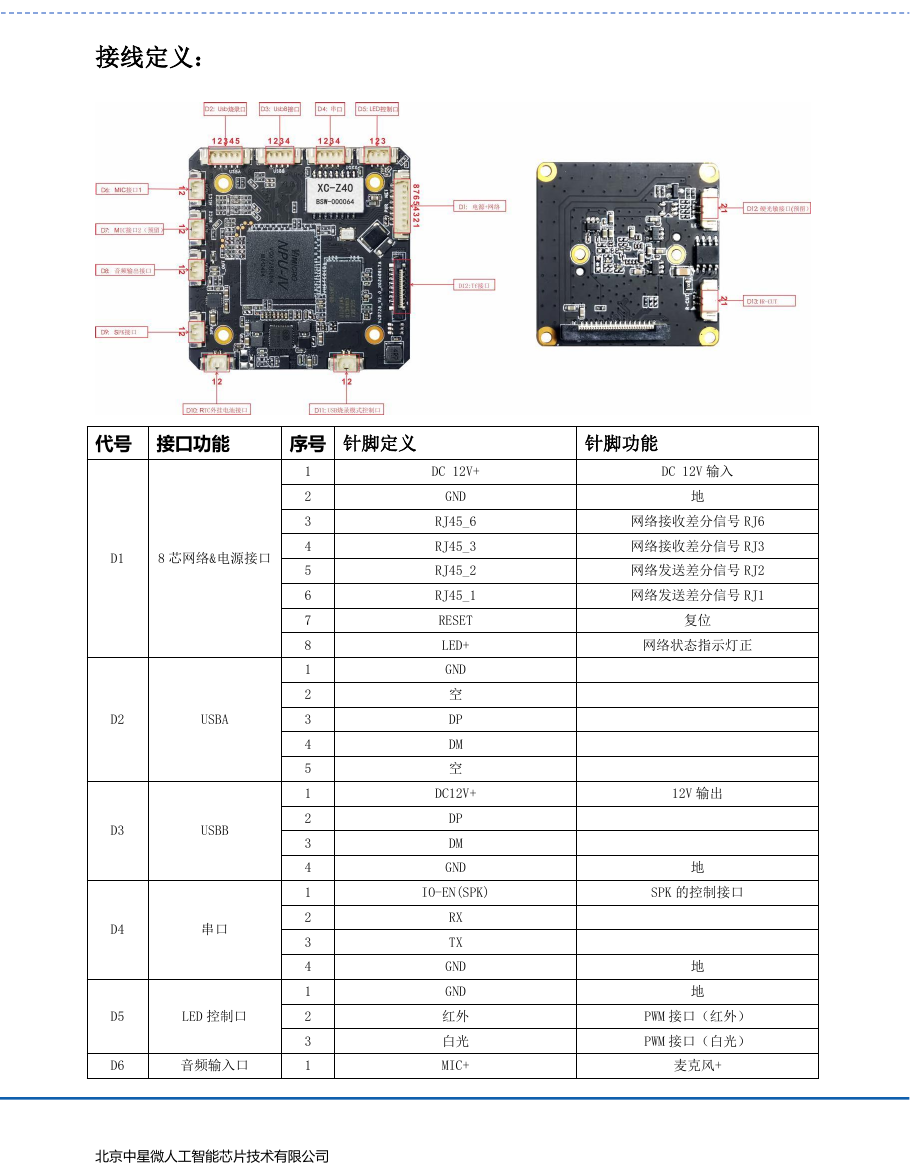

- XC-Z40-pinout-1.png (pinout, 283 KB)

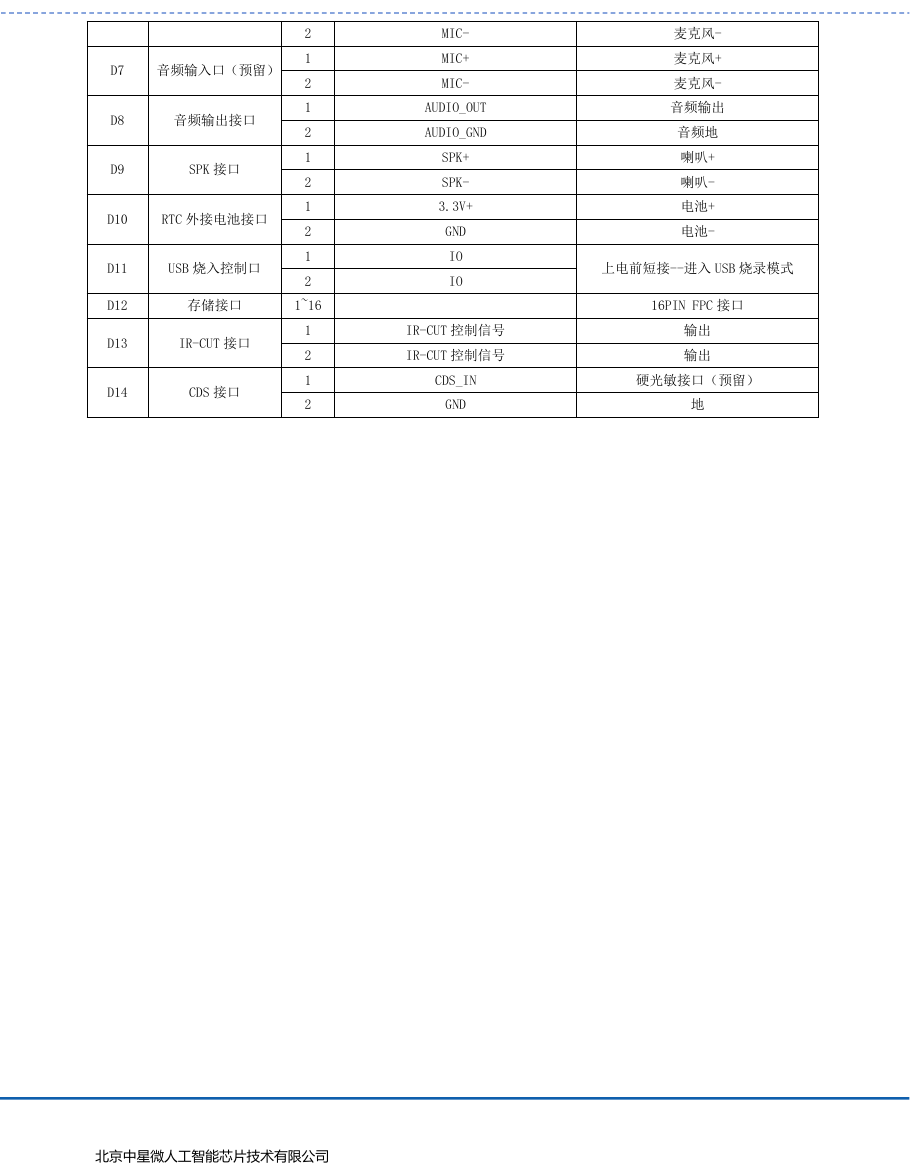

- XC-Z40-pinout-2.png (pinout, 59 KB)
