ZX-Z40
IP camera module
- Maker:
- Anjoy Vision
- Listed:
- 2026
Anjoy Vision
SVAC/H.265 network camera module
Features
- 4MP CMOS sensor
- SVAC2.0, H.265 encoding supported;
- Two lighting control signals supported: PWM IR, PWM white light;
- Supports software light sensing: full-colour mode, IR mode;
- Supports two-way audio, voice announcements, custom voice
- GB/T 28181, ONVIF, RTSP, GA/T 1400, China Unicom, China Telecom and other platform protocols supported
- Supports character overlay, image flip;
- IP address filtering, POE expansion supported;
- Onboard GM (Guomi) security chip; supports GM cryptographic algorithms
- Built-in NPU (Neural Network Processor), 2Tops compute (INT8)
| Item | Detailed parameters |
|---|---|
| SoC | VC0728BUNA (BGA package) |
| Image sensor | 1/3” 4MP CMOS sensor |
| NPU compute | 2Tops （INT8） |
| Video processing | SVAC2.0, H.265 video encoding; bitrate adjustable 0.1M~6Mpbs; |
| Image output | Main stream: 30FPS@(2560×1440, 2304×1296, 1920×1080, |
| Audio interface | Audio: 1 ch line input, 2 ch output (1 ch active, 1 ch SPK 8Ω2W); |
| Audio processing | G.711 encoding; two-way voice intercom; audio-video synchronisation; |
| IR-CUT interface | Integrated IR-CUT switching circuit; automatic/manual/scheduled control of IRCUT day/night mode |
| Network interface | 1 × RJ45 Ethernet interface, 10/100M auto-negotiating; |
| TF card interface | External TF card expansion, up to 512G |
| LED board interface | PWM IR, PWM warm light; |
| IO interface | Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware |
| Reliability | Full lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4- |
| Functions | Supports OSD, occlusion alarm, video loss, privacy masking; supports real-time audio and video transmission; |
| Network protocols | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, |
| Algorithm (optional) | Line-crossing/human/face detection and capture/video structuring algorithm switching |
| Data security (optional) | Onboard GM (Guomi) security chip; supports GM cryptographic algorithms; meets GB 35114 and GM certification requirements |
| Image sensor (optional) | Standard configuration: 4MP, 1/3" CMOS GC4653 |
| Power supply | DC12V power input interface, 150mA |
| Operating conditions | -40~+85℃ |
| Dimensions | 38*38 mounting holes (sensor board 38*38 + mainboard 50*50) |

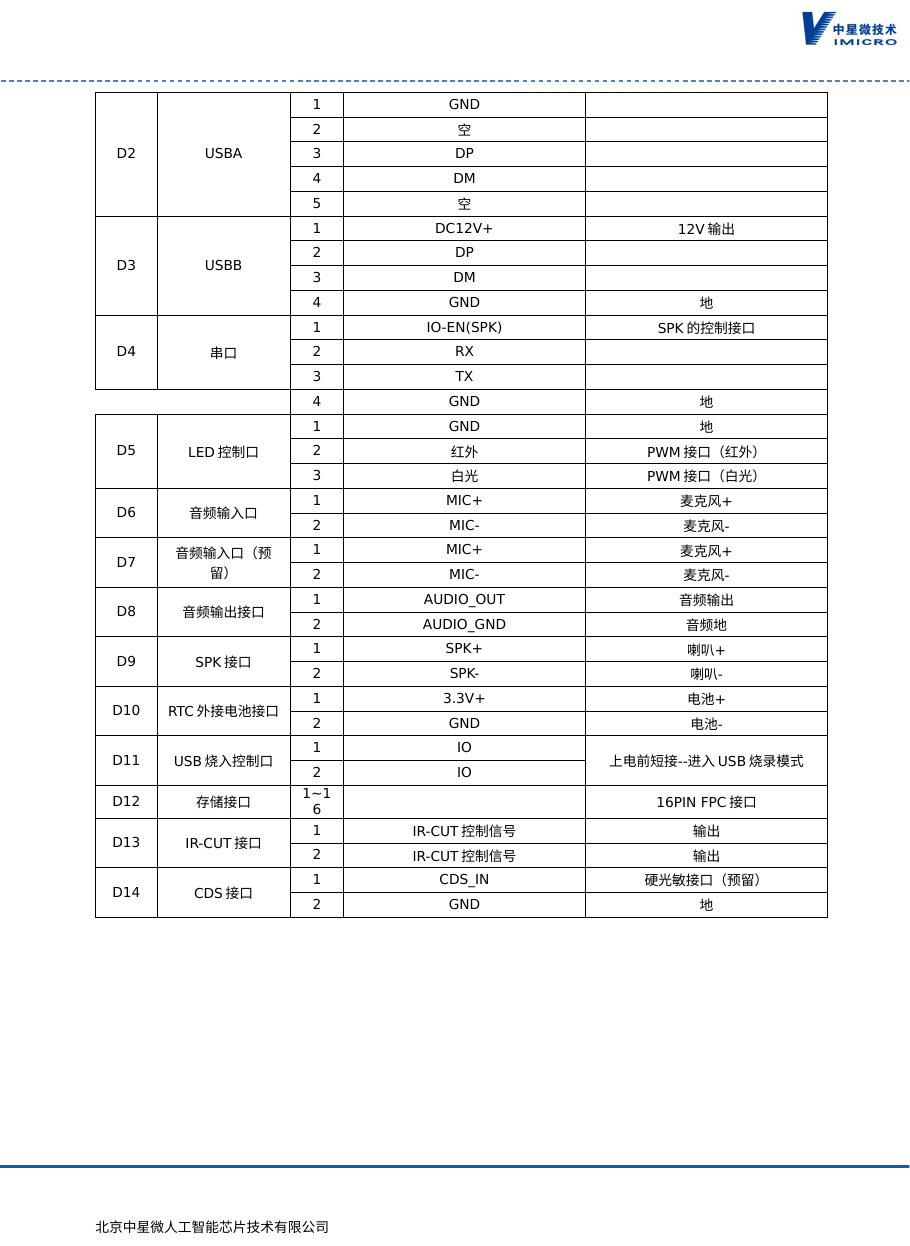

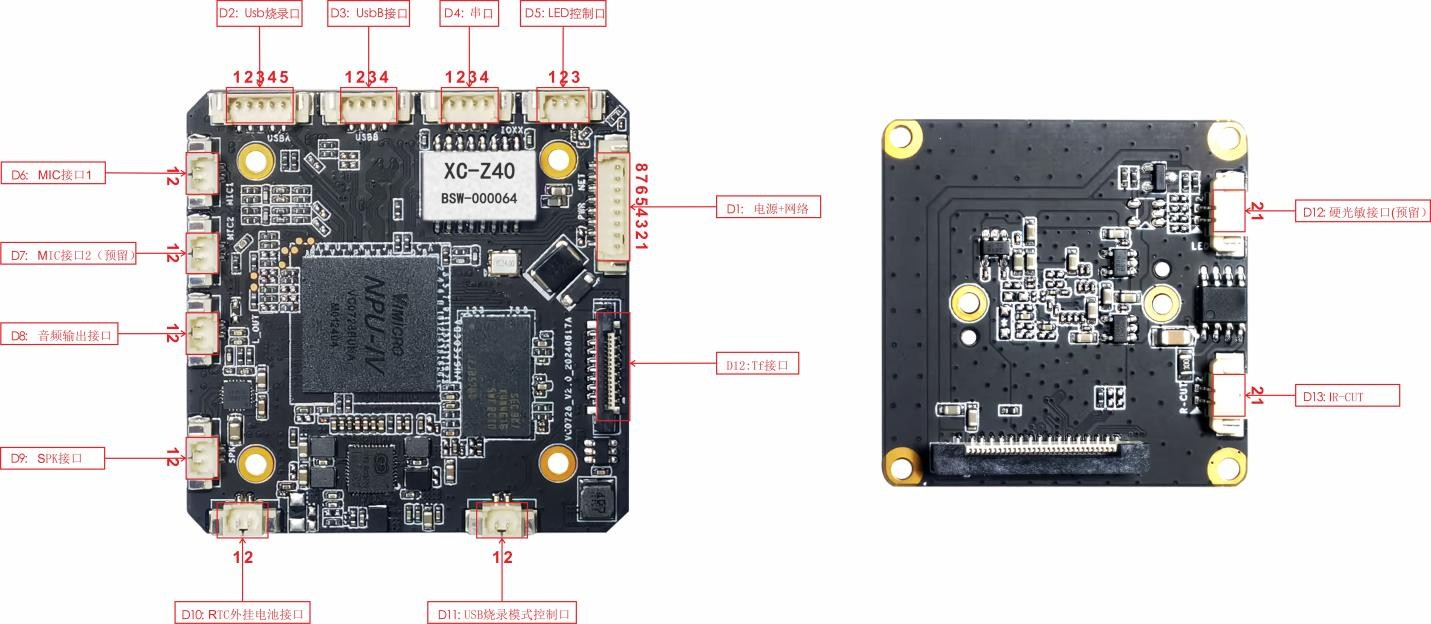

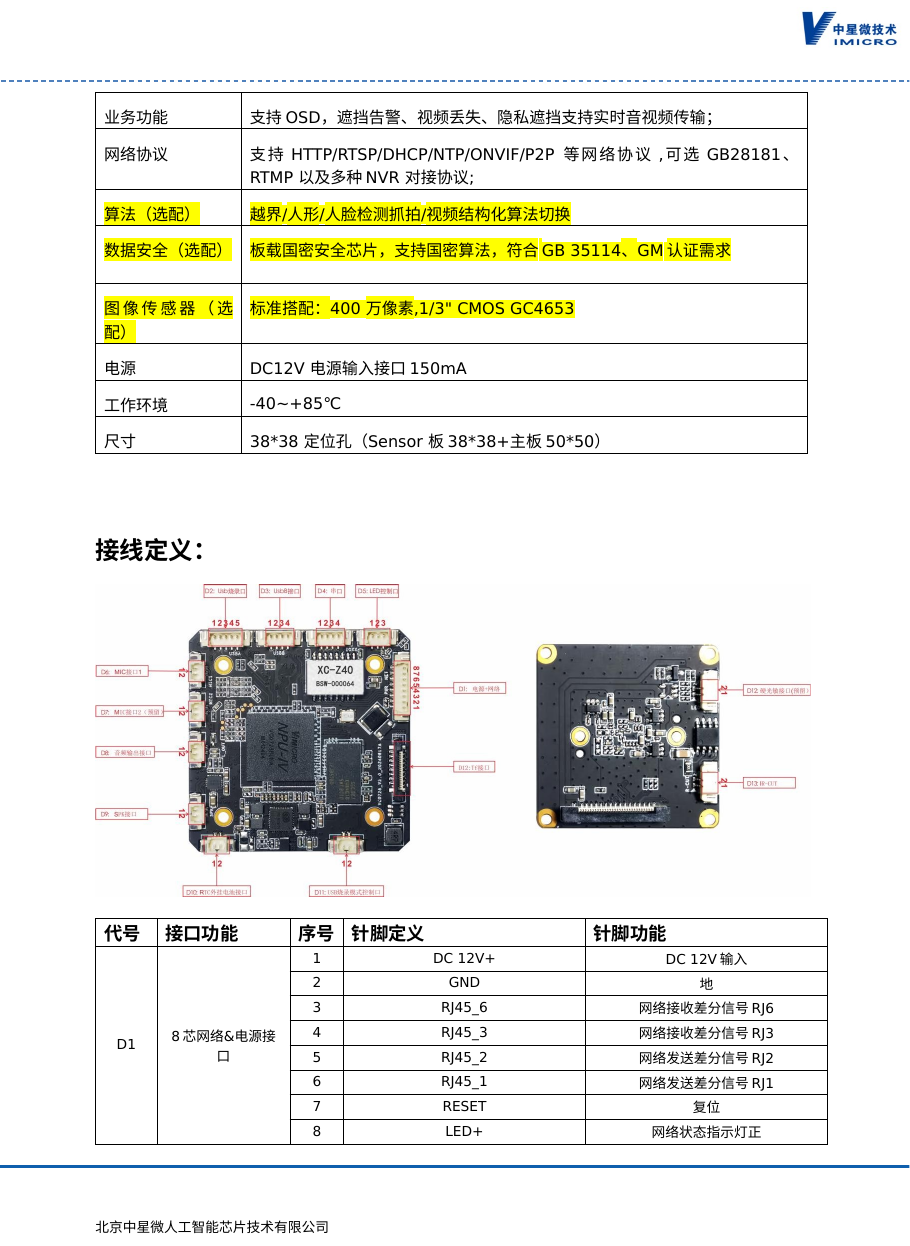

| No. Pin definition | Pin function |
| DC 12V+ | DC 12V input |
| GND | Ground |
| RJ45_6 | Network receive differential signal RJ6 |
| RJ45_3 | Network receive differential signal RJ3 |
| RJ45_2 | Network transmit differential signal RJ2 |
| RJ45_1 | Network transmit differential signal RJ1 |
| RESET | Reset |
| LED+ | Network status indicator LED (positive) |
| 1 | GND |
| 3 | DP |
| 4 | DM |
| DC12V+ | 12V output |
| 2 | DP |
| D3 | USBB |
| 3 | DM |
| IO-EN(SPK) | Control interface for SPK |
| 2 | RX |
| 3 | TX |
| IR | PWM interface (IR) |
| White light | PWM interface (white light) |
| MIC+ | Microphone + |
| D6 | Audio input |
| MIC- | Microphone - |
| AUDIO_OUT | Audio output |
| D8 | Audio output interface |
| AUDIO_GND | Audio ground |
| SPK+ | Speaker + |
| D9 | SPK interface |
| SPK- | Speaker - |
| 3.3V+ | Battery + |
| D10 | RTC external battery interface |
| GND | Battery - |
| 1 | IO |
| USB flashing control port | Short before power-on to enter USB flashing mode |
| 2 | IO |
| 6 | 16PIN FPC interface |
| IR-CUT control signal | Output |
| D13 | IR-CUT interface |
| CDS_IN | Hardware light sensor interface (reserved) |
| D14 | CDS interface |

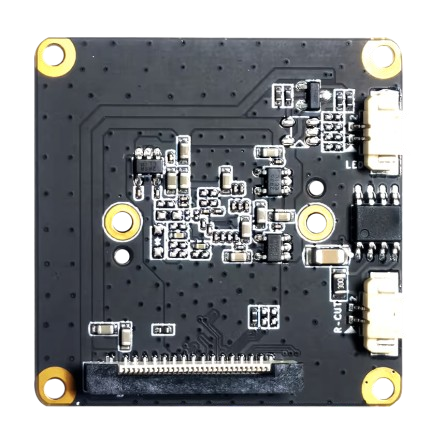

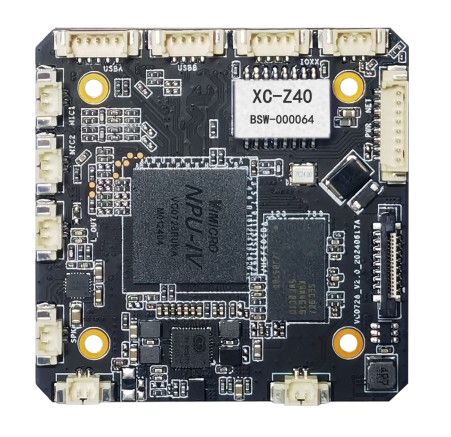

Photos
