HX4201S-1080M7-CAT1H-MF-B
2MP HD Integrated camera module · 4G Camera Module
- Maker:
- Haixin Weishi
- SoC:
- GK7201V200
- Sensor:
- SC2336P
- Listed:
- 2025
Haixin Weishi
2MP HD Integrated camera module
The 2MP Low lux HD integrated camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.264 and H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support standard ONVIF protocol, RTSP, support uploading alarm images to FTP server, sending alarm images to E-Mail, and remote monitoring with mobile phones.
Features
- High sensitivity, high S/N CMOS image sensor
- Using HK7201V200
- The highest pixel can reach 200W, and the highest resolution can reach (1920x1080)
- Default is H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support
- mobile phone monitoring
- Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，FTP，DHCP，DNS，
- DDNS，NTP，UPNP，RTSP and so on.
- Support ONVIF protocol
- Support sending alarm images via email
- Support uploading alarm pictures and alarm videos to FTP server
- Support timed capture of images to FTP server
- Support both static IP and dynamic IP (DHCP)
- with a built-in amplifier chip, it can be connected to speaker directly
- Support IE, Google, and Firefox browsers
- Support up to 6 users browsing simultaneously (3 users per stream)
- Provide motion detection alarm function (area, sensitivity can be set)
- Support Micro SD card, max 128GB Micro SD card
- Support mobile phone downloading and playback SD card recordings
| Main processor | GK7201V200 |
|---|---|
| Image sensor | 1/3”CMOS sensor |
| IR-cut | support |
| Video compression | Support H.265, H.264 High Profile,H.264 Main Profile and H.264 Baseline |
| Audio compression | G.726/G.711 |
| Maximum image size | 200W(1920x1080) |
| Main stream | 200W（1920x1080） |
| Sub stream | 640x352 |
| Frame rate | 200W 20fps(50HZ), 20fps(60HZ) |
| Motion detection | 4 independent detection areas can be set (sensitivity 1-100 can be set) |
| ONVIF | Support ONVIF 2.4 protocol |
| Size | 38x54x9mm (length, width and height) |
| Temperature and humidity | 0℃～+50℃ 10%～95%RH |
| Power supply | DC12V 2A |
| Power consumption | 1.5W |
| PCB marking | AIO_7201V2_2336P_4G_1.0 |
| Sensor (from the PCB marking) | SC2336P |

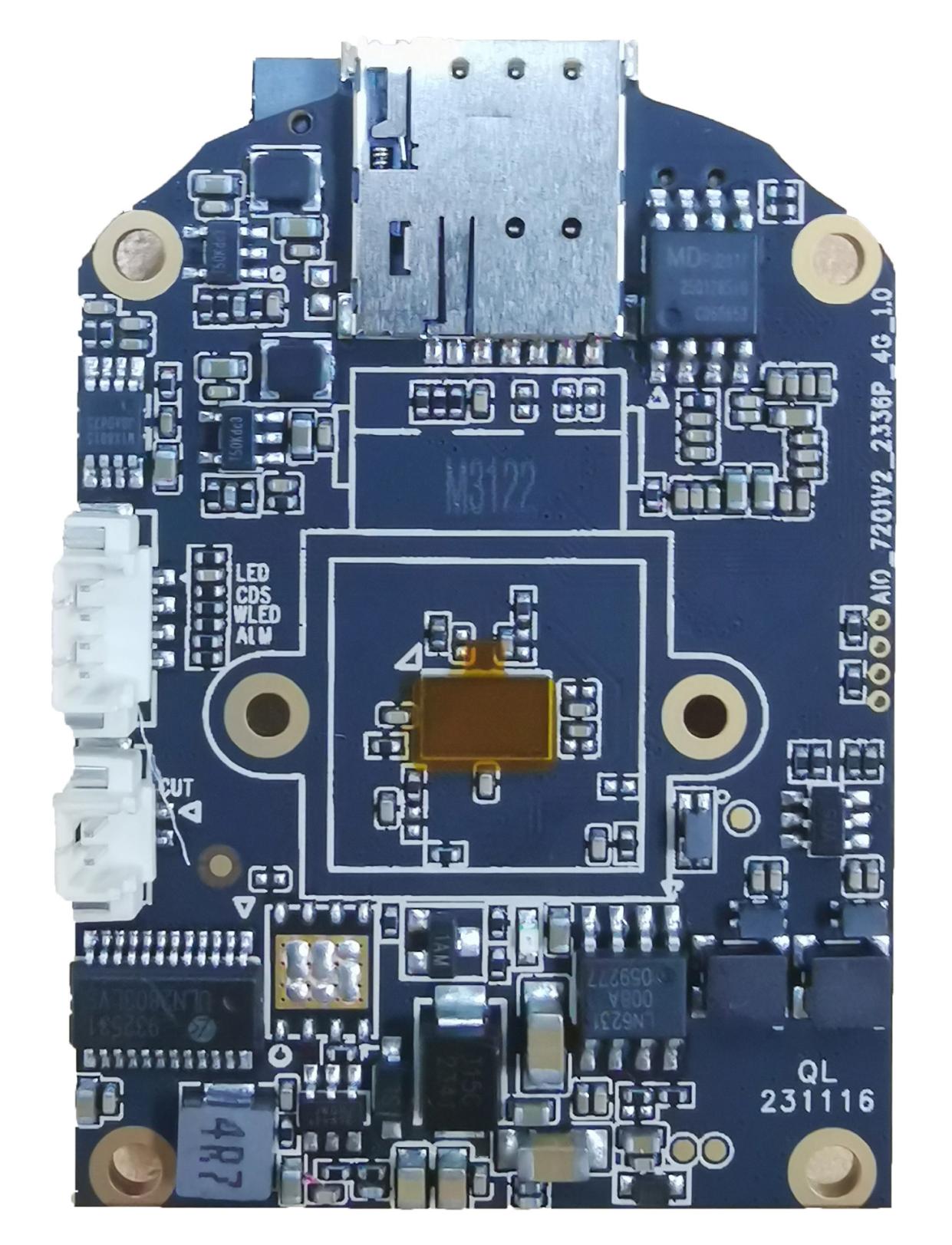

Photos
Files
- catalogue_camhi_20260409.pdf (document, 2.2 MB)
