HX4201SW9-1080Y2CA-MF-B
2MP Dual Camera Module · Dual-Lens Camera Module
- Maker:
- Haixin Weishi
- SoC:
- GK7201V200
- Listed:
- 2025
Haixin Weishi
2MP Dual Camera Module
The 2MP Dual camera module adopts a highly integrated SOC processor, with extremely low power consumption and super stability; Support H.265 compression algorithm, effectively reduce network bandwidth usage while ensuring image quality; Powerful network capabilities, support remote monitoring with mobile phones.
Features
- High sensitivity, high S/N CMOS image sensor
- Using GK7201V200
- The highest pixel can reach 200W, and the highest resolution can reach 1080P (1920x1080)
- H265 compression algorithm, effectively reduces network bandwidth, support dual stream, and support mobile
- phone monitoring
- Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP, DHCP, DNS, DDNS, NTP, RTSP, etc.
- Support alarm recordings to TF card
- Support uploading alarm recordings to cloud (requires to purchase a cloud storage package)
- Support both static IP and dynamic IP (DHCP)
- Support up to 6 users browsing simultaneously (3 users per stream)
- Provide motion detection alarm function (area, sensitivity can be set)
- Support Micro SD card, max 128GB Micro SD card
- Support mobile phone downloading and playback SD card recordings
| Main processor | GK7201V200 |
|---|---|
| Image sensor | Two 1/3”CMOS sensor |
| IR-cut | support |
| Video compression | Support H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
| Audio compression | G.726/G.711 |
| Maximum image size | 1080P(1920x1080) |
| Main stream | 2CH 1080P(1920x1080) |
| Sub stream | 2CH 640x360 |
| Frame rate | 1080P 15fps(50HZ), 15fps(60HZ) |
| Motion detection | 1 independent detection areas can be set (sensitivity 1-100 can be set) |
| Wi-Fi | WiFi 802.11b/g/n wireless network interface |
| Size | 38x38x5.6 mm and 38x11.5x56 mm (length, width and height) |
| Temperature and humidity | 0℃～+50℃ 10%～95%RH |
| Power supply | DC12V 2A |
| Power consumption | 1.6W |

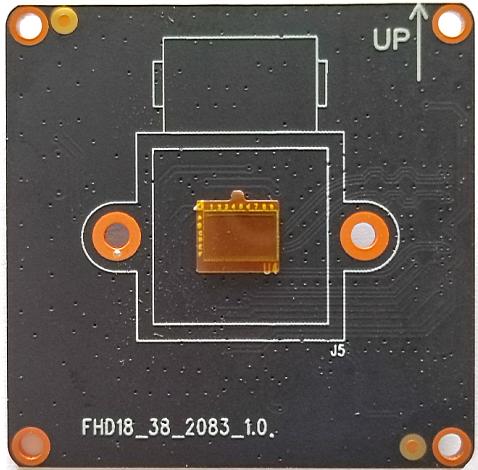

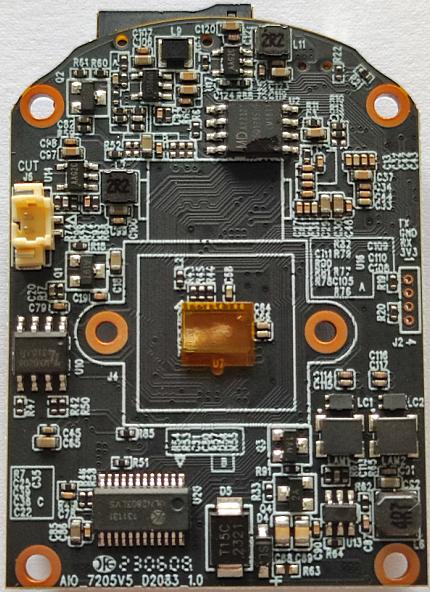

| PCB marking | AIO_7205V5_D2083_1.0, FHD18_38_2083_1.0 |
